This document provides information about a high resolution infrared dome camera. It has a 1/3" Sony CCD image sensor, 520 TVL resolution, and can capture images down to 0.3 lux or in complete darkness using its 24 LED infrared illuminators with a range of 20 meters. The camera has features like auto white balance, auto gain control, backlight compensation, and outputs composite video at 1.0V P-P. It is CE and FCC certified.
Dh dms26 n2

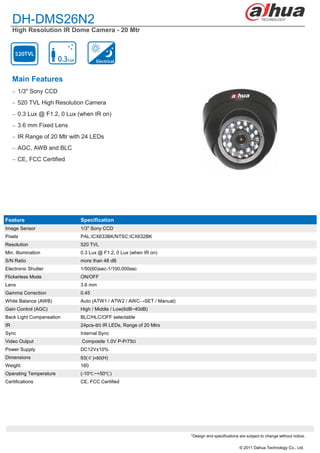

- 1. DH-DMS26N2 High Resolution IR Dome Camera - 20 Mtr Main Features 1/3" Sony CCD 520 TVL High Resolution Camera 0.3 Lux @ F1.2, 0 Lux (when IR on) 3.6 mm Fixed Lens IR Range of 20 Mtr with 24 LEDs AGC, AWB and BLC CE, FCC Certified Feature Specification Image Sensor 1/3" Sony CCD Pixels PAL:ICX633BK/NTSC:ICX632BK Resolution 520 TVL Min. Illumination 0.3 Lux @ F1.2, 0 Lux (when IR on) S/N Ratio more than 48 dB Electronic Shutter 1/50(60)sec-1/100,000sec Flickerless Mode ON/OFF Lens 3.6 mm Gamma Correction 0.45 White Balance (AWB) Auto (ATW1 / ATW2 / AWC→SET / Manual) Gain Control (AGC) High / Middle / Low(6dB~40dB) Back Light Compensation BLC/HLC/OFF selectable IR 24pcs-Φ5 IR LEDs, Range of 20 Mtrs Sync Internal Sync Video Output Composite 1.0V P-P/75Ω Power Supply DC12V±10% Dimensions 93(￠)×80(H) Weight 160 Operating Temperature (-10℃ ~+50℃ ) Certifications CE, FCC Certified *Design and specifications are subject to change without notice. © 2011 Dahua Technology Co., Ltd.
