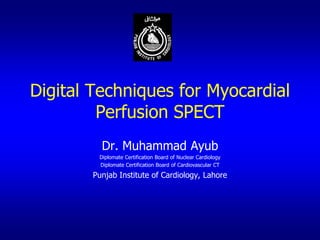

- 1. Digital Techniques for Myocardial Perfusion SPECT Dr. Muhammad Ayub Diplomate Certification Board of Nuclear Cardiology Diplomate Certification Board of Cardiovascular CT Punjab Institute of Cardiology, Lahore
- 2. SINGLE PHOTON EMISSION COMPUTED TOMOGRAPHY A Modern SPECT Gamma Camera

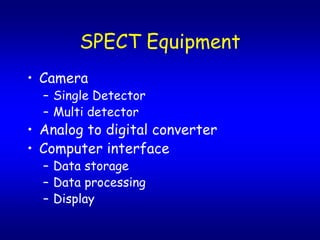

- 3. SPECT Equipment ? Camera C Single Detector C Multi detector ? Analog to digital converter ? Computer interface C Data storage C Data processing C Display

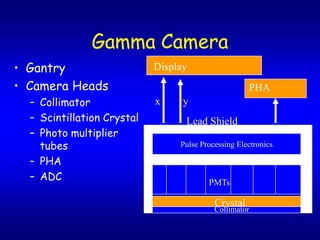

- 4. Gamma Camera ? Gantry Display ? Camera Heads PHA C Collimator x y C Scintillation Crystal Lead Shield C Photo multiplier tubes Pulse Processing Electronics C PHA C ADC PMTs Crystal Collimator

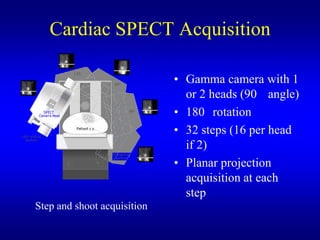

- 5. Cardiac SPECT Acquisition ? Gamma camera with 1 or 2 heads (90 angle) ? 180 rotation ? 32 steps (16 per head if 2) ? Planar projection acquisition at each step Step and shoot acquisition

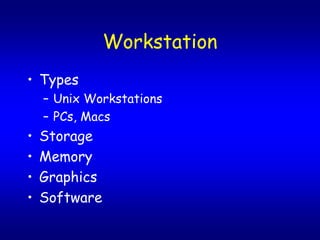

- 6. Workstation ? Types C Unix Workstations C PCs, Macs ? Storage ? Memory ? Graphics ? Software

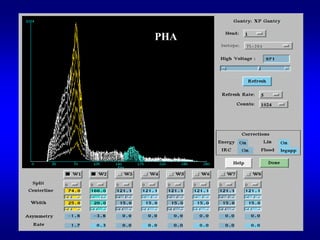

- 7. PHA

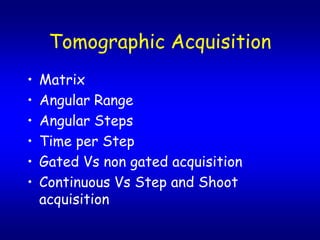

- 8. Tomographic Acquisition ? Matrix ? Angular Range ? Angular Steps ? Time per Step ? Gated Vs non gated acquisition ? Continuous Vs Step and Shoot acquisition

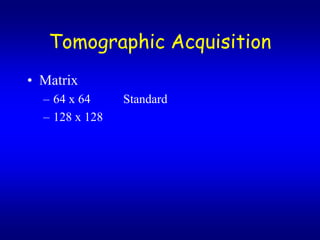

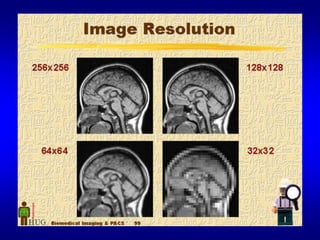

- 9. Tomographic Acquisition ? Matrix C 64 x 64 Standard C 128 x 128

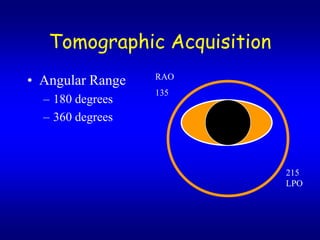

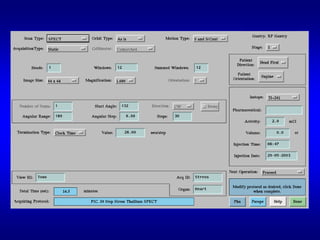

- 12. Tomographic Acquisition ? Angular Range RAO 135 C 180 degrees C 360 degrees 215 LPO

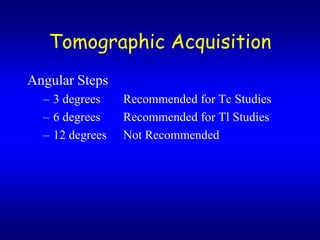

- 13. Tomographic Acquisition Angular Steps C 3 degrees Recommended for Tc Studies C 6 degrees Recommended for Tl Studies C 12 degrees Not Recommended

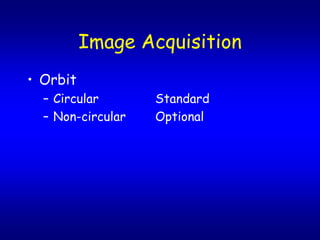

- 14. Image Acquisition ? Orbit C Circular Standard C Non-circular Optional

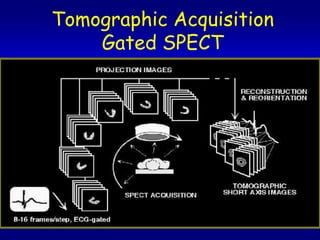

- 15. Tomographic Acquisition Gated SPECT

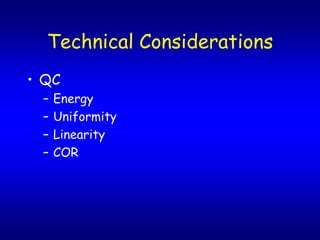

- 16. Technical Considerations ? QC C Energy C Uniformity C Linearity C COR

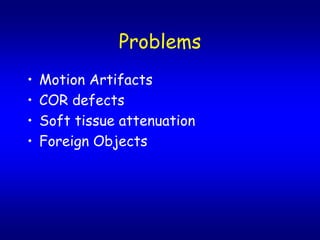

- 17. Problems ? Motion Artifacts ? COR defects ? Soft tissue attenuation ? Foreign Objects

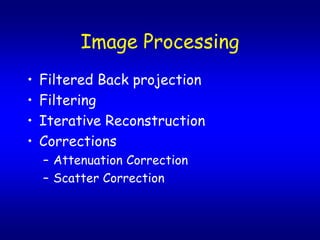

- 18. Image Processing ? Filtered Back projection ? Filtering ? Iterative Reconstruction ? Corrections C Attenuation Correction C Scatter Correction

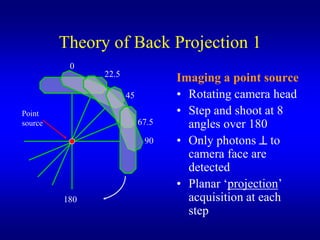

- 19. Theory of Back Projection 1 0 22.5 Imaging a point source 45 ? Rotating camera head Point ? Step and shoot at 8 source 67.5 angles over 180 90 ? Only photons ? to camera face are detected ? Planar ｀projection¨ 180 acquisition at each step

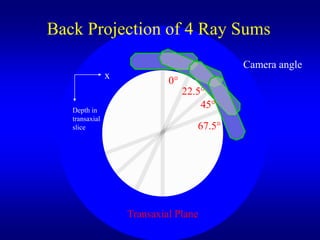

- 20. Back Projection of 4 Ray Sums Camera angle x 0＜ 22.5＜ Depth in 45＜ transaxial slice 67.5＜ Transaxial Plane

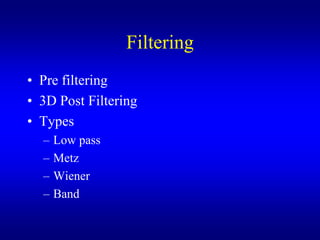

- 21. Filtering ? Pre filtering ? 3D Post Filtering ? Types C Low pass C Metz C Wiener C Band

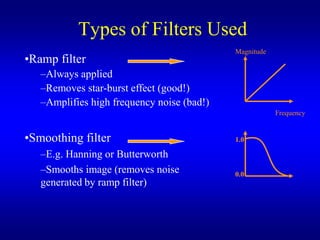

- 22. Types of Filters Used Magnitude ?Ramp filter CAlways applied CRemoves star-burst effect (good!) CAmplifies high frequency noise (bad!) Frequency ?Smoothing filter 1.0 CE.g. Hanning or Butterworth CSmooths image (removes noise 0.0 generated by ramp filter)

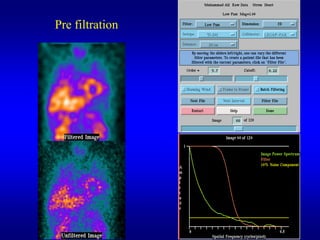

- 23. Pre filtration

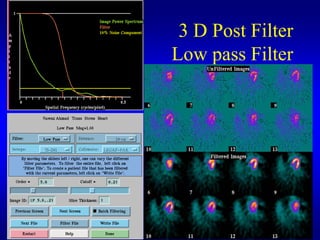

- 24. 3 D Post Filter Low pass Filter

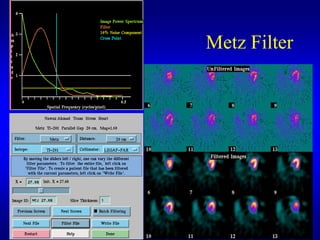

- 25. Metz Filter
- 26. Wiener Filter

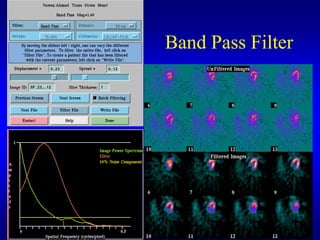

- 27. Band Pass Filter

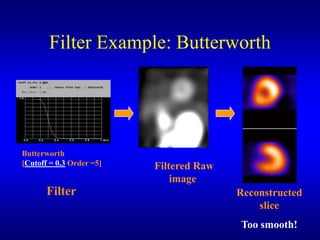

- 28. Filter Example: Butterworth Butterworth [Cutoff = 0.3 Order =5] Filtered Raw image Filter Reconstructed slice Too smooth!

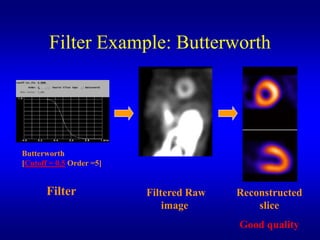

- 29. Filter Example: Butterworth Butterworth [Cutoff = 0.5 Order =5] Filter Filtered Raw Reconstructed image slice Good quality

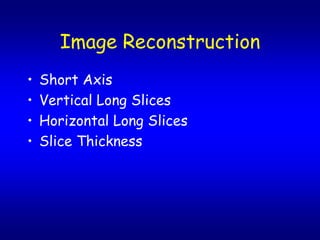

- 30. Image Reconstruction ? Short Axis ? Vertical Long Slices ? Horizontal Long Slices ? Slice Thickness

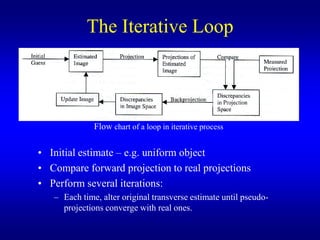

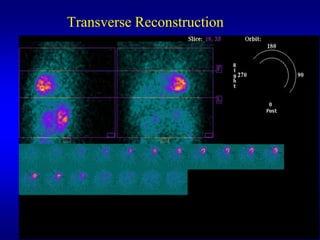

- 32. The Iterative Loop Flow chart of a loop in iterative process ? Initial estimate C e.g. uniform object ? Compare forward projection to real projections ? Perform several iterations: C Each time, alter original transverse estimate until pseudo- projections converge with real ones.

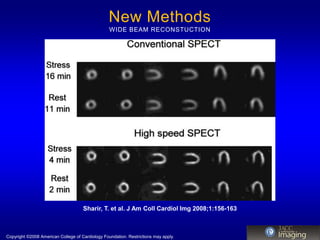

- 33. New Methods WIDE BEAM RECONSTUCTION Sharir, T. et al. J Am Coll Cardiol Img 2008;1:156-163 Copyright ?2008 American College of Cardiology Foundation. Restrictions may apply.

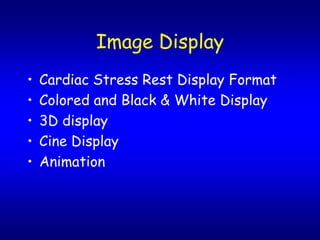

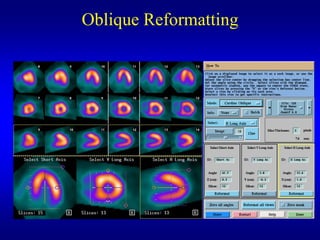

- 35. Image Display ? Cardiac Stress Rest Display Format ? Colored and Black & White Display ? 3D display ? Cine Display ? Animation

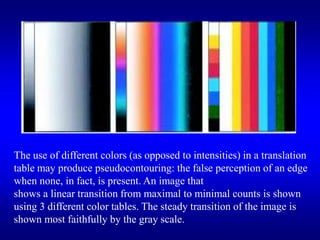

- 36. The use of different colors (as opposed to intensities) in a translation table may produce pseudocontouring: the false perception of an edge when none, in fact, is present. An image that shows a linear transition from maximal to minimal counts is shown using 3 different color tables. The steady transition of the image is shown most faithfully by the gray scale.

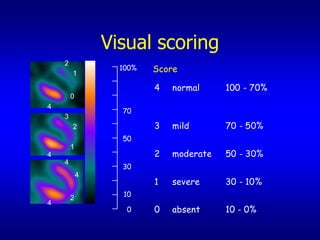

- 37. Visual scoring 2 1 100% Score 4 normal 100 - 70% 0 4 70 3 2 3 mild 70 - 50% 50 1 4 2 moderate 50 - 30% 4 30 4 1 severe 30 - 10% 2 10 4 0 0 absent 10 - 0%
- 38. Normal Scan

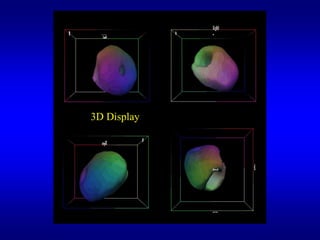

- 39. 3D Display

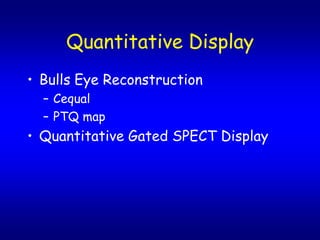

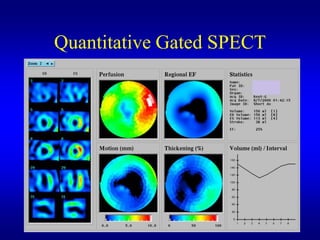

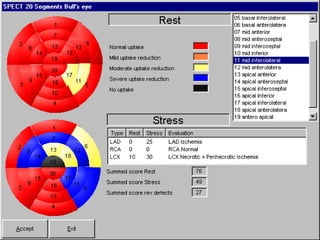

- 40. Quantitative Display ? Bulls Eye Reconstruction C Cequal C PTQ map ? Quantitative Gated SPECT Display

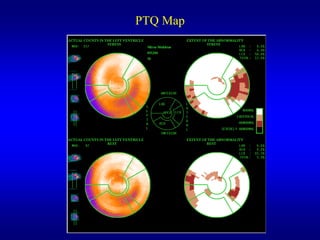

- 41. PTQ Map

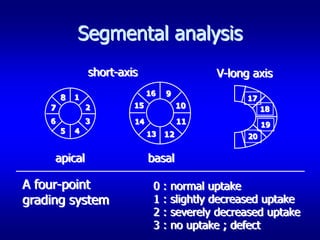

- 43. Segmental analysis short-axis V-long axis 16 9 8 1 17 7 2 15 10 18 6 3 14 11 19 5 4 13 12 20 apical basal A four-point 0 : normal uptake grading system 1 : slightly decreased uptake 2 : severely decreased uptake 3 : no uptake ; defect

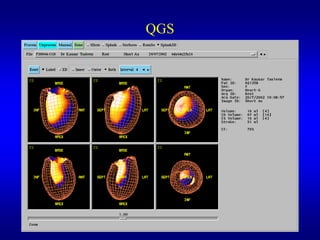

- 45. QGS
