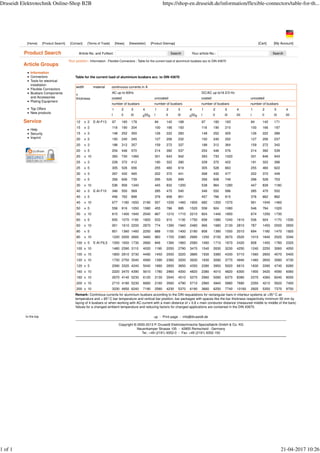

Table for the current load of aluminium busbars acc. to DIN 43670
width
x
thickness
material continuous currents in A
AC up to 60Hz DC/AC up to16 2/3 Hz
coated uncoated coated uncoated
number of busbars number of busbars number of busbars number of busbars
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
I II III II50II I II III II50II I II III IIII I II III IIII
12 x 2 E-AI F13 97 160 178 84 142 168 97 160 183 84 142 171
15 x 2 118 190 204 100 166 193 118 190 210 100 166 197
15 x 3 148 252 300 126 222 283 148 252 305 126 222 286
20 x 2 150 240 245 127 206 232 150 240 252 127 206 237
20 x 3 188 312 357 159 272 337 188 312 364 159 272 342
20 x 5 254 446 570 214 392 537 254 446 576 214 392 539
20 x 10 393 730 1060 331 643 942 393 733 1020 331 646 943
25 x 3 228 372 412 190 322 390 228 372 422 191 322 396
25 x 5 305 526 656 255 460 619 305 528 663 255 460 622
30 x 3 267 432 465 222 372 441 268 432 477 222 372 449
30 x 5 356 606 739 295 526 699 356 608 749 296 528 703
30 x 10 536 956 1340 445 832 1200 538 964 1280 447 839 1180
40 x 3 E-AI F10 346 550 569 285 470 540 346 552 586 285 470 552
40 x 5 456 762 898 376 658 851 457 766 915 376 662 862
40 x 10 677 1180 1650 2190 557 1030 1460 1900 682 1200 1570 561 1040 1460
50 x 5 556 916 1050 1580 455 786 995 1520 558 924 1080 546 794 1020
50 x 10 815 1400 1940 2540 667 1210 1710 2210 824 1440 1850 674 1250 1730
60 x 5 655 1070 1190 1820 533 910 1130 1750 658 1080 1240 1610 536 924 1170 1530
60 x 10 951 1610 2200 2870 774 1390 1940 2480 966 1680 2130 2810 787 1450 2000 2650
80 x 5 851 1360 1460 2250 688 1150 1400 2180 858 1390 1550 2010 694 1180 1470 1920
80 x 10 1220 2000 2660 3460 983 1720 2380 2990 1250 2150 2670 3520 1010 1840 2520 3340
100 x 5 E-AI F6,5 1050 1650 1730 2660 846 1390 1660 2580 1060 1710 1870 2420 858 1450 1780 2320
100 x 10 1480 2390 3110 4020 1190 2050 2790 3470 1540 2630 3230 4250 1240 2250 3060 4050
100 x 15 1800 2910 3730 4490 1450 2500 3220 3880 1930 3380 4330 5710 1560 2900 4070 5400
120 x 10 1730 2750 3540 4560 1390 2360 3200 3930 1830 3090 3770 4940 1460 2650 3580 4730
120 x 5 2090 3320 4240 5040 1680 2850 3650 4350 2280 3950 5020 6610 1830 3390 4740 6280
160 x 10 2220 3470 4390 5610 1780 2960 4000 4820 2380 4010 4820 6300 1900 3420 4590 6060
160 x 10 2670 4140 5230 6120 2130 3540 4510 5270 2960 5090 6370 8380 2370 4360 6040 8000
200 x 10 2710 4180 5230 6660 2160 3560 4790 5710 2960 4940 5880 7680 2350 4210 5620 7400
200 x 10 3230 4950 6240 7190 2580 4230 5370 6190 3660 6250 7740 10160 2920 5350 7370 9750
Remark: Continious currents for aluminium busbars according to the DIN requalations for rectangular bars in interieur systems at +35°C air
temperature and + 65°C bar temperature and vertical bar position, bar packages with spaces like the bar thickness respectively minimum 50 mm by
laying of 4 busbars or when working with AC-current with a main distance of > 0,8 x main conductor distance (measured middle to middle of the bars).
Values for a changed ambient temperature and reducing factors for changed applications are contained in the DIN 43670.
