Design Philosophy and Material Choice for a Tuner
in an Electromagnetic Reverberation Chamber

Frank Weeks and Kevin Goldsmith

Air Operations Division
Aeronautical and Maritime Research Laboratory

DSTO-TN-0257

ABSTRACT

This note addresses the design philosophy and material choice for the tuner in the
Defence Science and Technology Organisation (DSTO) electromagnetic combined-
mode reverberation chamber. Restricting factors on the material choice are discussed,
in addition to tuner and gearbox design requirements.

Approved for Public Release

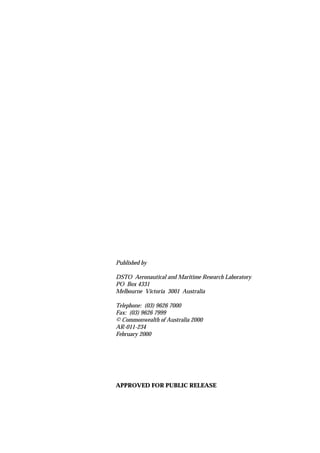

Published by

DSTO Aeronautical and Maritime Research Laboratory
PO Box 4331
Melbourne Victoria 3001 Australia

Telephone: (03) 9626 7000
Fax: (03) 9626 7999
© Commonwealth of Australia 2000
AR-011-234
February 2000

APPROVED FOR PUBLIC RELEASE

Design Philosophy and Material Choice for a
Tuner in an Electromagnetic Reverberation
Chamber

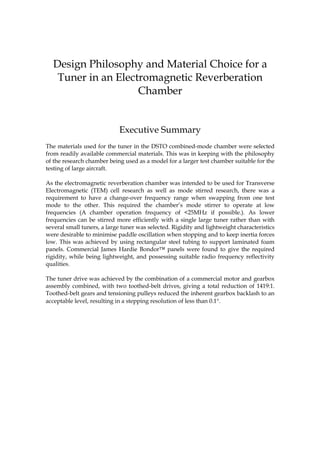

Executive Summary
The materials used for the tuner in the DSTO combined-mode chamber were selected
from readily available commercial materials. This was in keeping with the philosophy
of the research chamber being used as a model for a larger test chamber suitable for the
testing of large aircraft.

As the electromagnetic reverberation chamber was intended to be used for Transverse
Electromagnetic (TEM) cell research as well as mode stirred research, there was a
requirement to have a change-over frequency range when swapping from one test
mode to the other. This required the chamber’s mode stirrer to operate at low
frequencies (A chamber operation frequency of <25MHz if possible.). As lower
frequencies can be stirred more efficiently with a single large tuner rather than with
several small tuners, a large tuner was selected. Rigidity and lightweight characteristics
were desirable to minimise paddle oscillation when stopping and to keep inertia forces
low. This was achieved by using rectangular steel tubing to support laminated foam
panels. Commercial James Hardie Bondor™ panels were found to give the required
rigidity, while being lightweight, and possessing suitable radio frequency reflectivity
qualities.

The tuner drive was achieved by the combination of a commercial motor and gearbox
assembly combined, with two toothed-belt drives, giving a total reduction of 1419:1.
Toothed-belt gears and tensioning pulleys reduced the inherent gearbox backlash to an
acceptable level, resulting in a stepping resolution of less than 0.1°.

Design Philosophy and Material Choice for a Tuner in an Electromagnetic Reverberation Chamber

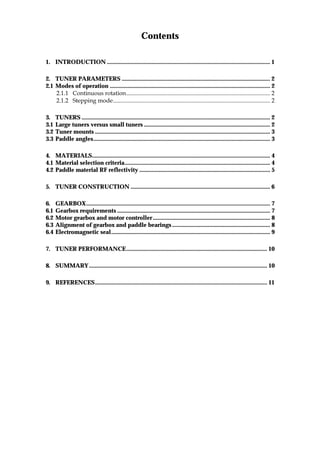

Contents

1. INTRODUCTION .............................................................................................................. 1

2. TUNER PARAMETERS .................................................................................................... 2
2.1 Modes of operation ............................................................................................................ 2
2.1.1 Continuous rotation................................................................................................. 2
2.1.2 Stepping mode.......................................................................................................... 2

3. TUNERS ............................................................................................................................... 2
3.1 Large tuners versus small tuners ..................................................................................... 2
3.2 Tuner mounts ...................................................................................................................... 3
3.3 Paddle angles....................................................................................................................... 3

4. MATERIALS........................................................................................................................ 4
4.1 Material selection criteria.................................................................................................. 4
4.2 Paddle material RF reflectivity ........................................................................................ 5

5. TUNER CONSTRUCTION .............................................................................................. 6

6. GEARBOX............................................................................................................................ 7
6.1 Gearbox requirements ....................................................................................................... 7
6.2 Motor gearbox and motor controller ............................................................................... 8
6.3 Alignment of gearbox and paddle bearings .................................................................. 8
6.4 Electromagnetic seal........................................................................................................... 9

7. TUNER PERFORMANCE............................................................................................... 10

8. SUMMARY ........................................................................................................................ 10

9. REFERENCES.................................................................................................................... 11

DSTO-TN-0257

1. Introduction
The tuner is a major part of the combined-mode reverberation chamber, stirring the
electromagnetic standing-wave pattern so that the nodes and anti-nodes are moved to
all parts of the chamber.

World opinion on the characteristics of an optimum tuner is divided. Since no chamber
the size of the one proposed by Defence Science and Technology Organisation (DSTO)
has ever been built therefore no recognised guidelines as to the size and shape of the
tuner’s paddles (paddles shown in Photograph 1) exist. Various design philosophies
were considered but many assumptions had to be made. As with all new designs, the
resultant product evolved using the initial parameters as a guide but specific
limitations throughout the process necessitated a balance between “must have”, “can
do” and “not possible”.

A dominant feature for the materials selected and design philosophy was, “where
possible, use commercially available materials”. Even though the reverberation
chamber is a research tool, the design philosophies may later be used as a model for the
building of a larger chamber, suitable for the testing of large aircraft.

This note addresses the overall design philosophy of the tuner, and why the various
construction materials and techniques were chosen. Photograph 1 shows the tuner after
installation.

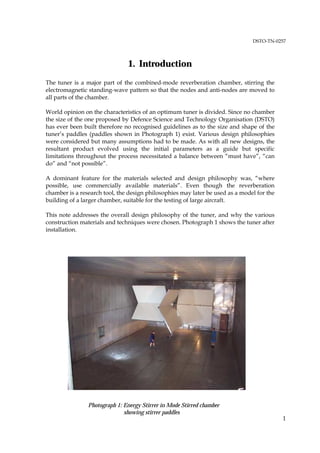

Photograph 1: Energy Stirrer in Mode Stirred chamber
showing stirrer paddles
1

DSTO-TN-0257

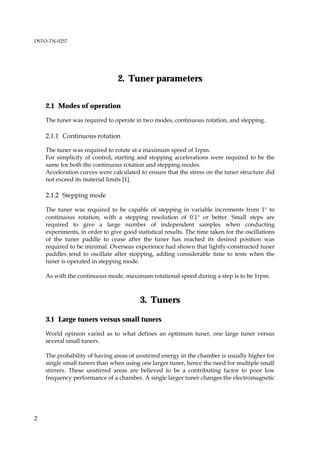

2. Tuner parameters

2.1 Modes of operation

The tuner was required to operate in two modes, continuous rotation, and stepping.

2.1.1 Continuous rotation

The tuner was required to rotate at a maximum speed of 1rpm.
For simplicity of control, starting and stopping accelerations were required to be the
same for both the continuous rotation and stepping modes.
Acceleration curves were calculated to ensure that the stress on the tuner structure did
not exceed its material limits [1].

2.1.2 Stepping mode

The tuner was required to be capable of stepping in variable increments from 1° to
continuous rotation, with a stepping resolution of 0.1° or better. Small steps are
required to give a large number of independent samples when conducting
experiments, in order to give good statistical results. The time taken for the oscillations
of the tuner paddle to cease after the tuner has reached its desired position was
required to be minimal. Overseas experience had shown that lightly-constructed tuner
paddles tend to oscillate after stopping, adding considerable time to tests when the
tuner is operated in stepping mode.

As with the continuous mode, maximum rotational speed during a step is to be 1rpm.

3. Tuners

3.1 Large tuners versus small tuners

World opinion varied as to what defines an optimum tuner, one large tuner versus
several small tuners.

The probability of having areas of unstirred energy in the chamber is usually higher for
single small tuners than when using one larger tuner, hence the need for multiple small
stirrers. These unstirred areas are believed to be a contributing factor to poor low
frequency performance of a chamber. A single larger tuner changes the electromagnetic

2

DSTO-TN-0257

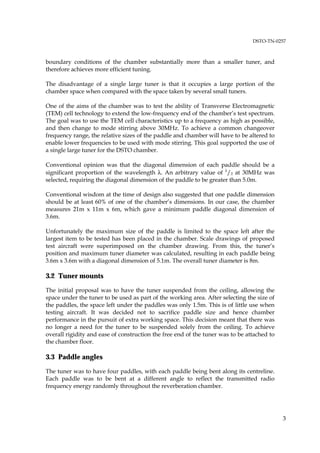

boundary conditions of the chamber substantially more than a smaller tuner, and
therefore achieves more efficient tuning.

The disadvantage of a single large tuner is that it occupies a large portion of the
chamber space when compared with the space taken by several small tuners.

One of the aims of the chamber was to test the ability of Transverse Electromagnetic
(TEM) cell technology to extend the low-frequency end of the chamber’s test spectrum.
The goal was to use the TEM cell characteristics up to a frequency as high as possible,
and then change to mode stirring above 30MHz. To achieve a common changeover
frequency range, the relative sizes of the paddle and chamber will have to be altered to
enable lower frequencies to be used with mode stirring. This goal supported the use of
a single large tuner for the DSTO chamber.

Conventional opinion was that the diagonal dimension of each paddle should be a
significant proportion of the wavelength λ. An arbitrary value of λ/2 at 30MHz was
selected, requiring the diagonal dimension of the paddle to be greater than 5.0m.

Conventional wisdom at the time of design also suggested that one paddle dimension
should be at least 60% of one of the chamber’s dimensions. In our case, the chamber
measures 21m x 11m x 6m, which gave a minimum paddle diagonal dimension of
3.6m.

Unfortunately the maximum size of the paddle is limited to the space left after the
largest item to be tested has been placed in the chamber. Scale drawings of proposed
test aircraft were superimposed on the chamber drawing. From this, the tuner’s
position and maximum tuner diameter was calculated, resulting in each paddle being
3.6m x 3.6m with a diagonal dimension of 5.1m. The overall tuner diameter is 8m.

3.2 Tuner mounts

The initial proposal was to have the tuner suspended from the ceiling, allowing the
space under the tuner to be used as part of the working area. After selecting the size of
the paddles, the space left under the paddles was only 1.5m. This is of little use when
testing aircraft. It was decided not to sacrifice paddle size and hence chamber
performance in the pursuit of extra working space. This decision meant that there was
no longer a need for the tuner to be suspended solely from the ceiling. To achieve
overall rigidity and ease of construction the free end of the tuner was to be attached to
the chamber floor.

3.3 Paddle angles

The tuner was to have four paddles, with each paddle being bent along its centreline.
Each paddle was to be bent at a different angle to reflect the transmitted radio
frequency energy randomly throughout the reverberation chamber.

3

DSTO-TN-0257

Several different paddle angles were analysed using the General Electromagnetic
Model for the Analysis of Complex Systems (GEMACS) computer modelling program
[2]. GEMACS gave an indication of suitable paddle angles but, due to the coarseness of
the model data, it could not compute the optimum paddle angles. Paddle angles of
100°, 120°, 140° and 160° were selected. Since the optimum angles for the paddles were
unknown, it was decided to incorporate the capability to be able to rotate each paddle
through 20°, giving operators the flexibility to optimise the tuner as experience was
gained. Support spigots were designed into the paddle end flanges, allowing the
paddles to be easily rotated to achieve optimum tuning (Photograph 2).

Support Spigot

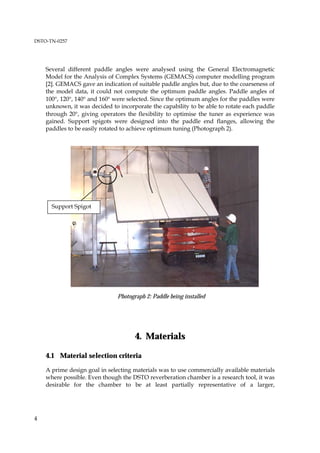

Photograph 2: Paddle being installed

4. Materials

4.1 Material selection criteria

A prime design goal in selecting materials was to use commercially available materials
where possible. Even though the DSTO reverberation chamber is a research tool, it was
desirable for the chamber to be at least partially representative of a larger,

4

DSTO-TN-0257

commercially built chamber so that a reasonable evaluation of construction techniques
could be made.

4.2 Paddle material RF reflectivity

The optimum paddle skin material is one with high RF reflective properties.
Comparisons of relative conductivity were made [3],
• copper 1.0,
• aluminium 0.6,
• zinc 0.3, and
• steel 0.1.
In line with the material selection criteria, copper paddles were considered to be cost
and weight prohibitive, leaving aluminium as the next choice.

An aluminium skinned space frame was first proposed, but alternative construction
methods were also considered. An investigation was undertaken to find commercially
available materials suitable for the construction of the tuner. A suitable material,
Bondor™, was found to be manufactured by James Hardie for use in the building of
cool rooms. When comparing the two construction methods the Bondor™ panels gave
a lighter more rigid construction. These panels consisted of a polystyrene core with
thin (0.6mm) zinc-coated steel facing sheets. The panels were available in varying
thicknesses, enabling a panel with suitable rigidity to be chosen.

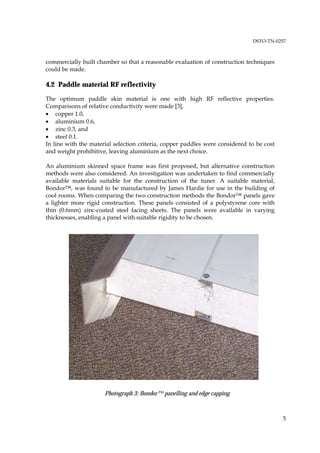

Photograph 3: Bondor™ panelling and edge capping

5

DSTO-TN-0257

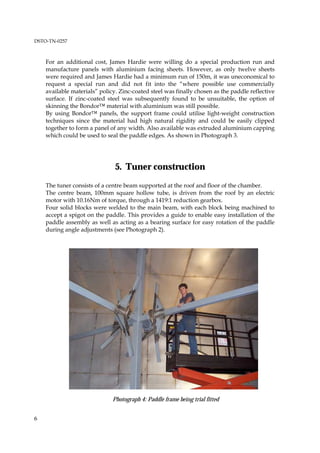

For an additional cost, James Hardie were willing do a special production run and
manufacture panels with aluminium facing sheets. However, as only twelve sheets
were required and James Hardie had a minimum run of 150m, it was uneconomical to
request a special run and did not fit into the “where possible use commercially
available materials” policy. Zinc-coated steel was finally chosen as the paddle reflective
surface. If zinc-coated steel was subsequently found to be unsuitable, the option of
skinning the Bondor™ material with aluminium was still possible.
By using Bondor™ panels, the support frame could utilise light-weight construction
techniques since the material had high natural rigidity and could be easily clipped
together to form a panel of any width. Also available was extruded aluminium capping
which could be used to seal the paddle edges. As shown in Photograph 3.

5. Tuner construction
The tuner consists of a centre beam supported at the roof and floor of the chamber.
The centre beam, 100mm square hollow tube, is driven from the roof by an electric
motor with 10.16Nm of torque, through a 1419:1 reduction gearbox.
Four solid blocks were welded to the main beam, with each block being machined to
accept a spigot on the paddle. This provides a guide to enable easy installation of the
paddle assembly as well as acting as a bearing surface for easy rotation of the paddle
during angle adjustments (see Photograph 2).

Photograph 4: Paddle frame being trial fitted

6

DSTO-TN-0257

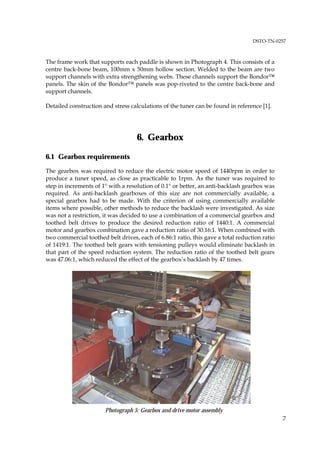

The frame work that supports each paddle is shown in Photograph 4. This consists of a
centre back-bone beam, 100mm x 50mm hollow section. Welded to the beam are two
support channels with extra strengthening webs. These channels support the Bondor™
panels. The skin of the Bondor™ panels was pop-riveted to the centre back-bone and
support channels.

Detailed construction and stress calculations of the tuner can be found in reference [1].

6. Gearbox

6.1 Gearbox requirements
The gearbox was required to reduce the electric motor speed of 1440rpm in order to
produce a tuner speed, as close as practicable to 1rpm. As the tuner was required to
step in increments of 1° with a resolution of 0.1° or better, an anti-backlash gearbox was
required. As anti-backlash gearboxes of this size are not commercially available, a
special gearbox had to be made. With the criterion of using commercially available
items where possible, other methods to reduce the backlash were investigated. As size
was not a restriction, it was decided to use a combination of a commercial gearbox and
toothed belt drives to produce the desired reduction ratio of 1440:1. A commercial
motor and gearbox combination gave a reduction ratio of 30.16:1. When combined with
two commercial toothed belt drives, each of 6.86:1 ratio, this gave a total reduction ratio
of 1419:1. The toothed belt gears with tensioning pulleys would eliminate backlash in
that part of the speed reduction system. The reduction ratio of the toothed belt gears
was 47.06:1, which reduced the effect of the gearbox’s backlash by 47 times.

Photograph 5: Gearbox and drive motor assembly
7

DSTO-TN-0257

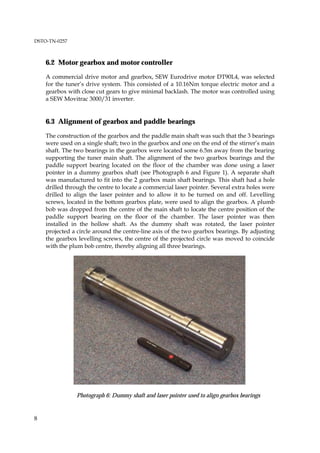

6.2 Motor gearbox and motor controller

A commercial drive motor and gearbox, SEW Eurodrive motor DT90L4, was selected
for the tuner’s drive system. This consisted of a 10.16Nm torque electric motor and a
gearbox with close cut gears to give minimal backlash. The motor was controlled using
a SEW Movitrac 3000/31 inverter.

6.3 Alignment of gearbox and paddle bearings

The construction of the gearbox and the paddle main shaft was such that the 3 bearings
were used on a single shaft; two in the gearbox and one on the end of the stirrer’s main
shaft. The two bearings in the gearbox were located some 6.5m away from the bearing
supporting the tuner main shaft. The alignment of the two gearbox bearings and the
paddle support bearing located on the floor of the chamber was done using a laser
pointer in a dummy gearbox shaft (see Photograph 6 and Figure 1). A separate shaft
was manufactured to fit into the 2 gearbox main shaft bearings. This shaft had a hole
drilled through the centre to locate a commercial laser pointer. Several extra holes were
drilled to align the laser pointer and to allow it to be turned on and off. Levelling
screws, located in the bottom gearbox plate, were used to align the gearbox. A plumb
bob was dropped from the centre of the main shaft to locate the centre position of the
paddle support bearing on the floor of the chamber. The laser pointer was then
installed in the hollow shaft. As the dummy shaft was rotated, the laser pointer
projected a circle around the centre-line axis of the two gearbox bearings. By adjusting
the gearbox levelling screws, the centre of the projected circle was moved to coincide
with the plum bob centre, thereby aligning all three bearings.

Photograph 6: Dummy shaft and laser pointer used to align gearbox bearings

8

DSTO-TN-0257

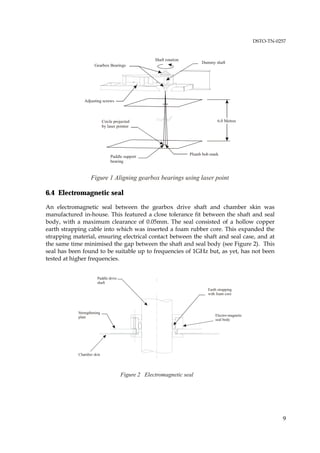

Shaft rotation
Dummy shaft
Gearbox Bearings

Adjusting screws

Circle projected 6.0 Metres
by laser pointer

Plumb bob mark
Paddle support
bearing

Figure 1 Aligning gearbox bearings using laser point

6.4 Electromagnetic seal
An electromagnetic seal between the gearbox drive shaft and chamber skin was
manufactured in-house. This featured a close tolerance fit between the shaft and seal
body, with a maximum clearance of 0.05mm. The seal consisted of a hollow copper
earth strapping cable into which was inserted a foam rubber core. This expanded the
strapping material, ensuring electrical contact between the shaft and seal case, and at
the same time minimised the gap between the shaft and seal body (see Figure 2). This
seal has been found to be suitable up to frequencies of 1GHz but, as yet, has not been
tested at higher frequencies.

Paddle drive
shaft
Earth strapping
with foam core

Strengthening
plate Electro-magnetic
seal body

Chamber skin

Figure 2 Electromagnetic seal

9

DSTO-TN-0257

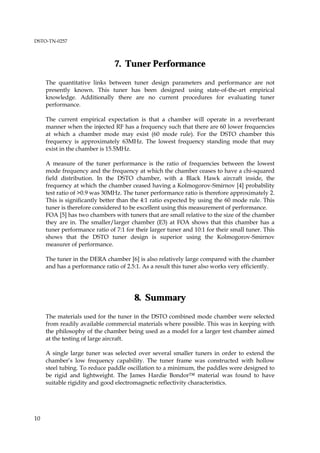

7. Tuner Performance
The quantitative links between tuner design parameters and performance are not
presently known. This tuner has been designed using state-of-the-art empirical
knowledge. Additionally there are no current procedures for evaluating tuner
performance.

The current empirical expectation is that a chamber will operate in a reverberant
manner when the injected RF has a frequency such that there are 60 lower frequencies
at which a chamber mode may exist (60 mode rule). For the DSTO chamber this
frequency is approximately 63MHz. The lowest frequency standing mode that may
exist in the chamber is 15.5MHz.

A measure of the tuner performance is the ratio of frequencies between the lowest
mode frequency and the frequency at which the chamber ceases to have a chi-squared
field distribution. In the DSTO chamber, with a Black Hawk aircraft inside, the
frequency at which the chamber ceased having a Kolmogorov-Smirnov [4] probability
test ratio of >0.9 was 30MHz. The tuner performance ratio is therefore approximately 2.
This is significantly better than the 4:1 ratio expected by using the 60 mode rule. This
tuner is therefore considered to be excellent using this measurement of performance.
FOA [5] has two chambers with tuners that are small relative to the size of the chamber
they are in. The smaller/larger chamber (E3) at FOA shows that this chamber has a
tuner performance ratio of 7:1 for their larger tuner and 10:1 for their small tuner. This
shows that the DSTO tuner design is superior using the Kolmogorov-Smirnov
measurer of performance.

The tuner in the DERA chamber [6] is also relatively large compared with the chamber
and has a performance ratio of 2.5:1. As a result this tuner also works very efficiently.

8. Summary
The materials used for the tuner in the DSTO combined mode chamber were selected
from readily available commercial materials where possible. This was in keeping with
the philosophy of the chamber being used as a model for a larger test chamber aimed
at the testing of large aircraft.

A single large tuner was selected over several smaller tuners in order to extend the
chamber’s low frequency capability. The tuner frame was constructed with hollow
steel tubing. To reduce paddle oscillation to a minimum, the paddles were designed to
be rigid and lightweight. The James Hardie Bondor™ material was found to have
suitable rigidity and good electromagnetic reflectivity characteristics.

10

DSTO-TN-0257

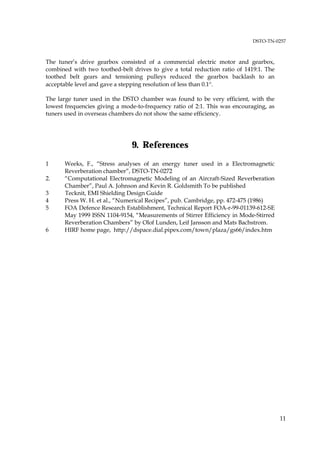

The tuner’s drive gearbox consisted of a commercial electric motor and gearbox,
combined with two toothed-belt drives to give a total reduction ratio of 1419:1. The
toothed belt gears and tensioning pulleys reduced the gearbox backlash to an
acceptable level and gave a stepping resolution of less than 0.1°.

The large tuner used in the DSTO chamber was found to be very efficient, with the
lowest frequencies giving a mode-to-frequency ratio of 2:1. This was encouraging, as
tuners used in overseas chambers do not show the same efficiency.

9. References
1 Weeks, F., “Stress analyses of an energy tuner used in a Electromagnetic
Reverberation chamber”, DSTO-TN-0272
2. “Computational Electromagnetic Modeling of an Aircraft-Sized Reverberation
Chamber”, Paul A. Johnson and Kevin R. Goldsmith To be published
3 Tecknit, EMI Shielding Design Guide
4 Press W. H. et al., “Numerical Recipes”, pub. Cambridge, pp. 472-475 (1986)
5 FOA Defence Research Establishment, Technical Report FOA-r-99-01139-612-SE
May 1999 ISSN 1104-9154, “Measurements of Stirrer Efficiency in Mode-Stirred
Reverberation Chambers” by Olof Lunden, Leif Jansson and Mats Bachstrom.
6 HIRF home page, http://dspace.dial.pipex.com/town/plaza/gs66/index.htm

11

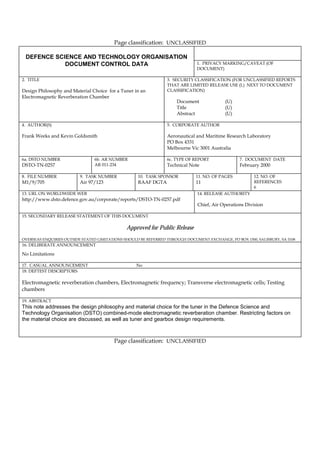

Page classification: UNCLASSIFIED

DEFENCE SCIENCE AND TECHNOLOGY ORGANISATION
DOCUMENT CONTROL DATA 1. PRIVACY MARKING/CAVEAT (OF
DOCUMENT)

2. TITLE 3. SECURITY CLASSIFICATION (FOR UNCLASSIFIED REPORTS
THAT ARE LIMITED RELEASE USE (L) NEXT TO DOCUMENT
Design Philosophy and Material Choice for a Tuner in an CLASSIFICATION)
Electromagnetic Reverberation Chamber
Document (U)
Title (U)
Abstract (U)

4. AUTHOR(S) 5. CORPORATE AUTHOR

Frank Weeks and Kevin Goldsmith Aeronautical and Maritime Research Laboratory
PO Box 4331
Melbourne Vic 3001 Australia

6a. DSTO NUMBER 6b. AR NUMBER 6c. TYPE OF REPORT 7. DOCUMENT DATE
DSTO-TN-0257 AR 011-234 Technical Note February 2000

8. FILE NUMBER 9. TASK NUMBER 10. TASK SPONSOR 11. NO. OF PAGES 12. NO. OF
M1/9/705 Air 97/123 RAAF DGTA 11 REFERENCES
6
13. URL ON WORLDWIIDE WEB 14. RELEASE AUTHORITY
http://www.dsto.defence.gov.au/corporate/reports/DSTO-TN-0257.pdf
Chief, Air Operations Division

15. SECONDARY RELEASE STATEMENT OF THIS DOCUMENT

Approved for Public Release
OVERSEAS ENQUIRIES OUTSIDE STATED LIMITATIONS SHOULD BE REFERRED THROUGH DOCUMENT EXCHANGE, PO BOX 1500, SALISBURY, SA 5108
16. DELIBERATE ANNOUNCEMENT

No Limitations

17. CASUAL ANNOUNCEMENT No
18. DEFTEST DESCRIPTORS

Electromagnetic reverberation chambers, Electromagnetic frequency; Transverse electromagnetic cells; Testing
chambers

19. ABSTRACT
This note addresses the design philosophy and material choice for the tuner in the Defence Science and
Technology Organisation (DSTO) combined-mode electromagnetic reverberation chamber. Restricting factors on
the material choice are discussed, as well as tuner and gearbox design requirements.

Page classification: UNCLASSIFIED

�ݺ�ߣ

Design Philosophy and Material Choice for a Tuner in an Electromagnetic Reverberation Chamber

Recommended

More Related Content

Viewers also liked (9)

Design Philosophy and Material Choice for a Tuner in an Electromagnetic Reverberation Chamber
