Dynamo concepts in depth.







 Pavlo Baron, codecentric AG
Friday, August 31, 12
Pavlo Baron
                        pavlo.baron@codecentric.de
                                     @pavlobaron
Friday, August 31, 12
The shopping cart case




Friday, August 31, 12
The 2 AM alarm call case




Friday, August 31, 12
The Tower of Babel case




Friday, August 31, 12
The Neo vs. Smiths case




Friday, August 31, 12
The Pavlo case




Friday, August 31, 12
Friday, August 31, 12
So Dynamo isnt about speed.

                                Its about immediate,
                                       reliable writes.

                                           Its about
                                operation relaxation.

                               Its about distribution
                                  and fault tolerance.

                                    Its about almost
                                    linear scalability.
Friday, August 31, 12
Time and timestamps




Friday, August 31, 12

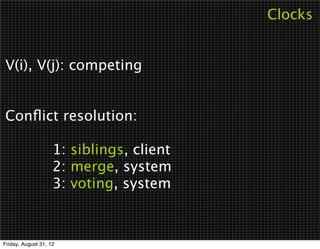

Clocks


V(i), V(j): competing


Con鍖ict resolution:




 1: siblings, client



 2: merge, system



 3: voting, system



Friday, August 31, 12

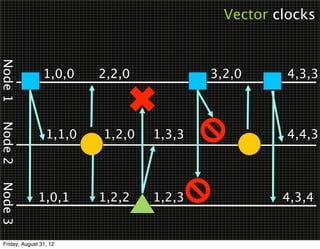

Vector clocks
Node 1




                1,0,0    2,2,0           3,2,0     4,3,3
Node 2




                 1,1,0   1,2,0   1,3,3             4,4,3
Node 3




              1,0,1      1,2,2   1,2,3             4,3,4


Friday, August 31, 12

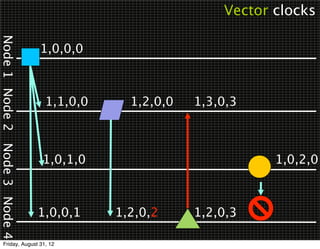

Vector clocks
Node 1 Node 2 Node 3 Node 4


                              1,0,0,0



                               1,1,0,0     1,2,0,0   1,3,0,3



                              1,0,1,0                           1,0,2,0



                              1,0,0,1    1,2,0,2     1,2,0,3

   Friday, August 31, 12

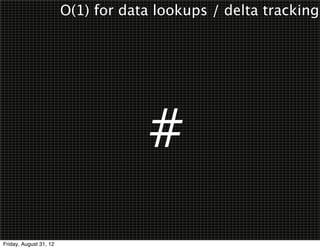

O(1) for data lookups / delta tracking




                                     #
Friday, August 31, 12

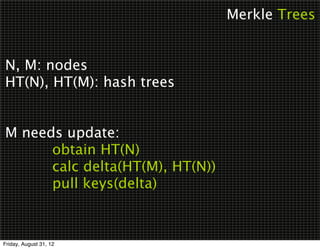

Merkle Trees


N, M: nodes
HT(N), HT(M): hash trees


M needs update:



 obtain HT(N)



 calc delta(HT(M), HT(N))



 pull keys(delta)



Friday, August 31, 12

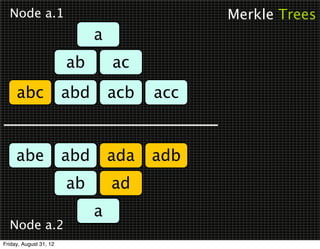

Node a.1                                    Merkle Trees
                              a
                        ab        ac
     abc                abd       acb   acc


     abe                abd       ada   adb
                        ab        ad
                              a
  Node a.2
Friday, August 31, 12
Node a.1                                    Merkle Trees
                              a
                        ab
     abc                abd


                        abd       ada   adb
                        ab        ad
                              a
  Node a.2
Friday, August 31, 12
Equal nodes based decentralized distribution




Friday, August 31, 12
Consensus, agreement, voting, quorum




Friday, August 31, 12

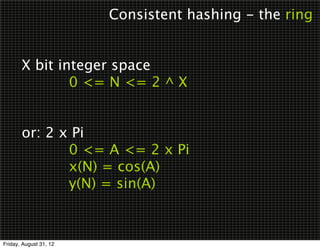

Consistent hashing - the ring


       X bit integer space



 0 <= N <= 2 ^ X


       or: 2 x Pi



 0 <= A <= 2 x Pi



 x(N) = cos(A)



 y(N) = sin(A)



Friday, August 31, 12

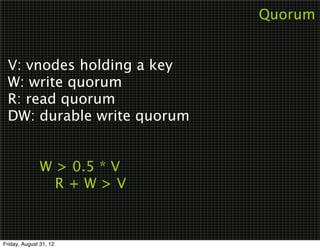

Quorum


 V: vnodes holding a key
 W: write quorum
 R: read quorum
 DW: durable write quorum




     W > 0.5 * V



 R+W>V



Friday, August 31, 12

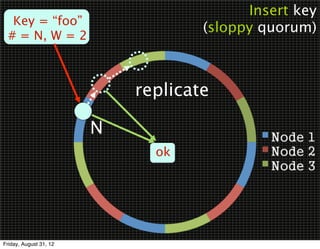

Insert key
   Key = foo
                                    (sloppy quorum)
  # = N, W = 2



                            replicate

                        N
                              ok




Friday, August 31, 12

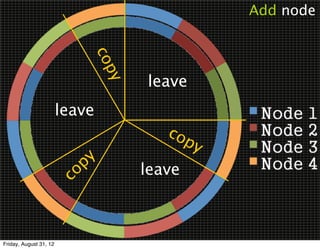

Add node




                             co
                                py
                                     leave
                        leave
                                        co
                                             py
                         py




                                     leave
                        co




Friday, August 31, 12

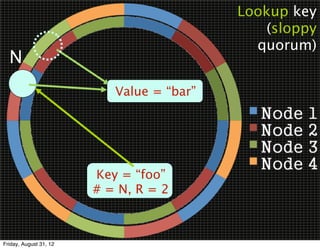

Lookup key
                                               (sloppy
                                             quorum)
  N
                           Value = bar




                        Key = foo
                        # = N, R = 2



Friday, August 31, 12

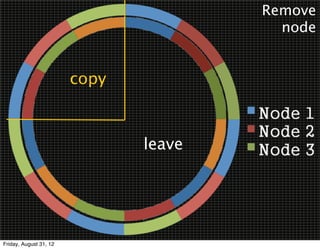

Remove
                                         node


                        copy



                               leave




Friday, August 31, 12

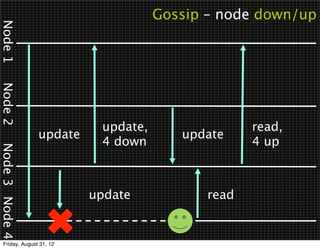

Gossip  node down/up
Node 1
Node 2




                          update,                 read,
                update                 update
                          4 down                  4 up
Node 3 Node 4




                         update            read


 Friday, August 31, 12
Eventual consistency




Friday, August 31, 12

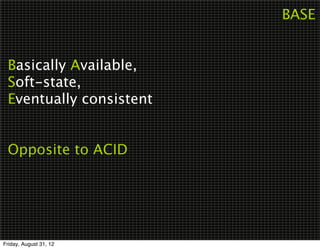

BASE


 Basically Available,
 Soft-state,
 Eventually consistent


 Opposite to ACID




Friday, August 31, 12

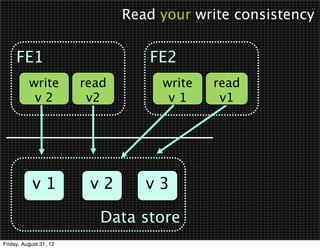

Read your write consistency


     FE1                          FE2
          write         read        write   read
           v2            v2          v1      v1




            v1           v2       v3

                           Data store
Friday, August 31, 12

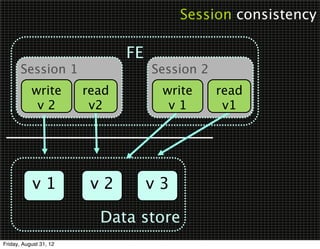

Session consistency

                               FE
       Session 1                    Session 2
           write        read         write      read
            v2           v2           v1         v1




            v1           v2         v3

                          Data store
Friday, August 31, 12

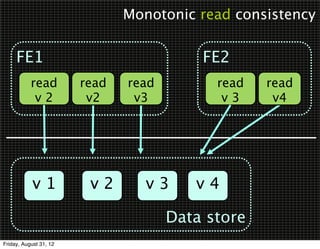

Monotonic read consistency


     FE1                                  FE2
           read         read   read         read   read
            v2           v2     v3           v3     v4




            v1           v2       v3     v4

                                      Data store
Friday, August 31, 12

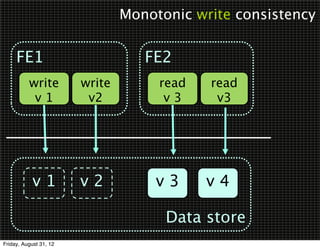

Monotonic write consistency


     FE1                           FE2
          write         write        read   read
           v1            v2           v3     v3




            v1          v2           v3     v4

                                      Data store
Friday, August 31, 12

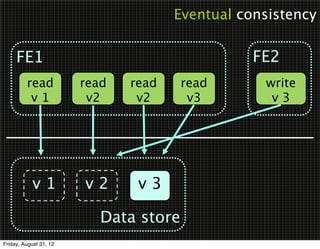

Eventual consistency


     FE1                                         FE2
         read           read   read     read      write
          v1             v2     v2       v3        v3




            v1          v2      v3

                           Data store
Friday, August 31, 12

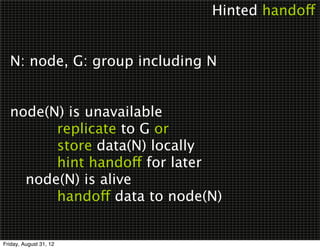

Hinted handoff


  N: node, G: group including N


  node(N) is unavailable



 replicate to G or



 store data(N) locally



 hint handoff for later

 node(N) is alive



 handoff data to node(N)


Friday, August 31, 12

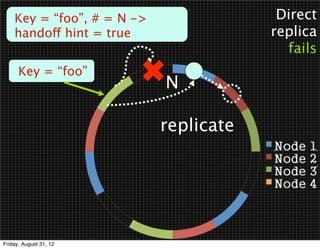

Key = foo, # = N ->                Direct
    handoff hint = true                 replica
                                          fails
      Key = foo
                            N

                            replicate




Friday, August 31, 12

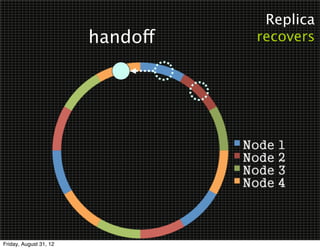

Replica
                        handoff   recovers




Friday, August 31, 12

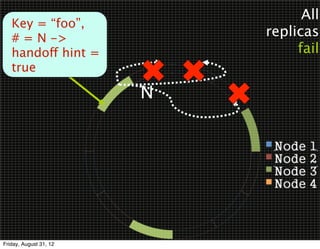

All
   Key = foo,
   # = N ->                 replicas
   handoff hint =                fail
   true

                        N




Friday, August 31, 12

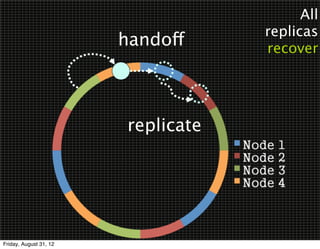

All
                                    replicas
                        handoff     recover




                        replicate




Friday, August 31, 12
Friday, August 31, 12
Latency is an adjustment screw




Friday, August 31, 12
Availability is an adjustment screw




Friday, August 31, 12

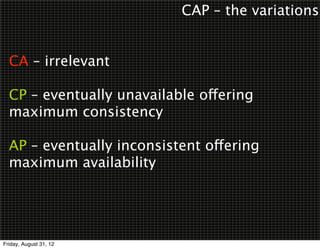

CAP  the variations


  CA  irrelevant

  CP  eventually unavailable offering
  maximum consistency

  AP  eventually inconsistent offering
  maximum availability




Friday, August 31, 12

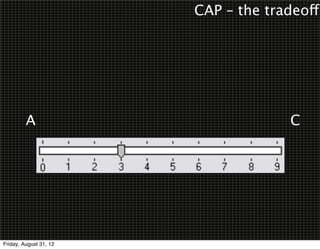

CAP  the tradeoff




         A                           C




Friday, August 31, 12

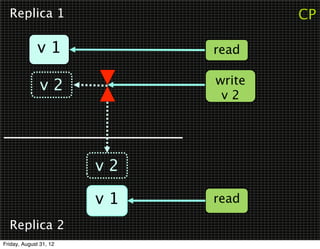

Replica 1                          CP

              v1             read

               v2            write
                              v2




                        v2

                        v1   read

  Replica 2
Friday, August 31, 12

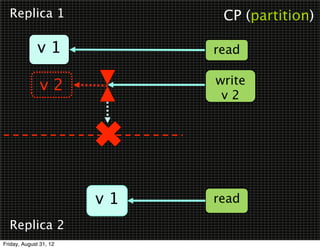

Replica 1                   CP (partition)

              v1             read

               v2            write
                              v2




                        v1   read

  Replica 2
Friday, August 31, 12

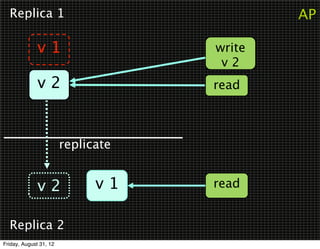

Replica 1                                 AP

              v1                    write
                                     v2
              v2                    read



                        replicate


              v2              v1    read


  Replica 2
Friday, August 31, 12

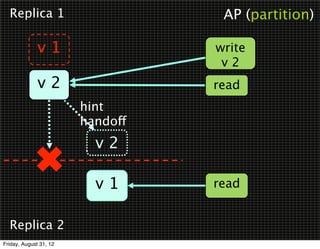

Replica 1                        AP (partition)

              v1                  write
                                   v2
              v2                  read
                        hint
                        handoff
                          v2

                          v1      read


  Replica 2
Friday, August 31, 12
Frequent structure changes




Friday, August 31, 12
Thank you




Friday, August 31, 12

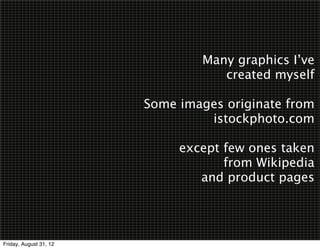

Many graphics Ive
                                   created myself

                        Some images originate from
                                 istockphoto.com

                             except few ones taken
                                    from Wikipedia
                                and product pages




Friday, August 31, 12
