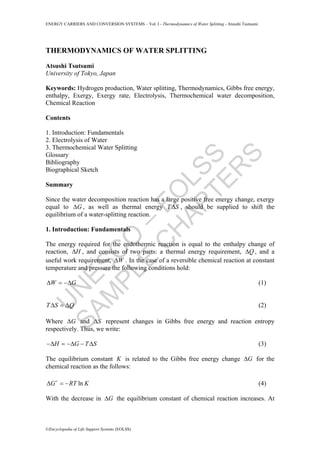

THERMODYNAMICS OF WATER SPLITTING
Atsushi Tsutsumi
University of Tokyo, Japan
Keywords: Hydrogen production, Water splitting, Thermodynamics, Gibbs free energy,
enthalpy, Exergy, Exergy rate, Electrolysis, Thermochemical water decomposition,
Chemical Reaction
Contents
1. Introduction: Fundamentals
2. Electrolysis of Water
3. Thermochemical Water Splitting
Glossary
Bibliography
Biographical Sketch
Summary
Since the water decomposition reaction has a large positive free energy change, exergy
equal to GΔ , as well as thermal energy T SΔ , should be supplied to shift the
equilibrium of a water-splitting reaction.
1. Introduction: Fundamentals
The energy required for the endothermic reaction is equal to the enthalpy change of
reaction, HΔ , and consists of two parts: a thermal energy requirement, QΔ , and a
useful work requirement, WΔ . In the case of a reversible chemical reaction at constant
temperature and pressure the following conditions hold:
W GΔ = −Δ (1)
T S QΔ = Δ (2)
Where GΔ and SΔ represent changes in Gibbs free energy and reaction entropy
respectively. Thus, we write:
H G T S−Δ = −Δ − Δ (3)
The equilibrium constant K is related to the Gibbs free energy change GΔ for the
chemical reaction as the follows:
lnG RT KΔ = − (4)
With the decrease in GΔ the equilibrium constant of chemical reaction increases. At

U
N
ESC
O
–
EO
LSS
SAM
PLE
C
H
APTER
S
0GΔ = the value of K becomes unity. If GΔ has a negative value, it is possible that
the chemical reaction proceeds spontaneously.
The temperature dependence of the equilibrium constant can be given as follows:
2
lnd K H
dT RT
Δ
= (5)
The sign of the derivative is seen to depend only on HΔ . Therefore, for endothermic
reactions, 0HΔ < , K decreases with increasing T , while for endothermic reactions,
0HΔ > , K increases with increasing T .
Figure 1. Exergy rate of air at 1 atm.
Exergy is a thermodynamic quantity, which encapsulates the energy and the entropy of
a flow through a system and can be thought of as quantifying the thermodynamic
quality of these flows. The thermodynamic definition of the exergy of a system is the
maximum work that can be delivered by that system when it is brought into equilibrium
with its environment. Both the physical and chemical exergies must be considered.
Exergy ε can be expressed as:
( )0 0 0H H T S Sε = − − − (6)
where 0T is the temperature of the environment. The exergy rate is defined as the ratio
of exergy to enthalpy. The exergy rate represents the quality of the energy. Figure 1
shows the exergy rate of thermal energy in the air. The exergy of electric energy and

U
N
ESC
O
–
EO
LSS
SAM
PLE
C
H
APTER
S
mechanical energy is unity, while the thermal energy at 1000 °C and 2000 °C has an
exergy rate of 0.5 and 0.7, respectively. The exergy loss is generated throughout the
process by the irreversibility. Hydrogen has a relatively low exergy rate (0.83), while
the exergy rate of conventional fuels ranges from 0.92 to 0.96. Therefore, hydrogen
combustion can reduce the exergy loss in an irreversible combustion process.
Hydrogen is produced by direct water decomposition as:
2 2 2
1
H O H + O
2
→ (7)
Supposing that water is initially in the gas phase, the standard thermodynamic functions
are as follows:
241.93 kJ/molHΔ = (8)
228.71 kJ/molGΔ = (9)
44.333 kJ/mol KSΔ = ⋅ (10)
9.68 kJ/mol KpCΔ = ⋅ (11)
Figure 2. ∆G-T diagram of water splitting.
Because of the endothermic reaction the energy that is equal to HΔ should be provided
to split water into hydrogen and oxygen; GΔ as a useful work and T SΔ as a thermal
energy. The G TΔ − diagram for the water splitting reaction is shown in Figure 2. The
water decomposition reaction has a large positive free energy change and a small
positive entropy change, as can be seen in Figure 2. Thus, the equilibrium for the
reaction is unfavorable for hydrogen production. The water decomposition reaction is

U
N
ESC
O
–
EO
LSS
SAM
PLE
C
H
APTER
S
non-spontaneous except at higher temperature than turning temperature (4500 K).
Exergy equal to GΔ as well as thermal energy T SΔ is required to be supplied to the
reaction system. In direct water decomposition, the useful work for the separation of
product (hydrogen or oxygen) is supplied to shift the reaction equilibrium.
The dissociation of water proceeds in two steps:
2H O HO+H→ (12)
HO H + O→ (13)

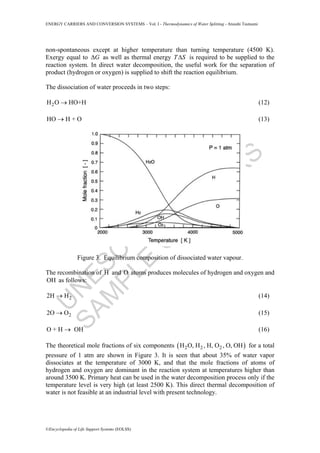

Figure 3. Equilibrium composition of dissociated water vapour.
The recombination of H and O atoms produces molecules of hydrogen and oxygen and
OH as follows:
22H H→ (14)
22O O→ (15)
O + H OH→ (16)
The theoretical mole fractions of six components ( )2 2 2H O, H , H, O , O, OH for a total
pressure of 1 atm are shown in Figure 3. It is seen that about 35% of water vapor
dissociates at the temperature of 3000 K, and that the mole fractions of atoms of
hydrogen and oxygen are dominant in the reaction system at temperatures higher than
around 3500 K. Primary heat can be used in the water decomposition process only if the
temperature level is very high (at least 2500 K). This direct thermal decomposition of
water is not feasible at an industrial level with present technology.

U
N
ESC
O
–
EO
LSS
SAM
PLE
C
H
APTER
S
-
-
-

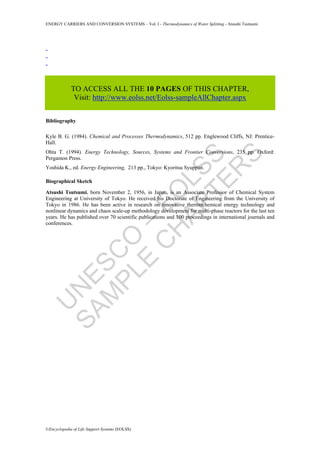

TO ACCESS ALL THE 10 PAGES OF THIS CHAPTER,
