The CAL 6000 is a bench-top hematology automation system designed to enhance testing efficiency with features such as customizable tube racks, automated sample handling, and advanced imaging technology through the MC-80 multi-layer fusion analyzer. It allows for quick distribution and validation of samples with the use of predefined criteria for reruns, repeats, and reflex tests. Additionally, it supports various types of blood collection tubes and integrates remote review capabilities to optimize laboratory workflows.
ENG-CAL6000-210285x12P-20220703-small.pdf

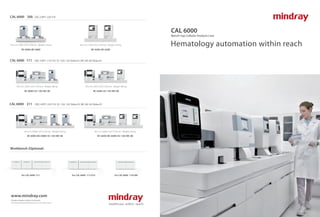

- 1. Hematology automation within reach CAL 6000 Bench-top Cellular Analysis Line www.mindray.com P/N:ENG-CAL6000-210285X12P-20220703 ?2022 Shenzhen Mindray Bio-Medical Electronics Co.,Ltd. All rights reserved. For CAL 6000 211 For CAL 6000 111/210 For CAL 6000 110/200 BC-6200+BC-6200+SC-120+MC-80 Workbench (Optional) CAL 6000 200 CBC+DIFF: 220 T/H CBC+DIFF: 110 T/H, SC-120: 120 狠狠撸s/H, MC-80: 60 狠狠撸s/H CAL 6000 111 CBC+DIFF: 220 T/H, SC-120: 120 狠狠撸s/H, MC-80: 60 狠狠撸s/H CAL 6000 211 BC-6000+BC-6000+SC-120+MC-80 W×L×H: 1340×1027×728 mm Weight: 350 kg BC-6000+BC-6000 W×L×H: 1340×1027×728 mm Weight: 350 kg BC-6200+BC-6200 BC-6200+SC-120+MC-80 BC-6000+SC-120+MC-80 W×L×H: 2303×1027×728 mm Weight: 480 kg W×L×H: 2968×1027×728 mm Weight: 630 kg W×L×H: 2968×1027×728 mm Weight: 630 kg W×L×H: 2303×1027×728 mm Weight: 480 kg

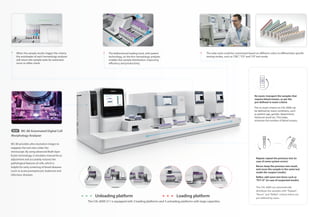

- 2. The CAL 6000 211 is equipped with 3 loading platforms and 3 unloading platforms with large capacities. When the sample results trigger the criteria, the autoloader of each hematology analyzer will return the sample racks for automatic rerun or reflex check. Unloading platform Loading platform The tube racks could be customized based on different colors to differentiate specific testing modes, such as“CBC”,“CD”and“CR”test mode. The bidirectional loading track, with patent technology, on the first hematology analyzer enables fast sample distribution, improving efficiency and productivity. Re-exam: transport the samples that require blood smears, as per the pre-defined re-exam criteria The re-exam criteria on CAL 6000 can be defined by many conditions, such as patient age, gender, department, historical result etc. This helps minimize the number of blood smears. Repeat: repeat the previous test (in case of some system errors) Rerun: keep the previous test result, and rerun the sample in the same test mode (for suspect results) Reflex: add some test items such as “PLT-O” (in case of suspected results) The CAL 6000 can automatically distribute the samples with “Repeat”, “Rerun” and “Reflex” criteria which are pre-defined by users. MC-80 provides ultra resolution images to reappear the real view under the microscope. By using advanced Multi-layer fusion technology, it simulates manual focus adjustment and accurately restores the pathological features of cells, which is helpful for early screening of blood diseases (such as acute promyelocytic leukemia) and infectious diseases. MC-80 Automated Digital Cell NEW Morphology Analyzer

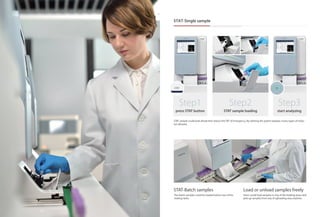

- 3. STAT sample could load ahead that reduce the TAT of emergency. By utilizing the patent adapter, many types of tubes are allowed. The batch samples could be loaded before any of the waiting racks. Users could load samples in any of the loading areas and pick up samples from any of uploading area anytime. STAT-Batch samples Load or unload samples freely Step1 Step3 press STAT button start analyzing Step2 STAT sample loading STAT-Single sample STAT

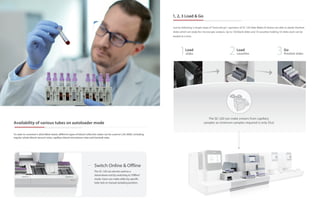

- 4. To cater to customer’s diversified needs, different types of blood collection tubes can be used on CAL 6000, including regular whole blood vacuum tube, capillary blood microtainer tube and Sarstedt tube. Availability of various tubes on autoloader mode The SC-120 can also be used as a stand-alone unit by switching to“Offline” mode. Users can make slides by specific tube rack or manual sampling position. Switch Online & Offline Just by following 3 simple steps of “load and go”, operators of SC-120 狠狠撸 Maker & Stainer are able to obtain finished slides which are ready for microscopic analysis. Up to 150 blank slides and 10 cassettes holding 10 slides each can be loaded at a time. 1Load 2Load ?nished slides slides Go 3 1, 2, 3 Load & Go The SC-120 can make smears from capillary samples as minimum samples required is only 25ul.

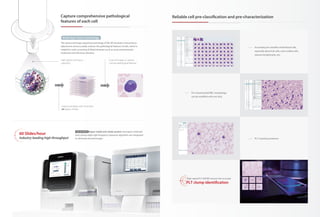

- 5. Capture comprehensive pathological features of each cell The advanced image capturing technology of MC-80 simulates manual focus adjustment and accurately restores the pathological features of cells, which is helpful for early screening of blood diseases (such as acute promyelocytic leukemia) and infectious diseases. High-speed continuous capturing Capture all details with more than 20 depths of field Fuses all images to capture concise pathological features Multi-layer fusion technology Reliable cell pre-classification and pre-characterization Accurately pre-classifies white blood cells, especially abnormal cells, such as blast cells, reactive lymphocytes, etc. Pre-characterized RBC morphology can be modified with one click. PLT counting assistance High-speed FLY-MODE ensures the accurate PLT clump identification SOLID ROCK Hyper-stable anti-shake system: Aerospace materials and cutting-edge high-frequency exposure algorithm are integrated to eliminate blurred images. SOLID ROCK 60 狠狠撸s/hour Industry-leading high throughput

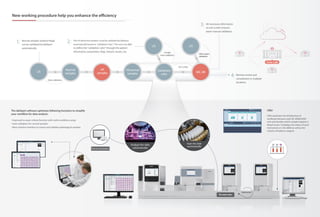

- 6. Core Lab ? Improved re-exam criteria function with multi-conditions setup ? Auto-validation for normal samples ? More intuitive interface to review and validate pathological samples The IabXpert software optimizes following functions to simplify your workflow for data analysis: New working procedure help you enhance the efficiency All necessary information on one screen ensures easier manual validation. 3 Remote review and consultation in multiple locations 4 Stain the slide automatically Analyze the slide automatically ifabnormal 2 Part of abnormal samples could be validated by labXpert automatically based on “validation rules”. The users are able to define the “validation rules” through the patient information, parameters, flags, historic results, etc. 1 Normal samples (without flags) can be validated by labXpert automatically. Remote consultations After expert validation MC-80 CMU optimizes the distribution of workload between each BC-6000/6200 unit and decides which sample requires a blood smear. It displays the status of each instrument on CAL 6000 as well as the volume of balance reagent. CMU Re-examrules
