This document discusses Inca suspension bridge construction techniques and their aesthetic possibilities. It describes how suspension bridges are built using plant fibers like esparto or hemp, based on Incan techniques. These Incan bridges are now considered world heritage sites by UNESCO. The document also outlines the concepts, techniques, materials needed and work groups involved in building a suspension bridge installation.
BRIDGE FAB 12
- 1. construction techniques based Inca suspension bridges FAB 12 BRIDGES/Shezhen 8 and 15 august The suspension bridge is built with fiber vejetal

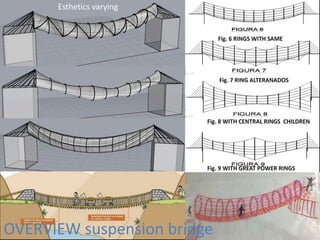

- 2. OVERVIEW suspension bridge Esthetics varying

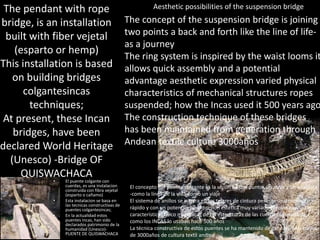

- 4. Aesthetic possibilities of the suspension bridge El puente colgante con cuerdas, es una instalacion construida con fibra vejetal (esparto o ca単amo) Esta instalacion se basa en las tecnicas constructivas de puentes colgantesincas; En la actualidad estos puentes incas, han sido declarados patrimonio de la humanidad (Unesco)- PUENTE DE QUISWACHACA The pendant with rope bridge, is an installation built with fiber vejetal (esparto or hemp) This installation is based on building bridges colgantesincas techniques; At present, these Incan bridges, have been declared World Heritage (Unesco) -Bridge OF QUISWACHACA El concepto del puente colgante es la uni坦n de dos puntos un atr叩s y un adelante -como la l鱈nea de la vida-como un viaje El sistema de anillos se inspira en los telares de cintura permite un armado r叩pido y con un potencial de expresi坦n est辿tica muy variado aprovechando las caracter鱈sticas f鱈sico mec叩nicas de las estructuras de las cuerdas suspendida; como los INCAS lo usaban hace 500 a単os La t辿cnica constructiva de estos puentes se ha mantenido de generaci坦n a trav辿s de 3000a単os de cultura textil andina The concept of the suspension bridge is joining two points a back and forth like the line of life- as a journey The ring system is inspired by the waist looms it allows quick assembly and a potential advantage aesthetic expression varied physical characteristics of mechanical structures ropes suspended; how the Incas used it 500 years ago The construction technique of these bridges has been maintained from generation through Andean textile culture 3000a単os

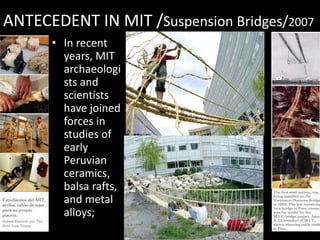

- 5. ANTECEDENT IN MIT /Suspension Bridges/2007 In recent years, MIT archaeologi sts and scientists have joined forces in studies of early Peruvian ceramics, balsa rafts, and metal alloys;

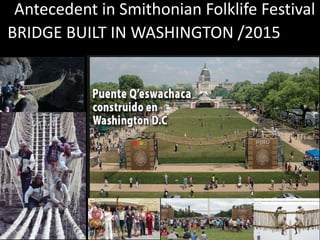

- 6. BRIDGE BUILT IN WASHINGTON /2015 Antecedent in Smithonian Folklife Festival

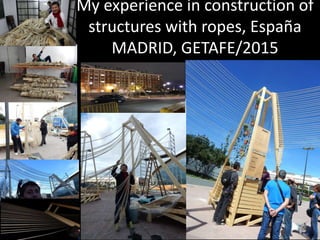

- 7. My experience in construction of structures with ropes, Espa単a MADRID, GETAFE/2015

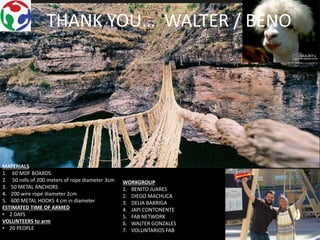

- 8. THANK YOU WALTER / BENO MATERIALS 1. 60 MDF BOARDS 2. 50 rolls of 200 meters of rope diameter 3cm 3. 50 METAL ANCHORS 4. 200 wire rope diameter 2cm 5. 600 METAL HOOKS 4 cm in diameter ESTIMATED TIME OF ARMED 2 DAYS VOLUNTEERS to arm 20 PEOPLE WORKGROUP 1. BENITO JUARES 2. DIEGO MACHUCA 3. DELIA BARRIGA 4. JAPI CONTONENTE 5. FAB NETWORK 6. WALTER GONZALES 7. VOLUNTARIOS FAB
