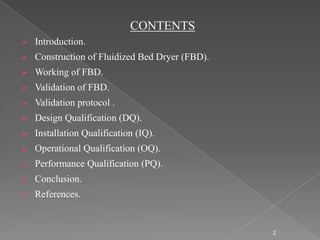

CONTENTS
 Introduction.
 Construction of Fluidized Bed Dryer (FBD).
 Working of FBD.
 Validation of FBD.
 Validation protocol .
 Design Qualification (DQ).
 Installation Qualification (IQ).
 Operational Qualification (OQ).
 Performance Qualification (PQ).
 Conclusion.
 References.

2

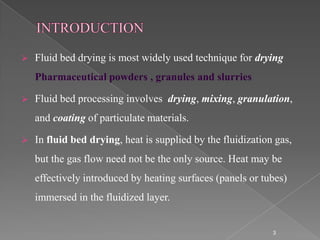

 Fluid bed drying is most widely used technique for drying
Pharmaceutical powders , granules and slurries

 Fluid bed processing involves drying, mixing, granulation,
and coating of particulate materials.

 In fluid bed drying, heat is supplied by the fluidization gas,
but the gas flow need not be the only source. Heat may be
effectively introduced by heating surfaces (panels or tubes)
immersed in the fluidized layer.

3

contd…

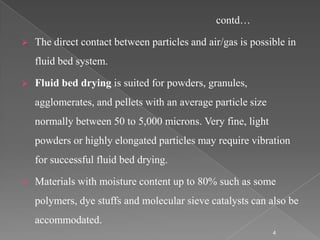

 The direct contact between particles and air/gas is possible in
fluid bed system.

 Fluid bed drying is suited for powders, granules,
agglomerates, and pellets with an average particle size
normally between 50 to 5,000 microns. Very fine, light
powders or highly elongated particles may require vibration
for successful fluid bed drying.

 Materials with moisture content up to 80% such as some
polymers, dye stuffs and molecular sieve catalysts can also be
accommodated.
4

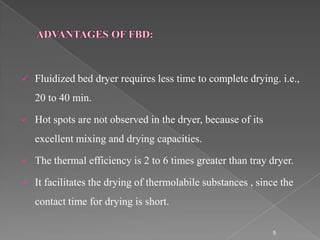

 Fluidized bed dryer requires less time to complete drying. i.e.,
20 to 40 min.

 Hot spots are not observed in the dryer, because of its
excellent mixing and drying capacities.

 The thermal efficiency is 2 to 6 times greater than tray dryer.

 It facilitates the drying of thermolabile substances , since the
contact time for drying is short.

5

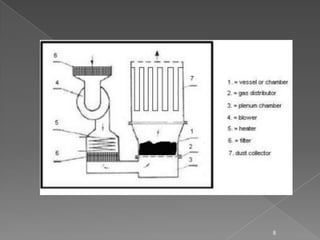

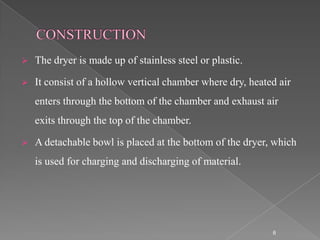

 The dryer is made up of stainless steel or plastic.

 It consist of a hollow vertical chamber where dry, heated air
enters through the bottom of the chamber and exhaust air
exits through the top of the chamber.

 A detachable bowl is placed at the bottom of the dryer, which
is used for charging and discharging of material.

6

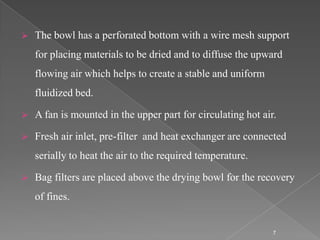

 The bowl has a perforated bottom with a wire mesh support
for placing materials to be dried and to diffuse the upward
flowing air which helps to create a stable and uniform
fluidized bed.

 A fan is mounted in the upper part for circulating hot air.

 Fresh air inlet, pre-filter and heat exchanger are connected
serially to heat the air to the required temperature.

 Bag filters are placed above the drying bowl for the recovery
of fines.

7

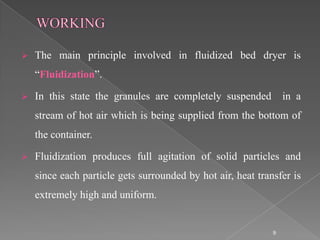

 The main principle involved in fluidized bed dryer is
“Fluidization”.

 In this state the granules are completely suspended in a
stream of hot air which is being supplied from the bottom of
the container.

 Fluidization produces full agitation of solid particles and
since each particle gets surrounded by hot air, heat transfer is
extremely high and uniform.

9

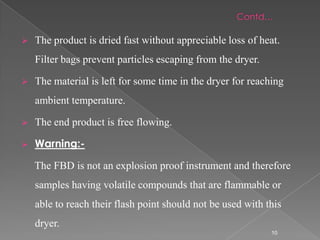

 The product is dried fast without appreciable loss of heat.
Filter bags prevent particles escaping from the dryer.

 The material is left for some time in the dryer for reaching
ambient temperature.

 The end product is free flowing.

 Warning:-

The FBD is not an explosion proof instrument and therefore
samples having volatile compounds that are flammable or
able to reach their flash point should not be used with this
dryer.
10

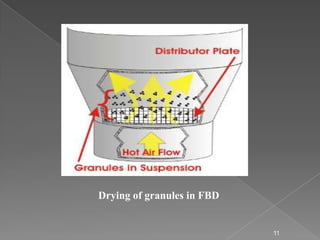

Drying of granules in FBD

11

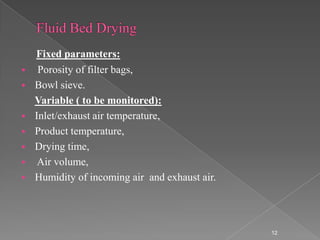

Fixed parameters:
 Porosity of filter bags,
 Bowl sieve.
Variable ( to be monitored):
 Inlet/exhaust air temperature,
 Product temperature,
 Drying time,
 Air volume,
 Humidity of incoming air and exhaust air.

12

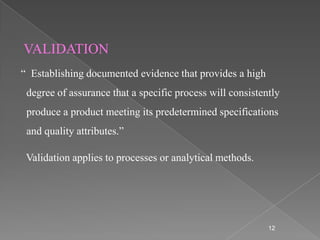

VALIDATION
“ Establishing documented evidence that provides a high
degree of assurance that a specific process will consistently
produce a product meeting its predetermined specifications
and quality attributes.”

Validation applies to processes or analytical methods.

12

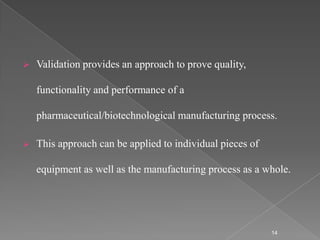

 Validation provides an approach to prove quality,

functionality and performance of a

pharmaceutical/biotechnological manufacturing process.

 This approach can be applied to individual pieces of

equipment as well as the manufacturing process as a whole.

14

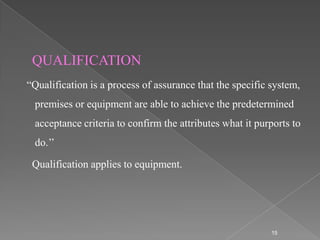

QUALIFICATION
“Qualification is a process of assurance that the specific system,
premises or equipment are able to achieve the predetermined
acceptance criteria to confirm the attributes what it purports to
do.’’

Qualification applies to equipment.

15

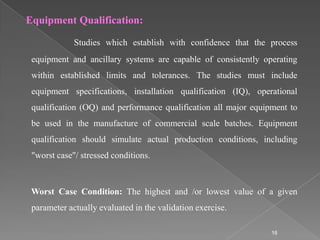

Equipment Qualification:

Studies which establish with confidence that the process
equipment and ancillary systems are capable of consistently operating
within established limits and tolerances. The studies must include
equipment specifications, installation qualification (IQ), operational
qualification (OQ) and performance qualification all major equipment to
be used in the manufacture of commercial scale batches. Equipment
qualification should simulate actual production conditions, including
"worst case"/ stressed conditions.

Worst Case Condition: The highest and /or lowest value of a given
parameter actually evaluated in the validation exercise.

16

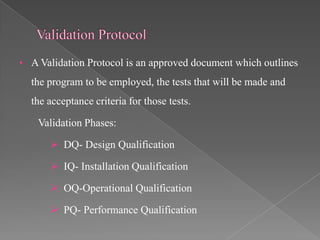

• A Validation Protocol is an approved document which outlines
the program to be employed, the tests that will be made and
the acceptance criteria for those tests.

Validation Phases:

 DQ- Design Qualification

 IQ- Installation Qualification

 OQ-Operational Qualification

 PQ- Performance Qualification

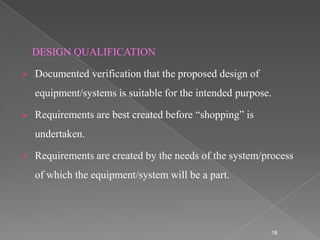

DESIGN QUALIFICATION

 Documented verification that the proposed design of
equipment/systems is suitable for the intended purpose.

 Requirements are best created before “shopping” is
undertaken.

 Requirements are created by the needs of the system/process
of which the equipment/system will be a part.

18

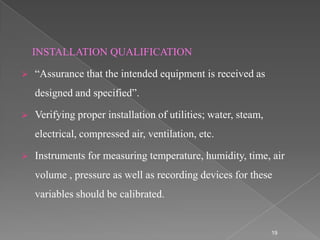

INSTALLATION QUALIFICATION

 “Assurance that the intended equipment is received as
designed and specified”.

 Verifying proper installation of utilities; water, steam,
electrical, compressed air, ventilation, etc.

 Instruments for measuring temperature, humidity, time, air
volume , pressure as well as recording devices for these
variables should be calibrated.

19

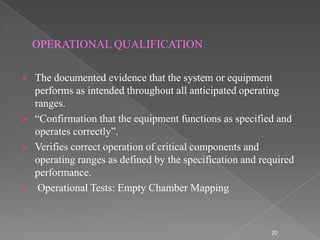

OPERATIONAL QUALIFICATION

 The documented evidence that the system or equipment
performs as intended throughout all anticipated operating
ranges.
 “Confirmation that the equipment functions as specified and
operates correctly”.
 Verifies correct operation of critical components and
operating ranges as defined by the specification and required
performance.
 Operational Tests: Empty Chamber Mapping

20

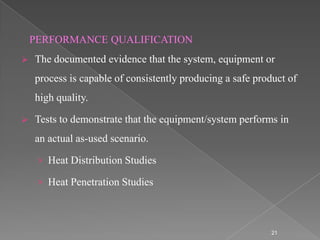

PERFORMANCE QUALIFICATION
 The documented evidence that the system, equipment or
process is capable of consistently producing a safe product of
high quality.

 Tests to demonstrate that the equipment/system performs in
an actual as-used scenario.

› Heat Distribution Studies

› Heat Penetration Studies

21

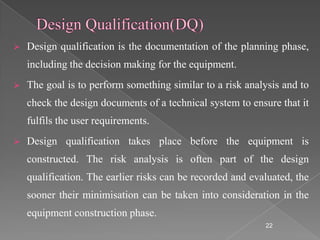

 Design qualification is the documentation of the planning phase,
including the decision making for the equipment.
 The goal is to perform something similar to a risk analysis and to
check the design documents of a technical system to ensure that it
fulfils the user requirements.
 Design qualification takes place before the equipment is
constructed. The risk analysis is often part of the design
qualification. The earlier risks can be recorded and evaluated, the
sooner their minimisation can be taken into consideration in the
equipment construction phase.
22

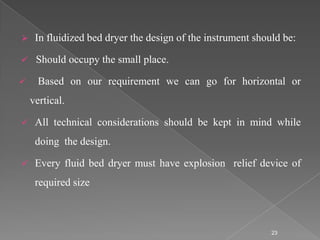

 In fluidized bed dryer the design of the instrument should be:

 Should occupy the small place.

 Based on our requirement we can go for horizontal or
vertical.

 All technical considerations should be kept in mind while
doing the design.

 Every fluid bed dryer must have explosion relief device of
required size

23

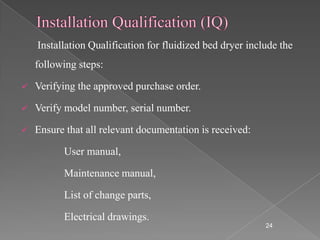

Installation Qualification for fluidized bed dryer include the
following steps:

 Verifying the approved purchase order.

 Verify model number, serial number.

 Ensure that all relevant documentation is received:

User manual,

Maintenance manual,

List of change parts,

Electrical drawings.
24

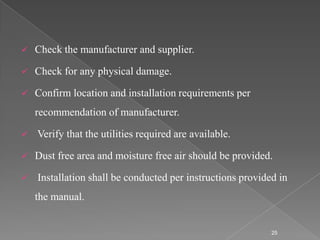

 Check the manufacturer and supplier.

 Check for any physical damage.

 Confirm location and installation requirements per
recommendation of manufacturer.

 Verify that the utilities required are available.

 Dust free area and moisture free air should be provided.

 Installation shall be conducted per instructions provided in
the manual.

25

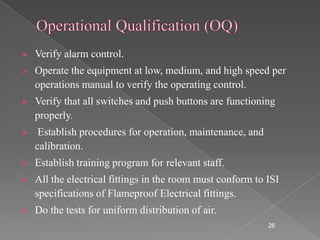

 Verify alarm control.
 Operate the equipment at low, medium, and high speed per
operations manual to verify the operating control.
 Verify that all switches and push buttons are functioning
properly.
 Establish procedures for operation, maintenance, and
calibration.
 Establish training program for relevant staff.
 All the electrical fittings in the room must conform to ISI
specifications of Flameproof Electrical fittings.
 Do the tests for uniform distribution of air.
26

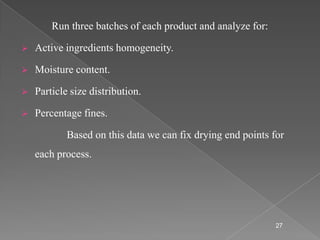

Run three batches of each product and analyze for:

 Active ingredients homogeneity.

 Moisture content.

 Particle size distribution.

 Percentage fines.

Based on this data we can fix drying end points for
each process.

27

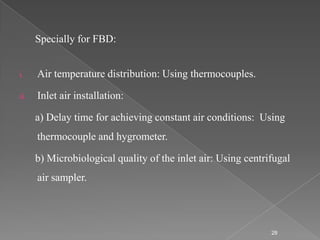

Specially for FBD:

i. Air temperature distribution: Using thermocouples.

ii. Inlet air installation:

a) Delay time for achieving constant air conditions: Using
thermocouple and hygrometer.

b) Microbiological quality of the inlet air: Using centrifugal
air sampler.

28

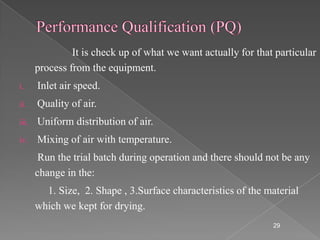

It is check up of what we want actually for that particular
process from the equipment.
i. Inlet air speed.
ii. Quality of air.
iii. Uniform distribution of air.
iv. Mixing of air with temperature.
Run the trial batch during operation and there should not be any
change in the:
1. Size, 2. Shape , 3.Surface characteristics of the material
which we kept for drying.
29

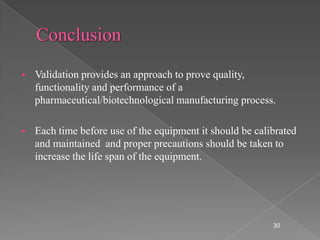

 Validation provides an approach to prove quality,
functionality and performance of a
pharmaceutical/biotechnological manufacturing process.

 Each time before use of the equipment it should be calibrated
and maintained and proper precautions should be taken to
increase the life span of the equipment.

30

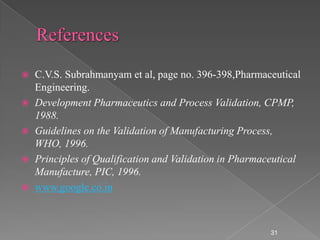

 C.V.S. Subrahmanyam et al, page no. 396-398,Pharmaceutical
Engineering.
 Development Pharmaceutics and Process Validation, CPMP,
1988.
 Guidelines on the Validation of Manufacturing Process,
WHO, 1996.
 Principles of Qualification and Validation in Pharmaceutical
Manufacture, PIC, 1996.
 www.google.co.in

31

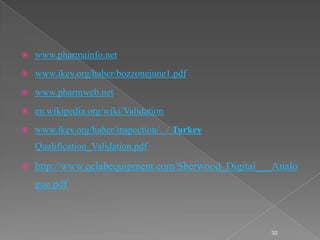

 www.pharmainfo.net
 www.ikev.org/haber/bozzonejune1.pdf
 www.pharmweb.net
 en.wikipedia.org/wiki/Validation
 www.ikev.org/haber/inspection/.../ Turkey
Qualification_Validation.pdf

 http://www.qclabequipment.com/Sherwood_Digital___Analo
gue.pdf
