Flv for H.264
- 1. FLV FORMAT FOR H.264 By linlause

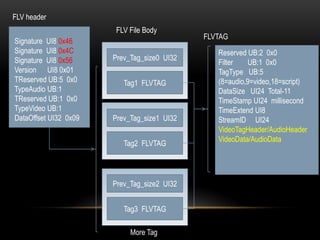

- 2. FLV header FLV File Body FLVTAG Signature UI8 0x46 Signature UI8 0x4C Reserved UB:2 0x0 Signature UI8 0x56 Prev_Tag_size0 UI32 Filter UB:1 0x0 Version UI8 0x01 TagType UB:5 TReserved UB:5 0x0 Tag1 FLVTAG (8=audio,9=video,18=script) TypeAudio UB:1 DataSize UI24 Total-11 TReserved UB:1 0x0 TimeStamp UI24 millisecond TypeVideo UB:1 TimeExtend UI8 DataOffset UI32 0x09 Prev_Tag_size1 UI32 StreamID UI24 VideoTagHeader/AudioHeader VideoData/AudioData Tag2 FLVTAG Prev_Tag_size2 UI32 Tag3 FLVTAG More Tag

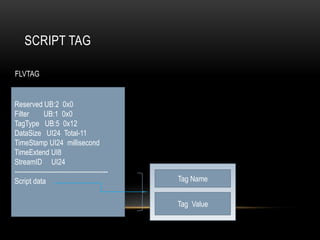

- 3. SCRIPT TAG FLVTAG Reserved UB:2 0x0 Filter UB:1 0x0 TagType UB:5 0x12 DataSize UI24 Total-11 TimeStamp UI24 millisecond TimeExtend UI8 StreamID UI24 ------------------------------------------- Script data Tag Name Tag Value

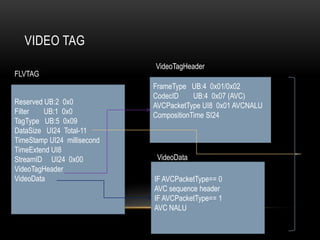

- 4. VIDEO TAG VideoTagHeader FLVTAG FrameType UB:4 0x01/0x02 CodecID UB:4 0x07 (AVC) Reserved UB:2 0x0 AVCPacketType UI8 0x01 AVCNALU Filter UB:1 0x0 CompositionTime SI24 TagType UB:5 0x09 DataSize UI24 Total-11 TimeStamp UI24 millisecond TimeExtend UI8 StreamID UI24 0x00 VideoData VideoTagHeader VideoData IF AVCPacketType== 0 AVC sequence header IF AVCPacketType== 1 AVC NALU

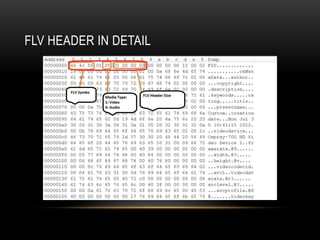

- 6. FLV HEADER IN DETAIL

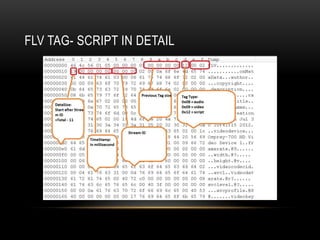

- 7. FLV TAG- SCRIPT IN DETAIL

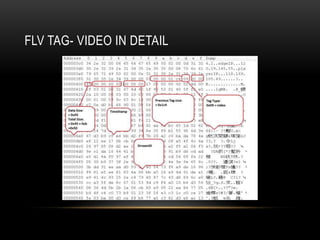

- 8. FLV TAG- VIDEO IN DETAIL

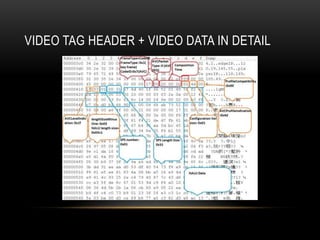

- 9. VIDEO TAG HEADER + VIDEO DATA IN DETAIL

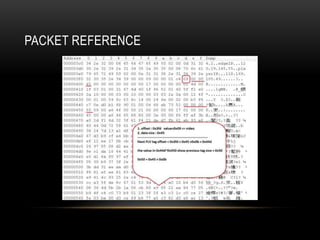

- 10. PACKET REFERENCE

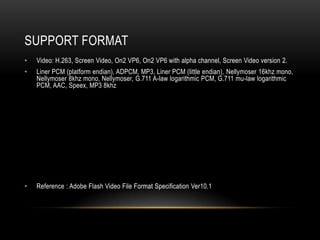

- 11. SUPPORT FORMAT Video: H.263, Screen Video, On2 VP6, On2 VP6 with alpha channel, Screen Video version 2. Liner PCM (platform endian), ADPCM, MP3, Liner PCM (little endian), Nellymoser 16khz mono, Nellymoser 8khz mono, Nellymoser, G.711 A-law logarithmic PCM, G.711 mu-law logarithmic PCM, AAC, Speex, MP3 8khz Reference : Adobe Flash Video File Format Specification Ver10.1
