The document discusses the utilization of AWS services for high-throughput genomics workflows, focusing on application packaging, execution, and orchestration using AWS Batch and AWS Lambda. It outlines challenges in genomics data processing, presents reference architectures, and includes demonstrations for packaging applications with Docker and executing workflows. Additionally, it highlights serverless technologies and AWS Step Functions for managing distributed applications with minimal administration.
![息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

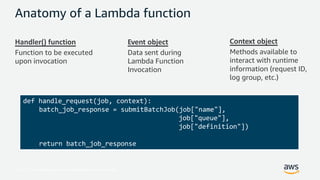

Anatomy of a Lambda function
Handler() function
Function to be executed
upon invocation
Event object
Data sent during
Lambda Function
Invocation
Context object
Methods available to
interact with runtime
information (request ID,
log group, etc.)
def handle_request(job, context):
batch_job_response = submitBatchJob(job["name"],
job["queue"],
job["definition"])
return batch_job_response](https://image.slidesharecdn.com/genomicsonaws-webinar-april2018-180502092325/85/Genomics-on-aws-webinar-april2018-44-320.jpg)
Genomics on aws-webinar-april2018
- 1. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Angel Pizarro AWS Research & Technical Computing April 24, 2018 High Throughput Genomics on AWS Containers and serverless technology for science

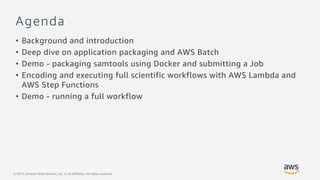

- 2. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Agenda Background and introduction Deep dive on application packaging and AWS Batch Demo - packaging samtools using Docker and submitting a Job Encoding and executing full scientific workflows with AWS Lambda and AWS Step Functions Demo - running a full workflow
- 3. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. The problem
- 4. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Genomics data processing Typical workflow in genomics analysis

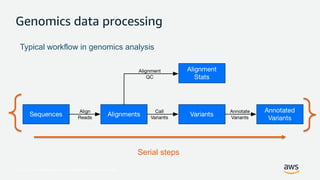

- 5. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Genomics data processing Typical workflow in genomics analysis Serial steps

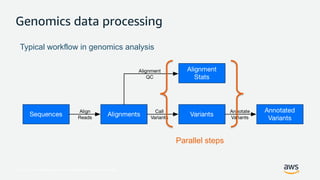

- 6. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Genomics data processing Typical workflow in genomics analysis Parallel steps

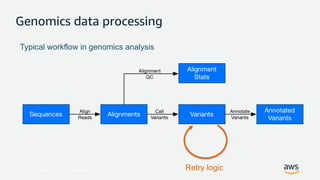

- 7. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Genomics data processing Typical workflow in genomics analysis Retry logic

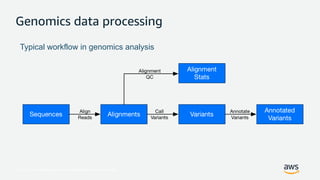

- 8. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Genomics data processing Typical workflow in genomics analysis

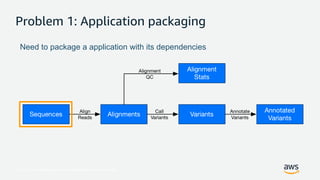

- 9. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Problem 1: Application packaging Need to package a application with its dependencies

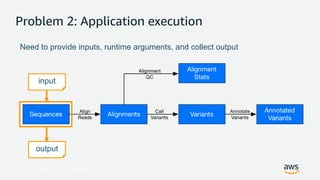

- 10. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Problem 2: Application execution Need to provide inputs, runtime arguments, and collect output input output

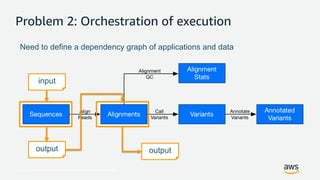

- 11. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Problem 2: Orchestration of execution Need to define a dependency graph of applications and data input output output

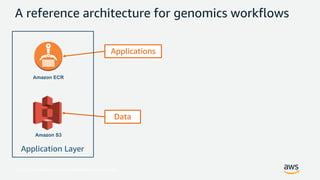

- 12. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. A reference architecture for genomics workflows Amazon ECR Amazon S3 Applications Data Application Layer

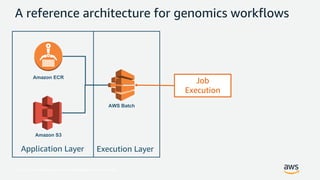

- 13. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. A reference architecture for genomics workflows Amazon ECR Amazon S3 AWS Batch Execution Layer Job Execution Application Layer

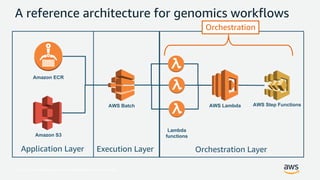

- 14. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. A reference architecture for genomics workflows Lambda functions Amazon ECR Amazon S3 AWS Batch AWS Step FunctionsAWS Lambda Orchestration Application Layer Execution Layer Orchestration Layer
- 15. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. A reference architecture for genomics workflows Lambda functions Amazon ECR Amazon S3 AWS Batch AWS Step FunctionsAWS Lambda Orchestration LayerApplication Layer Execution Layer
- 16. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. The Application Layer Lambda functions Amazon ECR Amazon S3 AWS Batch AWS Step FunctionsAWS Lambda Orchestration LayerApplication Layer Execution Layer

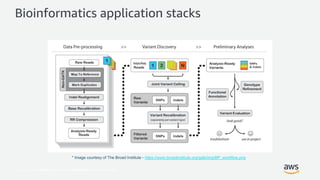

- 17. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Bioinformatics application stacks * Image courtesy of The Broad Institute - https://www.broadinstitute.org/gatk/img/BP_workflow.png

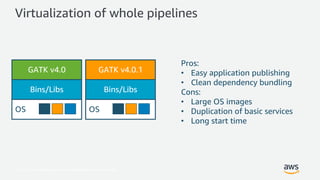

- 18. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Virtualization of whole pipelines Pros: Easy application publishing Clean dependency bundling Cons: Large OS images Duplication of basic services Long start time GATK v4.0 Bins/Libs OS GATK v4.0.1 Bins/Libs OS

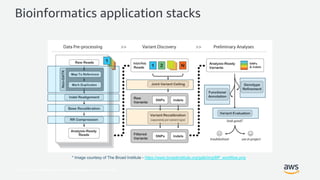

- 19. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Bioinformatics application stacks * Image courtesy of The Broad Institute - https://www.broadinstitute.org/gatk/img/BP_workflow.png

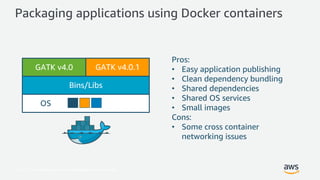

- 20. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Packaging applications using Docker containers GATK v4.0 Bins/Libs OS GATK v4.0.1 Pros: Easy application publishing Clean dependency bundling Shared dependencies Shared OS services Small images Cons: Some cross container networking issues

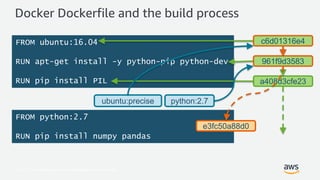

- 21. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. FROM ubuntu:16.04 RUN apt-get install -y python-pip python-dev RUN pip install PIL FROM python:2.7 RUN pip install numpy pandas Docker Dockerfile and the build process 961f9d3583 c6d01316e4 a408d3cfe23 python:2.7ubuntu:precise e3fc50a88d0 961f9d3583 c6d01316e4

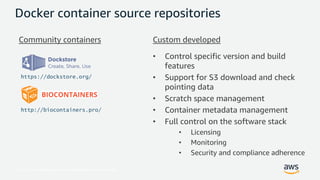

- 22. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Docker container source repositories Community containers Custom developed Control specific version and build features Support for S3 download and check pointing data Scratch space management Container metadata management Full control on the software stack Licensing Monitoring Security and compliance adherence https://dockstore.org/ http://biocontainers.pro/

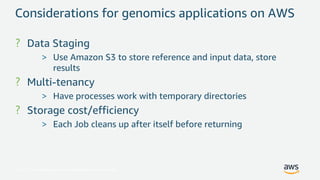

- 23. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Considerations for genomics applications on AWS Data Staging Use Amazon S3 to store reference and input data, store results Multi-tenancy Have processes work with temporary directories Storage cost/efficiency Each Job cleans up after itself before returning

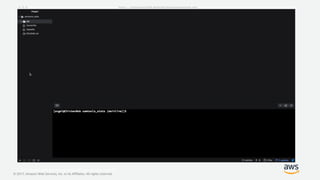

- 24. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Demo 1 - Application packaging using Docker
- 25. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

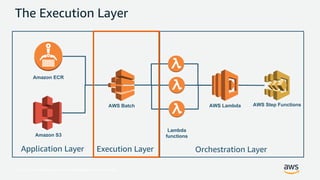

- 26. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. The Execution Layer Lambda functions Amazon ECR Amazon S3 AWS Batch AWS Step FunctionsAWS Lambda Orchestration LayerApplication Layer Execution Layer

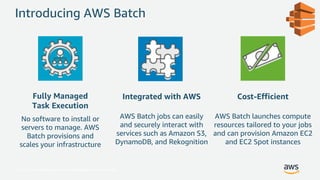

- 27. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Introducing AWS Batch Fully Managed Task Execution No software to install or servers to manage. AWS Batch provisions and scales your infrastructure Integrated with AWS AWS Batch jobs can easily and securely interact with services such as Amazon S3, DynamoDB, and Rekognition Cost-Efficient AWS Batch launches compute resources tailored to your jobs and can provision Amazon EC2 and EC2 Spot instances

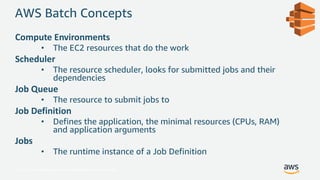

- 28. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. AWS Batch Concepts Compute Environments The EC2 resources that do the work Scheduler The resource scheduler, looks for submitted jobs and their dependencies Job Queue The resource to submit jobs to Job Definition Defines the application, the minimal resources (CPUs, RAM) and application arguments Jobs The runtime instance of a Job Definition

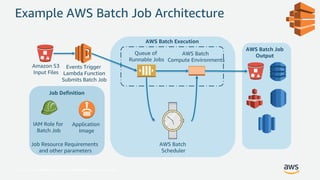

- 29. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Example AWS Batch Job Architecture IAM Role for Batch Job Amazon S3 Input Files Queue of Runnable Jobs Events Trigger Lambda Function Submits Batch Job AWS Batch Compute Environments AWS Batch Job Output Job Definition Job Resource Requirements and other parameters AWS Batch Execution Application Image AWS Batch Scheduler
- 30. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. A Visual Representation of AWS Batch

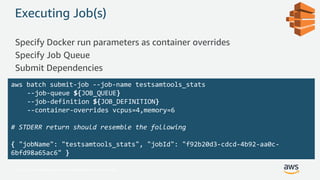

- 31. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Executing Job(s) Specify Docker run parameters as container overrides Specify Job Queue Submit Dependencies aws batch submit-job --job-name testsamtools_stats --job-queue ${JOB_QUEUE} --job-definition ${JOB_DEFINITION} --container-overrides vcpus=4,memory=6 # STDERR return should resemble the following { "jobName": "testsamtools_stats", "jobId": "f92b20d3-cdcd-4b92-aa0c- 6bfd98a65ac6" }

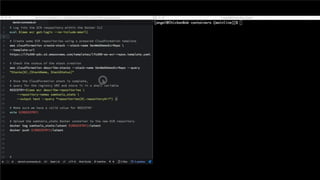

- 32. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Demo 2 - Executing samtools stats with AWS Batch
- 33. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

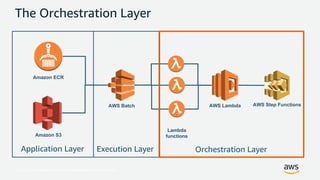

- 34. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. The Orchestration Layer Lambda functions Amazon ECR Amazon S3 AWS Batch AWS Step FunctionsAWS Lambda Orchestration LayerApplication Layer Execution Layer

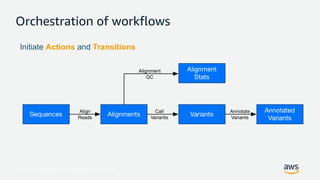

- 35. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Orchestration of workflows Initiate Actions and Transitions

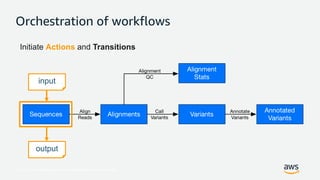

- 36. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Orchestration of workflows Initiate Actions and Transitions input output
- 37. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Orchestration of workflows Initiate Actions and Transitions
- 38. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Workflow orchestration using Serverless technologies

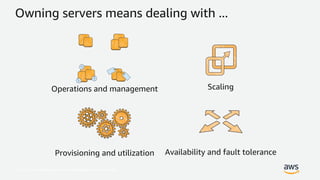

- 39. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Owning servers means dealing with ... Scaling Availability and fault tolerance Operations and management Provisioning and utilization

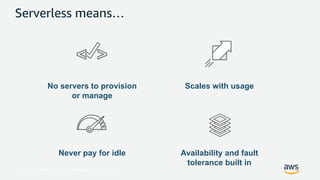

- 40. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. No servers to provision or manage Scales with usage Never pay for idle Availability and fault tolerance built in Serverless means

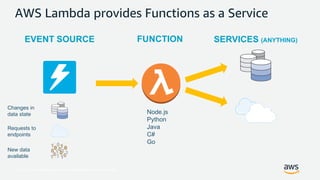

- 41. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. SERVICES (ANYTHING) Changes in data state Requests to endpoints New data available EVENT SOURCE FUNCTION Node.js Python Java C# Go AWS Lambda provides Functions as a Service
- 42. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Orchestration of workflows Initiate Actions and Transitions input output AWS Lambda

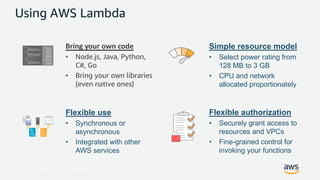

- 43. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Using AWS Lambda Bring your own code Node.js, Java, Python, C#, Go Bring your own libraries (even native ones) Simple resource model Select power rating from 128 MB to 3 GB CPU and network allocated proportionately Flexible use Synchronous or asynchronous Integrated with other AWS services Flexible authorization Securely grant access to resources and VPCs Fine-grained control for invoking your functions
- 44. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Anatomy of a Lambda function Handler() function Function to be executed upon invocation Event object Data sent during Lambda Function Invocation Context object Methods available to interact with runtime information (request ID, log group, etc.) def handle_request(job, context): batch_job_response = submitBatchJob(job["name"], job["queue"], job["definition"]) return batch_job_response

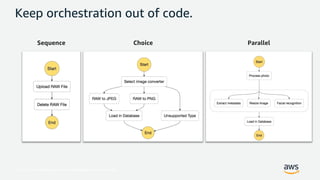

- 45. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Keep orchestration out of code. Sequence Choice Parallel

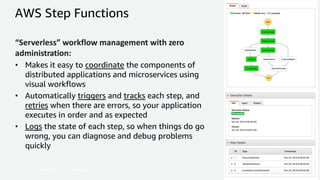

- 46. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. AWS Step Functions Serverless workflow management with zero administration: Makes it easy to coordinate the components of distributed applications and microservices using visual workflows Automatically triggers and tracks each step, and retries when there are errors, so your application executes in order and as expected Logs the state of each step, so when things do go wrong, you can diagnose and debug problems quickly

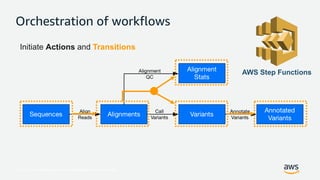

- 47. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. AWS Step Functions Orchestration of workflows Initiate Actions and Transitions

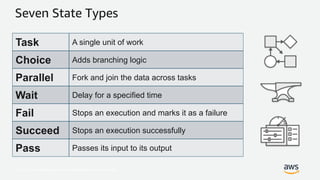

- 48. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Seven State Types Task A single unit of work Choice Adds branching logic Parallel Fork and join the data across tasks Wait Delay for a specified time Fail Stops an execution and marks it as a failure Succeed Stops an execution successfully Pass Passes its input to its output

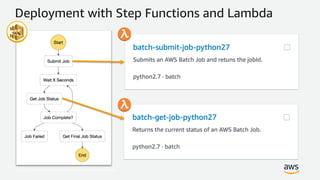

- 49. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Deployment with Step Functions and Lambda

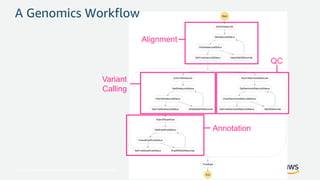

- 50. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. A Genomics Workflow Alignment Variant Calling Annotation QC

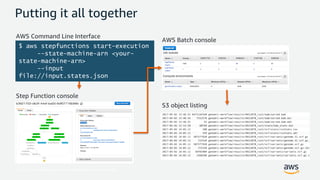

- 51. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Putting it all together $ aws stepfunctions start-execution --state-machine-arn <your- state-machine-arn> --input file://input.states.json AWS Command Line Interface AWS Batch console Step Function console S3 object listing
- 52. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Demo 3 - Implementing a full workflow using Lambda and Step Functions
- 53. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
- 54. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Alternatives!

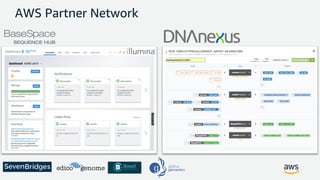

- 55. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. AWS Partner Network

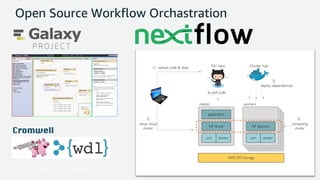

- 56. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Open Source Workflow Orchastration Cromwell

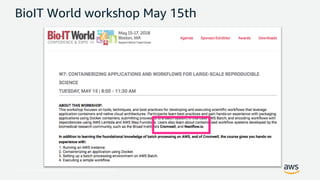

- 57. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. BioIT World workshop May 15th
- 58. 息 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Thank you! We will send a follow up email with more information on how to get started using AWS Batch for genomics.
