The document discusses including ISO metadata standards in NASA Earth Science products in a consistent way across missions. It proposes representing ISO concepts and content in HDF files using standard XML representations. Specifically: 1) Identifying important ISO concepts and representing them in ISO 19139-2 XML for the SMAP mission. 2) Including the ISO XML as a string attribute in the Metadata group of SMAP granules to include the concepts. 3) Developing standard XSLT transforms to translate between ISO XML and NcML/HDF representations in a lossless way. This allows ISO metadata to be accessible and consistent across products and missions while using mission-specific HDF representations.
![The Goal
3
Include ISO concepts/content in [NASA]
Earth Science products in a
representation that is useful and
consistent across products and
missions.](https://image.slidesharecdn.com/granulesandiso-151122161837-lva1-app6892/85/Granules-and-ISO-Metadata-3-320.jpg)
![ISO 19139-2 > NcML > HDF
19
/gmi:MI_Metadata
/gmd:identificationInfo/gmd:MD_DataIdentification
/gmd:citation/gmd:CI_Citation
/gmd:title/gco:CharacterString | gmx:FileName
/nc:netcdf
/nc:group[@name=gmi:MI_Metadata]
/nc:group[@name=gmd:identificationInfo]
/nc:group[@name=gmd:citation]
/nc:group[@name=gmd:title]
/nc:attribute[@name=value]/@value
I
S
O
N
C
M
L
/gmi:MI_Metadata/gmd:identificationInfo/gmd:citation/gmd:title/value
S
M
A
P](https://image.slidesharecdn.com/granulesandiso-151122161837-lva1-app6892/85/Granules-and-ISO-Metadata-19-320.jpg)
![ISO 19115-3 > NcML > HDF
20
/nc:netcdf
/nc:group[@name=mdb:MD_Metadata]
/nc:group[@name=mdb:identificationInfo]
/nc:group[@name=mri:citation]
/nc:group[@name=mri:title]
/nc:attribute[@name=value]/@value
/mdb:MD_Metadata
/mdb:identificationInfo/mri:MD_DataIdentification
/mri:citation/cit:CI_Citation
/cit:title/gco:CharacterString | gcx:FileName
I
S
O
N
C
M
L
S
M
A
P
/mdb:MD_Metadata/mdb:identificationInfo/mri:citation/mri:title/value](https://image.slidesharecdn.com/granulesandiso-151122161837-lva1-app6892/85/Granules-and-ISO-Metadata-20-320.jpg)
Granules and ISO Metadata
- 1. ISO Metadata and Granules Ted Habermann, Director of Earth Science The HDF Group thabermann@hdfgroup.org 1

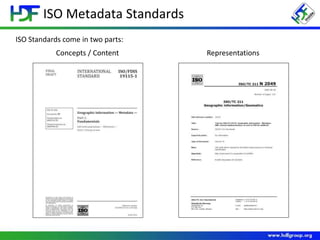

- 2. ISO Metadata Standards ISO Standards come in two parts: Concepts / Content Representations

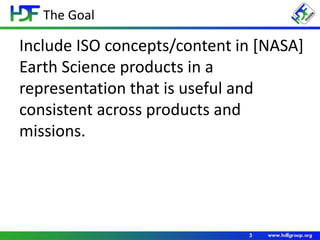

- 3. The Goal 3 Include ISO concepts/content in [NASA] Earth Science products in a representation that is useful and consistent across products and missions.

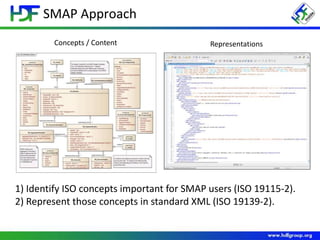

- 4. SMAP Approach Concepts / Content Representations 1) Identify ISO concepts important for SMAP users (ISO 19115-2). 2) Represent those concepts in standard XML (ISO 19139-2).
- 5. SMAP Granules Approach (1) ISO XML blob included as a string attribute in the Metadata group. ISO 19139-2

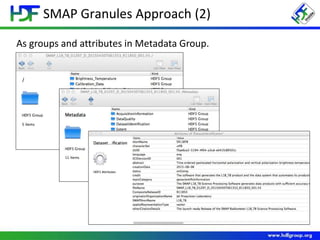

- 6. SMAP Granules Approach (2) As groups and attributes in Metadata Group.

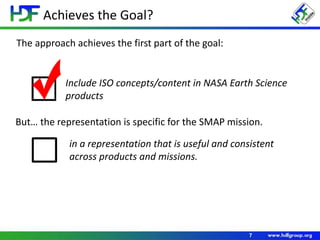

- 7. Achieves the Goal? 7 The approach achieves the first part of the goal: Include ISO concepts/content in NASA Earth Science products in a representation that is useful and consistent across products and missions. But the representation is specific for the SMAP mission.

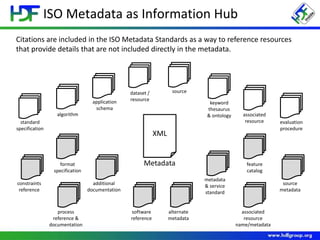

- 8. ISO Metadata as Information Hub Citations are included in the ISO Metadata Standards as a way to reference resources that provide details that are not included directly in the metadata. Metadata XML dataset / resource source keyword thesaurus & ontology evaluation procedure standard specification algorithm associated resource application schema alternate metadata metadata & service standard associated resource name/metadata additional documentation constraints reference source metadata process reference & documentation software reference feature catalog format specification

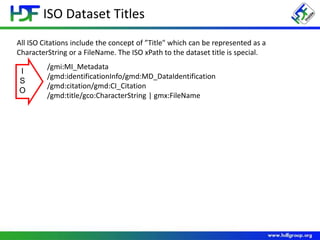

- 9. ISO Dataset Titles All ISO Citations include the concept of Title" which can be represented as a CharacterString or a FileName. The ISO xPath to the dataset title is special. /gmi:MI_Metadata /gmd:identificationInfo/gmd:MD_DataIdentification /gmd:citation/gmd:CI_Citation /gmd:title/gco:CharacterString | gmx:FileName I S O

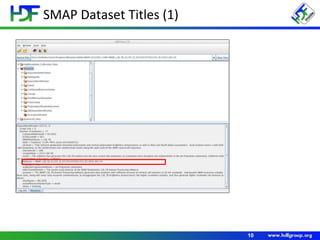

- 10. SMAP Dataset Titles (1) 10

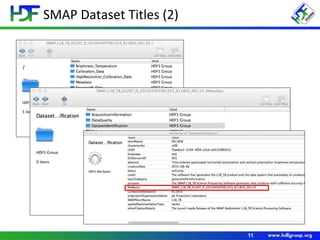

- 11. SMAP Dataset Titles (2) 11
- 12. Accessing Dataset Titles We have the dataset titles in two locations: ISO and SMAP (HDF) /gmi:MI_Metadata /gmd:identificationInfo/gmd:MD_DataIdentification /gmd:citation/gmd:CI_Citation /gmd:title/gco:CharacterString | gmx:FileName /Metadata/DatasetIdentification/fileName This mapping is unique to SMAP. /gmi:MI_Metadata /gmd:identificationInfo/gmd:MD_DataIdentification /gmd:citation/gmd:CI_Citation /gmd:title/gco:CharacterString | gmx:FileName /Metadata /DatasetIdentification /fileName=/ I S O S M A P

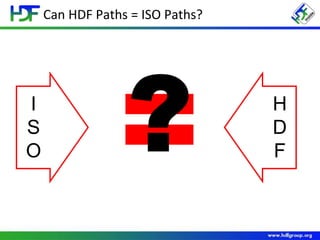

- 13. Can HDF Paths = ISO Paths? I S O H D F

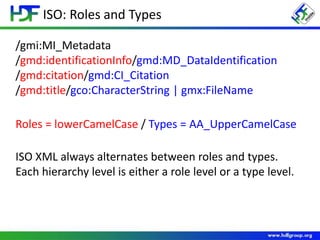

- 14. ISO: Roles and Types Roles = lowerCamelCase / Types = AA_UpperCamelCase ISO XML always alternates between roles and types. Each hierarchy level is either a role level or a type level. /gmi:MI_Metadata /gmd:identificationInfo/gmd:MD_DataIdentification /gmd:citation/gmd:CI_Citation /gmd:title/gco:CharacterString | gmx:FileName

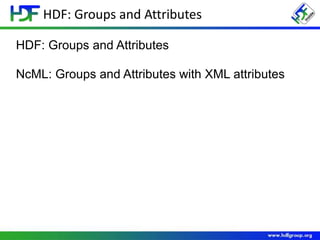

- 15. HDF: Groups and Attributes HDF: Groups and Attributes NcML: Groups and Attributes with XML attributes

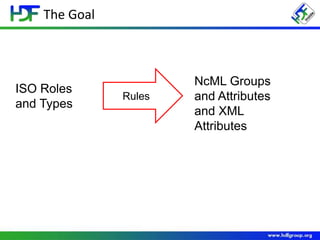

- 16. The Goal ISO Roles and Types NcML Groups and Attributes and XML Attributes Rules

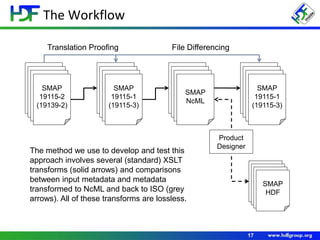

- 17. The Workflow 17 SMAP 19115-2 (19139-2) SMAP 19115-1 (19115-3) SMAP NcML SMAP 19115-1 (19115-3) Translation Proofing File Differencing SMAP HDF Product Designer The method we use to develop and test this approach involves several (standard) XSLT transforms (solid arrows) and comparisons between input metadata and metadata transformed to NcML and back to ISO (grey arrows). All of these transforms are lossless.

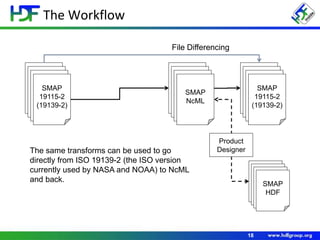

- 18. The Workflow 18 SMAP 19115-2 (19139-2) SMAP NcML SMAP 19115-2 (19139-2) File Differencing The same transforms can be used to go directly from ISO 19139-2 (the ISO version currently used by NASA and NOAA) to NcML and back. SMAP HDF Product Designer

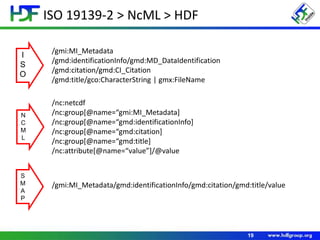

- 19. ISO 19139-2 > NcML > HDF 19 /gmi:MI_Metadata /gmd:identificationInfo/gmd:MD_DataIdentification /gmd:citation/gmd:CI_Citation /gmd:title/gco:CharacterString | gmx:FileName /nc:netcdf /nc:group[@name=gmi:MI_Metadata] /nc:group[@name=gmd:identificationInfo] /nc:group[@name=gmd:citation] /nc:group[@name=gmd:title] /nc:attribute[@name=value]/@value I S O N C M L /gmi:MI_Metadata/gmd:identificationInfo/gmd:citation/gmd:title/value S M A P

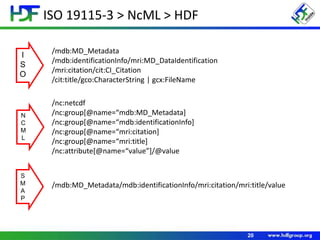

- 20. ISO 19115-3 > NcML > HDF 20 /nc:netcdf /nc:group[@name=mdb:MD_Metadata] /nc:group[@name=mdb:identificationInfo] /nc:group[@name=mri:citation] /nc:group[@name=mri:title] /nc:attribute[@name=value]/@value /mdb:MD_Metadata /mdb:identificationInfo/mri:MD_DataIdentification /mri:citation/cit:CI_Citation /cit:title/gco:CharacterString | gcx:FileName I S O N C M L S M A P /mdb:MD_Metadata/mdb:identificationInfo/mri:citation/mri:title/value

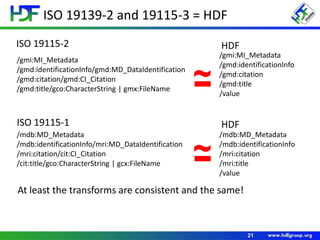

- 21. ISO 19139-2 and 19115-3 = HDF 21 /gmi:MI_Metadata /gmd:identificationInfo/gmd:MD_DataIdentification /gmd:citation/gmd:CI_Citation /gmd:title/gco:CharacterString | gmx:FileName /gmi:MI_Metadata /gmd:identificationInfo /gmd:citation /gmd:title /value /mdb:MD_Metadata /mdb:identificationInfo/mri:MD_DataIdentification /mri:citation/cit:CI_Citation /cit:title/gco:CharacterString | gcx:FileName /mdb:MD_Metadata /mdb:identificationInfo /mri:citation /mri:title /value ~ ~ ISO 19115-2 HDF ISO 19115-1 HDF At least the transforms are consistent and the same!

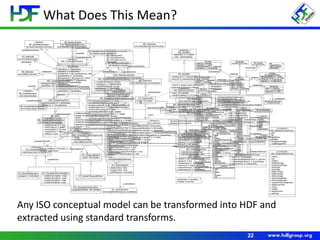

- 22. What Does This Mean? 22 Any ISO conceptual model can be transformed into HDF and extracted using standard transforms.

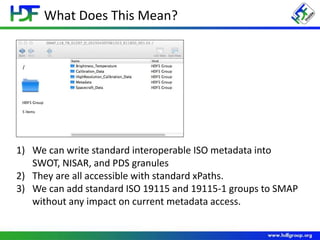

- 23. What Does This Mean? 1) We can write standard interoperable ISO metadata into SWOT, NISAR, and PDS granules 2) They are all accessible with standard xPaths. 3) We can add standard ISO 19115 and 19115-1 groups to SMAP without any impact on current metadata access.

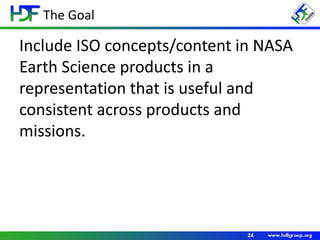

- 24. The Goal 24 Include ISO concepts/content in NASA Earth Science products in a representation that is useful and consistent across products and missions.
- 25. Acknowledgements 25 This work was partially supported by contract number NNG10HP02C from NASA. Any opinions, findings, conclusions, or recommendations expressed in this material are those of the author and do not necessarily reflect the views of NASA or The HDF Group.
