The GST-FT8WN is an 8-zone fire telephone panel that provides 2-way voice communication between a central control center and up to 10 communication points on each zone, such as fire telephones, speaker handsets, or jack sockets. It allows single calls to individual zones or group calls to multiple zones simultaneously. The panel is wall-mounted and wired radially to the various communication points. Regular testing of the system is recommended to ensure proper operation in an emergency.
Gstft8n

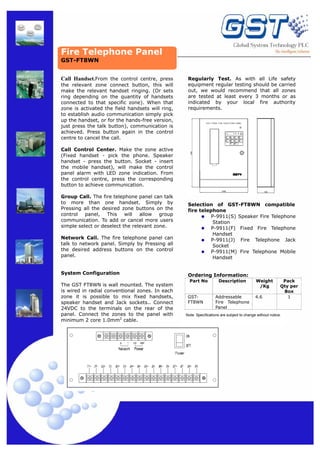

- 1. Fire Telephone Panel GSTFT8WN Description The GST Addressable Firemans Telephone system is a dedicated audio communication system linking directly to the fire control center, providing 2-way speech between the fire team and the Central Command Controller. Usually the GST FT system is installed in high-risk buildings where radio communication would be limited due to the extensive concrete structure. The GST FT8WN is a 8-zone system radially wired (2 core) with up to 10 communication points on each zone. The system includes single and multi channel (group) communication, Audio recording of conversations, Monitored cable protection. Technical Specifications Features and Benefits 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 8 Zone addressable fire telephone center. 2-way voice communication Networkable up to 8 Fire Telephone panels Call divert to the main panel Operator can select single or group call Operator can ring outstations and fixed handsets Call panel to panel Up to 10 communication points can be connected to each zone using socket jack Network cable monitored Communication line monitored Lockable Glazed Door Built-in Sounder and Mute button Wall mounted System Capacity: 8 communication zones Network: up to 8 panels Monitor: Line Short and open circuit and removal of remote telephone from the line. No. of telephone per zone: 10 using jack type, 4 using fixed telephone Frequency Range:300-3400Khz Cross Talk: <-60dB Audio Feedback:<5dB Zone Accepted Resistance: <1K立 Power Supply: 24Vdc Operating Current: 500mA Operating temperature: 0属C -40属C Relative humidity: 45% to 95% Application: Indoor use Dimensions: 440X220X100 mm Operation The GST FT8WN provides 3 methods of calling, i.e. from the hand set to the relevant remote zone or from the remote telephone point to the control centre and panel to panel
- 2. Fire Telephone Panel GST-FT8WN Call Handset.From the control centre, press the relevant zone connect button, this will make the relevant handset ringing. (Or sets ring depending on the quantity of handsets connected to that specific zone). When that zone is activated the field handsets will ring, to establish audio communication simply pick up the handset, or for the hands-free version, just press the talk button), communication is achieved. Press button again in the control centre to cancel the call. Regularly Test. As with all Life safety equipment regular testing should be carried out, we would recommend that all zones are tested at least every 3 months or as indicated by your local fire authority requirements. Call Control Center. Make the zone active (Fixed handset - pick the phone. Speaker handset - press the button. Socket - insert the mobile handset), will make the control panel alarm with LED zone indication. From the control centre, press the corresponding button to achieve communication. Group Call. The fire telephone panel can talk to more than one handset. Simply by Pressing all the desired zone buttons on the control panel, This will allow group communication. To add or cancel more users simple select or deselect the relevant zone. Network Call. The fire telephone panel can talk to network panel. Simply by Pressing all the desired address buttons on the control panel. Selection of GST-FT8WN compatible fire telephone P-9911(S) Speaker Fire Telephone Station P-9911(F) Fixed Fire Telephone Handset P-9911(J) Fire Telephone Jack Socket P-9911(M) Fire Telephone Mobile Handset System Configuration Ordering Information: The GST FT8WN is wall mounted. The system is wired in radial conventional zones. In each zone it is possible to mix fixed handsets, speaker handset and Jack sockets.. Connect 24VDC to the terminals on the rear of the panel. Connect the zones to the panel with minimum 2 core 1.0mm2 cable. Part No GSTFT8WN Description Addressable Fire Telephone Panel Weight /Kg 4.6 Pack Qty per Box 1 Note: Specifications are subject to change without notice.
