![Com S 229 Spring 2007 Dr. Markus Lumpe
3
Compression: Design idea
Huffman codes are constructed in two phases: (i) an analysis phase in which the whole
source file is read to construct a map<unsigned char, long> of pairs
(Character, Frequency), and (ii) a coding phase in which a Huffman tree is
constructed to determine the Huffman codes.
In order to implement Huffman compression you need to solve the following sub-
problems:
1. Frequency collection, build the set C:
Start with an empty map<unsigned char, long> frequencies. You need
to process the whole input file, read all characters, and count their occurrences,
that is, frequencies[c]++. Start with an empty map<unsigned char,
long>.
2. Huffman tree construction:
Construct a Huffman tree according to the Huffman algorithm. The best data
type for this purpose is set<T>, where T is the base type of the set. T should be
a super type (or interface) for Huffman leaves and Huffman nodes. Also, to use
the set, you need to define a proper < operator for Huffman leaves and nodes.
3. Huffman code assignment:
Annotate the edges of the Huffman tree with 0 or 1. That is, define a scheme to
assign every leaf-node its corresponding Huffman code.
4. Huffman character/code mapping:
Build a map<unsigned byte, HuffmanCode> that contains mappings from
characters to HuffmanCodes. HuffmanCode is the data type you chose to
represent Huffman codes. You need to traverse the Huffman tree and visit all
leafs. Use object-oriented techniques to solve this problem.
Assume as source files plain binary files. That is, a character is represented as a
unsigned char. Huffman codes have flexible length. To facilitate their representation
it might be usefule, but not required, to use the data type string. For example, the
character e is represented as 0x65 of type unsigned char and its corresponding
Huffman code as 1101 of type string.
Your solution will require several different classes. For example, you will need at least, a
class for the analysis phase, the class HuffmanLeaf to represent leaves, the class
HuffmanNode to represent nodes, and the class HuffmanTree to represent Huffman
trees.
To test your application you can use the file sample.txt, which contains the text from
problem set 2. This file is 1996 Bytes long and contains 53 different characters. The
expected compression ratio is 41.27%, that is, we can represent 15968 Bits (1996
Bytes) of fixed-size code by at most 9384 Bits (or 1173 Bytes) of variable-size prefix
codes.](https://image.slidesharecdn.com/huffman-140703113117-phpapp01/85/Huffman-3-320.jpg)
Ad
Recommended
Huffman coding01
Huffman coding01Nv Thejaswini
油
Huffman coding is a method of compressing data by assigning variable-length codes to characters based on their frequency of occurrence. It creates a binary tree structure where the characters with the lowest frequencies are assigned the longest binary codes. This allows data to be compressed more efficiently compared to a fixed-length coding scheme. Huffman coding is proven to be an optimal prefix code, meaning no other prefix coding method can compress the data more than Huffman coding for a given frequency distribution.Huffman Codes
Huffman CodesMd. Shafiuzzaman Hira
油
Huffman coding is a lossless data compression algorithm that uses variable-length codes to represent characters. It assigns shorter codes to more frequent characters and longer codes to less frequent characters, resulting in an average compressed file size that is typically 20-90% smaller than the original file. The algorithm works by building a Huffman tree from the character frequencies, where each character is a leaf node and the frequency of that character determines its distance from the root. It then traverses the tree to assign binary codes to each character, where left branches are 0 and right branches are 1. The encoded file and Huffman tree are used together during decompression to reconstruct the original file losslessly.Huffman coding || Huffman Tree
Huffman coding || Huffman TreeGurunadh Guru
油
Huffman coding is a lossless data compression algorithm that uses variable-length binary codes for characters based on their frequency of occurrence, with more common characters represented by shorter bit sequences; it constructs a Huffman tree by assigning codes to characters such that the encoded output has minimum expected length, allowing for more efficient data storage and transmission. The document provides an overview of Huffman coding and trees, including an example to demonstrate how character frequencies are used to assign bit codes and compress a sample string from 56 bits to 13 bits.Huffman analysis
Huffman analysisAbubakar Sultan
油
The document discusses greedy algorithms and their use for optimization problems. It provides examples of how greedy algorithms can find optimal solutions for counting coins to make a certain amount of money and designing Huffman codes to compress data. Specifically, it explains that greedy algorithms make locally optimal choices at each step to hopefully find a global optimum. While this works for coin counting, it may not find the optimal solution for other problems like scheduling tasks.Data Structure and Algorithms Huffman Coding Algorithm
Data Structure and Algorithms Huffman Coding AlgorithmManishPrajapati78
油
Huffman coding is a statistical compression technique that assigns variable-length codes to characters based on their frequency of occurrence. It builds a Huffman tree by prioritizing characters from most to least frequent, then assigns codes by traversing the tree left for 0 and right for 1. This results in shorter codes for more common characters, compressing text files into fewer bits than standard ASCII encoding. The receiver reconstructs the same Huffman tree to decode the bitstream back into the original text.Lecture 7
Lecture 7Mohammed Khan
油
The document provides an overview of C++ programming data types, including numeric types, strings, characters, booleans, and arrays, detailing their definitions and usage. It explains how data types determine memory allocation and the legal and illegal expressions in C++. Additionally, the document covers variable naming rules, array initialization, and accessing array elements through indexing and looping.Python strings
Python stringsMohammed Sikander
油
This document discusses various string operations in Python including: finding the length of a string; accessing and slicing characters; the difference between strings and lists; converting case; checking character types; splitting strings; finding substrings; reading and printing strings; concatenation and repetition; iterating through strings with for loops; and common string methods like isalpha, isdigit, lower, upper, title, join, split, count, find, index. It also provides examples of problems involving anagrams, pangrams, unique characters, and removing duplicates from strings.Suffix Tree and Suffix Array
Suffix Tree and Suffix ArrayHarshit Agarwal
油
Suffix trees and suffix arrays are data structures used to solve problems related to string matching and text indexing in an efficient manner. Suffix trees allow finding patterns in text in O(m) time where m is the pattern length, by traversing the tree. Suffix arrays store suffixes in sorted order and allow pattern searching in O(m+logn) time where n is text length. Both structures take O(n) time and space to construct where n is text length. They find applications in bioinformatics, data compression, and other string algorithms.Lecft3data
Lecft3dataali Hussien
油
Run-length encoding is a data compression technique that replaces consecutive repeating characters with the character and number of repeats. It can be used to compress text by replacing strings like "aabbcc" with "a2b2c2". For images, runs of pixels with the same intensity value are encoded as a pair of the run length and pixel value. Huffman coding assigns variable-length binary codes to symbols based on their frequency, with more common symbols getting shorter codes to compress data more efficiently than fixed-length codes.Strings
StringsSaranya saran
油
The document discusses strings in C programming. It defines strings as arrays of characters terminated by a null character. It explains that string handling functions are declared in the string.h header file and are used to perform operations on strings like getting the length, concatenating, comparing, and manipulating case. Several functions are described like strlen(), strcpy(), strcat(), strcmp(), strrev(), strlwr(), strupr(). Examples are given showing how to use these functions to work with strings.Strings In OOP(Object oriented programming)
Strings In OOP(Object oriented programming)Danial Virk
油
The document discusses strings and string handling in Java. It covers the String and StringBuffer classes, basic string methods like length(), substring(), indexOf(), and replace(). It also discusses parsing strings with StringTokenizer and the differences between StringBuffer and String in terms of mutability and capacity. StringBuffer allows growing the string size while String is immutable.Python tutorial
Python tutorialAndrei Tomoroga
油
- Python is a dynamic, interpreted, object-oriented programming language where variables do not need to be declared and type checked.
- It uses indentation rather than curly braces to delimit code blocks, and is readable and flexible.
- Key features covered include variables, strings, functions, conditionals, loops, lists, tuples, and dictionaries. Examples are provided for common operations on each data type.Strings in Python
Strings in Pythonnitamhaske
油
This document provides an introduction and overview of strings in Python. It discusses that strings are a data type that can contain sequences of characters. The built-in string class is 'str' and strings can be defined using single, double, or triple quotes. Strings support various methods like indexing, slicing, concatenation, formatting and more. Common string methods are also described such as upper(), lower(), split(), join() which allow manipulating strings. The document also discusses comparing and slicing strings in Python.27.2.9 lab regular expression tutorial
27.2.9 lab regular expression tutorialFreddy Buena単o
油
This document provides instructions for a lab on using regular expressions. It has three parts:
1) Complete an online regex tutorial to learn about metacharacters like *, ., [], etc.
2) Describe the meaning of sample regex patterns like ^83, [A-Z]{2,4}, 2015, etc.
3) Verify the pattern descriptions by searching a log file with the regexes and checking for matches.Python overview
Python overviewHemant Kumar Tiwary
油
Python is a widely used general-purpose programming language that is high-level and lets programmers work quickly. It emphasizes readability and integrates systems effectively. Python code can be written and run with just a text editor and Python interpreter. It supports arithmetic operators, conditional statements, loops, strings, lists, functions and object-oriented programming. Python code can be run on different platforms through implementations like Jython, IronPython, Cython, PyPy and others which compile Python to Java bytecode, .NET bytecode, C, or use just-in-time compilation. Many large organizations use Python for applications, web development, science, and more.Strings in Python
Strings in PythonAmisha Narsingani
油
Strings in Python can be created using single quotes, double quotes, or triple quotes. Strings are immutable and indexing allows accessing individual characters. Strings can be sliced to extract substrings. The + operator is used for concatenation and * operator repeats strings. The split method returns a list of substrings split by a delimiter and join method concatenates strings with a delimiter.Strings in c mrs.sowmya jyothi
Strings in c mrs.sowmya jyothiSowmya Jyothi
油
This document discusses handling character strings in C. It covers:
1. How strings are stored in memory as ASCII codes appended with a null terminator.
2. Common string operations like reading, comparing, concatenating and copying strings.
3. How to initialize, declare, read and write strings.
4. Useful string handling functions like strlen(), strcpy(), strcat(), strcmp() etc to perform various operations on strings.Parse Tree
Parse TreeA. S. M. Shafi
油
1. A parse tree shows how the start symbol of a grammar derives a string in the language by using interior nodes labeled with nonterminals and children labeled with terminals or nonterminals according to the grammar's productions.
2. An ambiguous grammar is one where a single string can have more than one parse tree, leftmost derivation, rightmost derivation, or other derivation according to the grammar.
3. Operator precedence and associativity determine the order of operations when multiple operators are present in an expression. For example, multiplication generally has higher precedence than addition, and most operators associate left-to-right.Introduction To Programming with Python-4
Introduction To Programming with Python-4Syed Farjad Zia Zaidi
油
This document provides an introduction to using lists in Python. It defines what lists are in Python, how to create, access, update, and delete list elements, and some common list operations. It also provides examples of creating lists, accessing values at different indices, updating and deleting elements, and using basic operators like addition and multiplication. Finally, it proposes three exercises involving lists to practice these concepts.C# String
C# StringRaghuveer Guthikonda
油
This document discusses strings and regular expressions in .NET. It provides details on the System.String class and how strings are immutable. The StringBuilder class is introduced as a mutable alternative for string manipulation. Various string formatting options like standard numeric and custom format strings are covered. Finally, an overview of regular expressions is given, explaining how they provide a powerful way to parse and process text using pattern matching.Csharp4 strings and_regular_expressions
Csharp4 strings and_regular_expressionsAbed Bukhari
油
This document discusses strings and regular expressions in C#. It covers building and formatting strings, using the StringBuilder class, and examining regular expressions patterns and examples. Regular expressions can be used to perform sophisticated string operations like identifying repeated words or extracting parts of a URI.Computer programming 2 Lesson 12
Computer programming 2 Lesson 12MLG College of Learning, Inc
油
The document summarizes key concepts about Strings in Java including:
1. Strings can be created using double quotes or by converting a character array to a String.
2. The length() method returns the number of characters in a String.
3. Strings can be concatenated using the + operator or concat() method.
4. The format() method can be used to create formatted String outputs.
5. Common String methods include charAt(), compareTo(), indexOf(), and length().Maxbox starter20
Maxbox starter20Max Kleiner
油
This document provides an introduction to regular expressions (RegEx). It explains that RegEx allows you to find, match, compare or replace text patterns. It then discusses the basic building blocks of RegEx, including characters, character classes, quantifiers, and assertions. It provides several examples of RegEx patterns to match names, words, ports numbers, and other patterns. It concludes with an overview of common RegEx match types like beginning/end of line, word boundaries, grouping, alternatives, and repetition.13string in c#
13string in c#Sireesh K
油
In C#, the string is an object of the System.String class that represents a sequence of characters. Strings support many common operations like concatenation, comparison, getting substrings, searching, trimming, and replacing. The string keyword is an alias for the System.String class, so string and String can be used interchangeably. Methods like Compare, Contains, IndexOf, Split, Trim, and ToUpper allow manipulating and examining the value and characters of a string.Grep
GrepDr.M.Karthika parthasarathy
油
This document provides 15 examples of using the Linux grep command to search files for text patterns. Some key examples include searching for a string in single or multiple files, ignoring case, using regular expressions to match patterns, displaying lines before/after/around matches, inverting matches, counting matches, and highlighting matched text. The examples demonstrate many useful grep options for finding text in files.String handling
String handlingIyeTech - Pakistan
油
The document discusses strings in C++. It defines strings as arrays of characters and describes how to declare, initialize, input, and output strings. It also discusses storing multiple strings using a 2D character array. Finally, it lists and provides the syntax for various string handling functions in C++ like strcpy(), strcat(), strlen(), strcmp(), etc.j001adcpresentation-2112170415 23.pdf
j001adcpresentation-2112170415 23.pdfHarshSharma71048
油
The document discusses the Huffman coding algorithm. It begins with an introduction that describes Huffman coding as a lossless data compression algorithm that assigns variable-length codes to characters based on their frequency. It then outlines the main steps of building a Huffman tree from character frequencies and traversing the tree to assign codes. The document provides an example of applying these steps to a sample input set. It discusses applications of Huffman coding such as in compression formats and multimedia. Advantages include improved compression, while disadvantages include slower encoding and potential errors in decoding corrupted data.Huffman Algorithm and its Application by Ekansh Agarwal
Huffman Algorithm and its Application by Ekansh AgarwalEkansh Agarwal
油
The document discusses Huffman coding, a lossless data compression algorithm that assigns variable-length codes based on character frequencies, ensuring efficient and unambiguous data encoding. It outlines the steps to build a Huffman tree and traverse it, along with real-life applications, advantages, and disadvantages of the algorithm. Huffman encoding is utilized in various compression formats and multimedia codecs but faces limitations in compression ratios and processing speed compared to lossy techniques.5c. huffman coding using greedy technique.pptx
5c. huffman coding using greedy technique.pptxSuma Raj
油
Huffman coding is a data compression technique that reduces file size without losing detail by using variable length encoding based on character frequency. Developed by David Huffman, it constructs a binary tree where characters that appear more frequently receive shorter codes. The two major steps in Huffman coding involve building this tree from input characters and assigning codes based on the tree's structure.Implementation of Lossless Compression Algorithms for Text Data
Implementation of Lossless Compression Algorithms for Text DataBRNSSPublicationHubI
油
This document discusses and compares two lossless data compression algorithms: Huffman coding and arithmetic coding. It provides an overview of each algorithm, including how Huffman coding constructs a variable-length code tree based on character frequencies and how arithmetic coding replaces the input with a single fractional number between 0 and 1. The document also briefly describes run-length encoding. It implemented these lossless compression algorithms and experimentally compared their performance on compressing text data.More Related Content
What's hot (18)
Lecft3data
Lecft3dataali Hussien
油
Run-length encoding is a data compression technique that replaces consecutive repeating characters with the character and number of repeats. It can be used to compress text by replacing strings like "aabbcc" with "a2b2c2". For images, runs of pixels with the same intensity value are encoded as a pair of the run length and pixel value. Huffman coding assigns variable-length binary codes to symbols based on their frequency, with more common symbols getting shorter codes to compress data more efficiently than fixed-length codes.Strings
StringsSaranya saran
油
The document discusses strings in C programming. It defines strings as arrays of characters terminated by a null character. It explains that string handling functions are declared in the string.h header file and are used to perform operations on strings like getting the length, concatenating, comparing, and manipulating case. Several functions are described like strlen(), strcpy(), strcat(), strcmp(), strrev(), strlwr(), strupr(). Examples are given showing how to use these functions to work with strings.Strings In OOP(Object oriented programming)
Strings In OOP(Object oriented programming)Danial Virk
油
The document discusses strings and string handling in Java. It covers the String and StringBuffer classes, basic string methods like length(), substring(), indexOf(), and replace(). It also discusses parsing strings with StringTokenizer and the differences between StringBuffer and String in terms of mutability and capacity. StringBuffer allows growing the string size while String is immutable.Python tutorial
Python tutorialAndrei Tomoroga
油
- Python is a dynamic, interpreted, object-oriented programming language where variables do not need to be declared and type checked.
- It uses indentation rather than curly braces to delimit code blocks, and is readable and flexible.
- Key features covered include variables, strings, functions, conditionals, loops, lists, tuples, and dictionaries. Examples are provided for common operations on each data type.Strings in Python
Strings in Pythonnitamhaske
油
This document provides an introduction and overview of strings in Python. It discusses that strings are a data type that can contain sequences of characters. The built-in string class is 'str' and strings can be defined using single, double, or triple quotes. Strings support various methods like indexing, slicing, concatenation, formatting and more. Common string methods are also described such as upper(), lower(), split(), join() which allow manipulating strings. The document also discusses comparing and slicing strings in Python.27.2.9 lab regular expression tutorial
27.2.9 lab regular expression tutorialFreddy Buena単o
油
This document provides instructions for a lab on using regular expressions. It has three parts:
1) Complete an online regex tutorial to learn about metacharacters like *, ., [], etc.
2) Describe the meaning of sample regex patterns like ^83, [A-Z]{2,4}, 2015, etc.
3) Verify the pattern descriptions by searching a log file with the regexes and checking for matches.Python overview
Python overviewHemant Kumar Tiwary
油
Python is a widely used general-purpose programming language that is high-level and lets programmers work quickly. It emphasizes readability and integrates systems effectively. Python code can be written and run with just a text editor and Python interpreter. It supports arithmetic operators, conditional statements, loops, strings, lists, functions and object-oriented programming. Python code can be run on different platforms through implementations like Jython, IronPython, Cython, PyPy and others which compile Python to Java bytecode, .NET bytecode, C, or use just-in-time compilation. Many large organizations use Python for applications, web development, science, and more.Strings in Python
Strings in PythonAmisha Narsingani
油
Strings in Python can be created using single quotes, double quotes, or triple quotes. Strings are immutable and indexing allows accessing individual characters. Strings can be sliced to extract substrings. The + operator is used for concatenation and * operator repeats strings. The split method returns a list of substrings split by a delimiter and join method concatenates strings with a delimiter.Strings in c mrs.sowmya jyothi
Strings in c mrs.sowmya jyothiSowmya Jyothi
油
This document discusses handling character strings in C. It covers:
1. How strings are stored in memory as ASCII codes appended with a null terminator.
2. Common string operations like reading, comparing, concatenating and copying strings.
3. How to initialize, declare, read and write strings.
4. Useful string handling functions like strlen(), strcpy(), strcat(), strcmp() etc to perform various operations on strings.Parse Tree
Parse TreeA. S. M. Shafi
油
1. A parse tree shows how the start symbol of a grammar derives a string in the language by using interior nodes labeled with nonterminals and children labeled with terminals or nonterminals according to the grammar's productions.
2. An ambiguous grammar is one where a single string can have more than one parse tree, leftmost derivation, rightmost derivation, or other derivation according to the grammar.
3. Operator precedence and associativity determine the order of operations when multiple operators are present in an expression. For example, multiplication generally has higher precedence than addition, and most operators associate left-to-right.Introduction To Programming with Python-4
Introduction To Programming with Python-4Syed Farjad Zia Zaidi
油
This document provides an introduction to using lists in Python. It defines what lists are in Python, how to create, access, update, and delete list elements, and some common list operations. It also provides examples of creating lists, accessing values at different indices, updating and deleting elements, and using basic operators like addition and multiplication. Finally, it proposes three exercises involving lists to practice these concepts.C# String
C# StringRaghuveer Guthikonda
油
This document discusses strings and regular expressions in .NET. It provides details on the System.String class and how strings are immutable. The StringBuilder class is introduced as a mutable alternative for string manipulation. Various string formatting options like standard numeric and custom format strings are covered. Finally, an overview of regular expressions is given, explaining how they provide a powerful way to parse and process text using pattern matching.Csharp4 strings and_regular_expressions
Csharp4 strings and_regular_expressionsAbed Bukhari
油
This document discusses strings and regular expressions in C#. It covers building and formatting strings, using the StringBuilder class, and examining regular expressions patterns and examples. Regular expressions can be used to perform sophisticated string operations like identifying repeated words or extracting parts of a URI.Computer programming 2 Lesson 12
Computer programming 2 Lesson 12MLG College of Learning, Inc
油
The document summarizes key concepts about Strings in Java including:
1. Strings can be created using double quotes or by converting a character array to a String.
2. The length() method returns the number of characters in a String.
3. Strings can be concatenated using the + operator or concat() method.
4. The format() method can be used to create formatted String outputs.
5. Common String methods include charAt(), compareTo(), indexOf(), and length().Maxbox starter20
Maxbox starter20Max Kleiner
油
This document provides an introduction to regular expressions (RegEx). It explains that RegEx allows you to find, match, compare or replace text patterns. It then discusses the basic building blocks of RegEx, including characters, character classes, quantifiers, and assertions. It provides several examples of RegEx patterns to match names, words, ports numbers, and other patterns. It concludes with an overview of common RegEx match types like beginning/end of line, word boundaries, grouping, alternatives, and repetition.13string in c#
13string in c#Sireesh K
油
In C#, the string is an object of the System.String class that represents a sequence of characters. Strings support many common operations like concatenation, comparison, getting substrings, searching, trimming, and replacing. The string keyword is an alias for the System.String class, so string and String can be used interchangeably. Methods like Compare, Contains, IndexOf, Split, Trim, and ToUpper allow manipulating and examining the value and characters of a string.Grep
GrepDr.M.Karthika parthasarathy
油
This document provides 15 examples of using the Linux grep command to search files for text patterns. Some key examples include searching for a string in single or multiple files, ignoring case, using regular expressions to match patterns, displaying lines before/after/around matches, inverting matches, counting matches, and highlighting matched text. The examples demonstrate many useful grep options for finding text in files.String handling
String handlingIyeTech - Pakistan
油
The document discusses strings in C++. It defines strings as arrays of characters and describes how to declare, initialize, input, and output strings. It also discusses storing multiple strings using a 2D character array. Finally, it lists and provides the syntax for various string handling functions in C++ like strcpy(), strcat(), strlen(), strcmp(), etc.Similar to Huffman (20)
j001adcpresentation-2112170415 23.pdf
j001adcpresentation-2112170415 23.pdfHarshSharma71048
油
The document discusses the Huffman coding algorithm. It begins with an introduction that describes Huffman coding as a lossless data compression algorithm that assigns variable-length codes to characters based on their frequency. It then outlines the main steps of building a Huffman tree from character frequencies and traversing the tree to assign codes. The document provides an example of applying these steps to a sample input set. It discusses applications of Huffman coding such as in compression formats and multimedia. Advantages include improved compression, while disadvantages include slower encoding and potential errors in decoding corrupted data.Huffman Algorithm and its Application by Ekansh Agarwal
Huffman Algorithm and its Application by Ekansh AgarwalEkansh Agarwal
油
The document discusses Huffman coding, a lossless data compression algorithm that assigns variable-length codes based on character frequencies, ensuring efficient and unambiguous data encoding. It outlines the steps to build a Huffman tree and traverse it, along with real-life applications, advantages, and disadvantages of the algorithm. Huffman encoding is utilized in various compression formats and multimedia codecs but faces limitations in compression ratios and processing speed compared to lossy techniques.5c. huffman coding using greedy technique.pptx
5c. huffman coding using greedy technique.pptxSuma Raj
油
Huffman coding is a data compression technique that reduces file size without losing detail by using variable length encoding based on character frequency. Developed by David Huffman, it constructs a binary tree where characters that appear more frequently receive shorter codes. The two major steps in Huffman coding involve building this tree from input characters and assigning codes based on the tree's structure.Implementation of Lossless Compression Algorithms for Text Data
Implementation of Lossless Compression Algorithms for Text DataBRNSSPublicationHubI
油
This document discusses and compares two lossless data compression algorithms: Huffman coding and arithmetic coding. It provides an overview of each algorithm, including how Huffman coding constructs a variable-length code tree based on character frequencies and how arithmetic coding replaces the input with a single fractional number between 0 and 1. The document also briefly describes run-length encoding. It implemented these lossless compression algorithms and experimentally compared their performance on compressing text data.Greedy Algorithms Huffman Coding.ppt
Greedy Algorithms Huffman Coding.pptRuchika Sinha
油
Huffman coding is an efficient lossless data compression technique that reduces file sizes by encoding characters based on their frequency of occurrence, achieving between 20%-90% compression. It involves creating a binary tree where more common characters receive shorter codes and less common characters receive longer codes, ensuring unique decoding. The process includes scanning for character frequencies, building a Huffman tree, encoding the original file using the tree, and decoding it back to its original form.DAA PPT.pptx
DAA PPT.pptxSintooChauhan6
油
This document describes Huffman trees, which are binary trees used to generate Huffman codes for data compression. Huffman coding assigns shorter codes to more frequent symbols to reduce file size. The algorithm involves calculating symbol frequencies, creating leaf nodes with frequencies, and merging nodes to form the tree. The tree is traversed to generate codes where left branches represent 0 and right 1. Huffman coding sees wide use in file formats like ZIP and JPEG due to its efficient compression, adaptability, and ability to losslessly reconstruct data.Huffman codes
Huffman codesNargis Ehsan
油
Huffman codes are a technique for lossless data compression that assigns variable-length binary codes to characters, with more frequent characters having shorter codes. The algorithm builds a frequency table of characters then constructs a binary tree to determine optimal codes. Characters are assigned codes based on their path from the root, with left branches representing 0 and right 1. Both encoder and decoder use this tree to translate between binary codes and characters. The tree guarantees unique decoding and optimal compression.Huffman ppt
Huffman ppt ALexHunter69
油
The document discusses Huffman coding, which is a lossless data compression algorithm that uses variable-length codes to encode symbols based on their frequency of occurrence. It begins with definitions of Huffman coding and related terms. It then describes the encoding and decoding processes, which involve constructing a Huffman tree based on symbol frequencies and traversing the tree to encode or decode data. An example is provided that shows the full process of constructing a Huffman tree for a sample frequency table and determining the Huffman codes, average code length, and total encoded length.Huffman Coding is a technique of compressing data
Huffman Coding is a technique of compressing dataKumari99
油
Huffman coding is a data compression technique that reduces file size without losing information, developed by David Huffman. It works by creating a binary tree based on the frequency of characters, allowing for efficient encoding and decoding of data. This method is widely used in compression formats such as gzip and is characterized by its time complexity of O(n log n).Huffman Algorithm for File Compression.pptx
Huffman Algorithm for File Compression.pptxkazmijaffar890
油
The document outlines a project on text file compression using the Huffman coding algorithm, which reduces redundancy in text files for efficient storage and transmission. It details the implementation process, including character frequency analysis, tree construction, and code generation, and highlights the data structures utilized. The project aims to demonstrate a lossless compression technique that effectively encodes characters based on their frequency, achieving significant reductions in overall file size.Huffman coding || Huffman Tree
Huffman coding || Huffman TreeSatishKumarInumarthi
油
The document discusses Huffman coding, which is a data compression technique that uses variable-length codes to encode symbols based on their frequency of occurrence, with more common symbols getting shorter codes. It provides details on how a Huffman tree is constructed by assigning codes to characters based on their frequency, with the most frequent characters assigned the shortest binary codes to achieve data compression. Examples are given to demonstrate how characters are encoded using a Huffman tree and how the storage size is calculated based on the path lengths and frequencies of characters.Hufman coding basic
Hufman coding basicradthees
油
Huffman coding is a lossless data compression method that efficiently encodes data by assigning variable-length binary codes based on the frequency of characters in the original message. It is widely used in digital image processing, particularly in JPEG compression, and involves creating a binary tree structure to minimize the size of encoded data. The technique was introduced by David Huffman in 1952 and is applicable across various file types, including zip and MPEG formats.Lec32
Lec32anithabalaprabhu
油
The document discusses Huffman coding, a lossless data compression algorithm that uses variable-length codewords to encode symbols based on their frequency of occurrence. It works by building a binary tree from the frequency of symbols, where more frequent symbols are encoded by shorter codewords. This allows for more efficient representation of frequent symbols and achieves compression close to the theoretical minimum possible given the frequencies. The algorithm and encoding/decoding process are explained step-by-step with an example.Farhana shaikh webinar_huffman coding
Farhana shaikh webinar_huffman codingFarhana Shaikh
油
The document discusses Huffman coding, which is a lossless data compression algorithm that uses variable-length codes to encode characters based on their frequency of occurrence. It involves building a Huffman tree by iteratively combining the two lowest frequency nodes and assigning codes to characters based on their paths in the tree. The algorithm is described in 4 steps - getting character frequencies, building the Huffman tree and assigning codes, encoding the data, and decoding the compressed data. Examples are provided to illustrate how the Huffman tree is constructed bottom-up and codes are assigned.DSA Presentetion Huffman tree.pdf
DSA Presentetion Huffman tree.pdfGaneshPawar819187
油
This document provides an overview of Huffman coding and Huffman's algorithm. It discusses how Huffman coding works by assigning variable length binary codes to characters based on their frequency, with more common characters getting shorter codes. It then explains Huffman's algorithm, which builds the Huffman tree by recursively combining the two least frequent nodes until a full binary tree is constructed, and codes are assigned based on paths in the tree. Examples of its applications in data compression are also given.hufman code presentation and how to compress data using hufman code
hufman code presentation and how to compress data using hufman codessuser6059cf
油
Compression reduces the size of data by exploiting redundancies and discarding unimportant information. Huffman coding is a lossless compression technique that uses variable-length codes to represent symbols based on their frequency, with more common symbols having shorter codes. It builds a binary tree from the symbol frequencies where each path from the root node to a leaf represents a unique code. Encoding involves traversing this tree to output codes for each symbol, while decoding follows the path from the root to reconstruct the original data. Huffman coding provides optimal compression for a given frequency distribution.compression & huffman coder problem .ppt
compression & huffman coder problem .pptpradeepkumar465177
油
The document discusses data compression techniques, specifically focusing on lossless and lossy compression methods, and the principles behind Huffman coding. It explains how Huffman coding uses variable-length codes based on the frequency of symbols to efficiently encode data, alongside the tree structure used for encoding and decoding. Key methods for building Huffman trees and the properties of optimal prefix codes are also highlighted.Huffman Text Compression Technique
Huffman Text Compression TechniqueUniversitas Pembangunan Panca Budi
油
The document discusses the Huffman text compression technique, which is a widely used algorithm for compressing text by encoding frequently occurring characters with shorter bit sequences. It details the four phases of the algorithm: grouping characters, building the Huffman tree, encoding, and constructing coded bits, emphasizing how the principles of frequency lead to effective compression. Additionally, it explains the implementation steps, including character frequency calculation and the construction of the Huffman tree using greedy algorithms.Ad
Recently uploaded (20)
Introduction to Natural Language Processing - Stages in NLP Pipeline, Challen...
Introduction to Natural Language Processing - Stages in NLP Pipeline, Challen...resming1
油
Lecture delivered in 2021. This gives an introduction to Natural Language Processing. It describes the use cases of NLP in daily life. It discusses the stages in NLP Pipeline. It highlights the challenges involved covering the different levels of ambiguity that could arise. It also gives a brief note on the present scenario with the latest language models, tools and frameworks/libraries for NLP.Engineering Mechanics Introduction and its Application
Engineering Mechanics Introduction and its ApplicationSakthivel M
油
Engineering Mechanics IntroductionStructured Programming with C++ :: Kjell Backman
Structured Programming with C++ :: Kjell BackmanShabista Imam
油
Step into the world of high-performance programming with the Complete Guidance Book of C++ Programminga definitive resource for mastering one of the most powerful and versatile languages in computer science.
Whether you're a beginner looking to learn the fundamentals or an intermediate developer aiming to sharpen your skills, this book walks you through C++ from the ground up. You'll start with basics like variables, control structures, and functions, then progress to object-oriented programming (OOP), memory management, file handling, templates, and the Standard Template Library (STL).Machine Learning - Classification Algorithms
Machine Learning - Classification Algorithmsresming1
油
This covers traditional machine learning algorithms for classification. It includes Support vector machines, decision trees, Naive Bayes classifier , neural networks, etc.
It also discusses about model evaluation and selection. It discusses ID3 and C4.5 algorithms. It also describes k-nearest neighbor classifer.Stay Safe Women Security Android App Project Report.pdf
Stay Safe Women Security Android App Project Report.pdfKamal Acharya
油
Womens security is a critical issue in todays world and its very much needed for every individual
to be acting over such an issue. This document describes a GPS based Women Security System''
that provides the combination of GPS devices as well as provide alerts and messages with an
emergency button trigger whenever somebody is in trouble They might not have so much time, all
that they have to do is generate a distress emergency signal by shaking up their phone. Our system
provides a realizable, cost effective solution to problem detection. Nowdays due to recently
happened cases such as rape by drivers or colleagues, burglary etc., women security, especially
women security has become the foremost priority of the world. System uses the Global Positioning
System (GPS) technology to find out the location of women. The information of women's position
provided by the device can be viewed on Google maps using Internet or specialized software. The
companies are looking for-ward to the security problem and require a system that will efficiently
evaluate the problem of women security working in night shifts, traveling alone. We focus on the
proposed model that can be used to deal with the security issue of women using GPS based tracking
systems.Fundamentals of Digital Design_Class_12th April.pptx
Fundamentals of Digital Design_Class_12th April.pptxdrdebarshi1993
油
Boolean Algebra and Combinational Logic CircuitOCS Group SG - HPHT Well Design and Operation - SN.pdf
OCS Group SG - HPHT Well Design and Operation - SN.pdfMuanisa Waras
油
This course is delivered as a scenario-based course to
provide knowledge of High Pressure and High-Temperature (HPHT) well design, drilling and completion operations. The course is specifically designed to provide an
understanding of the challenges associated with the design
and construction of HPHT wells. The course guides the
participants to work through the various well design
aspects starting from a geological well proposal with an
estimated formation pressure and temperature profile.
Working with real well data allows the participants to learn
not only theory, technicalities and practicalities of drilling
and completing HPHT wells but it also ensures that participants gain real experience in understanding the HPHT issues. Development of Portable Biomass Briquetting Machine (S, A & D)-1.pptx
Development of Portable Biomass Briquetting Machine (S, A & D)-1.pptxaniket862935
油
Biomass briquetting Machine VARICELLA VACCINATION: A POTENTIAL STRATEGY FOR PREVENTING MULTIPLE SCLEROSIS
VARICELLA VACCINATION: A POTENTIAL STRATEGY FOR PREVENTING MULTIPLE SCLEROSISijab2
油
Multiple sclerosis (MS) is a debilitating neurological condition affecting approximately 2.9 million people worldwide. Its cause remains unclear but environmental factors, such as post-childhood Epstein-Barr virus (EBV) infection, are thought to contribute to MS incidence. David Boutry - Mentors Junior Developers
David Boutry - Mentors Junior DevelopersDavid Boutry
油
David Boutry is a Senior Software Engineer in New York with expertise in high-performance data processing and cloud technologies like AWS and Kubernetes. With over eight years in the field, he has led projects that improved system scalability and reduced processing times by 40%. He actively mentors aspiring developers and holds certifications in AWS, Scrum, and Azure.Learning Types of Machine Learning Supervised Learning Unsupervised UNI...
Learning Types of Machine Learning Supervised Learning Unsupervised UNI...23Q95A6706
油
Learning Types of Machine Learning Supervised Learning Unsupervised Learning- semi supervised learning - The Brain and the Neuron Design a Learning System Perspectives and Issues in Machine Learning Concept Learning Task Concept Learning as Search Finding a Maximally Specific Hypothesis Version Spaces and the Candidate Elimination Algorithm
Center Enamel can Provide Aluminum Dome Roofs for diesel tank.docx
Center Enamel can Provide Aluminum Dome Roofs for diesel tank.docxCenterEnamel
油
Center Enamel can Provide Aluminum Dome Roofs for diesel tank.docxPavement and its types, Application of rigid and Flexible Pavements
Pavement and its types, Application of rigid and Flexible PavementsSakthivel M
油
Pavement and its types, Application of rigid and Flexible PavementsAd
Huffman
- 1. Com S 229 Spring 2007 Dr. Markus Lumpe 1 Study Project: Data Compression In 1952 David A. Huffman published the paper A Method for the Construction of Minimum-Redundancy Codes in which he defined a greedy algorithm that constructs an optimal prefix code called a Huffman code. The algorithm begins with a set C of pairs (c,f), called HuffmanLeaf, where c is a character of an underlying alphabet (e.g., ASCII or data type byte) and f denotes the number of occurrences of c in a given source file. The set C is a partial order over pairs. Thus, if (t,2),(d,3) C (i.e, (t,2), (d,3) are elements of C), then we have that pair (t,2) (d,3). Huffmans algorithm uses the frequency f to identify the two least-frequent objects in C and merges them. The result of the merger is a new object (i.e., HuffmanNode) whose frequency is the sum of the frequency of the two objects being merged. In total, the algorithm performs a sequence of |C| - 1 merging operations to create a Huffman tree. How does it work? Assume a file that contains 100 characters built out of 6 different letters with the following frequency: a : 45, b : 13, c : 12, d : 16, e : 9, and f : 5. The Huffman algorithm creates a HuffmanTree as follows:

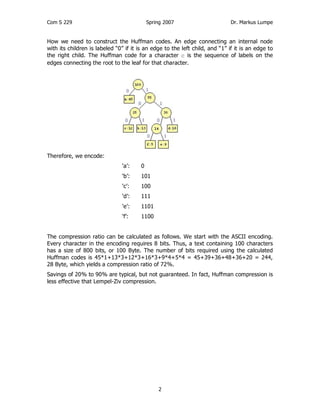

- 2. Com S 229 Spring 2007 Dr. Markus Lumpe 2 How we need to construct the Huffman codes. An edge connecting an internal node with its children is labeled 0 if it is an edge to the left child, and 1 if it is an edge to the right child. The Huffman code for a character c is the sequence of labels on the edges connecting the root to the leaf for that character. Therefore, we encode: a: 0 b: 101 c: 100 d: 111 e: 1101 f: 1100 The compression ratio can be calculated as follows. We start with the ASCII encoding. Every character in the encoding requires 8 bits. Thus, a text containing 100 characters has a size of 800 bits, or 100 Byte. The number of bits required using the calculated Huffman codes is 45*1+13*3+12*3+16*3+9*4+5*4 = 45+39+36+48+36+20 = 244, 28 Byte, which yields a compression ratio of 72%. Savings of 20% to 90% are typical, but not guaranteed. In fact, Huffman compression is less effective that Lempel-Ziv compression.
- 3. Com S 229 Spring 2007 Dr. Markus Lumpe 3 Compression: Design idea Huffman codes are constructed in two phases: (i) an analysis phase in which the whole source file is read to construct a map<unsigned char, long> of pairs (Character, Frequency), and (ii) a coding phase in which a Huffman tree is constructed to determine the Huffman codes. In order to implement Huffman compression you need to solve the following sub- problems: 1. Frequency collection, build the set C: Start with an empty map<unsigned char, long> frequencies. You need to process the whole input file, read all characters, and count their occurrences, that is, frequencies[c]++. Start with an empty map<unsigned char, long>. 2. Huffman tree construction: Construct a Huffman tree according to the Huffman algorithm. The best data type for this purpose is set<T>, where T is the base type of the set. T should be a super type (or interface) for Huffman leaves and Huffman nodes. Also, to use the set, you need to define a proper < operator for Huffman leaves and nodes. 3. Huffman code assignment: Annotate the edges of the Huffman tree with 0 or 1. That is, define a scheme to assign every leaf-node its corresponding Huffman code. 4. Huffman character/code mapping: Build a map<unsigned byte, HuffmanCode> that contains mappings from characters to HuffmanCodes. HuffmanCode is the data type you chose to represent Huffman codes. You need to traverse the Huffman tree and visit all leafs. Use object-oriented techniques to solve this problem. Assume as source files plain binary files. That is, a character is represented as a unsigned char. Huffman codes have flexible length. To facilitate their representation it might be usefule, but not required, to use the data type string. For example, the character e is represented as 0x65 of type unsigned char and its corresponding Huffman code as 1101 of type string. Your solution will require several different classes. For example, you will need at least, a class for the analysis phase, the class HuffmanLeaf to represent leaves, the class HuffmanNode to represent nodes, and the class HuffmanTree to represent Huffman trees. To test your application you can use the file sample.txt, which contains the text from problem set 2. This file is 1996 Bytes long and contains 53 different characters. The expected compression ratio is 41.27%, that is, we can represent 15968 Bits (1996 Bytes) of fixed-size code by at most 9384 Bits (or 1173 Bytes) of variable-size prefix codes.

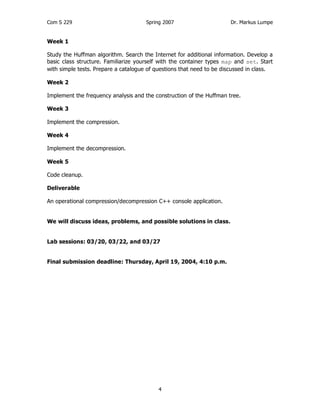

- 4. Com S 229 Spring 2007 Dr. Markus Lumpe 4 Week 1 Study the Huffman algorithm. Search the Internet for additional information. Develop a basic class structure. Familiarize yourself with the container types map and set. Start with simple tests. Prepare a catalogue of questions that need to be discussed in class. Week 2 Implement the frequency analysis and the construction of the Huffman tree. Week 3 Implement the compression. Week 4 Implement the decompression. Week 5 Code cleanup. Deliverable An operational compression/decompression C++ console application. We will discuss ideas, problems, and possible solutions in class. Lab sessions: 03/20, 03/22, and 03/27 Final submission deadline: Thursday, April 19, 2004, 4:10 p.m.
