Ims 3 gpp- 23-228
- 1. IMS ¨C IP MULTIMEDIA SUBSYSTEM

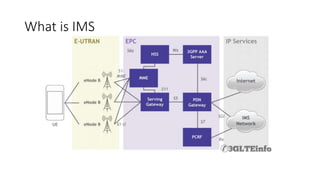

- 2. What is IMS

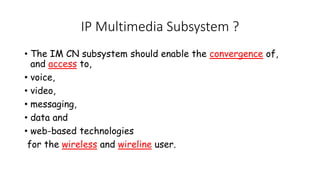

- 3. IP Multimedia Subsystem ? ? The IM CN subsystem should enable the convergence of, and access to, ? voice, ? video, ? messaging, ? data and ? web-based technologies for the wireless and wireline user.
- 4. ?The complete solution for the support of IP multimedia applications consists of: ?terminals, ?IP-Connectivity Access Networks (IP-CAN), ?and the specific functional elements of the IM CN subsystem ?Examples of IP-Connectivity Access Network are: ? the GPRS core network with GERAN and/or UTRAN radio access networks; and ? EPC core network and E-UTRAN radio access network; and ? 5GS access network. IP Multimedia Subsystem
- 5. IMS Requirements ? High-level requirements ? Negotiable QoS for IP multimedia applications ? At session establishment and during session ? End-to-end QoS for voice ? A quality equal to or better than that of mobile CS voice call ? Roaming ? Inter-operator QoS negotiation ? Use services provided by home- and by serving network ? Mandatory default set of media types to ensure interoperability ? Codec (audio: AMR, video: H.263), header compression ? Access independence (GPRS, fixed, LAN) ? Support for session-oriented non-3GPP Internet apps
- 6. IMS Architecture 6 Management Provisioning Charging Number Mapping MGW SG/MGCF CSCF MRF HSS SIP, IP Control Layer AS AS SIP / OSA / CAMEL Application Layer IP/MPLS PSTN/PLMN GERAN, UTRAN, WLAN, xDSL,... Connectivity & Access Layer
- 7. IMS Architecture HSS: Home Subscriber Server CSCF: Call Session Control Function: S-CSCF: Serving CSCF I-CSCF: Interrogating CSCF P-CSCF: Proxy CSCF BGCF: Breakout Gateway Control Function MGCF: Media Gateway Control Function AS: Application Server SCP: Service Control Point MGW: Media Gateway MRFC: Multimedia Resource Function Controller MRFP: Multimedia Resource Function Processor Applications and Services AS SCP Mobile UE GERAN UTRAN SGSN IM-SSF OSA-SCS CSCF HSS SGW Operator 1 CSCF BGCF Operator 2 BGCF MGCF MRFC MRFP GGSN Multimedia IP Networks CS Domain - or - PSTN - or - Legacy - or - External MGW SGW Alternative Access Network E-UTRAN
- 8. IMS Architecture S-CSCF MGCF HSSCx IM MGW Mn Mb Mg MRFP Mb I-CSCF Mw Mw Gm Mj Mi BGCF Mk UE Mb Mb Mb SLFDx CS CS Cx AS ISC Sh Ut BGCF Mg Dh Ma P-CSCF Mx Mx Mx CS Network MmMm Mm TrGW IP Multimedia Networks IBCF Ix Ici, MmIzi MRB Rc ISC Mr MRFC Cr, Mr¡¯ Mb IMS AGW Mp Mw Iq
- 9. IP Connectivity Access Network (IP CAN) ? The IP multimedia subsystem utilizes the IP-CAN to transport: ? multimedia signalling and ? bearer traffic. ? IP-CANs that maintain the service while the terminal moves, hide these moves from the IP multimedia subsystem. ? The IP multimedia subsystem is independent of the CS domain
- 10. Call Session Control Function (CSCF) The roles that the CSCF plays are described below. ? The Proxy-CSCF shall enable the session control to be passed to the Serving-CSCF. ? The Serving-CSCF is located in the home network. The Serving-CSCF shall invoke service logic. ? A Proxy-CSCF shall be supported in both roaming and non-roaming case, even when the Serving-CSCF is located in the same IM CN Subsystem
