Kaizen Presentation - Bonding Detector
- 1. waste elimination ASSY. PRODUCTION ENGINEERING AMIR ASYRAF BIN MOHAMMAD REDZUAN 13838

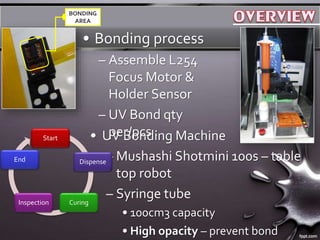

- 3. ? UV Bonding Machine C Mushashi Shotmini 100s C table top robot C Syringe tube ? 100cm3 capacity ? High opacity C prevent bond ? Bonding process C Assemble L254 Focus Motor & Holder Sensor C UV Bond qty per/pcs : BONDING AREA Start Dispense CuringInspection End
- 4. Unnecessary frequent refilling needed PROBLEM ? Operator has difficulties to determine content level ? reach minimum level Frequent refilling (40times/month) ? Quality Problem C Part not properly bonded Too dependent on human judgment due to syringe opacity 恬I宀にたよる朕登 協ojな咾/rg
- 6. Unnecessary frequent refilling needed after UV bond reach below minimum level, dispensing pressure inconsistent

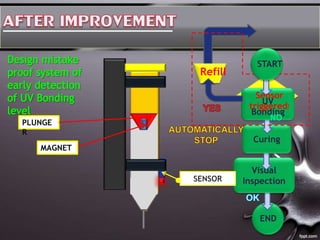

- 7. (2) Concept of minimum level after UV bond reach below minimum level, dispensing pressure inconsistent History-EC335 CCD UV bonding (Average 2times/mth) (gmbr) (countermeasure-frequent refilling)

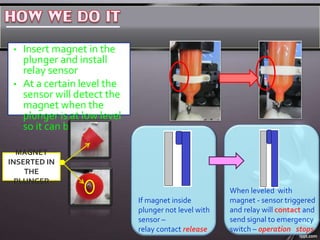

- 9. When leveled with magnet - sensor triggered and relay will contact and send signal to emergency switch C operation stops If magnet inside plunger not level with sensor C relay contact release ? Insert magnet in the plunger and install relay sensor ? At a certain level the sensor will detect the magnet when the plunger is at low level so it can be refilled MAGNET INSERTED IN THE PLUNGER
- 10. Before After Frequency of refilling 2 times/day = 40 times/month 1 time/ 2 days = 10 times/month Cost time to refill (RM) 3minutes X 60s X 40times/month X 12months X RM0.08/part = 6912 3minutes X 60s X 10times/month X 12months X RM0.08/part = 1728 Cost no. of steps taken to refill (RM) 40steps X 40times/month X 12month X RM0.08/part = 1536 40steps X 10times/month X 12month X RM0.08/part = 384 TOTAL (RM) 8448 2112
- 11. ? Expansion to all EF lenses models Model L254 L35 L240 L114/ L116 L248 MC1 COMPLETE D MC 2 MC 2 MC 2 MC 2 MC 2
