View & analyse your 3D CAD data like on you Desktop: same performance, same functionality incl analysis, same APIs - incl cross product APIs. Web viewer for Catia, NX, Solidworks, Creo and more. Load a 5 GB Catia assembly in 1 second on mobile device. Designed for integration, PLM, ERP, cloud & portals. More at http://viewer.kisters.de
Kisters 3DViewStation WebViewer 2015
- 1. 3DViewStation WebViewer 2015 Visualization for the Manufacturing Enterprise

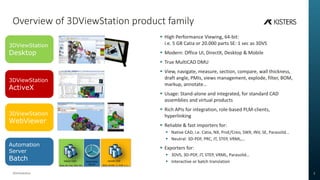

- 2. Overview of 3DViewStation product family 3DViewStation 2 ? High Performance Viewing, 64-bit: i.e. 5 GB Catia or 20.000 parts SE: 1 sec as 3DVS ? Modern: Office UI, DirectX, Desktop & Mobile ? True MultiCAD DMU ? View, navigate, measure, section, compare, wall thickness, draft angle, PMIs, views management, explode, filter, BOM, markup, annotate¡ ? Usage: Stand-alone and integrated, for standard CAD assemblies and virtual products ? Rich APIs for integration, role-based PLM-clients, hyperlinking ? Reliable & fast importers for: ? Native CAD, i.e. Catia, NX, ProE/Creo, SWX, INV, SE, Parasolid¡ ? Neutral: 3D-PDF, PRC, JT, STEP, VRML,¡ ? Exporters for: ? 3DVS, 3D-PDF, JT, STEP, VRML, Parasolid¡ ? Interactive or batch translation 3DViewStation Desktop 3DViewStation ActiveX 3DViewStation WebViewer Automation Server Batch Native CAD neutral CAD 3DVS, 3D-PDF, JT, STEP, X_T, ¡Catia, NX, Creo, SWX, INV, ¡ Automation Server
- 3. Solutions for office-based users 3DViewStation 3
- 4. Solutions for mobile users 3DViewStation 4

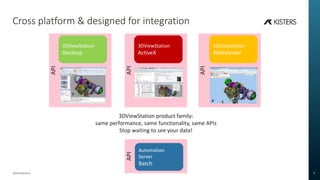

- 5. Cross platform & designed for integration 3DViewStation 5 API API API API 3DViewStation Desktop 3DViewStation ActiveX 3DViewStation WebViewer Automation Server Batch 3DViewStation product family: same performance, same functionality, same APIs Stop waiting to see your data!

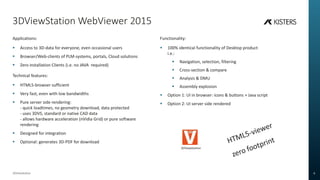

- 6. 3DViewStation WebViewer 2015 Applications: ? Access to 3D-data for everyone, even occasional users ? Browser/Web-clients of PLM-systems, portals, Cloud solutions ? Zero installation Clients (i.e. no JAVA required) Technical features: ? HTML5-browser sufficient ? Very fast, even with low bandwidths ? Pure server side rendering: - quick loadtimes, no geometry download, data protected - uses 3DVS, standard or native CAD data - allows hardware acceleration (nVidia Grid) or pure software rendering ? Designed for integration ? Optional: generates 3D-PDF for download 3DViewStation 6 Functionality: ? 100% identical functionality of Desktop product i.e.: ? Navigation, selection, filtering ? Cross-section & compare ? Analysis & DMU ? Assembly explosion ? Option 1: UI in browser: icons & buttons + Java script ? Option 2: UI server side rendered 3DViewStation

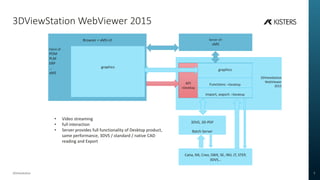

- 7. 3DViewStation WebViewer 2015 3DViewStation 7 3DViewStation WebViewer 2015 import, export: =Desktop Functions: =Desktop graphics API =Desktop Client of: PDM PLM ERP ¡ xMS Browser + xMS-UI Batch Server Server of: xMS 3DVS, 3D-PDF Catia, NX, Creo, SWX, SE, INV, JT, STEP, 3DVS¡ graphics ? Video streaming ? full interaction ? Server provides full functionality of Desktop product, same performance, 3DVS / standard / native CAD reading and Export

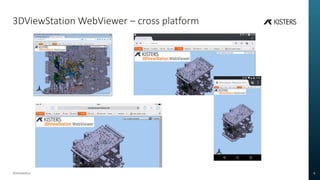

- 8. 3DViewStation WebViewer ¨C cross platform 3DViewStation 8

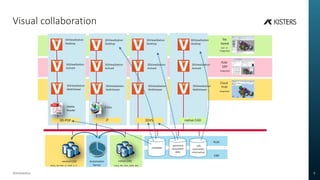

- 9. C Cloud PLM i integrated file based non- or integrated PLM PLM ERP integrated Visual collaboration 3DViewStation 9 native CADneutral CAD 3DVS, 3D-PDF, JT, STEP, X_T, ¡ Catia, NX, Creo, SWX, INV, ¡ Automation Server ERP PLM metadata geometry associated data role associated information 3D-PDF Adobe Reader 3DViewStation Desktop 3DViewStation ActiveX JT 3DViewStation Desktop JT2Go 3DViewStation ActiveX 3DVS 3DViewStation Desktop 3DViewStation ActiveX native CAD 3DViewStation Desktop 3DViewStation ActiveX 3DViewStation WebViewer 3DViewStation WebViewer 3DViewStation WebViewer 3DViewStation WebViewer
- 10. 19/05/2015 103DViewStation Kisters AG Phone: +49 2408 93805-517 Email: sales-viewer@kisters.de Web: http://viewer.kisters.de
