The document introduces the Poplar board, the first 96Boards TV platform. Some key points: - The Poplar board is manufactured by Tocoding Technologies and is based on the HiSilicon Poplar TV platform and Hi3798C V200 chipset. - It runs Android 5.1.1 and the Linux kernel 3.18 out of the box. Work is underway to upstream the Poplar kernel and drivers to more recent versions. - The Linaro Hardware Group will work with HiSilicon to upstream support and ensure the latest kernel features can be used by developers. - The Poplar will be a target board for developing Android/AOSP TV, RDK,
LAS16 310 - Introducing the first 96Boards tv platform - Poplar by hisilicon
- 1. Introducing Poplar: First 96Boards TV Platform Mark Gregotski, Director LHG Hermit Wang, SW Architect, Digital Media IC & Solutions HiSilicon
- 2. ENGINEERS AND DEVICES WORKING TOGETHER Overview General Information Poplar Hardware High level overview of Hisilicon Poplar platform 96Boards TV Platform Specification Poplar Software Poplar in LHG Target Google Supported Community Board Demos

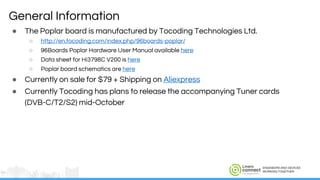

- 3. ENGINEERS AND DEVICES WORKING TOGETHER General Information The Poplar board is manufactured by Tocoding Technologies Ltd. http://en.tocoding.com/index.php/96boards-poplar/ 96Boards Poplar Hardware User Manual available here Data sheet for Hi3798C V200 is here Poplar board schematics are here Currently on sale for $79 + Shipping on Aliexpress Currently Tocoding has plans to release the accompanying Tuner cards (DVB-C/T2/S2) mid-October

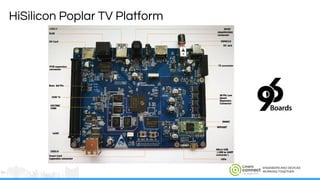

- 5. ENGINEERS AND DEVICES WORKING TOGETHER HiSilicon Poplar TV Platform

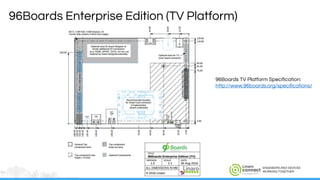

- 6. ENGINEERS AND DEVICES WORKING TOGETHER 96Boards Enterprise Edition (TV Platform) 96Boards TV Platform Specification: http://www.96boards.org/specifications/

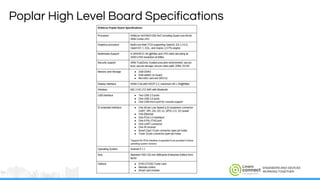

- 7. ENGINEERS AND DEVICES WORKING TOGETHER Poplar High Level Board Specifications
- 8. ENGINEERS AND DEVICES WORKING TOGETHER Block Diagram of Hi3798C V200 Block Diagram

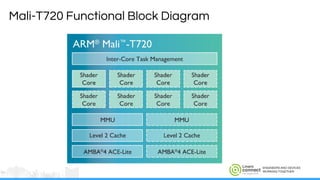

- 9. ENGINEERS AND DEVICES WORKING TOGETHER Mali-T720 Functional Block Diagram

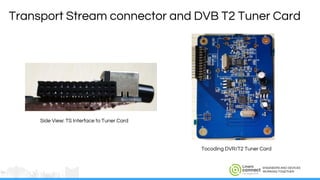

- 10. ENGINEERS AND DEVICES WORKING TOGETHER Transport Stream connector and DVB T2 Tuner Card Side View: TS Interface to Tuner Card Tocoding DVR/T2 Tuner Card

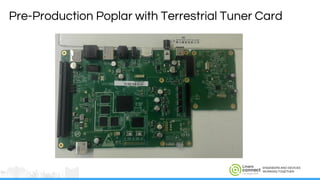

- 11. ENGINEERS AND DEVICES WORKING TOGETHER Pre-Production Poplar with Terrestrial Tuner Card

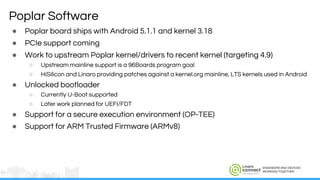

- 13. ENGINEERS AND DEVICES WORKING TOGETHER Poplar Software Poplar board ships with Android 5.1.1 and kernel 3.18 PCIe support coming Work to upstream Poplar kernel/drivers to recent kernel (targeting 4.9) Upstream mainline support is a 96Boards program goal HiSilicon and Linaro providing patches against a kernel.org mainline, LTS kernels used in Android Unlocked bootloader Currently U-Boot supported Later work planned for UEFI/FDT Support for a secure execution environment (OP-TEE) Support for ARM Trusted Firmware (ARMv8)

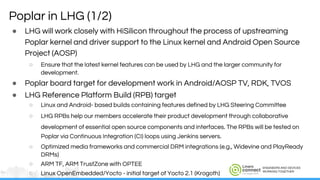

- 14. ENGINEERS AND DEVICES WORKING TOGETHER Poplar in LHG (1/2) LHG will work closely with HiSilicon throughout the process of upstreaming Poplar kernel and driver support to the Linux kernel and Android Open Source Project (AOSP) Ensure that the latest kernel features can be used by LHG and the larger community for development. Poplar board target for development work in Android/AOSP TV, RDK, TVOS LHG Reference Platform Build (RPB) target Linux and Android- based builds containing features defined by LHG Steering Committee LHG RPBs help our members accelerate their product development through collaborative development of essential open source components and interfaces. The RPBs will be tested on Poplar via Continuous Integration (CI) loops using Jenkins servers. Optimized media frameworks and commercial DRM integrations (e.g., Widevine and PlayReady DRMs) ARM TF, ARM TrustZone with OPTEE Linux OpenEmbedded/Yocto - initial target of Yocto 2.1 (Krogoth)

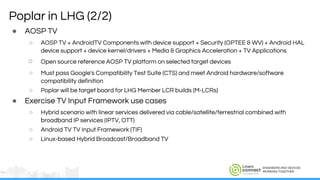

- 15. ENGINEERS AND DEVICES WORKING TOGETHER Poplar in LHG (2/2) AOSP TV AOSP TV + AndroidTV Components with device support + Security (OPTEE & WV) + Android HAL device support + device kernel/drivers + Media & Graphics Acceleration + TV Applications Open source reference AOSP TV platform on selected target devices Must pass Google's Compatibility Test Suite (CTS) and meet Android hardware/software compatibility definition Poplar will be target board for LHG Member LCR builds (M-LCRs) Exercise TV Input Framework use cases Hybrid scenario with linear services delivered via cable/satellite/terrestrial combined with broadband IP services (IPTV, OTT) Android TV TV Input Framework (TIF) Linux-based Hybrid Broadcast/Broadband TV

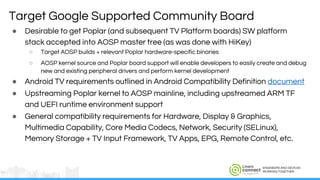

- 16. ENGINEERS AND DEVICES WORKING TOGETHER Target Google Supported Community Board Desirable to get Poplar (and subsequent TV Platform boards) SW platform stack accepted into AOSP master tree (as was done with HiKey) Target AOSP builds + relevant Poplar hardware-specific binaries AOSP kernel source and Poplar board support will enable developers to easily create and debug new and existing peripheral drivers and perform kernel development Android TV requirements outlined in Android Compatibility Definition document Upstreaming Poplar kernel to AOSP mainline, including upstreamed ARM TF and UEFI runtime environment support General compatibility requirements for Hardware, Display & Graphics, Multimedia Capability, Core Media Codecs, Network, Security (SELinux), Memory Storage + TV Input Framework, TV Apps, EPG, Remote Control, etc.

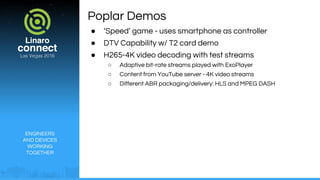

- 17. ENGINEERS AND DEVICES WORKING TOGETHER Poplar Demos Speed game - uses smartphone as controller DTV Capability w/ T2 card demo H265-4K video decoding with test streams Adaptive bit-rate streams played with ExoPlayer Content from YouTube server - 4K video streams Different ABR packaging/delivery: HLS and MPEG DASH
- 18. Thank You #LAS16 For further information: www.linaro.org LAS16 keynotes and videos on: connect.linaro.org
