Layers of thedvfffffffffffdvfdv Earth.ppt

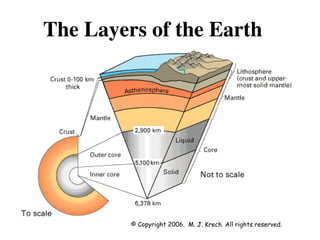

1. The Layers of the Earth
? Copyright 2006. M. J. Krech. All rights reserved.
2. The Four Layers
The Earth is composed of four
different layers. The crust is
the layer that you live on, and
it is the most widely studied
and understood. The mantle
is much hotter and has the
ability to flow. The outer
core and inner core are
even hotter with pressures so
great you would be squeezed
into a ball smaller than a
marble if you were able to go
to the center of the Earth!

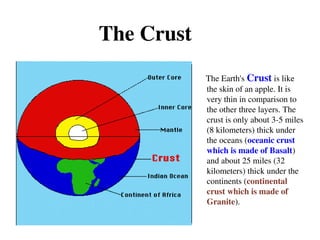

3. The Crust
The Earth's Crust is like
the skin of an apple. It is
very thin in comparison to
the other three layers. The
crust is only about 3-5 miles
(8 kilometers) thick under
the oceans (oceanic crust
which is made of Basalt)
and about 25 miles (32
kilometers) thick under the
continents (continental
crust which is made of
Granite).

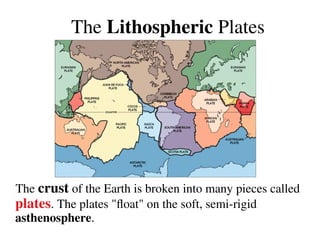

4. The Lithospheric Plates
The crust of the Earth is broken into many pieces called
plates. The plates "float" on the soft, semi-rigid
asthenosphere.

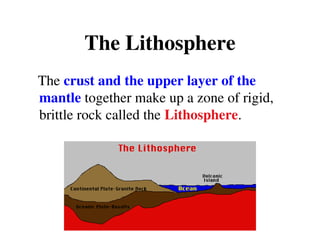

6. The Lithosphere
The crust and the upper layer of the
mantle together make up a zone of rigid,
brittle rock called the Lithosphere.

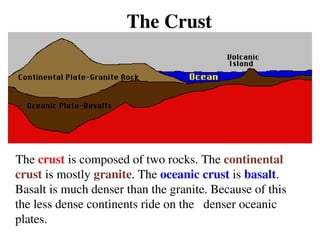

7. The Crust
The crust is composed of two rocks. The continental
crust is mostly granite. The oceanic crust is basalt.
Basalt is much denser than the granite. Because of this
the less dense continents ride on the denser oceanic
plates.

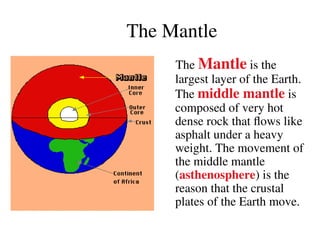

8. The Mantle
The Mantle is the
largest layer of the Earth.
The middle mantle is
composed of very hot
dense rock that flows like
asphalt under a heavy
weight. The movement of
the middle mantle
(asthenosphere) is the
reason that the crustal
plates of the Earth move.

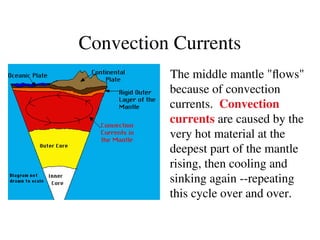

9. Convection Currents
The middle mantle "flows"
because of convection
currents. Convection
currents are caused by the
very hot material at the
deepest part of the mantle
rising, then cooling and
sinking again --repeating
this cycle over and over.

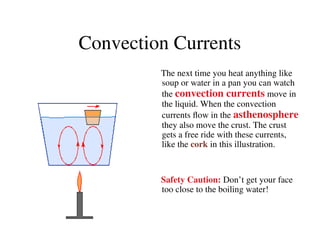

10. Convection Currents
The next time you heat anything like
soup or water in a pan you can watch
the convection currents move in
the liquid. When the convection
currents flow in the asthenosphere
they also move the crust. The crust
gets a free ride with these currents,
like the cork in this illustration.
Safety Caution: Don’t get your face
too close to the boiling water!

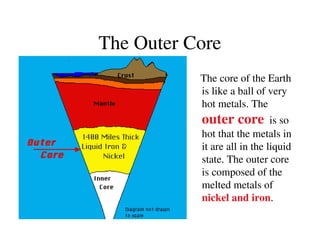

11. The Outer Core
The core of the Earth
is like a ball of very
hot metals. The
outer core is so
hot that the metals in
it are all in the liquid
state. The outer core
is composed of the
melted metals of
nickel and iron.

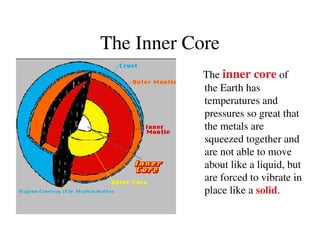

12. The Inner Core
The inner core of
the Earth has
temperatures and
pressures so great that
the metals are
squeezed together and
are not able to move
about like a liquid, but
are forced to vibrate in
place like a solid.

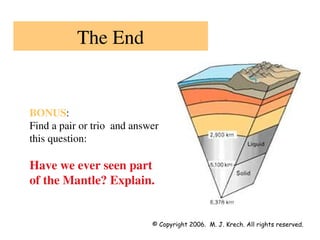

13. The End
BONUS:
Find a pair or trio and answer
this question:
Have we ever seen part
of the Mantle? Explain.
? Copyright 2006. M. J. Krech. All rights reserved.
