The LU500 is a lightweight, portable device designed for professional newsgathering, featuring a proprietary internal antenna for optimized live HD video transmission. It supports multiple connections, including bonded cellular, Wi-Fi, and Ethernet, with an end-to-end boot-up time of under one minute, and can be controlled via a touch screen or remotely. The unit is built for resilience in various conditions, offering features like automatic adaptive bit rate and low latency for enhanced video quality.
LiveU LU500 Datasheet - Live Outside Broadcast

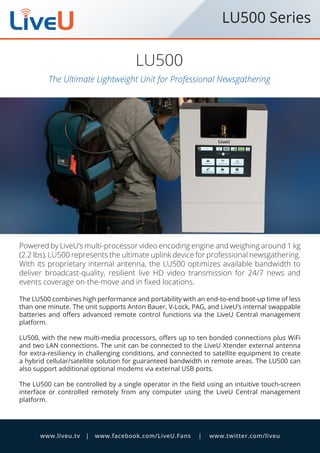

- 1. The Ultimate Lightweight Unit for Professional Newsgathering LU500 Powered by LiveU’s multi-processor video encoding engine and weighing around 1 kg (2.2 lbs), LU500 represents the ultimate uplink device for professional newsgathering. With its proprietary internal antenna, the LU500 optimizes available bandwidth to deliver broadcast-quality, resilient live HD video transmission for 24/7 news and events coverage on-the-move and in fixed locations. The LU500 combines high performance and portability with an end-to-end boot-up time of less than one minute. The unit supports Anton Bauer, V-Lock, PAG, and LiveU’s internal swappable batteries and offers advanced remote control functions via the LiveU Central management platform. LU500, with the new multi-media processors, offers up to ten bonded connections plus WiFi and two LAN connections. The unit can be connected to the LiveU Xtender external antenna for extra-resiliency in challenging conditions, and connected to satellite equipment to create a hybrid cellular/satellite solution for guaranteed bandwidth in remote areas. The LU500 can also support additional optional modems via external USB ports. The LU500 can be controlled by a single operator in the field using an intuitive touch-screen interface or controlled remotely from any computer using the LiveU Central management platform. www.liveu.tv | www.facebook.com/LiveU.Fans | www.twitter.com/liveu LU500 Series

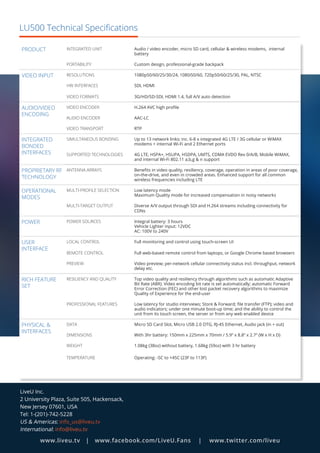

- 2. LiveU Inc. 2 University Plaza, Suite 505, Hackensack, New Jersey 07601, USA Tel: 1-(201)-742-5228 US & Americas: info_us@liveu.tv International: info@liveu.tv www.liveu.tv | www.facebook.com/LiveU.Fans | www.twitter.com/liveu LU500 Technical Specifications PRODUCT INTEGRATED UNIT Audio / video encoder, micro SD card, cellular & wireless modems, internal battery PORTABILITY Custom design, professional-grade backpack VIDEO INPUT RESOLUTIONS 1080p50/60/25/30/24, 1080i50/60, 720p50/60/25/30, PAL, NTSC HW INTERFACES SDI, HDMI VIDEO FORMATS 3G/HD/SD-SDI, HDMI 1.4, full A/V auto detection AUDIO/VIDEO ENCODING VIDEO ENCODER H.264 AVC high profile AUDIO ENCODER AAC-LC VIDEO TRANSPORT RTP INTEGRATED BONDED INTERFACES SIMULTANEOUS BONDING Up to 13 network links; inc. 6-8 x integrated 4G LTE / 3G cellular or WiMAX modems + internal Wi-Fi and 2 Ethernet ports SUPPORTED TECHNOLOGIES 4G LTE, HSPA+, HSUPA, HSDPA, UMTS, CDMA EVDO Rev 0/A/B, Mobile WiMAX, and internal Wi-Fi 802.11 a,b,g & n support PROPRIETARY RF TECHNOLOGY ANTENNA ARRAYS Benefits in video quality, resiliency, coverage, operation in areas of poor coverage, on-the-drive, and even in crowded areas. Enhanced support for all common wireless frequencies including LTE OPERATIONAL MODES MULTI-PROFILE SELECTION Low latency mode Maximum Quality mode for increased compensation in noisy networks MULTI-TARGET OUTPUT Diverse A/V output through SDI and H.264 streams including connectivity for CDNs POWER POWER SOURCES Integral battery: 3 hours Vehicle Lighter input: 12VDC AC: 100V to 240V USER INTERFACE LOCAL CONTROL Full monitoring and control using touch-screen UI REMOTE CONTROL Full web-based remote control from laptops, or Google Chrome based browsers PREVIEW Video preview; per-network cellular connectivity status incl. throughput, network delay etc. RICH FEATURE SET RESILIENCY AND QUALITY Top video quality and resiliency through algorithms such as automatic Adaptive Bit Rate (ABR). Video encoding bit rate is set automatically; automatic Forward Error Correction (FEC) and other lost packet recovery algorithms to maximize Quality of Experience for the end-user PROFESSIONAL FEATURES Low latency for studio interviews; Store & Forward; file transfer (FTP); video and audio indicators; under one minute boot-up time; and the ability to control the unit from its touch screen, the server or from any web enabled device PHYSICAL & INTERFACES DATA Micro SD Card Slot, Micro USB 2.0 OTG, RJ-45 Ethernet, Audio jack (in + out) DIMENSIONS With 3hr battery: 150mm x 225mm x 70mm / 5.9” x 8.8” x 2.7” (W x H x D) WEIGHT 1.08kg (38oz) without battery, 1.68kg (59oz) with 3 hr battery TEMPERATURE Operating: -5C to +45C (23F to 113F)
