Low Level Graphics & OpenGL

Nov 30, 20181 like245 views

This talk explains how low level graphics works, the OpenGL rendering pipeline, and digs into pixel buffering techniques, and even includes some example code and demos.

Dominic Farolino
• twitter.com/domfarolino

• github.com/domfarolino

• dom@chromium.org
• Senior

• Chromium Committer

• WHATWG Editor

–some smart person

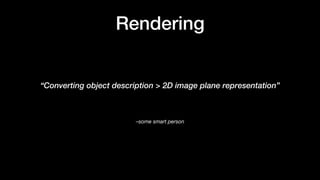

“Converting object description > 2D image plane representation”
Rendering

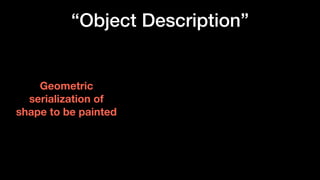

“Object Description”
Geometric
serialization of
shape to be painted

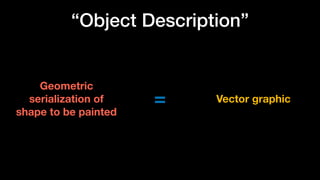

“Object Description”
Geometric
serialization of
shape to be painted
= Vector graphic

–some smart person

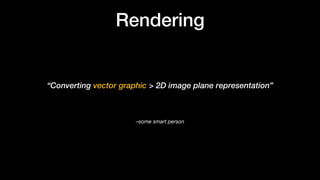

“Converting vector graphic > 2D image plane representation”
Rendering

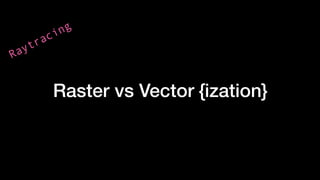

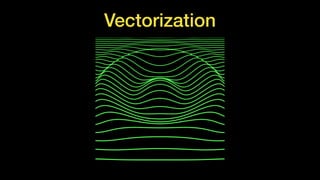

Raster vs Vector {ization}
Raytracing
Radiosity

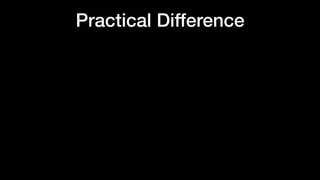

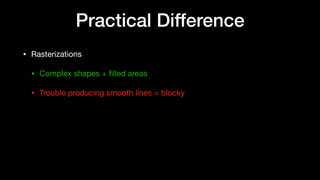

Practical Difference
• Rasterizations

• Complex shapes + ﬁlled areas

• Trouble producing smooth lines = blocky

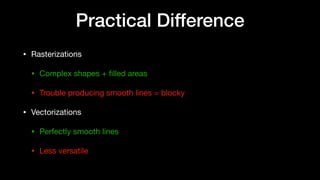

Practical Difference
• Rasterizations

• Complex shapes + ﬁlled areas

• Trouble producing smooth lines = blocky
• Vectorizations

• Perfectly smooth lines

• Less versatile

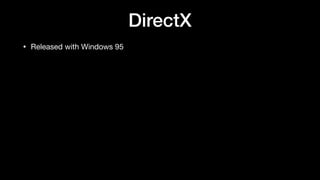

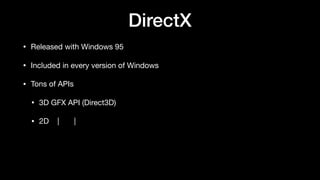

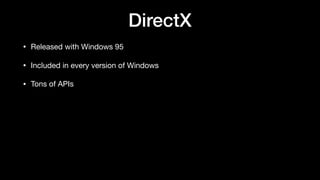

DirectX
• Released with Windows 95
• Included in every version of Windows

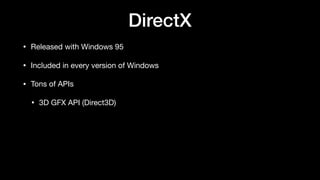

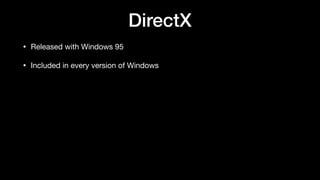

DirectX
• Released with Windows 95
• Included in every version of Windows
• Tons of APIs

DirectX
• Released with Windows 95
• Included in every version of Windows
• Tons of APIs
• 3D GFX API (Direct3D)

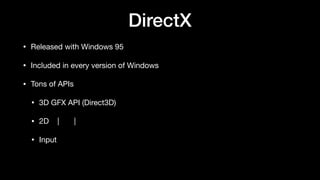

DirectX
• Released with Windows 95
• Included in every version of Windows
• Tons of APIs
• 3D GFX API (Direct3D)
• 2D | |

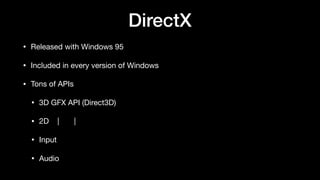

DirectX
• Released with Windows 95
• Included in every version of Windows
• Tons of APIs
• 3D GFX API (Direct3D)
• 2D | |
• Input

DirectX
• Released with Windows 95
• Included in every version of Windows
• Tons of APIs
• 3D GFX API (Direct3D)
• 2D | |
• Input
• Audio

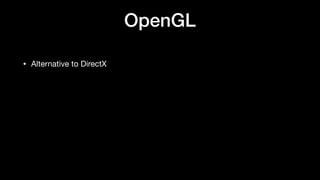

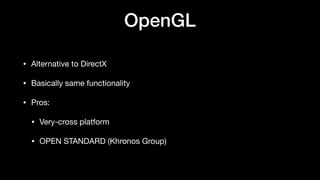

OpenGL

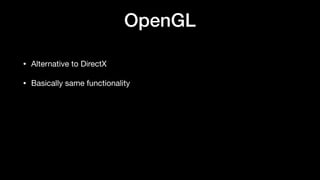

• Alternative to DirectX
• Basically same functionality

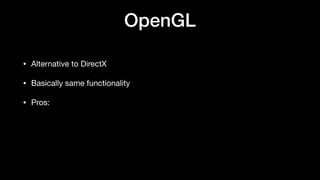

OpenGL
• Alternative to DirectX
• Basically same functionality
• Pros:

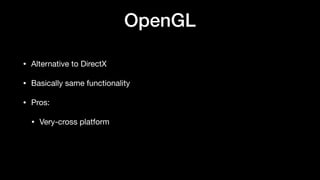

OpenGL
• Alternative to DirectX
• Basically same functionality
• Pros:
• Very-cross platform

OpenGL
• Alternative to DirectX
• Basically same functionality
• Pros:
• Very-cross platform
• OPEN STANDARD (Khronos Group)

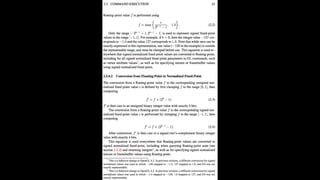

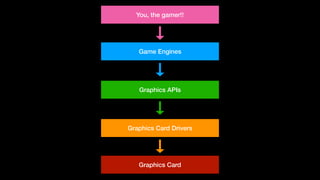

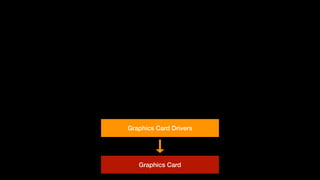

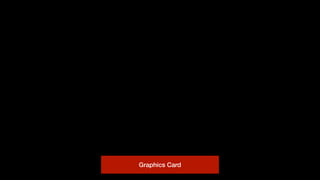

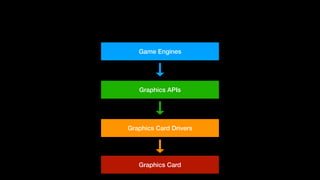

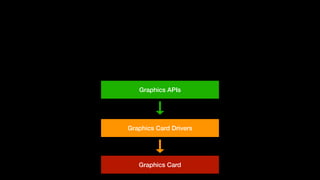

Graphics Card
Graphics Card Drivers
Graphics APIs

Graphics Card
Graphics Card Drivers
Graphics APIs

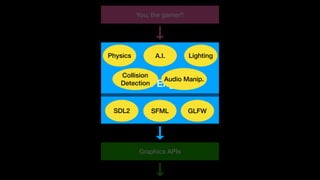

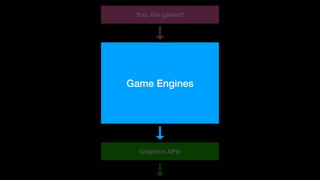

Game Engines

Graphics Card
Graphics Card Drivers
Graphics APIs
Game Engines
You, the gamer!!

Graphics APIs
Game Engines
You, the gamer!!

Graphics APIs
Game Engines
You, the gamer!!

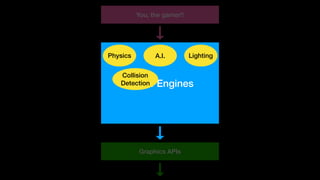

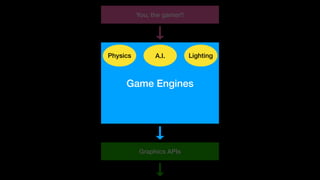

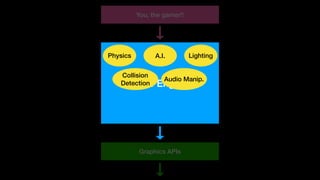

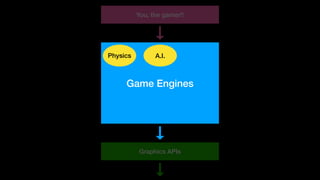

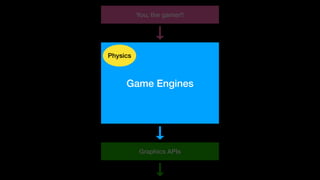

Physics

Graphics APIs
Game Engines
You, the gamer!!
A.I.Physics

Graphics APIs
Game Engines
You, the gamer!!
LightingA.I.Physics

Graphics APIs
Game Engines
You, the gamer!!
LightingA.I.Physics
Collision
Detection

Graphics APIs
Game Engines
You, the gamer!!
LightingA.I.Physics
Collision
Detection
Audio Manip.

Graphics APIs
Game Engines
You, the gamer!!
LightingA.I.Physics
Collision
Detection
Audio Manip.

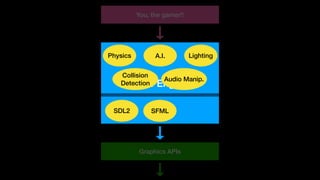

SDL2

Graphics APIs
Game Engines
You, the gamer!!
LightingA.I.Physics
Collision
Detection
Audio Manip.
SDL2 SFML

Graphics APIs
Game Engines
You, the gamer!!
LightingA.I.Physics
Collision
Detection
Audio Manip.
SDL2 SFML GLFW

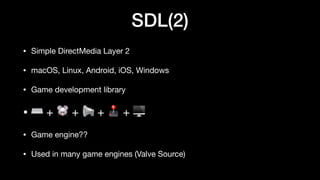

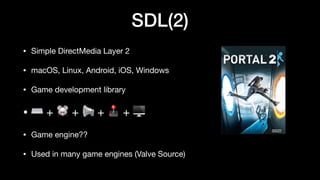

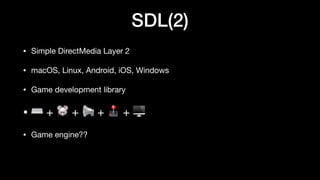

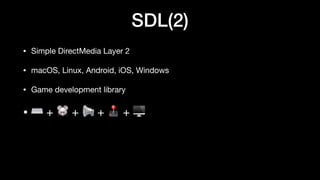

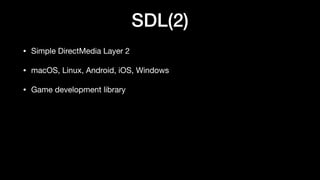

SDL(2)
• Simple DirectMedia Layer 2
• macOS, Linux, Android, iOS, Windows

SDL(2)
• Simple DirectMedia Layer 2
• macOS, Linux, Android, iOS, Windows
• Game development library

SDL(2)
• Simple DirectMedia Layer 2
• macOS, Linux, Android, iOS, Windows
• Game development library
• ⌨ + 🐭 + 📢 + 🕹 + 🖥
• Game engine??

SDL(2)
• Simple DirectMedia Layer 2
• macOS, Linux, Android, iOS, Windows
• Game development library
• ⌨ + 🐭 + 📢 + 🕹 + 🖥
• Game engine??
• Used in many game engines (Valve Source)

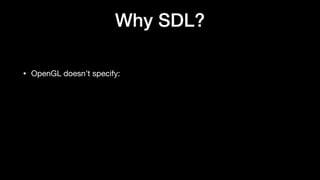

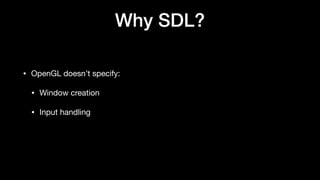

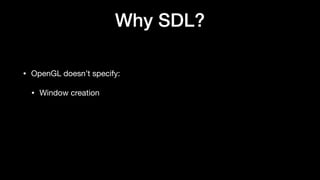

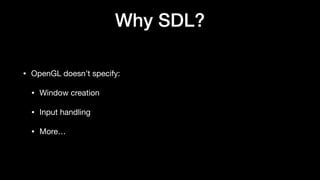

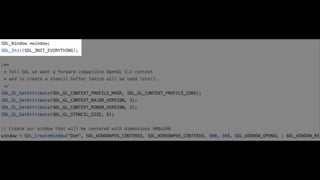

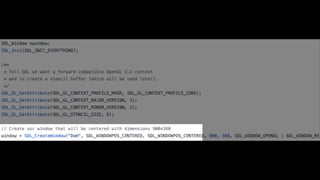

Why SDL?
• OpenGL doesn’t specify:
• Window creation

Why SDL?
• OpenGL doesn’t specify:
• Window creation
• Input handling

Why SDL?
• OpenGL doesn’t specify:
• Window creation
• Input handling
• More…

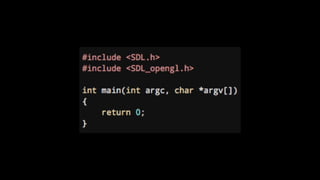

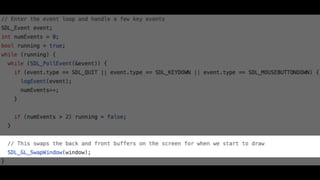

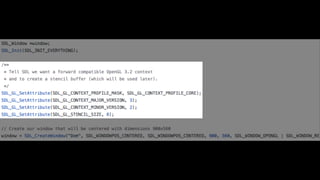

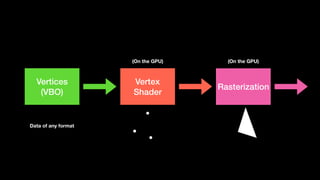

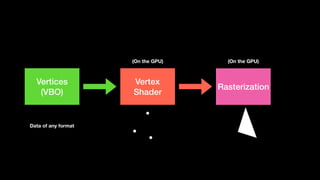

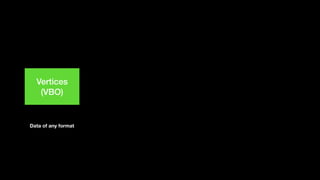

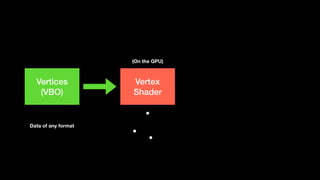

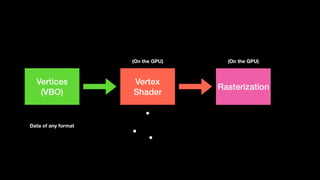

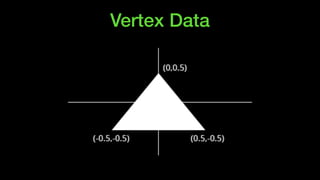

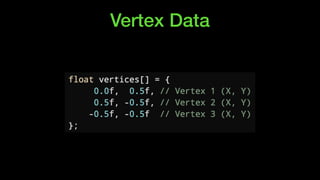

Vertices
(VBO)
Data of any format

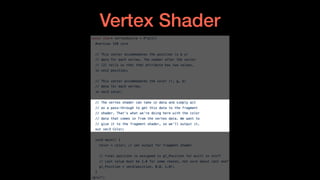

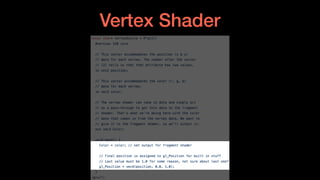

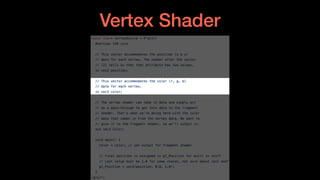

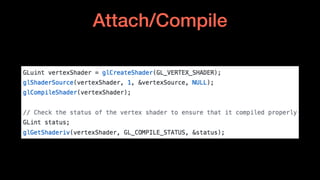

Vertex

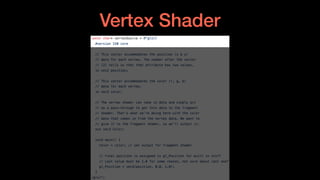

Shader
(On the GPU)

Vertices
(VBO)
Data of any format
Vertex
Shader
(On the GPU)

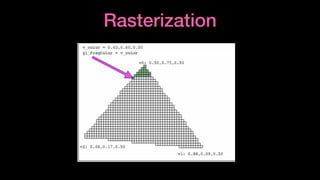

Rasterization
(On the GPU)

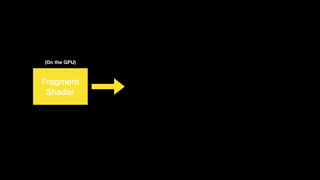

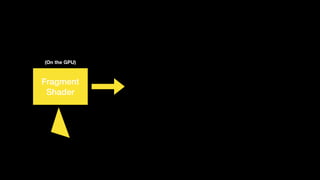

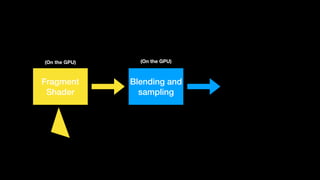

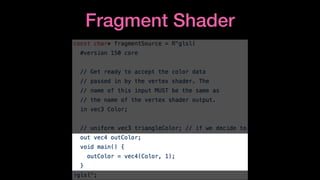

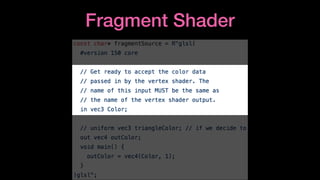

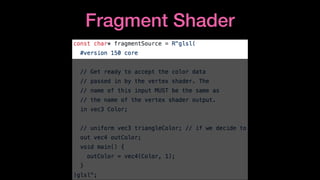

Fragment
Shader
Blending and
sampling
(On the GPU)(On the GPU)

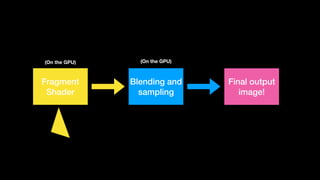

Fragment
Shader
Blending and
sampling
(On the GPU)

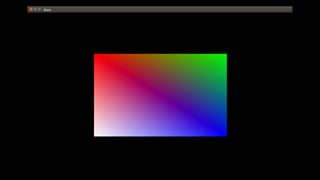

Final output
image!
(On the GPU)

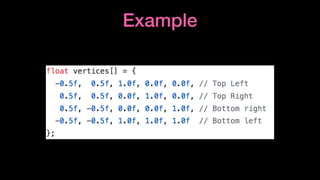

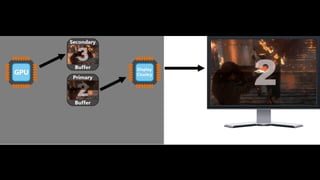

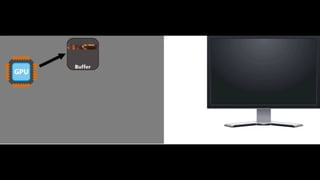

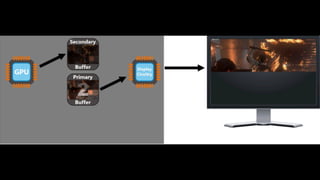

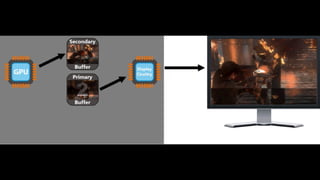

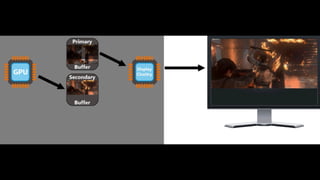

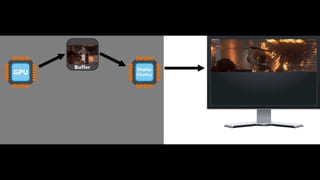

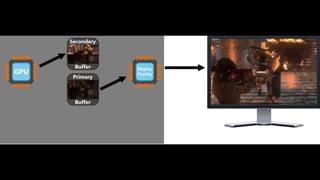

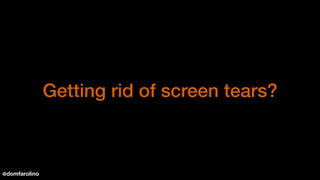

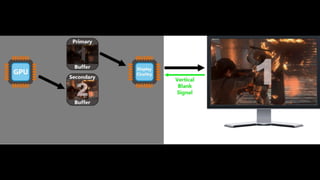

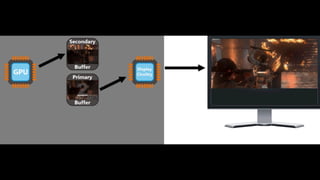

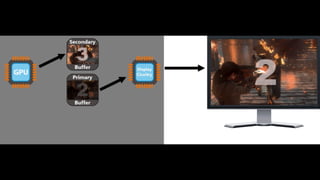

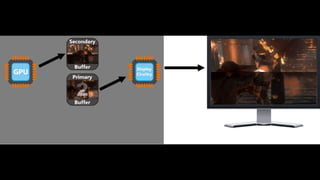

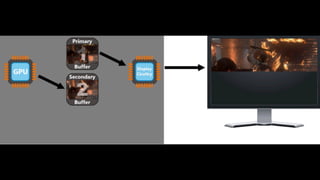

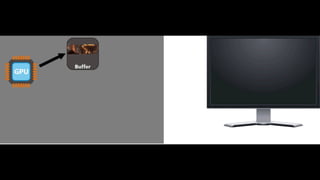

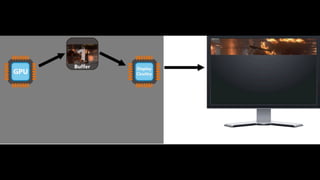

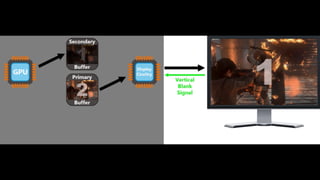

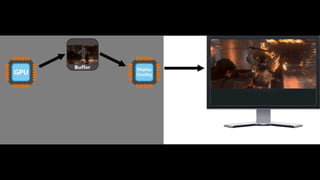

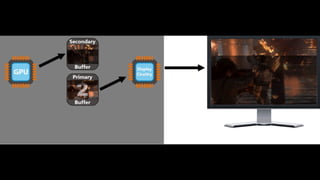

Getting rid of screen tears?
@domfarolino

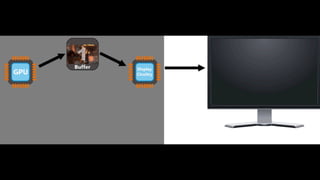

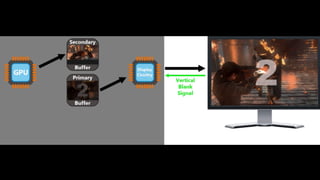

Synchronizing Vertical Refresh
Rate
@domfarolino

Cool, but what about the web?
@domfarolino
