E- Mobility Charging
Solution
Anil Kumar
Content

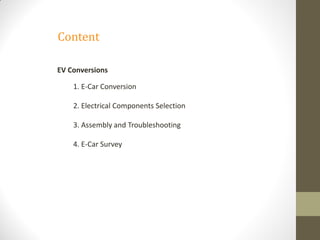

EV Conversions
1. E-Car Conversion
2. Electrical Components Selection
3. Assembly and Troubleshooting
4. E-Car Survey
An electric conversion will act very similar to the vehicle being converted. A gas
guzzling SUV will have more room for batteries but it will be an electricity guzzling
vehicle. A small car will be more efficient but cant hold the batteries that a larger
vehicle can. The weight of the vehicle will play a pivotal roll in deciding what motor
to use and whether or not to use direct drive of a transmission.

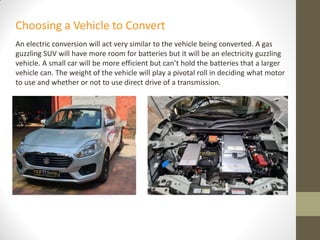

Choosing a Vehicle to Convert

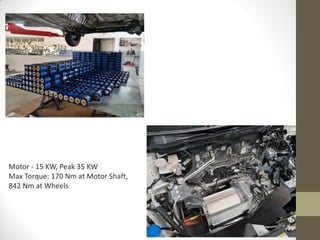

Motor - 15 KW, Peak 35 KW
Max Torque: 170 Nm at Motor Shaft,
842 Nm at Wheels

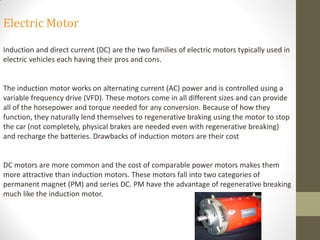

Electric Motor
Induction and direct current (DC) are the two families of electric motors typically used in
electric vehicles each having their pros and cons.
The induction motor works on alternating current (AC) power and is controlled using a
variable frequency drive (VFD). These motors come in all different sizes and can provide
all of the horsepower and torque needed for any conversion. Because of how they
function, they naturally lend themselves to regenerative braking using the motor to stop
the car (not completely, physical brakes are needed even with regenerative breaking)
and recharge the batteries. Drawbacks of induction motors are their cost
DC motors are more common and the cost of comparable power motors makes them
more attractive than induction motors. These motors fall into two categories of
permanent magnet (PM) and series DC. PM have the advantage of regenerative breaking
much like the induction motor.

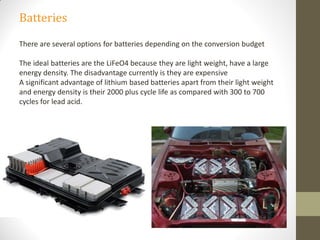

Batteries
There are several options for batteries depending on the conversion budget
The ideal batteries are the LiFeO4 because they are light weight, have a large
energy density. The disadvantage currently is they are expensive
A significant advantage of lithium based batteries apart from their light weight
and energy density is their 2000 plus cycle life as compared with 300 to 700
cycles for lead acid.

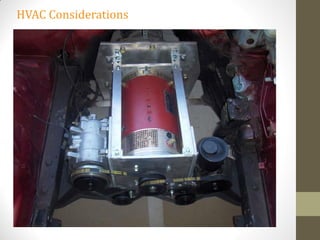

HVAC Considerations
Module-9 EV Conversions (E-Car).pdf

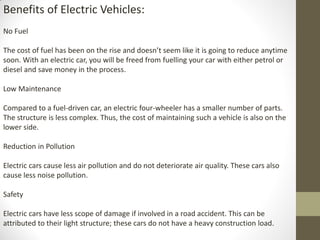

Benefits of Electric Vehicles:
No Fuel
The cost of fuel has been on the rise and doesnt seem like it is going to reduce anytime
soon. With an electric car, you will be freed from fuelling your car with either petrol or
diesel and save money in the process.
Low Maintenance
Compared to a fuel-driven car, an electric four-wheeler has a smaller number of parts.
The structure is less complex. Thus, the cost of maintaining such a vehicle is also on the
lower side.
Reduction in Pollution
Electric cars cause less air pollution and do not deteriorate air quality. These cars also
cause less noise pollution.
Safety
Electric cars have less scope of damage if involved in a road accident. This can be
attributed to their light structure; these cars do not have a heavy construction load.
Module-9 EV Conversions (E-Car).pdf
