MSc dissertation presentation

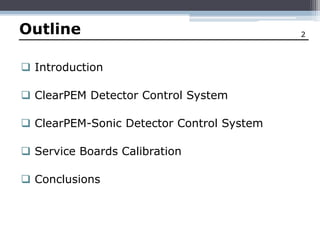

- 1. Development and Implementation of the ClearPEM-Sonic Detector Control SystemGon巽alo Nuno Bento Duarte da SilvaSupervisor: Prof. Jo達o Manuel Coelho dos Santos VarelaCo-Supervisor: Prof. Maria Helena da Costa Matos SarmentoInstituto Superior T辿cnico September 10, 2010 bento@lip.pt
- 3. ClearPEM Detector Control System

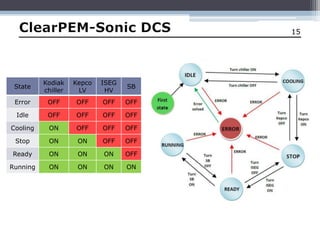

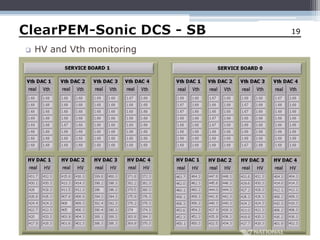

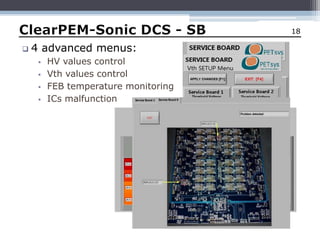

- 4. ClearPEM-Sonic Detector Control System

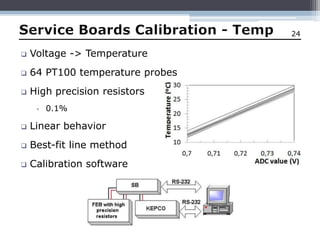

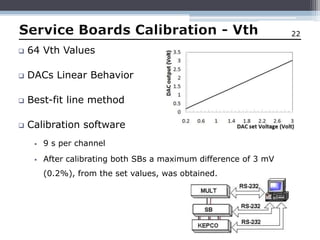

- 5. Service Boards Calibration

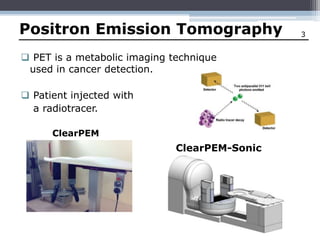

- 6. ConclusionsPositron Emission Tomography3 PET is a metabolic imaging technique used in cancer detection.
- 7. Patient injected with a radiotracer.ClearPEM ClearPEM-Sonic

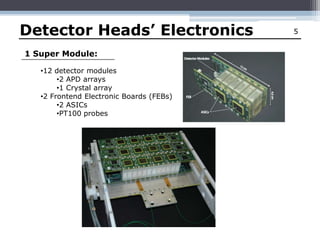

- 9. Detector Heads Electronics551 Super Module:12 detector modules
- 10. 2 APD arrays
- 11. 1 Crystal array
- 12. 2 Frontend Electronic Boards (FEBs)
- 13. 2 ASICs

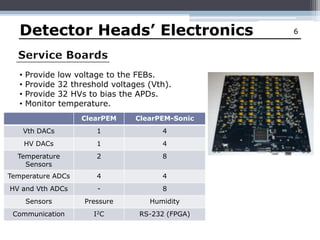

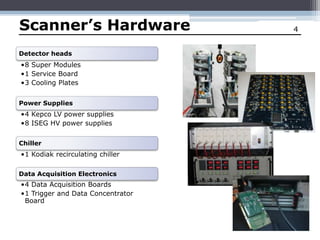

- 14. PT100 probesDetector Heads Electronics66Service Boards Provide low voltage to the FEBs.
- 15. Provide 32 threshold voltages (Vth).
- 16. Provide 32 HVs to bias the APDs.

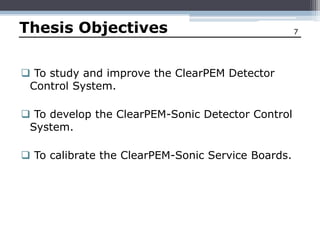

- 17. Monitor temperature.Thesis Objectives7 To study and improve the ClearPEM Detector Control System.
- 18. To develop the ClearPEM-Sonic Detector Control System.

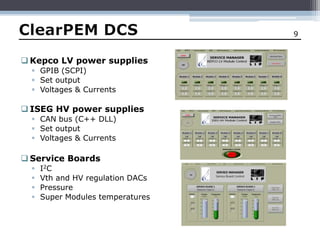

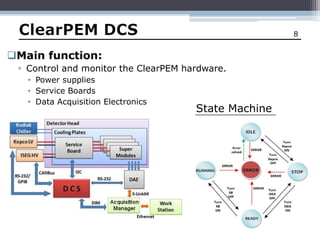

- 19. To calibrate the ClearPEM-Sonic Service Boards.ClearPEM DCS8Main function:
- 20. Control and monitor the ClearPEM hardware.
- 21. Power supplies
- 22. Service Boards
- 23. Data Acquisition ElectronicsState Machine
- 24. ClearPEM DCS9Kepco LV power supplies
- 25. GPIB (SCPI)
- 26. Set output
- 28. ISEG HV power supplies
- 29. CAN bus (C++ DLL)
- 30. Set output
- 32. Service Boards
- 33. I2C
- 34. Vth and HV regulation DACs
- 35. Pressure

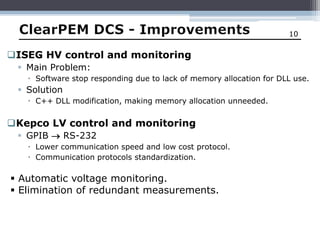

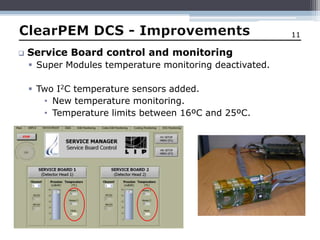

- 36. Super Modules temperaturesClearPEM DCS - Improvements10ISEG HV control and monitoring

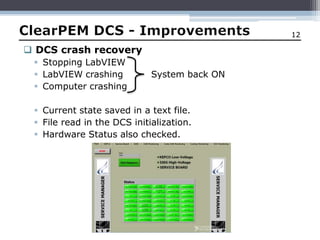

- 37. Main Problem:Software stop responding due to lack of memory allocation for DLL use. SolutionC++ DLL modification, making memory allocation unneeded.Kepco LV control and monitoring
- 38. GPIB RS-232Lower communication speed and low cost protocol.Communication protocols standardization. Automatic voltage monitoring.

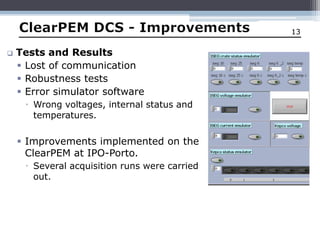

- 39. Elimination of redundant measurements.ClearPEM DCS - Improvements11Service Board control and monitoring

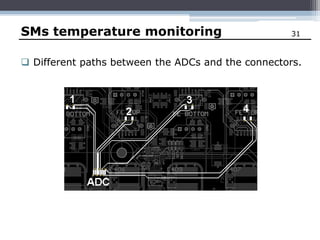

- 40. Super Modules temperature monitoring deactivated.
- 41. Two I2C temperature sensors added.
- 43. Temperature limits between 16尊C and 25尊C.ClearPEM DCS - Improvements12 DCS crash recovery
- 44. Stopping LabVIEW
- 45. LabVIEW crashing System back ON
- 47. Current state saved in a text file.
- 48. File read in the DCS initialization.
- 49. Hardware Status also checked.ClearPEM DCS - Improvements 13Tests and Results
- 51. Robustness tests
- 53. Wrong voltages, internal status and temperatures.
- 54. Improvements implemented on the ClearPEM at IPO-Porto.

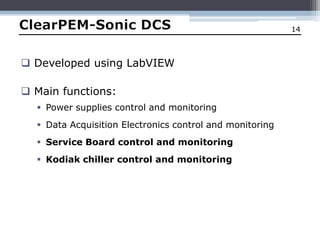

- 55. Several acquisition runs were carried out.ClearPEM-Sonic DCS14 Developed using LabVIEW
- 56. Main functions:
- 57. Power supplies control and monitoring
- 58. Data Acquisition Electronics control and monitoring
- 59. Service Board control and monitoring
- 60. Kodiak chiller control and monitoringClearPEM-Sonic DCS 15

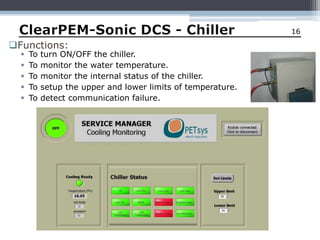

- 61. ClearPEM-Sonic DCS - Chiller 16To turn ON/OFF the chiller.
- 62. To monitor the water temperature.
- 63. To monitor the internal status of the chiller.
- 64. To setup the upper and lower limits of temperature.
- 65. To detect communication failure.

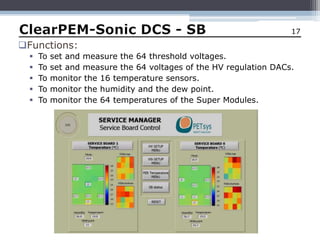

- 66. Functions:ClearPEM-Sonic DCS - SB 17Functions:
- 67. To set and measure the 64 threshold voltages.
- 68. To set and measure the 64 voltages of the HV regulation DACs.
- 69. To monitor the 16 temperature sensors.
- 70. To monitor the humidity and the dew point.
- 71. To monitor the 64 temperatures of the Super Modules.ClearPEM-Sonic DCS - SB 184 advanced menus:
- 75. ICs malfunctionClearPEM-Sonic DCS - SB 19HV and Vth monitoringClearPEM-Sonic DCS - Main Menu20

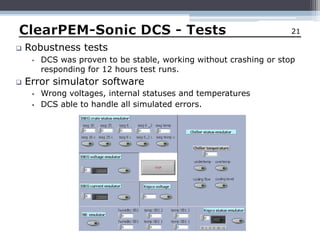

- 76. ClearPEM-Sonic DCS - Tests 21Robustness tests
- 77. DCS was proven to be stable, working without crashing or stop responding for 12 hours test runs.
- 79. Wrong voltages, internal statuses and temperatures
- 80. DCS able to handle all simulated errors.Service Boards Calibration - Vth2264 Vth Values
- 84. 9 s per channel

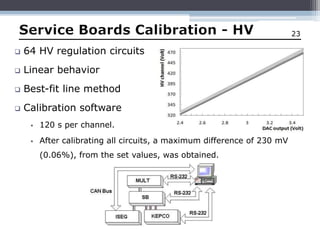

- 85. After calibrating both SBs a maximum difference of 3 mV (0.2%), from the set values, was obtained. Service Boards Calibration - HV2364 HV regulation circuits
- 86. Linear behavior
- 89. 120 s per channel.
- 90. After calibrating all circuits, a maximum difference of 230 mV (0.06%), from the set values, was obtained. Service Boards Calibration - Temp24Voltage -> Temperature
- 91. 64 PT100 temperature probes
- 93. 0.1%
- 94. Linear behavior

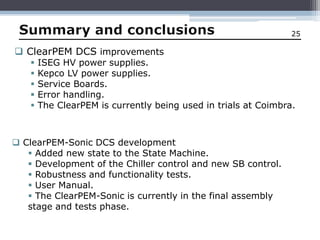

- 96. Calibration softwareSummary and conclusions25 ClearPEM DCS improvements
- 97. ISEG HV power supplies.
- 98. Kepco LV power supplies.
- 99. Service Boards.
- 100. Error handling.
- 101. The ClearPEM is currently being used in trials at Coimbra.
- 102. ClearPEM-Sonic DCS development
- 103. Added new state to the State Machine.
- 104. Development of the Chiller control and new SB control.
- 105. Robustness and functionality tests.
- 106. User Manual.

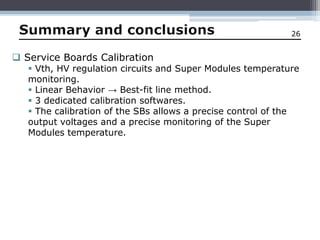

- 107. The ClearPEM-Sonic is currently in the final assembly stage and tests phase. Summary and conclusions26 Service Boards Calibration
- 108. Vth, HV regulation circuits and Super Modules temperature monitoring.
- 109. Linear Behavior -> Best-fit line method.
- 110. 3 dedicated calibration softwares.
- 111. The calibration of the SBs allows a precise control of the output voltages and a precise monitoring of the Super Modules temperature.Thank You
- 112. Backup 際際滷s
- 113. ClearPEM29Experimental results2.0 mm1.5 mm2.5 mm3.0 mm1.2 mmHigh resolution MicroDerenzo phantom3D rendered reconstructed image

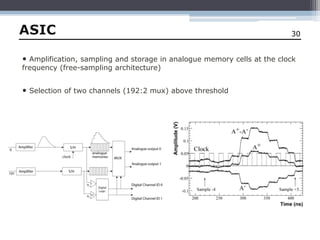

- 114. ASIC30 Amplification, sampling and storage in analogue memory cells at the clock frequency (free-sampling architecture)
- 115. Selection of two channels (192:2 mux) above thresholdSMs temperature monitoring Different paths between the ADCs and the connectors.31
