Hemanth SharmaPlatform Evangelist, Adobe SystemsDesign & DevelopMultiscreen ExperienceswithAdobe Flash Platform

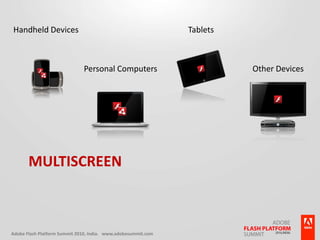

Handheld DevicesPersonal ComputersTabletsOther DevicesMultiscreen

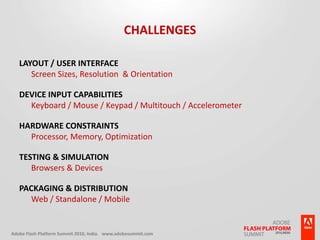

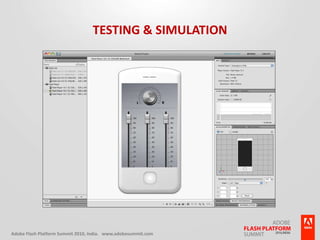

ChallengesLayout / User InterfaceScreen Sizes, Resolution & OrientationDevice Input CapabilitiesKeyboard / Mouse / Keypad / Multitouch / AccelerometerHardware ConstraintsProcessor, Memory, OptimizationTesting & SimulationBrowsers & DevicesPackaging & DistributionWeb / Standalone / Mobile

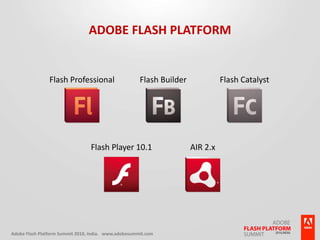

Adobe Flash PlatformFlash ProfessionalFlash BuilderFlash CatalystFlash Player 10.1AIR 2.x

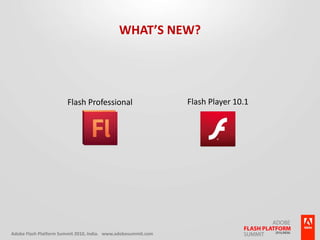

What’s New?Flash ProfessionalFlash Player 10.1

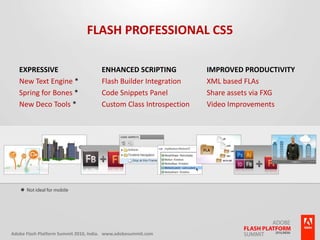

Flash Professional CS5Enhanced ScriptingFlash Builder IntegrationCode Snippets PanelCustom Class IntrospectionImproved ProductivityXML based FLAsShare assets via FXGVideo ImprovementsExpressiveNew Text Engine *Spring for Bones *New Deco Tools **Not ideal for mobile

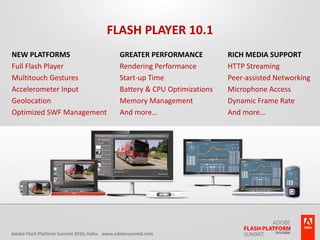

Flash Player 10.1New PlatformsFull Flash PlayerMultitouch GesturesAccelerometer InputGeolocationOptimized SWF ManagementGreater PerformanceRendering PerformanceStart-up TimeBattery & CPU OptimizationsMemory ManagementAnd more…Rich Media SupportHTTP StreamingPeer-assisted NetworkingMicrophone AccessDynamic Frame RateAnd more…

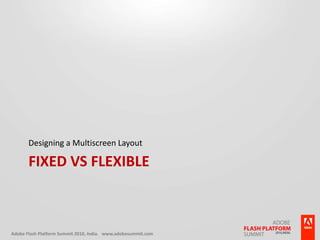

Fixed Vs FlexibleDesigning a Multiscreen Layout

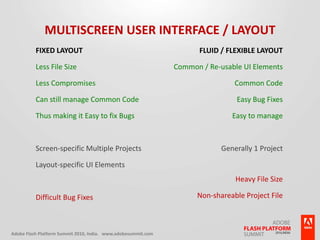

Multiscreen User Interface / LayoutFluid / Flexible LayoutCommon / Re-usable UI ElementsCommon CodeEasy Bug FixesEasy to manageGenerally 1 ProjectHeavy File SizeNon-shareable Project FileFixed LayoutLess File SizeLess CompromisesCan still manage Common CodeThus making it Easy to fix BugsScreen-specific Multiple ProjectsLayout-specific UI ElementsDifficult Bug Fixes

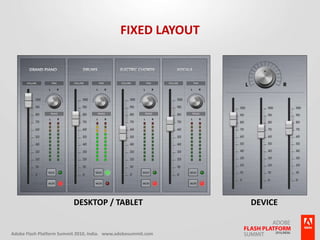

Fixed LayoutDesktop / TabletDevice

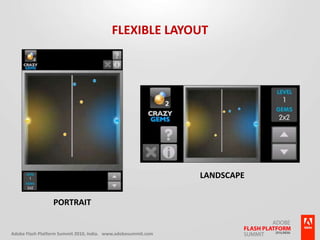

Flexible LayoutLandscapePortrait

WeighWeigh your “Requirements”

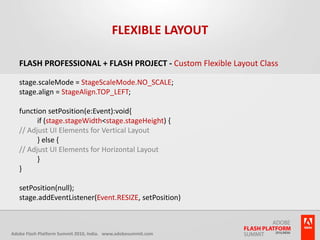

Flexible LayoutFlash Professional + Flash Project - Custom Flexible Layout Classstage.scaleMode = StageScaleMode.NO_SCALE;stage.align = StageAlign.TOP_LEFT;function setPosition(e:Event):void{ if (stage.stageWidth < stage.stageHeight) {// Adjust UI Elements for Vertical Layout } else {// Adjust UI Elements for Horizontal Layout }}setPosition(null);stage.addEventListener(Event.RESIZE, setPosition)

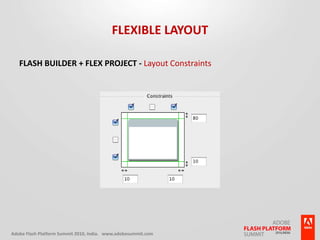

Flexible LayoutFlash Builder + Flex Project - Layout Constraints

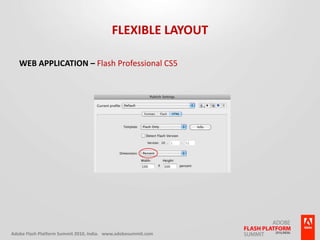

Flexible LayoutWeb Application – Flash Professional CS5

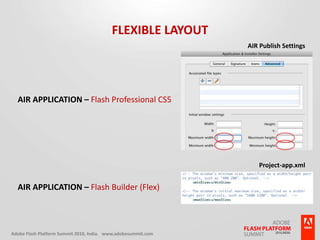

Flexible LayoutAIR Publish SettingsAIR Application – Flash Professional CS5Project-app.xmlAIR Application – Flash Builder (Flex)

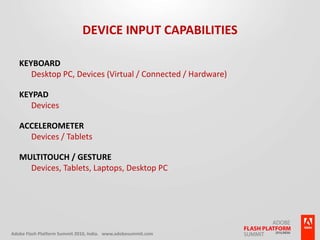

Device Input CapabilitiesKeyboardDesktop PC, Devices (Virtual / Connected / Hardware)KeypadDevicesAccelerometerDevices / TabletsMultitouch / GestureDevices, Tablets, Laptops, Desktop PC

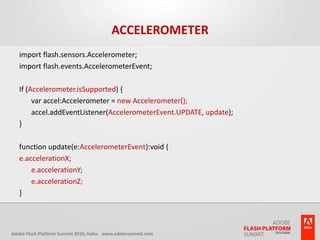

Accelerometerimport flash.sensors.Accelerometer;import flash.events.AccelerometerEvent;If (Accelerometer.isSupported) { var accel:Accelerometer = new Accelerometer(); accel.addEventListener(AccelerometerEvent.UPDATE, update);}function update(e:AccelerometerEvent):void {e.accelerationX; e.accelerationY; e.accelerationZ;}

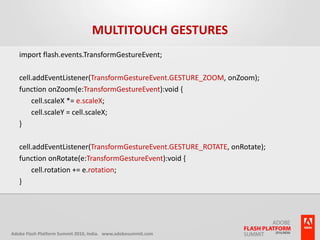

Multitouch Gesturesimport flash.events.TransformGestureEvent;cell.addEventListener(TransformGestureEvent.GESTURE_ZOOM, onZoom);function onZoom(e:TransformGestureEvent):void { cell.scaleX *= e.scaleX; cell.scaleY = cell.scaleX;}cell.addEventListener(TransformGestureEvent.GESTURE_ROTATE, onRotate);function onRotate(e:TransformGestureEvent):void { cell.rotation += e.rotation;}

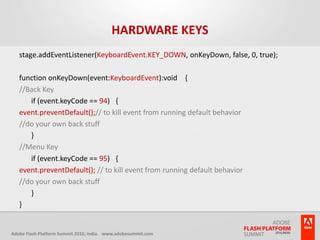

Hardware Keysstage.addEventListener(KeyboardEvent.KEY_DOWN, onKeyDown, false, 0, true); function onKeyDown(event:KeyboardEvent):void {//Back Key if (event.keyCode == 94) { event.preventDefault();// to kill event from running default behavior //do your own back stuff }//Menu Key if (event.keyCode == 95) { event.preventDefault(); // to kill event from running default behavior //do your own back stuff } }

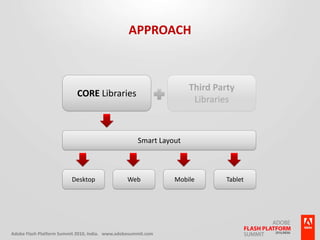

ApproachCORE LibrariesThird PartyLibrariesSmart LayoutDesktopWebMobileTablet

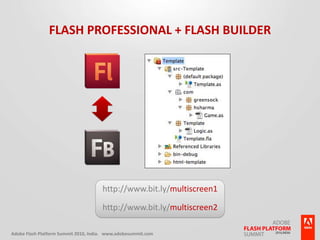

Flash Professional + Flash Builderhttp://www.bit.ly/multiscreen1http://www.bit.ly/multiscreen2

Touch UI TipsGesturesUse touch gestures, but do not complicate

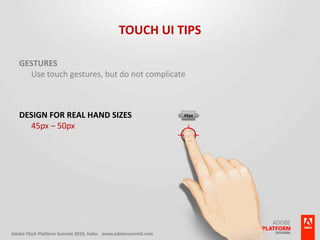

Touch UI TipsGesturesUse touch gestures, but do not complicateDesign for real hand sizes45px – 50px45px

Touch UI TipsGesturesUse touch gestures, but do not complicateDesign for real hand sizes45px – 50pxUse Touch FeedbackProvide Haptics wherever necessary

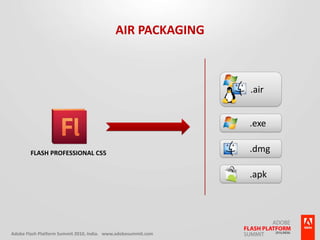

AIR Packaging.air.exe.dmgFlash Professional CS5.apk

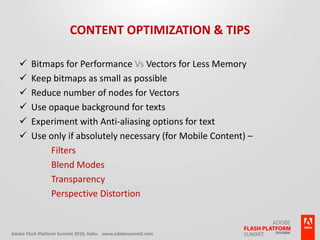

Content Optimization & TipsBitmaps for Performance Vs Vectors for Less Memory

Keep bitmaps as small as possible

Reduce number of nodes for Vectors

Use opaque background for texts

Experiment with Anti-aliasing options for text

Use only if absolutely necessary (for Mobile Content) –FiltersBlend ModesTransparencyPerspective Distortion
