This document contains code for displaying bitmap images from an SD card onto a TFT LCD screen connected to an Arduino. It defines constants for the LCD pins and colors. It includes functions to read the bitmap header, extract pixel data from the file, and draw the image onto the screen. The main loop calls these functions to display different images, filling the screen between each with different colors.
![#include <SD.h>
#include "TFTLCD.h"
#define LCD_CS A3
#define LCD_CD A2
#define LCD_WR A1
#define LCD_RD A0
#define LCD_RESET A4
//Duemilanove/Diecimila/UNO/etc ('168 and '328 chips) microcontoller:
#define BLACK 0x0000
#define BLUE 0x001F
#define RED 0xF800
#define GREEN 0x07E0
#define CYAN 0x07FF
#define MAGENTA 0xF81F
#define YELLOW 0xFFE0
#define WHITE 0xFFFF
#define SD_CS 10 // Set the chip select line to whatever you use (10 doesnt
conflict with the library)
// our TFT wiring
TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, LCD_RESET);
// the file itself
File bmpFile;
// information we extract about the bitmap file
int bmpWidth, bmpHeight;
uint8_t bmpDepth, bmpImageoffset;
//int loads = 0;
#define ROTATION 3
#define BUFFPIXEL 60
#define BYTES_PER_PIXEL 3
uint8_t picBuffer[BYTES_PER_PIXEL * BUFFPIXEL]; // 3 * pixels to buffer
int bufferIndex = BYTES_PER_PIXEL * BUFFPIXEL;
void setup()
{
Serial.begin(9600);
tft.reset();
tft.initDisplay();
tft.setRotation(ROTATION);
Serial.print("Initializing SD card...");
pinMode(10, OUTPUT);
tft.setRotation(ROTATION);
if (!SD.begin(10)) {
Serial.println("failed!");
while(1);
}
Serial.println("SD OK!");
}](https://image.slidesharecdn.com/mybitmap-150205013542-conversion-gate01/85/My-bitmap-1-320.jpg)
![if( ! sdFile )
{
Serial.println("Error opening file.");
return;
}
if( ! bmpReadHeader(sdFile) )
{
Serial.println("Error reading header.");
return;
}
sdFile.seek(bmpImageoffset);
uint32_t diskTime = 0;
uint32_t tempTime;
uint32_t time = millis();
uint16_t p;
uint8_t g, b;
int i, j;
Serial.print("rotation = "); Serial.println(tft.getRotation(), DEC);
tft.goTo(0,0);
for (i=0; i< bmpHeight; i++) {
// bitmaps are stored with the BOTTOM line first so we have to move 'up'
tft.goTo(0, bmpHeight - i - 1);
for (j=0; j<bmpWidth; j++) {
// read more pixels
if (bufferIndex >= BYTES_PER_PIXEL * BUFFPIXEL) {
tempTime = millis();
sdFile.read(picBuffer, BYTES_PER_PIXEL * BUFFPIXEL);
diskTime += millis() - tempTime;
bufferIndex= 0;
}
p = tft.Color565( picBuffer[bufferIndex+2], picBuffer[bufferIndex+1],
picBuffer[bufferIndex]);
bufferIndex += 3;
tft.writeData(p);
}
}
uint32_t totalTime = millis();
Serial.print("Total time: ");
Serial.println(totalTime - time, DEC);
Serial.print("Disk Time: ");
Serial.println(diskTime, DEC);
sdFile.close();
}
/*
From example code. Reads bitmap header. Uses global variables.
*/
boolean bmpReadHeader(File f) {
// read header
uint32_t tmp;](https://image.slidesharecdn.com/mybitmap-150205013542-conversion-gate01/85/My-bitmap-3-320.jpg)
More Related Content
Similar to My bitmap (20)
Recently uploaded (20)
![Anti-Riot_Drone_Phasmajorpte-0(2)[1].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/anti-riotdronephase-021-250421082630-125da45c-thumbnail.jpg?width=560&fit=bounds)
My bitmap
- 1. #include <SD.h> #include "TFTLCD.h" #define LCD_CS A3 #define LCD_CD A2 #define LCD_WR A1 #define LCD_RD A0 #define LCD_RESET A4 //Duemilanove/Diecimila/UNO/etc ('168 and '328 chips) microcontoller: #define BLACK 0x0000 #define BLUE 0x001F #define RED 0xF800 #define GREEN 0x07E0 #define CYAN 0x07FF #define MAGENTA 0xF81F #define YELLOW 0xFFE0 #define WHITE 0xFFFF #define SD_CS 10 // Set the chip select line to whatever you use (10 doesnt conflict with the library) // our TFT wiring TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, LCD_RESET); // the file itself File bmpFile; // information we extract about the bitmap file int bmpWidth, bmpHeight; uint8_t bmpDepth, bmpImageoffset; //int loads = 0; #define ROTATION 3 #define BUFFPIXEL 60 #define BYTES_PER_PIXEL 3 uint8_t picBuffer[BYTES_PER_PIXEL * BUFFPIXEL]; // 3 * pixels to buffer int bufferIndex = BYTES_PER_PIXEL * BUFFPIXEL; void setup() { Serial.begin(9600); tft.reset(); tft.initDisplay(); tft.setRotation(ROTATION); Serial.print("Initializing SD card..."); pinMode(10, OUTPUT); tft.setRotation(ROTATION); if (!SD.begin(10)) { Serial.println("failed!"); while(1); } Serial.println("SD OK!"); }

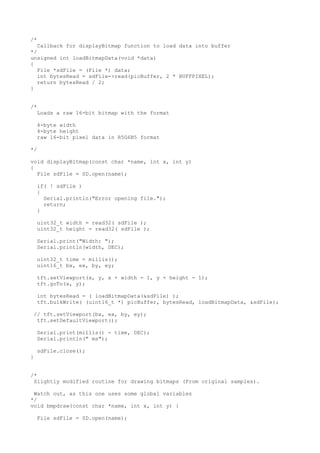

- 2. /* Callback for displayBitmap function to load data into buffer */ unsigned int loadBitmapData(void *data) { File *sdFile = (File *) data; int bytesRead = sdFile->read(picBuffer, 2 * BUFFPIXEL); return bytesRead / 2; } /* Loads a raw 16-bit bitmap with the format 4-byte width 4-byte height raw 16-bit pixel data in R5G6B5 format */ void displayBitmap(const char *name, int x, int y) { File sdFile = SD.open(name); if( ! sdFile ) { Serial.println("Error opening file."); return; } uint32_t width = read32( sdFile ); uint32_t height = read32( sdFile ); Serial.print("Width: "); Serial.println(width, DEC); uint32_t time = millis(); uint16_t bx, ex, by, ey; tft.setViewport(x, y, x + width - 1, y + height - 1); tft.goTo(x, y); int bytesRead = ( loadBitmapData(&sdFile) ); tft.bulkWrite( (uint16_t *) picBuffer, bytesRead, loadBitmapData, &sdFile); // tft.setViewport(bx, ex, by, ey); tft.setDefaultViewport(); Serial.print(millis() - time, DEC); Serial.println(" ms"); sdFile.close(); } /* Slightly modified routine for drawing bitmaps (From original samples). Watch out, as this one uses some global variables */ void bmpdraw(const char *name, int x, int y) { File sdFile = SD.open(name);
- 3. if( ! sdFile ) { Serial.println("Error opening file."); return; } if( ! bmpReadHeader(sdFile) ) { Serial.println("Error reading header."); return; } sdFile.seek(bmpImageoffset); uint32_t diskTime = 0; uint32_t tempTime; uint32_t time = millis(); uint16_t p; uint8_t g, b; int i, j; Serial.print("rotation = "); Serial.println(tft.getRotation(), DEC); tft.goTo(0,0); for (i=0; i< bmpHeight; i++) { // bitmaps are stored with the BOTTOM line first so we have to move 'up' tft.goTo(0, bmpHeight - i - 1); for (j=0; j<bmpWidth; j++) { // read more pixels if (bufferIndex >= BYTES_PER_PIXEL * BUFFPIXEL) { tempTime = millis(); sdFile.read(picBuffer, BYTES_PER_PIXEL * BUFFPIXEL); diskTime += millis() - tempTime; bufferIndex= 0; } p = tft.Color565( picBuffer[bufferIndex+2], picBuffer[bufferIndex+1], picBuffer[bufferIndex]); bufferIndex += 3; tft.writeData(p); } } uint32_t totalTime = millis(); Serial.print("Total time: "); Serial.println(totalTime - time, DEC); Serial.print("Disk Time: "); Serial.println(diskTime, DEC); sdFile.close(); } /* From example code. Reads bitmap header. Uses global variables. */ boolean bmpReadHeader(File f) { // read header uint32_t tmp;

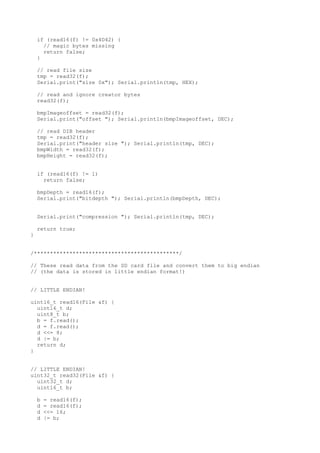

- 4. if (read16(f) != 0x4D42) { // magic bytes missing return false; } // read file size tmp = read32(f); Serial.print("size 0x"); Serial.println(tmp, HEX); // read and ignore creator bytes read32(f); bmpImageoffset = read32(f); Serial.print("offset "); Serial.println(bmpImageoffset, DEC); // read DIB header tmp = read32(f); Serial.print("header size "); Serial.println(tmp, DEC); bmpWidth = read32(f); bmpHeight = read32(f); if (read16(f) != 1) return false; bmpDepth = read16(f); Serial.print("bitdepth "); Serial.println(bmpDepth, DEC); Serial.print("compression "); Serial.println(tmp, DEC); return true; } // // These read data from the SD card file and convert them to big endian // (the data is stored in little endian format!) // LITTLE ENDIAN! uint16_t read16(File &f) { uint16_t d; uint8_t b; b = f.read(); d = f.read(); d <<= 8; d |= b; return d; } // LITTLE ENDIAN! uint32_t read32(File &f) { uint32_t d; uint16_t b; b = read16(f); d = read16(f); d <<= 16; d |= b;

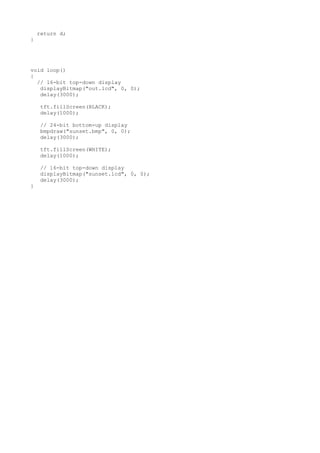

- 5. return d; } void loop() { // 16-bit top-down display displayBitmap("out.lcd", 0, 0); delay(3000); tft.fillScreen(BLACK); delay(1000); // 24-bit bottom-up display bmpdraw("sunset.bmp", 0, 0); delay(3000); tft.fillScreen(WHITE); delay(1000); // 16-bit top-down display displayBitmap("sunset.lcd", 0, 0); delay(3000); }
- 6. return d; } void loop() { // 16-bit top-down display displayBitmap("out.lcd", 0, 0); delay(3000); tft.fillScreen(BLACK); delay(1000); // 24-bit bottom-up display bmpdraw("sunset.bmp", 0, 0); delay(3000); tft.fillScreen(WHITE); delay(1000); // 16-bit top-down display displayBitmap("sunset.lcd", 0, 0); delay(3000); }
