Navigation Service
- 1. Navigation Copyright 息 2010. All rights Reserved, eXo Platform SAS

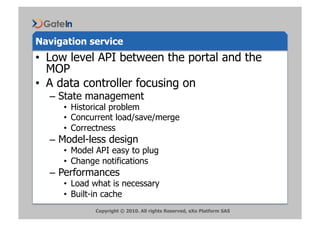

- 2. Navigation service ≒ Low level API between the portal and the MOP ≒ A data controller focusing on State management ≒ Historical problem ≒ Concurrent load/save/merge ≒ Correctness Model-less design ≒ Model API easy to plug ≒ Change notifications Performances ≒ Load what is necessary ≒ Built-in cache Copyright 息 2010. All rights Reserved, eXo Platform SAS

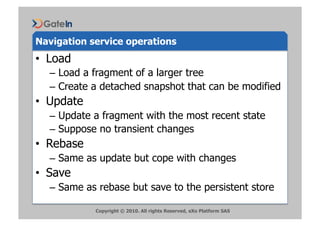

- 3. Navigation service operations ≒ Load Load a fragment of a larger tree Create a detached snapshot that can be modified ≒ Update Update a fragment with the most recent state Suppose no transient changes ≒ Rebase Same as update but cope with changes ≒ Save Same as rebase but save to the persistent store Copyright 息 2010. All rights Reserved, eXo Platform SAS

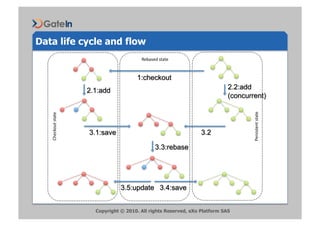

- 4. Data life cycle and flow Rebased 油state 油 Persistent 油state 油 油Checkout 油state 油 Copyright 息 2010. All rights Reserved, eXo Platform SAS

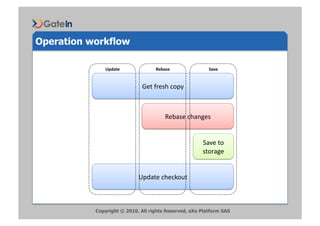

- 5. Operation workflow Update 油 Rebase 油 Save 油 Get 油fresh 油copy 油 Rebase 油changes 油 Save 油to 油 storage 油 Update 油checkout 油 Copyright 息 2010. All rights Reserved, eXo Platform SAS

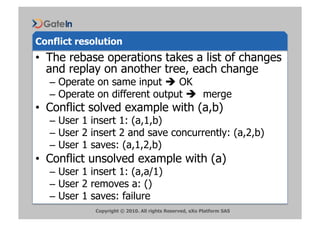

- 6. Conflict resolution ≒ The rebase operations takes a list of changes and replay on another tree, each change Operate on same input OK Operate on different output merge ≒ Conflict solved example with (a,b) User 1 insert 1: (a,1,b) User 2 insert 2 and save concurrently: (a,2,b) User 1 saves: (a,1,2,b) ≒ Conflict unsolved example with (a) User 1 insert 1: (a,a/1) User 2 removes a: () User 1 saves: failure Copyright 息 2010. All rights Reserved, eXo Platform SAS

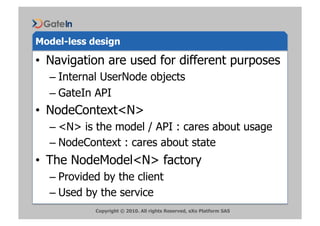

- 7. Model-less design ≒ Navigation are used for different purposes Internal UserNode objects GateIn API ≒ NodeContext<N> <N> is the model / API : cares about usage NodeContext : cares about state ≒ The NodeModel<N> factory Provided by the client Used by the service Copyright 息 2010. All rights Reserved, eXo Platform SAS

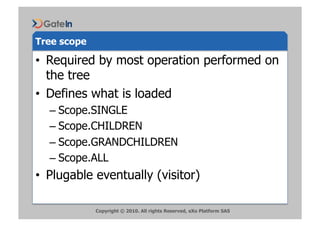

- 8. Tree scope ≒ Required by most operation performed on the tree ≒ Defines what is loaded Scope.SINGLE Scope.CHILDREN Scope.GRANDCHILDREN Scope.ALL ≒ Plugable eventually (visitor) Copyright 息 2010. All rights Reserved, eXo Platform SAS

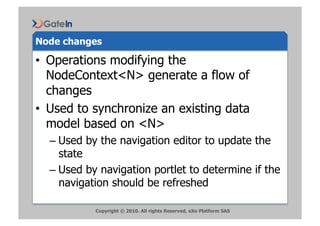

- 9. Node changes ≒ Operations modifying the NodeContext<N> generate a flow of changes ≒ Used to synchronize an existing data model based on <N> Used by the navigation editor to update the state Used by navigation portlet to determine if the navigation should be refreshed Copyright 息 2010. All rights Reserved, eXo Platform SAS

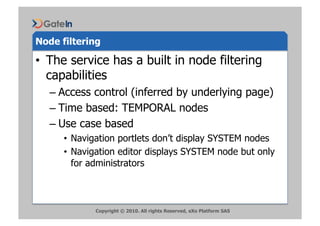

- 10. Node filtering ≒ The service has a built in node filtering capabilities Access control (inferred by underlying page) Time based: TEMPORAL nodes Use case based ≒ Navigation portlets dont display SYSTEM nodes ≒ Navigation editor displays SYSTEM node but only for administrators Copyright 息 2010. All rights Reserved, eXo Platform SAS

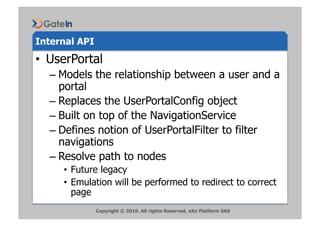

- 11. Internal API ≒ UserPortal Models the relationship between a user and a portal Replaces the UserPortalConfig object Built on top of the NavigationService Defines notion of UserPortalFilter to filter navigations Resolve path to nodes ≒ Future legacy ≒ Emulation will be performed to redirect to correct page Copyright 息 2010. All rights Reserved, eXo Platform SAS

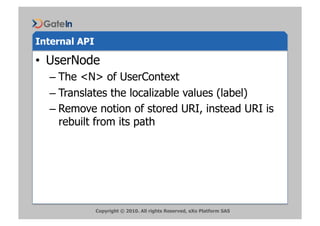

- 12. Internal API ≒ UserNode The <N> of UserContext Translates the localizable values (label) Remove notion of stored URI, instead URI is rebuilt from its path Copyright 息 2010. All rights Reserved, eXo Platform SAS

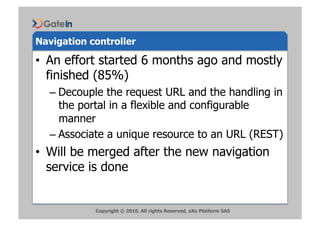

- 13. Navigation controller ≒ An effort started 6 months ago and mostly finished (85%) Decouple the request URL and the handling in the portal in a flexible and configurable manner Associate a unique resource to an URL (REST) ≒ Will be merged after the new navigation service is done Copyright 息 2010. All rights Reserved, eXo Platform SAS

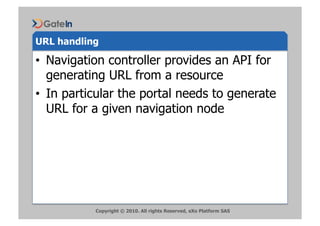

- 14. URL handling ≒ Navigation controller provides an API for generating URL from a resource ≒ In particular the portal needs to generate URL for a given navigation node Copyright 息 2010. All rights Reserved, eXo Platform SAS

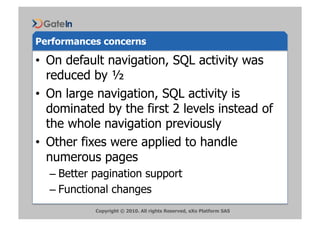

- 15. Performances concerns ≒ On default navigation, SQL activity was reduced by 遜 ≒ On large navigation, SQL activity is dominated by the first 2 levels instead of the whole navigation previously ≒ Other fixes were applied to handle numerous pages Better pagination support Functional changes Copyright 息 2010. All rights Reserved, eXo Platform SAS

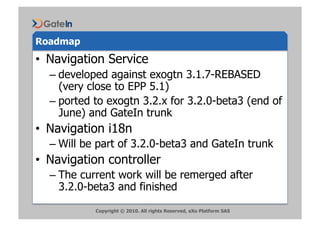

- 16. Roadmap ≒ Navigation Service developed against exogtn 3.1.7-REBASED (very close to EPP 5.1) ported to exogtn 3.2.x for 3.2.0-beta3 (end of June) and GateIn trunk ≒ Navigation i18n Will be part of 3.2.0-beta3 and GateIn trunk ≒ Navigation controller The current work will be remerged after 3.2.0-beta3 and finished Copyright 息 2010. All rights Reserved, eXo Platform SAS

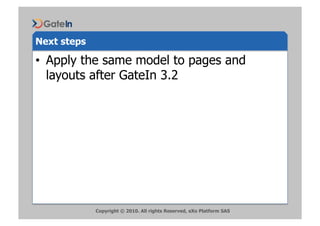

- 17. Next steps ≒ Apply the same model to pages and layouts after GateIn 3.2 Copyright 息 2010. All rights Reserved, eXo Platform SAS
