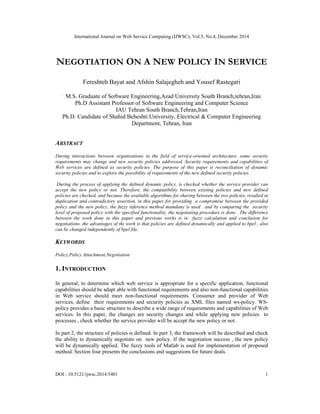

International Journal on Web Service Computing (IJWSC), Vol.5, No.4, December 2014
DOI : 10.5121/ijwsc.2014.5401 1
NEGOTIATION ON A NEW POLICY IN SERVICE
Fereshteh Bayat and Afshin Salajegheh and Yousef Rastegari
.
M.S. Graduate of Software Engineering,Azad University South Branch,tehran,Iran
Ph.D Assistant Professor of Software Engineering and Computer Science
IAU Tehran South Branch,Tehran,Iran
Ph.D. Candidate of Shahid Beheshti University, Electrical & Computer Engineering
Department, Tehran, Iran
ABSTRACT
During interactions between organizations in the field of service-oriented architecture, some security
requirements may change and new security policies addressed. Security requirements and capabilities of
Web services are defined as security policies. The purpose of this paper is reconciliation of dynamic
security policies and to explore the possibility of requirements of the new defined security policies.
During the process of applying the defined dynamic policy, is checked whether the service provider can
accept the new policy or not. Therefore, the compatibility between existing policies and new defined
policies are checked, and because the available algorithms for sharing between the two policies, resulted in
duplication and contradictory assertion, in this paper for providing a compromise between the provided
policy and the new policy, the fuzzy inference method mamdany is used . and by comparing the security
level of proposed policy with the specified functionality, the negotiating procedure is done . The difference
between the work done in this paper and previous works is in fuzzy calculation and conclusion for
negotiations. the advantages of thi work is that policies are defined dynamically and applied to bpel , also
can be changed independently of bpel file.
KEYWORDS
Policy,Policy Attachment,Negotiation
1. INTRODUCTION
In general, to determine which web service is appropriate for a specific application, functional
capabilities should be adapt able with functional requirements and also non-functional capabilities
in Web service should meet non-functional requirements. Consumer and provider of Web
services, define their requirements and security policies as XML files named ws-policy. WS-
policy provides a basic structure to describe a wide range of requirements and capabilities of Web
services. In this paper, the changes are security changes and while applying new policies to
processes , check whether the service provider will be accept the new policy or not.
In part 2, the structure of policies is defined. In part 3, the framework will be described and check
the ability to dynamically negotiate on new policy. If the negotiation success , the new policy
will be dynamically applied. The fuzzy tools of Matlab is used for implementation of proposed
method. Section four presents the conclusions and suggestions for future deals.

2

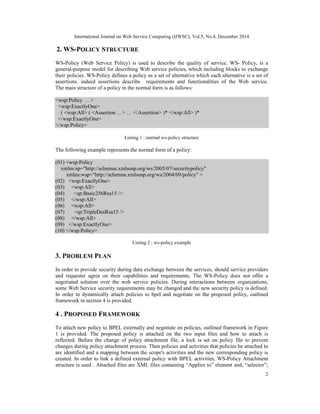

2. WS-POLICY STRUCTURE
WS-Policy (Web Service Policy) is used to describe the quality of service. WS- Policy, is a
general-purpose model for describing Web service policies, which including blocks to exchange
their policies. WS-Policy defines a policy as a set of alternative which each alternative is a set of
assertions. indeed assertions describe requirements and functionalities of the Web service.
The main structure of a policy in the normal form is as follows:
<wsp:Policy … >
<wsp:ExactlyOne>
( <wsp:All> ( <Assertion …> … </Assertion> )* </wsp:All> )*
</wsp:ExactlyOne>
</wsp:Policy>
Listing 1 : normal ws-policy structure
The following example represents the normal form of a policy:
(01) <wsp:Policy
xmlns:sp="http://schemas.xmlsoap.org/ws/2005/07/securitypolicy"
xmlns:wsp="http://schemas.xmlsoap.org/ws/2004/09/policy" >
(02) <wsp:ExactlyOne>
(03) <wsp:All>
(04) <sp:Basic256Rsa15 />
(05) </wsp:All>
(06) <wsp:All>
(07) <sp:TripleDesRsa15 />
(08) </wsp:All>
(09) </wsp:ExactlyOne>
(10) </wsp:Policy>
Listing 2 : ws-policy example
3. PROBLEM PLAN
In order to provide security during data exchange between the services, should service providers
and requester agree on their capabilities and requirements. The WS-Policy does not offer a
negotiated solution over the web service policies. During interactions between organizations,
some Web Service security requirements may be changed and the new security policy is defined.
In order to dynamically attach policies to bpel and negotiate on the proposed policy, outlined
framework in section 4 is provided.
4 . PROPOSED FRAMEWORK
To attach new policy to BPEL externally and negotiate on policies, outlined framework in Figure
1 is provided. The proposed policy is attached on the two input files and how to attach is
reflected. Before the change of policy attachment file, a lock is set on policy file to prevent
changes during policy attachment process. Then policies and activities that policies be attached to
are identified and a mapping between the scope's activities and the new corresponding policy is
created. In order to link a defined external policy with BPEL activities, WS-Policy Attachment
structure is used . Attached files are XML files containing “Applies to” element and, “selector”;

3

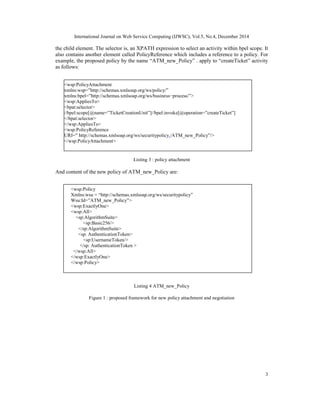

the child element. The selector is, an XPATH expression to select an activity within bpel scope. It
also contains another element called PolicyReference which includes a reference to a policy. For
example, the proposed policy by the name “ATM_new_Policy” . apply to “createTicket” activity
as follows:
Listing 3 : policy attachment
And content of the new policy of ATM_new_Policy are:
Listing 3 :
policy
Listing 3 :
policy
Listing 4 ATM_new_Policy
Figure 1 : proposed framework for new policy attachment and negotiation
<wsp:PolicyAttachment
xmlns:wsp=”http://schemas.xmlsoap.org/ws/policy/”
xmlns:bpel=”http://schemas.xmlsoap.org/ws/business−process/”>
<wsp:AppliesTo>
<bpat:selector>
//bpel:scope[@name=”TicketCreationUnit”]//bpel:invoke[@operation=”createTicket”]
</bpat:selector>
</wsp:AppliesTo>
<wsp:PolicyReference
URI=” http://schemas.xmlsoap.org/ws/securitypolicy./ATM_new_Policy”/>
</wsp:PolicyAttachment>
<wsp:Policy
Xmlns:wsu = “http://schemas.xmlsoap.org/ws/securitypolicy”
Wsu:Id=”ATM_new_Policy”>
<wsp:ExactlyOne>
<wsp:All>
<sp:AlgorithmSuite>
<sp:Basic256/>
</sp:AlgorithmSuite>
<sp: AuthenticationToken>
<sp:UsernameToken/>
</sp: AuthenticationToken >
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>

4

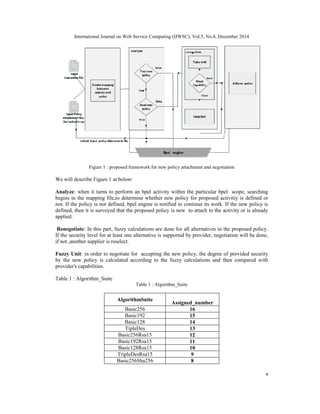

Figure 1 : proposed framework for new policy attachment and negotiation
We will describe Figure 1 at below:
Analyze: when it turns to perform an bpel activity within the particular bpel scope, searching
begins in the mapping file,to determine whether new policy for proposed activitiy is defined or
not. If the policy is not defined, bpel engine is notified to continue its work. If the new policy is
defined, then it is surveyed that the proposed policy is new to attach to the activity or is already
applied.
Renegotiate: In this part, fuzzy calculations are done for all alternatives in the proposed policy.
If the security level for at least one alternative is supported by provider, negotiation will be done,
if not ,another supplier is reselect.
Fuzzy Unit: in order to negotiate for accepting the new policy, the degree of provided security
by the new policy is calculated according to the fuzzy calculations and then compared with
provider's capabilities.
Table 1 : Algorithm_Suite
Table 1 : Algorithm_Suite
Assigned_number
AlgorithmSuite
16
Basic256
15
Basic192
14
Basic128
13
TipleDes
12
Basic256Rsa15
11
Basic192Rsa15
10
Basic128Rsa15
9
TripleDesRsa15
8
Basic256Sha256

5
7
Basic192Sha256
6
Basic128Sha256
5
TripleDesSha256
4
Basic256Sha256Rsa15
3
Basic192Sha256Rsa15
2
Basic128Sha256Rsa15
1
TripleDesSha256Rsa15
0
No-algorithm

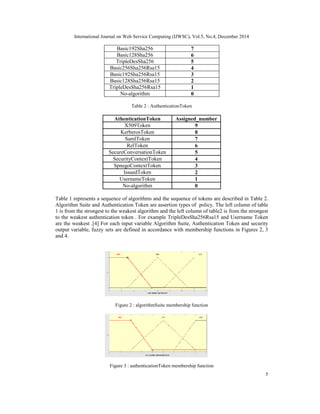

Table 2 : AuthenticationToken
Assigned_number
AthenticationToken
9
X509Token
8
KerberosToken
7
SamlToken
6
RelToken
5
SecureConversationToken
4
SecurityContextToken
3
SpnegoContextToken
2
IssuedToken
1
UsernameToken
0
No-algorithm
Table 1 represents a sequence of algorithms and the sequence of tokens are described in Table 2.
Algorithm Suite and Authentication Token are assertion types of policy. The left column of table
1 is from the strongest to the weakest algorithm and the left column of table2 is from the strongest
to the weakest authentication token . For example TripleDesSha256Rsa15 and Username Token
are the weakest .[4] For each input variable Algorithm Suite, Authentication Token and security
output variable, fuzzy sets are defined in accordance with membership functions in Figures 2, 3
and 4.
Figure 2 : algorithmSuite membership function
Figure 3 : authenticationToken membership function

6

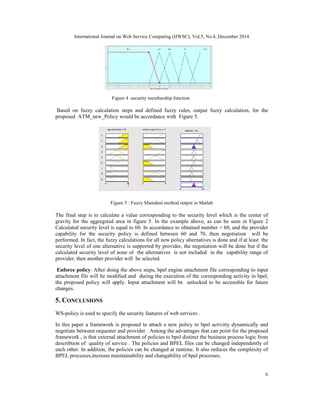

Figure 4 :security membership function
Based on fuzzy calculation steps and defined fuzzy rules, output fuzzy calculation, for the
proposed ATM_new_Policy would be accordance with Figure 5.
Figure 5 : Fuzzy Mamdani method output in Matlab
The final step is to calculate a value corresponding to the security level which is the center of
gravity for the aggregsted area in figure 5. In the example above, as can be seen in Figure 2
Calculated security level is equal to 60. In accordance to obtained number = 60, and the provider
capability for the security policy is defined between 60 and 70, then negotiation will be
performed. In fact, the fuzzy calculations for all new policy alternatives is done and if at least the
security level of one alternative is supported by provider, the negotiation will be done but if the
calculated security level of none of the alternatives is not included in the capability range of
provider, then another provider will be selected.
Enforce policy: After doing the above steps, bpel engine attachment file corresponding to input
attachment file will be modified and during the execution of the corresponding activity in bpel,
the proposed policy will apply. Input attachment will be unlocked to be accessible for future
changes.
5. CONCLUSIONS
WS-policy is used to specify the security features of web services .
In this paper a framework is proposed to attach a new policy to bpel activitiy dynamically and
negotiate between requester and provider . Among the advantages that can point for the proposed
framework , is that external attachment of policies to bpel distinct the business process logic from
describtion of quality of service . The policies and BPEL files can be changed independently of
each other. In addition, the policies can be changed at runtime. It also reduces the complexity of
BPEL processes,increase maintainability and changability of bpel processes.

7

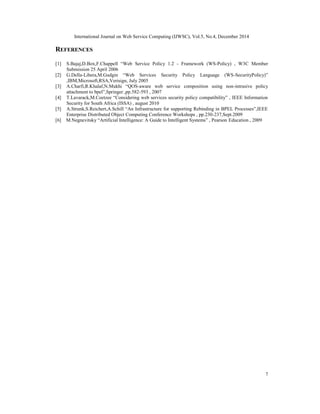

REFERENCES
[1] S.Bajaj,D.Box,F.Chappell “Web Service Policy 1.2 - Framework (WS-Policy) , W3C Member
Submission 25 April 2006
[2] G.Della-Libera,M.Gudgin “Web Services Security Policy Language (WS-SecurityPolicy)”
,IBM,Microsoft,RSA,Verisign, July 2005
[3] A.Charfi,R.Khalaf,N.Mukhi “QOS-aware web service composition using non-intrusive policy
attachment to bpel”,Springer ,pp.582-593 , 2007
[4] T.Lavarack,M.Coetzee “Considering web services security policy compatibility” , IEEE Information
Security for South Africa (ISSA) , august 2010
[5] A.Strunk,S.Reichert,A.Schill “An Infrastructure for supporting Rebinding in BPEL Processes”,IEEE
Enterprise Distributed Object Computing Conference Workshops , pp.230-237,Sept.2009
[6] M.Negnevitsky “Artificial Intelligence: A Guide to Intelligent Systems” , Pearson Education , 2009
