NIR Spectroscopy for food analysis accu

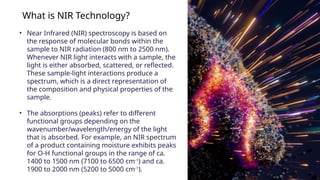

1. What is NIR Technology?
? Near Infrared (NIR) spectroscopy is based on
the response of molecular bonds within the
sample to NIR radiation (800 nm to 2500 nm).
Whenever NIR light interacts with a sample, the
light is either absorbed, scattered, or reflected.
These sample-light interactions produce a
spectrum, which is a direct representation of
the composition and physical properties of the
sample.
? The absorptions (peaks) refer to different
functional groups depending on the
wavenumber/wavelength/energy of the light
that is absorbed. For example, an NIR spectrum
of a product containing moisture exhibits peaks
for O-H functional groups in the range of ca.
1400 to 1500 nm (7100 to 6500 cm-1
) and ca.
1900 to 2000 nm (5200 to 5000 cm-1
).

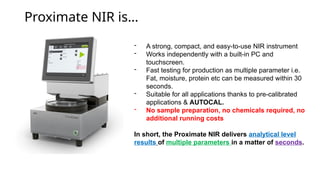

2. Proximate NIR is…
- A strong, compact, and easy-to-use NIR instrument
- Works independently with a built-in PC and
touchscreen.
- Fast testing for production as multiple parameter i.e.
Fat, moisture, protein etc can be measured within 30
seconds.
- Suitable for all applications thanks to pre-calibrated
applications & AUTOCAL.
- No sample preparation, no chemicals required, no
additional running costs
In short, the Proximate NIR delivers analytical level
results of multiple parameters in a matter of seconds.

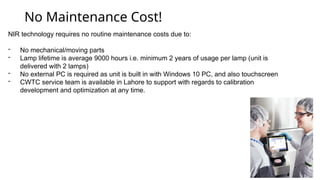

3. No Maintenance Cost!
NIR technology requires no routine maintenance costs due to:
- No mechanical/moving parts
- Lamp lifetime is average 9000 hours i.e. minimum 2 years of usage per lamp (unit is
delivered with 2 lamps)
- No external PC is required as unit is built in with Windows 10 PC, and also touchscreen
- CWTC service team is available in Lahore to support with regards to calibration
development and optimization at any time.

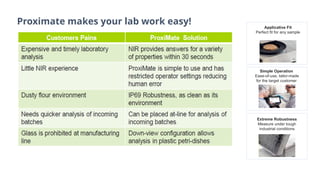

4. Proximate makes your lab work easy!
Extreme Robustness
Measure under tough
industrial conditions
Simple Operation
Ease-of-use, tailor-made
for the target customer
Applicative Fit
Perfect fit for any sample

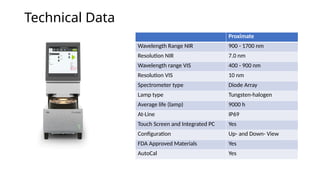

5. Technical Data
Proximate
Wavelength Range NIR 900 - 1700 nm
Resolution NIR 7.0 nm
Wavelength range VIS 400 - 900 nm
Resolution VIS 10 nm
Spectrometer type Diode Array
Lamp type Tungsten-halogen
Average life (lamp) 9000 h
At-Line IP69
Touch Screen and Integrated PC Yes
Configuration Up- and Down- View
FDA Approved Materials Yes
AutoCal Yes

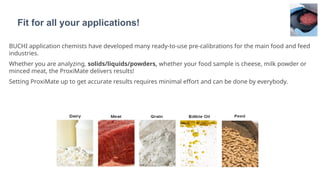

6. BUCHI application chemists have developed many ready-to-use pre-calibrations for the main food and feed
industries.
Whether you are analyzing, solids/liquids/powders, whether your food sample is cheese, milk powder or
minced meat, the ProxiMate delivers results!
Setting ProxiMate up to get accurate results requires minimal effort and can be done by everybody.
Fit for all your applications!

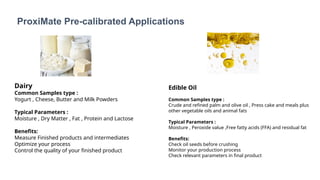

7. ProxiMate Pre-calibrated Applications

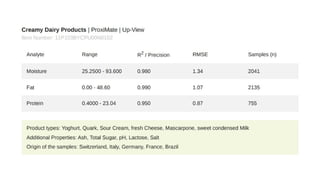

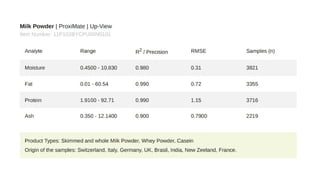

Dairy
Common Samples type :
Yogurt , Cheese, Butter and Milk Powders
Typical Parameters :
Moisture , Dry Matter , Fat , Protein and Lactose
Benefits:
Measure Finished products and intermediates
Optimize your process
Control the quality of your finished product
Edible Oil
Common Samples type :
Crude and refined palm and olive oil , Press cake and meals plus
other vegetable oils and animal fats
Typical Parameters :
Moisture , Peroxide value ,Free fatty acids (FFA) and residual fat
Benefits:
Check oil seeds before crushing
Monitor your production process
Check relevant parameters in final product
