NJ Jackson 6700 Tamper Jackbeam Catalogue REV A

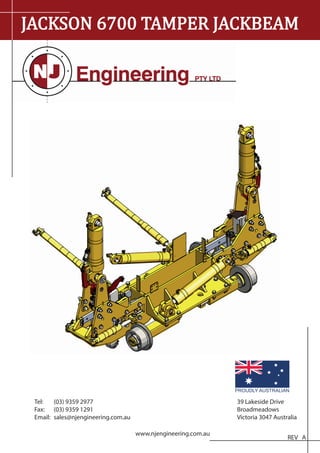

- 1. JACKSON 6700 TAMPER JACKBEAM 39 Lakeside Drive Broadmeadows Victoria 3047 Australia Tel: (03) 9359 2977 Fax: (03) 9359 1291 Email: sales@njengineering.com.au www.njengineering.com.au REV A PROUDLY AUSTRALIAN

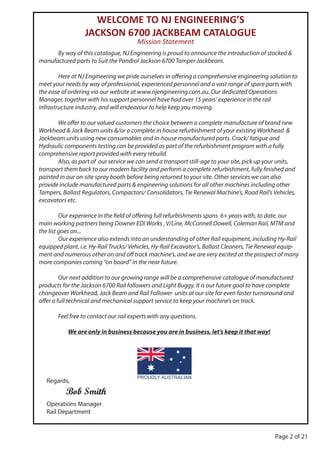

- 2. Mission Statement WELCOME TO NJ ENGINEERINGS JACKSON 6700 JACKBEAM CATALOGUE By way of this catalogue, NJ Engineering is proud to announce the introduction of stocked & manufactured parts to Suit the Pandrol Jackson 6700 Tamper Jackbeam. Here at NJ Engineering we pride ourselves in offering a comprehensive engineering solution to meet your needs by way of professional, experienced personnel and a vast range of spare parts with the ease of ordering via our website at www.njengineering.com.au. Our dedicated Operations Manager, together with his support personnel have had over 15 years experience in the rail infrastructure industry, and will endeavour to help keep you moving. We offer to our valued customers the choice between a complete manufacture of brand new Workhead & Jack Beam units &/or a complete in house refurbishment of your existing Workhead & Jackbeam units using new consumables and in-house manufactured parts. Crack/ fatigue and Hydraulic components testing can be provided as part of the refurbishment program with a fully comprehensive report provided with every rebuild. Also, as part of our service we can send a transport still-age to your site, pick up your units, transport them back to our modern facility and perform a complete refurbishment, fully finished and painted in our on-site spray booth before being returned to your site. Other services we can also provide include manufactured parts & engineering solutions for all other machines including other Tampers, Ballast Regulators, Compactors/ Consolidators, Tie Renewal Machines, Road Rails Vehicles, excavators etc. Our experience in the field of offering full refurbishments spans 6+ years with, to date, our main working partners being Downer EDI Works , V/Line, McConnell Dowell, Coleman Rail, MTM and the list goes on... Our experience also extends into an understanding of other Rail equipment, including Hy-Rail equipped plant, i.e. Hy-Rail Trucks/ Vehicles, Hy-Rail Excavators, Ballast Cleaners, Tie Renewal equip- ment and numerous other on and off track machines, and we are very excited at the prospect of many more companies coming on board in the near future. Our next addition to our growing range will be a comprehensive catalogue of manufactured products for the Jackson 6700 Rail followers and Light Buggy. It is our future goal to have complete changeover Workhead, Jack Beam and Rail Follower units at our site for even faster turnaround and offer a full technical and mechanical support service to keep your machines on track. Feel free to contact our rail experts with any questions. We are only in business because you are in business, lets keep it that way! Page 2 of 21 PROUDLY AUSTRALIAN Regards, Bob Smith Operations Manager Rail Department

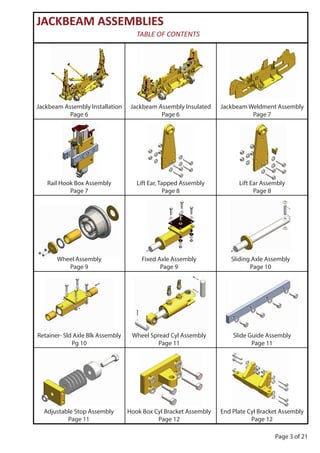

- 3. JACKBEAM ASSEMBLIES TABLE OF CONTENTS Page 3 of 21 Jackbeam Assembly Installation Page 6 Jackbeam Assembly Insulated Page 6 Jackbeam Weldment Assembly Page 7 Rail Hook Box Assembly Page 7 Lift Ear, Tapped Assembly Page 8 Lift Ear Assembly Page 8 Wheel Assembly Page 9 Fixed Axle Assembly Page 9 Sliding Axle Assembly Page 10 Retainer- Sld Axle Blk Assembly Pg 10 Wheel Spread Cyl Assembly Page 11 際際滷 Guide Assembly Page 11 Adjustable Stop Assembly Page 11 Hook Box Cyl Bracket Assembly Page 12 End Plate Cyl Bracket Assembly Page 12

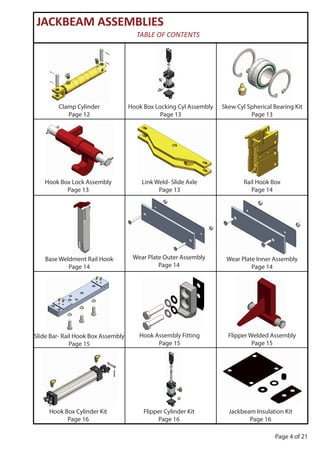

- 4. Page 4 of 21 Clamp Cylinder Page 12 Hook Box Locking Cyl Assembly Page 13 Skew Cyl Spherical Bearing Kit Page 13 Hook Box Lock Assembly Page 13 Link Weld- 際際滷 Axle Page 13 Rail Hook Box Page 14 Base Weldment Rail Hook Page 14 Wear Plate Outer Assembly Page 14 Wear Plate Inner Assembly Page 14 際際滷 Bar- Rail Hook Box Assembly Page 15 Hook Assembly Fitting Page 15 Flipper Welded Assembly Page 15 Hook Box Cylinder Kit Page 16 Flipper Cylinder Kit Page 16 JACKBEAM ASSEMBLIES TABLE OF CONTENTS Jackbeam Insulation Kit Page 16

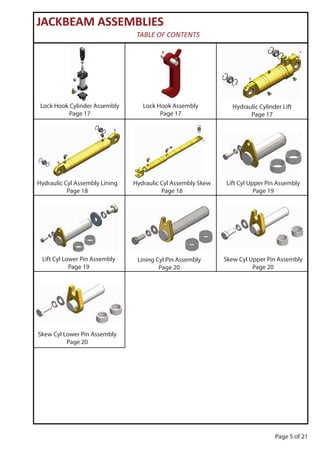

- 5. Page 5 of 21 Hydraulic Cylinder Lift Page 17 Hydraulic Cyl Assembly Lining Page 18 Hydraulic Cyl Assembly Skew Page 18 Lift Cyl Upper Pin Assembly Page 19 Lift Cyl Lower Pin Assembly Page 19 Lining Cyl Pin Assembly Page 20 Skew Cyl Upper Pin Assembly Page 20 Skew Cyl Lower Pin Assembly Page 20 JACKBEAM ASSEMBLIES TABLE OF CONTENTS Lock Hook Cylinder Assembly Page 17 Lock Hook Assembly Page 17

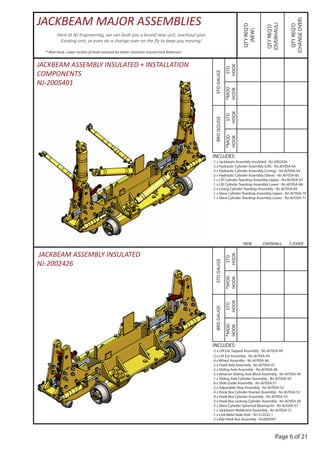

- 6. Page 6 of 21 BRDGAUGESTDGAUGE STD HOOK *MOD HOOK *MOD HOOK STD HOOK JACKBEAM ASSEMBLY INSULATED NJ-2002426 JACKBEAM ASSEMBLY INSULATED + INSTALLATION COMPONENTS NJ-2005401 BRDGOUGESTDGAUGE STD HOOK *MOD HOOK *MOD HOOK STD HOOK INCLUDES: -1 x Jackbeam Assembly Insulated - NJ-2002426 -2 x Hydraulic Cylinder Assembly (Lift) - NJ-J670SA-64 -2 x Hydraulic Cylinder Assembly (Lining) - NJ-J670SA-65 -2 x Hydraulic Cylinder Assembly (Skew) - NJ-J670SA-66 -1 x Lift Cylinder Teardrop Assembly Upper - NJ-J670SA-67 -1 x Lift Cylinder Teardrop Assembly Lower - NJ-J670SA-68 -2 x Lining Cylinder Teardrop Assembly - NJ-J670SA-69 -1 x Skew Cylinder Teardrop Assembly Upper - NJ-J670SA-70 -1 x Skew Cylinder Teardrop Assembly Lower - NJ-J670SA-71 QTYREQD (NEW) QTYREQD (OVERHAUL) QTYREQD (CHANGEOVER) Here at NJ Engineering, we can built you a brand new unit, overhaul your Existing unit, or even do a change over on the 鍖y to keep you moving! JACKBEAM MAJOR ASSEMBLIES INCLUDES: -2 x Lift Ear, Tapped Assembly - NJ-J670SA-44 -2 x Lift Ear Assembly - NJ-J670SA-45 -4 x Wheel Assembly - NJ-J670SA-46 -2 x Fixed Axle Assembly - NJ-J670SA-47 -2 x Sliding Axle Assembly - NJ-J670SA-48 -2 x Retainer-Sliding Axle Block Assembly - NJ-J670SA-49 -1 x Sliding Axle Cylinder Assembly - NJ-J670SA-50 -8 x 際際滷 Guide Assembly - NJ-J670SA-51 -2 x Adjustable Stop Assembly - NJ-J670SA-52 -4 x Hook Box Cylinder Bracket Assembly - NJ-J670SA-53 -4 x Hook Box Cylinder Assembly - NJ-J670SA-55 -2 x Hook Box Locking Cylinder Assembly - NJ-J670SA-56 -2 x Skew Cylinder Spherical Bearing Kit - NJ-J670SA-57 -1 x Jackbeam Weldment Assembly - NJ-J670SA-72 -1 x Link Weld-際際滷 Axle - NJ-312232-1 -2 x Rail Hook Box Assembly - NJ2005401 * Mod Hook- Lower section of Hook removed for better clearance around track fasterners NEW OVERHALL C/OVER

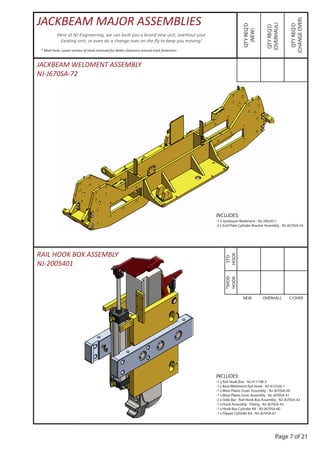

- 7. Page 7 of 21 STD HOOK *MOD HOOK RAIL HOOK BOX ASSEMBLY NJ-2005401 JACKBEAM WELDMENT ASSEMBLY NJ-J670SA-72 INCLUDES: -1 x Jackbeam Weldment - NJ-2002411 -2 x End Plate Cylinder Bracket Assembly - NJ-J670SA-54 QTYREQD (NEW) QTYREQD (OVERHAUL) QTYREQD (CHANGEOVER) Here at NJ Engineering, we can built you a brand new unit, overhaul your Existing unit, or even do a change over on the 鍖y to keep you moving! JACKBEAM MAJOR ASSEMBLIES INCLUDES: -1 x Rail Hook Box - NJ-411198-3 -1 x Base Weldment Rail Hook - NJ-412556-1 -1 x Wear Plates Outer Assembly - NJ-J670SA-40 -1 x Wear Plates Inner Assembly - NJ-J670SA-41 -2 x 際際滷 Bar - Rail Hook Box Assembly - NJ-J670SA-42 -1 x Hook Assembly - Fitting - NJ-J670SA-43 -1 x Hook Box Cylinder Kit - NJ-J670SA-60 -1 x Flipper Cylinder Kit - NJ-J670SA-61 * Mod Hook- Lower section of Hook removed for better clearance around track fasterners NEW OVERHALL C/OVER

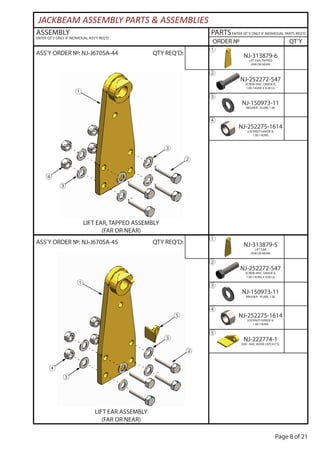

- 8. Page 8 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM ASSEMBLY PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-45 QTY REQD: LIFT EAR ASSEMBLY (FAR OR NEAR) NJ-313879-5 LIFT EAR (FAR OR NEAR) NJ-252272-547 SCREW-HHC, GRADE 8, 1.00-14UNS X 4.00 LG NJ-150973-11 WASHER - PLAIN, 1.00 NJ-252275-1614 LOCKNUT-GRADE 8, 1.00-14UNS NJ-222774-1 EAR - RAIL HOOK CATCH CYL ASSY ORDER : NJ-J670SA-44 QTY REQD: LIFT EAR, TAPPED ASSEMBLY (FAR OR NEAR) NJ-313879-6 LIFT EAR, TAPPED (FAR OR NEAR) NJ-252272-547 SCREW-HHC, GRADE 8, 1.00-14UNS X 4.00 LG NJ-150973-11 WASHER - PLAIN, 1.00 NJ-252275-1614 LOCKNUT-GRADE 8, 1.00-14UNS

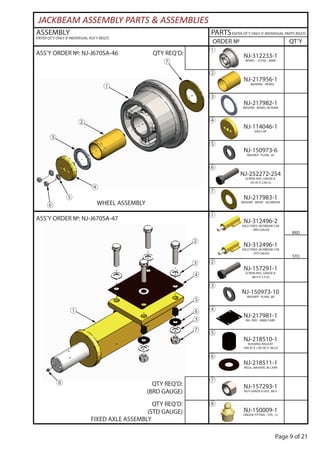

- 9. Page 9 of 21 QTY REQD: (STD GAUGE) QTY REQD: (BRD GAUGE) ASSY ORDER : NJ-J670SA-47 FIXED AXLE ASSEMBLY NJ-312496-2 AXLE FIXED JACKBEAM CAR - BRD GAUGE BRD STD NJ-312496-1 AXLE FIXED JACKBEAM CAR - STD GAUGE NJ-157291-1 SCREW-HHC, GRADE 8, .88-9 X 3.5 LG NJ-150973-10 WASHER - PLAIN, .88 NJ-217981-1 INS. PAD - JKBM CARR. NJ-218510-1 BUSHING-INSULAT .906 ID X 1.00 OD X .96 LG NJ-218511-1 INSUL. WASHER, JB CARR NJ-157293-1 NUT-GRADE 8 HEX, .88-9 NJ-150009-1 GREASE FITTING - STR, .12 ASSY ORDER : NJ-J670SA-46 QTY REQD: WHEEL ASSEMBLY NJ-312233-1 WHEEL - 10 DIA - JKBM NJ-217956-1 BEARING - WHEEL NJ-217982-1 WASHER - WHEEL RETAINR NJ-114046-1 END CAP NJ-150973-6 WASHER - PLAIN, .50 NJ-252272-254 SCREW-HHC, GRADE 8, .50-20 X 2.00 LG NJ-217983-1 WASHER - WEAR - JACKBEAM ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM ASSEMBLY PARTS & ASSEMBLIES

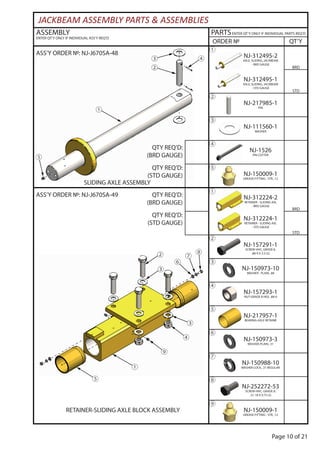

- 10. Page 10 of 21 ASSY ORDER : NJ-J670SA-49 RETAINER-SLIDING AXLE BLOCK ASSEMBLY QTY REQD: (STD GAUGE) QTY REQD: (BRD GAUGE) NJ-312224-1 RETAINER - SLIDING AXL - STD GAUGE NJ-312224-2 RETAINER - SLIDING AXL - BRD GAUGE BRD STD NJ-157291-1 SCREW-HHC, GRADE 8, .88-9 X 3.5 LG NJ-150973-10 WASHER - PLAIN, .88 NJ-157293-1 NUT-GRADE 8 HEX, .88-9 NJ-217957-1 BEARING-AXLE RETAINR NJ-150973-3 WASHER-PLAIN, .31 NJ-150988-10 WASHER-LOCK, .31 REGULAR NJ-252272-53 SCREW-HHC, GRADE 8, .31-18 X 0.75 LG NJ-150009-1 GREASE-FITTING - STR, .12 ASSY ORDER : NJ-J670SA-48 SLIDING AXLE ASSEMBLY QTY REQD: (STD GAUGE) QTY REQD: (BRD GAUGE) NJ-312495-2 AXLE, SLIDING, JACKBEAM - BRD GAUGE BRD STD NJ-312495-1 AXLE, SLIDING, JACKBEAM - STD GAUGE NJ-217985-1 PIN NJ-111560-1 WASHER NJ-1526 PIN COTTER NJ-150009-1 GREASE-FITTING - STR, .12 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM ASSEMBLY PARTS & ASSEMBLIES

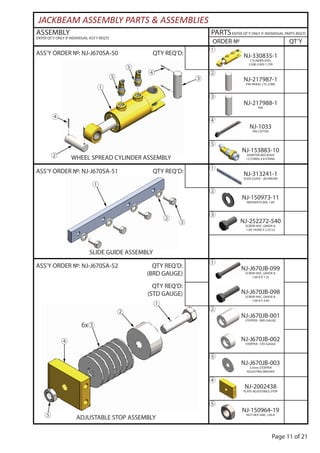

- 11. Page 11 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM ASSEMBLY PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-52 ADJUSTABLE STOP ASSEMBLY QTY REQD: (STD GAUGE) QTY REQD: (BRD GAUGE) NJ-J670JB-099 SCREW-HHC, GRADE 8, 1.00-8 X 7.25 NJ-J670JB-098 SCREW-HHC, GRADE 8, 1.00-8 X 4.00 NJ-J670JB-001 STOPPER - BRD GAUGE NJ-J670JB-002 STOPPER - STD GAUGE NJ-J670JB-003 3.5mm STOPPER ADJUSTING WASHER NJ-2002438 PLATE-ADJUSTABLE STOP NJ-150964-19 NUT-HEX JAM, 1.00-8 ASSY ORDER : NJ-J670SA-51 QTY REQD: SLIDE GUIDE ASSEMBLY NJ-313241-1 SLIDE GUIDE - JACKBEAM NJ-150973-11 WASHER-PLAIN, 1.00 NJ-252272-540 SCREW-HHC, GRADE 8, 1.00-14UNS X 2.25 LG ASSY ORDER : NJ-J670SA-50 QTY REQD: WHEEL SPREAD CYLINDER ASSEMBLY NJ-330835-1 CYLINDER-HYD, 3.50B-2.00S-1.75R NJ-217987-1 PIN-WHEEL CYL./LINK NJ-217988-1 PIN NJ-1033 PIN COTTER NJ-153883-10 ADAPTER-RED BUSH 12 ORING X 8 ORING 6x

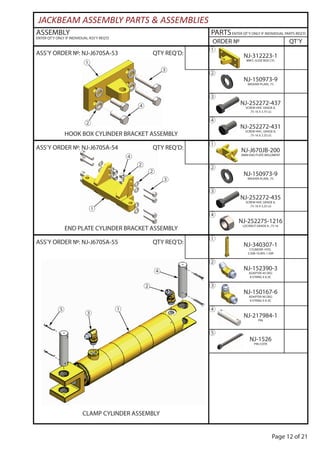

- 12. Page 12 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM ASSEMBLY PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-55 QTY REQD: CLAMP CYLINDER ASSEMBLY NJ-340307-1 CYLINDER- HYD, 2.50B-10.00S-1.50R NJ-152390-3 ADAPTER-45 DEG 8 ORING X 8 JIC NJ-150167-6 ADAPTER-90 DEG 8 ORING X 8 JIC NJ-217984-1 PIN NJ-1526 PIN-COTR ASSY ORDER : NJ-J670SA-54 QTY REQD: END PLATE CYLINDER BRACKET ASSEMBLY NJ-J670JB-200 JKBM END PLATE WELDMENT NJ-150973-9 WASHER-PLAIN, .75 NJ-252272-435 SCREW-HHC GRADE 8, .75-16 X 3.25 LG NJ-252275-1216 LOCKNUT-GRADE 8, .75-16 ASSY ORDER : NJ-J670SA-53 QTY REQD: HOOK BOX CYLINDER BRACKET ASSEMBLY NJ-312223-1 BRKT.-SLIDE BOX CYL NJ-150973-9 WASHER-PLAIN, .75 NJ-252272-437 SCREW-HHC GRADE 8, .75-16 X 3.75 LG NJ-252272-431 SCREW-HHC, GRADE 8, .75-16 X 2.25 LG

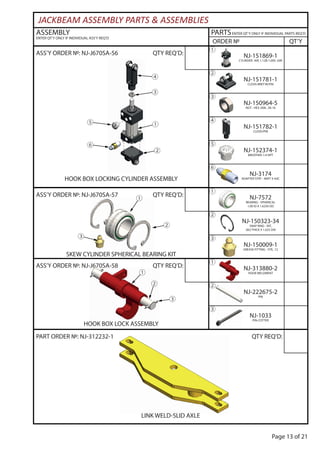

- 13. Page 13 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM ASSEMBLY PARTS & ASSEMBLIES PART ORDER : NJ-312232-1 QTY REQD: LINK WELD-SLID AXLE ASSY ORDER : NJ-J670SA-57 QTY REQD: SKEW CYLINDER SPHERICAL BEARING KIT NJ-7572 BEARING - SPHERICAL 1.00 ID X 1.6250 OD NJ-150323-34 SNAP RING - INT, .062 THICK X 1.625 DIA NJ-150009-1 GREASE FITTING - STR, .12 ASSY ORDER : NJ-J670SA-56 QTY REQD: HOOK BOX LOCKING CYLINDER ASSEMBLY NJ-151869-1 CYLINDER- AIR, 1.12B-1.00S-.50R NJ-151781-1 CLEVIS BRKT W/PIN NJ-150964-5 NUT - HEX JAM, .38-16 NJ-151782-1 CLEVIS/PIN NJ-152374-1 BREATHER 1/4 NPT NJ-3174 ADAPTER STRT - 4NPT X 4JIC ASSY ORDER : NJ-J670SA-58 QTY REQD: HOOK BOX LOCK ASSEMBLY NJ-313880-2 HOOK WELDMENT NJ-222675-2 PIN NJ-1033 PIN-COTTER

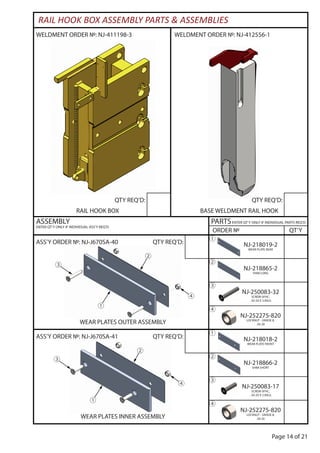

- 14. Page 14 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY RAIL HOOK BOX ASSEMBLY PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-41 QTY REQD: WEAR PLATES INNER ASSEMBLY NJ-218018-2 WEAR PLATE FRONT NJ-218866-2 SHIM SHORT NJ-250083-17 SCREW-SFHC, . 50-20 X 2.00LG NJ-252275-820 LOCKNUT - GRADE 8, .50-20 ASSY ORDER : NJ-J670SA-40 QTY REQD: WEAR PLATES OUTER ASSEMBLY NJ-218019-2 WEAR PLATE REAR NJ-218865-2 SHIM LONG NJ-250083-32 SCREW-SFHC, . 50-20 X 3.00LG NJ-252275-820 LOCKNUT - GRADE 8, .50-20 WELDMENT ORDER : NJ-412556-1 QTY REQD: BASE WELDMENT RAIL HOOK WELDMENT ORDER : NJ-411198-3 QTY REQD: RAIL HOOK BOX

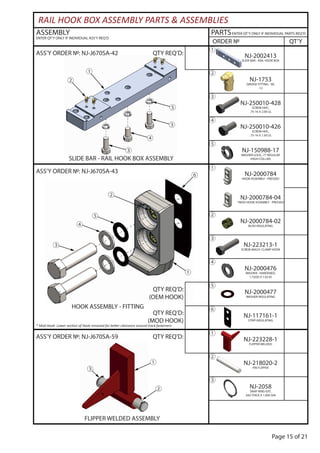

- 15. Page 15 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY RAIL HOOK BOX ASSEMBLY PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-59 QTY REQD: FLIPPER WELDED ASSEMBLY NJ-223228-1 FLIPPER WELDED NJ-218020-2 PIN FLIPPER NJ-2058 SNAP RING-EXT, .042 THICK X 1.000 DIA ASSY ORDER : NJ-J670SA-43 QTY REQD: (MOD HOOK) QTY REQD: (OEM HOOK) HOOK ASSEMBLY - FITTING NJ-2000784 HOOK ASSEMBLY - PRESSED NJ-2000784-04 *MOD HOOK ASSEMBLY - PRESSED NJ-2000784-02 BUSH INSULATING NJ-223213-1 SCREW-MACH. CLAMP HOOK NJ-2000476 WASHER - HARDENED, 1.75OD X 1.03 ID NJ-2000477 WASHER-INSULATING NJ-117161-1 STRIP-INSULATING ASSY ORDER : NJ-J670SA-42 QTY REQD: SLIDE BAR - RAIL HOOK BOX ASSEMBLY NJ-2002413 SLIDE BAR - RAIL HOOK BOX NJ-1753 GREASE FITTING - 90, .12 NJ-250010-428 SCREW-HHC, .75-16 X 2.00 LG NJ-250010-426 SCREW-HHC, .75-16 X 1.50 LG NJ-150988-17 WASHER-LOCK, .77 REGULAR (HIGH COLLAR) * Mod Hook- Lower section of Hook removed for better clearance around track fasterners

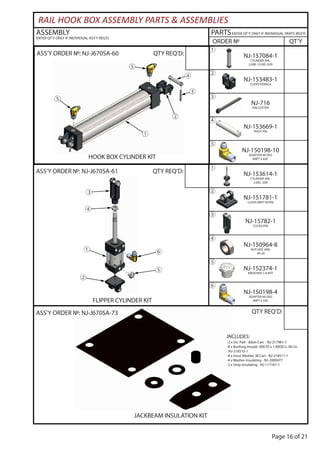

- 16. Page 16 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY RAIL HOOK BOX ASSEMBLY PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-61 QTY REQD: FLIPPER CYLINDER KIT NJ-153614-1 CYLINDER-AIR, 2.00S-.50R NJ-151781-1 CLEVIS BRKT W/PIN NJ-15782-1 CLEVIS/PIN NJ-150964-8 NUT-HEX JAM, .44-20 NJ-152374-1 BREATHER 1/4 NPT NJ-150198-4 ADAPTER 90 DEG 4NPT X 4JIC ASSY ORDER : NJ-J670SA-60 QTY REQD: HOOK BOX CYLINDER KIT NJ-157084-1 CYLINDER-AIR, 2.00B-12.00S-.62R NJ-153483-1 CLEVIS-FEMALE NJ-716 PIN-COTTER NJ-153669-1 PIVOT PIN NJ-150198-10 ADAPTER 90 DEG 6NPT X 6JIC ASSY ORDER : NJ-J670SA-73 QTY REQD: JACKBEAM INSULATION KIT INCLUDES: -2 x Ins. Pad - Jkbm Carr. - NJ-217981-1 -8 x Bushing-Insulat .906 ID x 1.00OD x .96 LG - NJ-218510-1 -8 x Insul. Washer, JB Carr - NJ-218511-1 -4 x Washer-Insulating - NJ-2000477 -2 x Strip-Insulating - NJ-117161-1

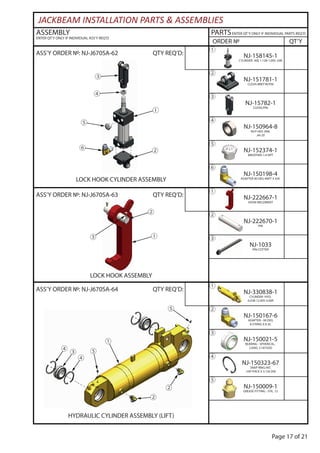

- 17. Page 17 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM INSTALLATION PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-62 QTY REQD: LOCK HOOK CYLINDER ASSEMBLY NJ-158145-1 CYLINDER- AIR, 1.12B-1.00S-.50R NJ-151781-1 CLEVIS BRKT W/PIN NJ-15782-1 CLEVIS/PIN NJ-150964-8 NUT-HEX JAM, .44-20 NJ-152374-1 BREATHER 1/4 NPT NJ-150198-4 ADAPTER 90 DEG 4NPT X 4JIC ASSY ORDER : NJ-J670SA-63 QTY REQD: LOCK HOOK ASSEMBLY NJ-222667-1 HOOK WELDMENT NJ-222670-1 PIN NJ-1033 PIN-COTTER ASSY ORDER : NJ-J670SA-64 QTY REQD: HYDRAULIC CYLINDER ASSEMBLY (LIFT) NJ-330838-1 CYLINDER- HYD, 6.03B-12.00S-3.00R NJ-150167-6 ADAPTER - 90 DEG 8 ORING X 8 JIC NJ-150021-5 BEARING - SPHERICAL, 2.00ID, 3.1875OD NJ-150323-67 SNAP RING-INT, .109 THICK X 3.156 DIA NJ-150009-1 GREASE FITTING - STR, .12

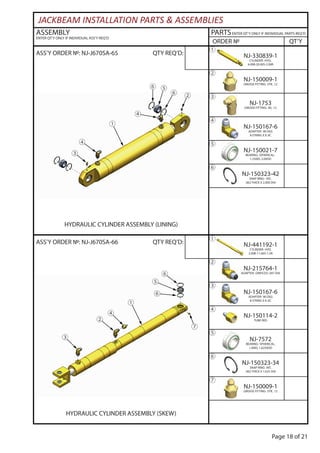

- 18. Page 18 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM INSTALLATION PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-66 QTY REQD: HYDRAULIC CYLINDER ASSEMBLY (SKEW) NJ-441192-1 CYLINDER- HYD, 2.00B-11.00S-1.5R NJ-215764-1 ADAPTER- ORIFICED .047 DIA NJ-150167-6 ADAPTER- 90 DEG 8 ORING X 8 JIC NJ-150114-2 TUBE RED NJ-7572 BEARING- SPHERICAL, 1.00ID, 1.6250OD NJ-150323-34 SNAP RING- INT, .062 THICK X 1.625 DIA NJ-150009-1 GREASE FITTING- STR, .12 ASSY ORDER : NJ-J670SA-65 QTY REQD: HYDRAULIC CYLINDER ASSEMBLY (LINING) NJ-330839-1 CYLINDER- HYD, 4.00B-20.00S-2.00R NJ-150009-1 GREASE FITTING- STR, .12 NJ-1753 GREASE FITTING- 90, .12 NJ-150167-6 ADAPTER- 90 DEG 8 ORING X 8 JIC NJ-150021-7 BEARING- SPHERICAL, 1.250ID, 2.00OD NJ-150323-42 SNAP RING - INT, .062 THICK X 2.000 DIA

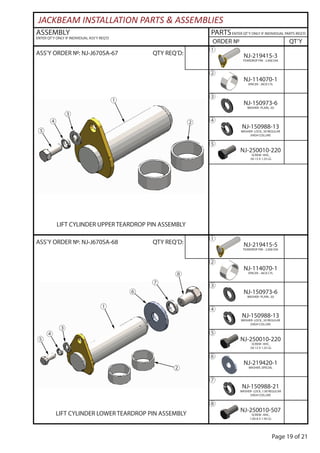

- 19. Page 19 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM INSTALLATION PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-68 QTY REQD: LIFT CYLINDER LOWER TEARDROP PIN ASSEMBLY NJ-219415-5 TEARDROP PIN - 2.000 DIA NJ-114070-1 SPACER - JACK CYL NJ-150973-6 WASHER- PLAIN, .50 NJ-150988-13 WASHER- LOCK, .50 REGULAR (HIGH COLLAR) NJ-250010-220 SCREW- HHC, .50-13 X 1.25 LG NJ-219420-1 WASHER, SPECIAL NJ-150988-21 WASHER- LOCK, 1.00 REGULAR (HIGH COLLAR) NJ-250010-507 SCREW- HHC, 1.00-8 X 1.50 LG ASSY ORDER : NJ-J670SA-67 QTY REQD: LIFT CYLINDER UPPER TEARDROP PIN ASSEMBLY NJ-219415-3 TEARDROP PIN - 2.000 DIA NJ-114070-1 SPACER - JACK CYL NJ-150973-6 WASHER- PLAIN, .50 NJ-150988-13 WASHER- LOCK, .50 REGULAR (HIGH COLLAR) NJ-250010-220 SCREW- HHC, .50-13 X 1.25 LG

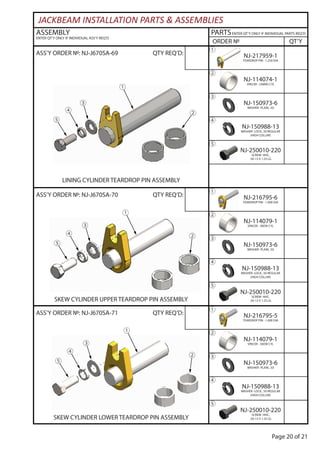

- 20. Page 20 of 21 ASSEMBLY ENTER QTY ONLY IF INDIVIDUAL ASSY REQD PARTSENTER QTY ONLY IF INDIVIDUAL PARTS REQD ORDER QTY JACKBEAM INSTALLATION PARTS & ASSEMBLIES ASSY ORDER : NJ-J670SA-71 QTY REQD: SKEW CYLINDER LOWER TEARDROP PIN ASSEMBLY NJ-216795-5 TEARDROP PIN - 1.000 DIA NJ-114079-1 SPACER - SKEW CYL NJ-150973-6 WASHER- PLAIN, .50 NJ-150988-13 WASHER- LOCK, .50 REGULAR (HIGH COLLAR) NJ-250010-220 SCREW- HHC, .50-13 X 1.25 LG ASSY ORDER : NJ-J670SA-70 QTY REQD: SKEW CYLINDER UPPER TEARDROP PIN ASSEMBLY NJ-216795-6 TEARDROP PIN - 1.000 DIA NJ-114079-1 SPACER - SKEW CYL NJ-150973-6 WASHER- PLAIN, .50 NJ-150988-13 WASHER- LOCK, .50 REGULAR (HIGH COLLAR) NJ-250010-220 SCREW- HHC, .50-13 X 1.25 LG ASSY ORDER : NJ-J670SA-69 QTY REQD: LINING CYLINDER TEARDROP PIN ASSEMBLY NJ-217959-1 TEARDROP PIN - 1.250 DIA NJ-114074-1 SPACER - LINING CYL NJ-150973-6 WASHER- PLAIN, .50 NJ-150988-13 WASHER- LOCK, .50 REGULAR (HIGH COLLAR) NJ-250010-220 SCREW- HHC, .50-13 X 1.25 LG

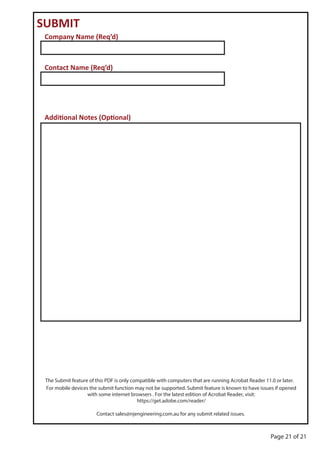

- 21. Page 21 of 21 SUBMIT Company Name (Reqd) Contact Name (Reqd) Additional Notes (Optional) The Submit feature of this PDF is only compatible with computers that are running Acrobat Reader 11.0 or later. For mobile devices the submit function may not be supported. Submit feature is known to have issues if opened with some internet browsers . For the latest edition of Acrobat Reader, visit: https://get.adobe.com/reader/ Contact sales@njengineering.com.au for any submit related issues.
