Eugene Fedorenko will perform performance testing on an Oracle JetB2 core banking application built with Oracle ADF. The goals are to determine the maximum number of users, minimum database connections needed, detect memory leaks, check scalability, and tune the JVM to support 6000 simultaneous users. A variety of Oracle tools will be used for load generation, monitoring, memory leak detection, and diagnostics. Different garbage collectors will be evaluated to determine the most suitable option for an ADF application.
Oow2013 ef final_4_3

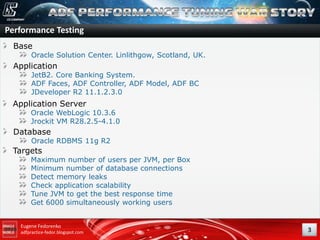

- 3. Performance Testing Base Oracle Solution Center. Linlithgow, Scotland, UK. Application JetB2. Core Banking System. ADF Faces, ADF Controller, ADF Model, ADF BC JDeveloper R2 11.1.2.3.0 Application Server Oracle WebLogic 10.3.6 Jrockit VM R28.2.5-4.1.0 Database Oracle RDBMS 11g R2 Targets Maximum number of users per JVM, per Box Minimum number of database connections Detect memory leaks Check application scalability Tune JVM to get the best response time Get 6000 simultaneously working users Eugene Fedorenko adfpractice-fedor.blogspot.com 3

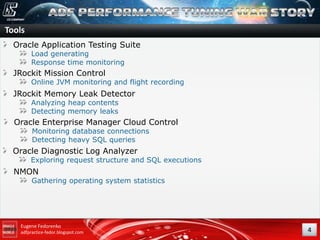

- 4. Tools Oracle Application Testing Suite Load generating Response time monitoring JRockit Mission Control Online JVM monitoring and flight recording JRockit Memory Leak Detector Analyzing heap contents Detecting memory leaks Oracle Enterprise Manager Cloud Control Monitoring database connections Detecting heavy SQL queries Oracle Diagnostic Log Analyzer Exploring request structure and SQL executions NMON Gathering operating system statistics Eugene Fedorenko adfpractice-fedor.blogspot.com 4

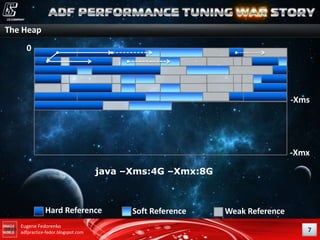

- 7. The Heap 0 -Xms -Xmx java ¨CXms:4G ¨CXmx:8G Hard Reference Eugene Fedorenko adfpractice-fedor.blogspot.com Soft Reference Weak Reference 7

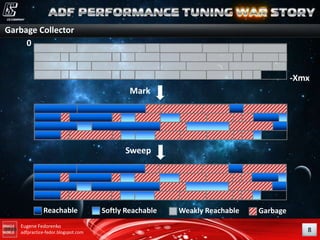

- 8. Garbage Collector 0 -Xmx Mark Sweep Reachable Eugene Fedorenko adfpractice-fedor.blogspot.com Softly Reachable Weakly Reachable Garbage 8

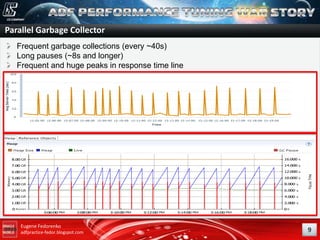

- 9. Parallel Garbage Collector Frequent garbage collections (every ~40s) Long pauses (~8s and longer) Frequent and huge peaks in response time line Eugene Fedorenko adfpractice-fedor.blogspot.com 9

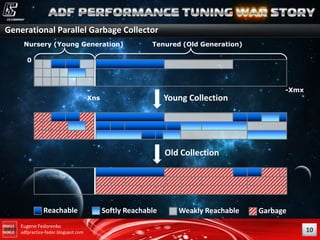

- 10. Generational Parallel Garbage Collector Nursery (Young Generation) Tenured (Old Generation) 0 -Xmx Xns Young Collection Old Collection Reachable Eugene Fedorenko adfpractice-fedor.blogspot.com Softly Reachable Weakly Reachable Garbage 10

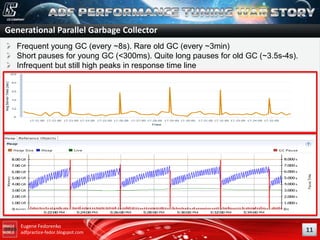

- 11. Generational Parallel Garbage Collector Frequent young GC (every ~8s). Rare old GC (every ~3min) Short pauses for young GC (<300ms). Quite long pauses for old GC (~3.5s-4s). Infrequent but still high peaks in response time line Eugene Fedorenko adfpractice-fedor.blogspot.com 11

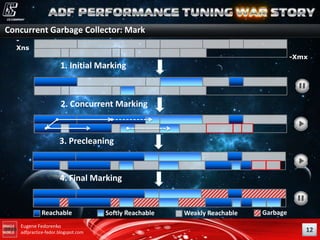

- 12. Concurrent Garbage Collector: Mark Xns -Xmx 1. Initial Marking 2. Concurrent Marking 3. Precleaning 4. Final Marking Reachable Eugene Fedorenko adfpractice-fedor.blogspot.com Softly Reachable Weakly Reachable Garbage 12

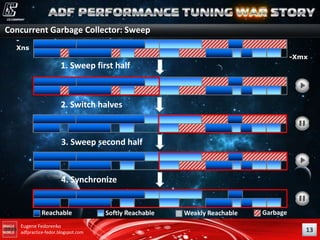

- 13. Concurrent Garbage Collector: Sweep Xns -Xmx 1. Sweep first half 2. Switch halves 3. Sweep second half 4. Synchronize Reachable Eugene Fedorenko adfpractice-fedor.blogspot.com Softly Reachable Weakly Reachable Garbage 13

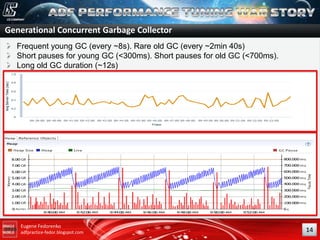

- 14. Generational Concurrent Garbage Collector Frequent young GC (every ~8s). Rare old GC (every ~2min 40s) Short pauses for young GC (<300ms). Short pauses for old GC (<700ms). Long old GC duration (~12s) Eugene Fedorenko adfpractice-fedor.blogspot.com 14

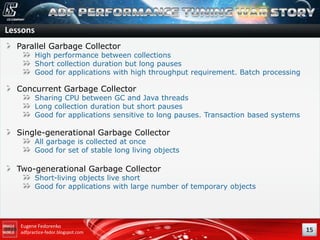

- 15. Lessons Parallel Garbage Collector High performance between collections Short collection duration but long pauses Good for applications with high throughput requirement. Batch processing Concurrent Garbage Collector Sharing CPU between GC and Java threads Long collection duration but short pauses Good for applications sensitive to long pauses. Transaction based systems Single-generational Garbage Collector All garbage is collected at once Good for set of stable long living objects Two-generational Garbage Collector Short-living objects live short Good for applications with large number of temporary objects Eugene Fedorenko adfpractice-fedor.blogspot.com 15

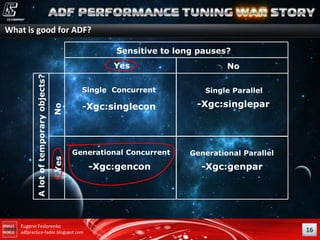

- 16. What is good for ADF? Sensitive to long pauses? No No Single Concurrent Yes A lot of temporary objects? Yes Single Parallel -Xgc:singlecon -Xgc:singlepar Generational Concurrent Generational Parallel -Xgc:gencon -Xgc:genpar Eugene Fedorenko adfpractice-fedor.blogspot.com 16

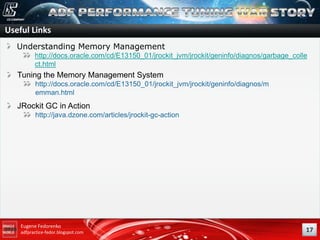

- 17. Useful Links Understanding Memory Management http://docs.oracle.com/cd/E13150_01/jrockit_jvm/jrockit/geninfo/diagnos/garbage_colle ct.html Tuning the Memory Management System http://docs.oracle.com/cd/E13150_01/jrockit_jvm/jrockit/geninfo/diagnos/m emman.html JRockit GC in Action http://java.dzone.com/articles/jrockit-gc-action Eugene Fedorenko adfpractice-fedor.blogspot.com 17
