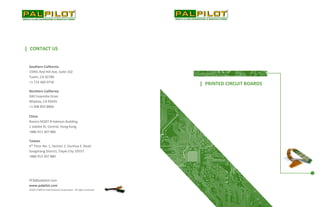

- 1. Southern California 15991 Red Hill Ave, Suite 102 Tustin, CA 92780 +1 714 460 0718 Northern California 500 Yosemite Drive Milpitas, CA 95035 +1 408 855 8866 PRINTED CIRCUIT BOARDS CONTACT US China Rooms M207-8 Haleson Building 1 Jubilee St, Central, Hong Kong +886 913 307 880 Taiwan 4th Floor No. 1, Section 1, Dunhua S. Road Songshang District, Taipei City 10557 +886 913 307 880 PCB@palpilot.com www.palpilot.com 息2015 PalPilot International Corporation. All rights reserved

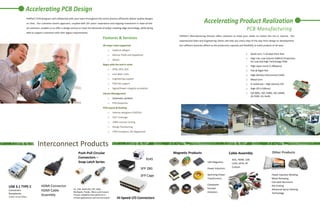

- 2. Library Management o Schematic symbols o PCB footprints PCB Layout & Routing o Veteran designers CID/CID+ o 24/7 coverage o 100% manual routing o Design Partitioning o ITAR Compliant, IPC Registered UL, CSA, RoHS ISO, SFF, MSA Multipole, Fluidic, Micro and Custom Proven reliability that performs in critical applications and environments Push-Pull Circular Connectors Snap Latch Series Interconnect Products Accelerating PCB Design All major tools supported o Cadence Allegro o Mentor PADS and Expedition o Altium Begin with the end in mind o DFM, DFA, DFX o Low labor costs o Engineering support o PCB Fab support o Signal/Power Integrity simulation PalPilots PCB designers will collaborate with your team throughout the entire process efficiently deliver quality designs on time. Our customer-centric approach, coupled with 20+ years experience and ongoing investment in state-of-the- art solutions, enables us to offer a design service to meet the demands of todays leading edge technology, while being able to support customers with their legacy requirements. o Quick-turn, 5-10 days from Asia o High mix, Low Volume (HMLV) Production for Low and High Technology PCBs o High Layer count (1-40layers) o Flex & Rigid-Flex o High Density Interconnect (HDI) o Metal Core o IC Substrate High Density CSP o High I/O (<100um) o ISO 9001, ISO 13485, ISO 16949, AS 9100, US, RoHS USB 3.1 TYPE C Connectors Receptacles Cable assemblies Accelerating Product Realization PCB Manufacturing Other Products Plastic Injection Molding Metal Stamping Extruded Aluminum Die-Casting Advanced Spray Painting Technology HDMI Connector HDMI Cable Assembly RJ45 SFP 28G SFP Cage Hi-Speed I/O Connectors Magnetic Products LAN Magnetics Power Inductors Switching Power Transformers Composite Formed Inductors Cable Assembly AOC, HDMI, USB LVDS, SATA, RF Custom Features & Services PalPilots Manufacturing Division offers solutions to meet your needs no matter the mix or volume. Our experienced Sales and Engineering Teams will help you every step of the way from design to development. Our offshore factories afford us the production capacity and flexibility to meet projects of all sizes. .
