PBC-Series-Standard Range-Update

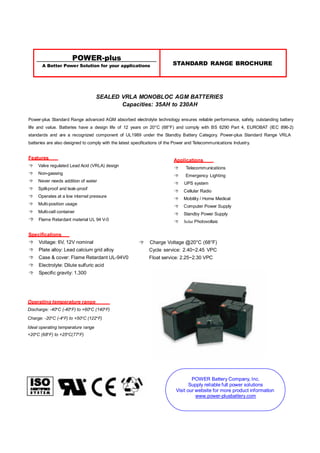

- 2. POWER-plus A Better Power Solution for your applications STANDARD RANGE BROCHURE SEALED VRLA MONOBLOC AGM BATTERIES Capacities: 35AH to 230AH Power-plus Standard Range advanced AGM absorbed electrolyte technology ensures reliable performance, safety, outstanding battery life and value. Batteries have a design life of 12 years on 20°C (68°F) and comply with BS 6290 Part 4, EUROBAT (IEC 896-2) standards and are a recognized component of UL1989 under the Standby Battery Category. Power-plus Standard Range VRLA batteries are also designed to comply with the latest specifications of the Power and Telecommunications Industry. Features Valve regulated Lead Acid (VRLA) design Non-gassing Never needs addition of water Spill-proof and leak-proof Operates at a low internal pressure Multi-position usage Multi-cell container Flame Retardant material UL 94 V-0 Specifications Voltage: 6V, 12V nominal Plate alloy: Lead calcium grid alloy Case & cover: Flame Retardant UL-94V0 Electrolyte: Dilute sulfuric acid Specific gravity: 1.300 Operating temperature range Discharge: -40ºC (-40ºF) to +60ºC (140ºF) Charge: -20ºC (-4ºF) to +50ºC (122ºF) Ideal operating temperature range +20ºC (68ºF) to +25ºC(77ºF) Applications Telecommunications Emergency Lighting UPS system Cellular Radio Mobility / Home Medical Computer Power Supply Standby Power Supply Solar Photovoltaic Charge Voltage @20°C (68°F) Cycle service: 2.40~2.45 VPC Float service: 2.25~2.30 VPC POWER Battery Company, Inc. Supply reliable full power solutions Visit our website for more product information www.power-plusbattery.com

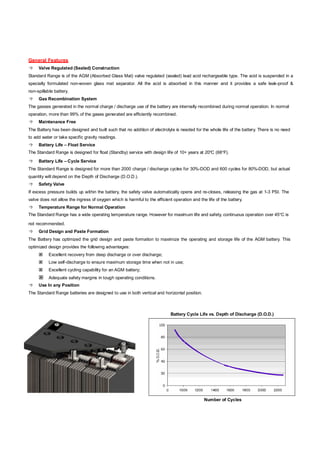

- 3. General Features Valve Regulated (Sealed) Construction Standard Range is of the AGM (Absorbed Glass Mat) valve regulated (sealed) lead acid rechargeable type. The acid is suspended in a specially formulated non-woven glass mat separator. All the acid is absorbed in this manner and it provides a safe leak-proof & non-spillable battery. Gas Recombination System The gasses generated in the normal charge / discharge use of the battery are internally recombined during normal operation. In normal operation, more than 99% of the gases generated are efficiently recombined. Maintenance Free The Battery has been designed and built such that no addition of electrolyte is needed for the whole life of the battery. There is no need to add water or take specific gravity readings. Battery Life – Float Service The Standard Range is designed for float (Standby) service with design life of 10+ years at 20ºC (68ºF). Battery Life – Cycle Service The Standard Range is designed for more than 2000 charge / discharge cycles for 30%-DOD and 600 cycles for 80%-DOD, but actual quantity will depend on the Depth of Discharge (D.O.D.). Safety Valve If excess pressure builds up within the battery, the safety valve automatically opens and re-closes, releasing the gas at 1-3 PSI. The valve does not allow the ingress of oxygen which is harmful to the efficient operation and the life of the battery. Temperature Range for Normal Operation The Standard Range has a wide operating temperature range. However for maximum life and safety, continuous operation over 45ºC is not recommended. Grid Design and Paste Formation The Battery has optimized the grid design and paste formation to maximize the operating and storage life of the AGM battery. This optimized design provides the following advantages: Excellent recovery from deep discharge or over discharge; Low self-discharge to ensure maximum storage time when not in use; Excellent cycling capability for an AGM battery; Adequate safety margins in tough operating conditions. Use In any Position The Standard Range batteries are designed to use in both vertical and horizontal position. Battery Cycle Life vs. Depth of Discharge (D.O.D.) Number of Cycles

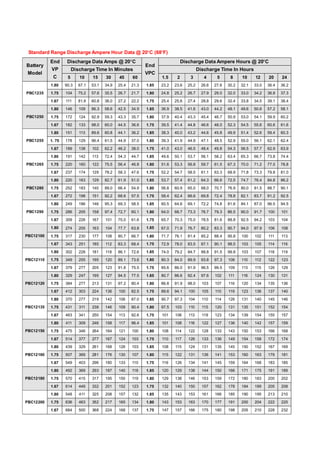

- 4. Standard Range Discharge Ampere Hour Data @ 20ºC (68ºF) Battery Model End VP C Discharge Data Amps @ 20ºC End VPC Discharge Data Ampere Hours @ 20ºC Discharge Time In Minutes Discharge Time In Hours 5 10 15 30 45 60 1.5 2 3 4 5 8 10 12 20 24 PBC1235 1.80 90.3 67.1 53.1 34.9 25.4 21.3 1.85 23.2 23.6 25.2 26.6 27.6 30.2 32.1 33.0 36.4 36.2 1.75 104 75.2 57.6 35.5 26.7 21.7 1.80 24.8 25.2 26.7 27.9 29.0 32.0 33.0 34.2 36.8 37.3 1.67 111 81.9 60.8 36.0 27.2 22.2 1.75 25.4 25.6 27.4 28.8 29.6 32.4 33.8 34.5 39.1 38.4 PBC1250 1.80 146 109 86.3 58.6 42.5 34.9 1.85 36.9 38.5 41.6 43.0 44.2 48.1 49.6 50.6 57.2 58.1 1.75 172 124 92.9 59.3 43.3 35.7 1.80 37.9 40.4 43.3 45.4 46.7 50.9 53.0 54.1 59.9 60.2 1.67 182 133 98.0 60.0 44.5 36.6 1.75 39.5 41.4 44.8 46.6 48.0 52.3 54.5 55.6 60.6 61.6 PBC1255 1.80 151 113 89.6 60.8 44.1 36.2 1.85 38.3 40.0 43.2 44.6 45.8 49.9 51.4 52.6 59.4 60.3 1. 75 178 129 96.4 61.5 44.9 37.0 1.80 39.3 41.9 44.9 47.1 48.5 52.9 55.0 56.1 62.1 62.4 1.67 189 138 102 62.2 46.2 38.0 1.75 41.0 43.0 46.5 48.4 49.8 54.3 56.5 57.7 62.9 63.9 PBC1265 1.80 191 142 113 72.4 54.3 44.7 1.85 49.6 50.1 53.7 56.1 58.2 63.4 65.3 66.7 73.8 74.4 1.75 220 160 122 75.5 56.4 46.8 1.80 51.6 53.3 56.8 59.7 61.5 67.3 70.0 71.2 77.5 78.8 1.67 237 174 129 78.2 58.3 47.6 1.75 52.2 54.7 58.5 61.1 63.3 68.9 71.8 73.3 79.8 81.0 PBC1280 1.80 220 163 129 82.7 61.9 51.0 1.85 53.7 57.4 61.2 64.3 66.6 72.5 74.7 76.4 84.8 86.2 1.75 252 183 140 89.0 66.4 54.9 1.80 56.8 60.9 65.0 68.0 70.7 76.9 80.0 81.5 88.7 90.1 1.67 272 198 151 92.2 68.6 57.5 1.75 58.4 62.4 66.6 69.8 72.4 78.8 82.1 83.7 91.2 92.5 PBC1290 1.80 249 186 146 95.3 69.3 58.5 1.85 60.5 64.6 69.1 72.2 74.8 81.6 84.1 87.0 96.5 94.5 1.75 286 205 158 97.4 72.7 60.1 1.80 64.0 68.7 73.3 76.7 79.3 86.5 90.0 91.7 100 101 1.67 309 226 167 101 75.0 61.6 1.75 65.7 70.3 75.0 78.5 81.6 88.8 92.5 94.2 103 104 PBC12100 1.80 274 205 163 104 77.7 63.8 1.85 67.0 71.9 76.7 80.2 83.3 90.7 94.0 97.9 106 108 1.75 317 230 177 108 80.7 66.7 1.80 71.7 76.1 81.4 85.2 88.4 95.8 100 102 111 113 1.67 343 251 185 112 83.3 68.4 1.75 72.9 78.0 83.5 87.1 90.1 98.5 103 105 114 116 PBC12110 1.80 302 228 181 118 86.1 72.6 1.85 74.0 79.2 84.7 88.8 91.5 99.8 103 107 118 119 1.75 349 255 195 120 89.1 73.6 1.80 80.3 84.0 89.9 93.8 97.3 106 110 112 122 123 1.67 379 277 205 123 91.8 75.5 1.75 85.6 86.0 91.9 96.5 99.5 109 113 115 126 129 PBC12120 1.80 329 247 195 127 94.5 77.5 1.85 80.7 86.6 92.4 97.6 102 111 116 124 130 131 1.75 384 277 213 131 97.2 80.4 1.80 86.8 91.9 98.0 103 107 116 120 134 135 136 1.67 412 303 224 136 100 82.5 1.75 89.6 94.1 100 105 110 119 123 136 137 140 PBC12135 1.80 370 277 219 142 106 87.0 1.85 90.7 97.3 104 110 114 126 131 140 145 146 1.75 431 311 238 146 109 90.4 1.80 97.5 103 110 115 120 131 135 151 152 154 1.67 463 341 250 154 113 92.6 1.75 101 106 113 119 123 134 139 154 155 157 PBC12150 1.80 411 309 246 158 117 96.4 1.85 101 108 116 122 127 136 140 142 157 159 1.75 475 346 264 164 121 100 1.80 108 114 122 128 133 143 150 153 166 168 1.67 514 377 277 167 124 103 1.75 110 117 126 133 136 149 154 158 172 174 PBC12160 1.80 439 329 261 168 126 103 1.85 108 115 124 131 135 145 150 152 167 169 1.75 507 369 281 176 130 107 1.80 115 122 131 136 141 153 160 163 179 181 1.67 549 403 296 180 133 110 1.75 116 126 134 141 145 159 164 168 183 185 PBC12180 1.80 492 369 293 187 140 118 1.85 120 129 138 144 150 166 171 175 191 189 1.75 570 415 317 195 150 119 1.80 129 138 146 153 159 172 180 183 200 202 1.67 614 449 332 201 152 123 1.75 132 140 150 157 162 178 184 189 205 208 PBC12200 1.80 548 411 325 208 157 132 1.85 135 143 153 161 166 185 190 195 213 210 1.75 636 463 352 217 165 134 1.80 143 153 163 170 177 191 200 204 222 225 1.67 684 500 368 224 168 137 1.75 147 157 166 175 180 198 205 210 228 232

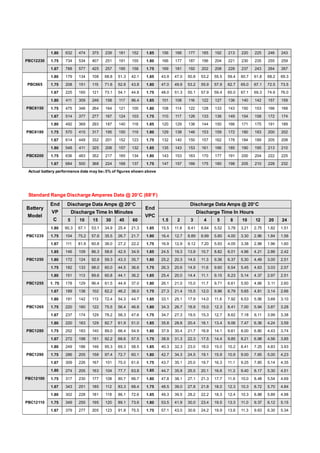

- 5. PBC12230 1.80 632 474 375 239 181 152 1.85 156 166 177 185 192 213 220 225 246 243 1.75 734 534 407 251 191 155 1.80 166 177 187 196 204 221 230 235 255 259 1.67 788 577 425 257 195 158 1.75 169 181 192 202 208 228 237 243 264 267 PBC665 1.80 179 134 108 68.8 51.3 42.1 1.85 43.9 47.0 50.8 53.2 55.5 59.4 60.7 61.8 68.2 69.3 1.75 208 151 115 71.6 52.6 43.8 1.80 47.0 49.9 53.2 55.9 57.9 62.7 65.0 67.1 72.5 73.5 1.67 225 165 121 73.1 54.1 44.8 1.75 48.0 51.3 55.1 57.9 59.4 65.0 67.1 69.3 74.6 76.0 PBC6150 1.80 411 309 246 158 117 96.4 1.85 101 108 116 122 127 136 140 142 157 159 1.75 475 346 264 164 121 100 1.80 108 114 122 128 133 143 150 153 166 168 1.67 514 377 277 167 124 103 1.75 110 117 126 133 136 149 154 158 172 174 PBC6180 1.80 492 369 293 187 140 118 1.85 120 129 138 144 150 166 171 175 191 189 1.75 570 415 317 195 150 119 1.80 129 138 146 153 159 172 180 183 200 202 1.67 614 449 332 201 152 123 1.75 132 140 150 157 162 178 184 189 205 208 PBC6200 1.80 548 411 325 208 157 132 1.85 135 143 153 161 166 185 190 195 213 210 1.75 636 463 352 217 165 134 1.80 143 153 163 170 177 191 200 204 222 225 1.67 684 500 368 224 168 137 1.75 147 157 166 175 180 198 205 210 228 232 Actual battery performance data may be±5% of figures shown above Standard Range Discharge Amperes Data @ 20ºC (68ºF) Battery Model End VP C Discharge Data Amps @ 20ºC End VPC Discharge Data Amps @ 20ºC Discharge Time In Minutes Discharge Time In Hours 5 10 15 30 45 60 1.5 2 3 4 5 8 10 12 20 24 PBC1235 1.80 90.3 67.1 53.1 34.9 25.4 21.3 1.85 15.5 11.8 8.41 6.64 5.52 3.78 3.21 2.75 1.82 1.51 1.75 104 75.2 57.6 35.5 26.7 21.7 1.80 16.4 12.7 8.89 6.99 5.80 4.00 3.30 2.86 1.84 1.56 1.67 111 81.9 60.8 36.0 27.2 22.2 1.75 16.9 12.9 9.12 7.20 5.93 4.05 3.38 2.88 1.96 1.60 PBC1250 1.85 146 109 86.3 58.6 42.5 34.9 1.85 24.5 19.3 13.9 10.7 8.82 6.01 4.96 4.21 2.86 2.42 1.80 172 124 92.9 59.3 43.3 35.7 1.80 25.2 20.3 14.5 11.3 9.36 6.37 5.30 4.49 3.00 2.51 1.75 182 133 98.0 60.0 44.5 36.6 1.75 26.3 20.6 14.9 11.6 9.60 6.54 5.45 4.63 3.03 2.57 PBC1255 1.80 151 113 89.6 60.8 44.1 36.2 1.85 25.4 20.0 14.4 11.1 9.15 6.23 5.14 4.37 2.97 2.51 1. 75 178 129 96.4 61.5 44.9 37.0 1.80 26.1 21.0 15.0 11.7 9.71 6.61 5.50 4.66 3.11 2.60 1.67 189 138 102 62.2 46.2 38.0 1.75 27.3 21.4 15.5 12.0 9.96 6.79 5.65 4.81 3.14 2.66 PBC1265 1.80 191 142 113 72.4 54.3 44.7 1.85 33.1 25.1 17.9 14.0 11.6 7.92 6.53 5.56 3.69 3.10 1.75 220 160 122 75.5 56.4 46.8 1.80 34.3 26.7 18.9 15.0 12.3 8.41 7.00 5.94 3.87 3.28 1.67 237 174 129 78.2 58.3 47.6 1.75 34.7 27.3 19.5 15.3 12.7 8.62 7.18 6.11 3.99 3.38 PBC1280 1.80 220 163 129 82.7 61.9 51.0 1.85 35.8 28.8 20.4 16.1 13.4 9.06 7.47 6.36 4.24 3.59 1.75 252 183 140 89.0 66.4 54.9 1.80 37.9 30.4 21.7 16.9 14.1 9.61 8.00 6.80 4.43 3.74 1.67 272 198 151 92.2 68.6 57.5 1.75 38.9 31.3 22.3 17.5 14.4 9.85 8.21 6.98 4.56 3.85 PBC1290 1.80 249 186 146 95.3 69.3 58.5 1.85 40.3 32.3 23.0 18.0 15.0 10.2 8.41 7.25 4.83 3.93 1.75 286 205 158 97.4 72.7 60.1 1.80 42.7 34.3 24.5 19.1 15.9 10.9 9.00 7.65 5.00 4.23 1.67 309 226 167 101 75.0 61.6 1.75 43.7 35.1 25.0 19.7 16.3 11.1 9.25 7.85 5.14 4.35 PBC12100 1.80 274 205 163 104 77.7 63.8 1.85 44.7 35.9 25.5 20.1 16.6 11.3 9.40 8.17 5.30 4.51 1.75 317 230 177 108 80.7 66.7 1.80 47.8 38.1 27.1 21.3 17.7 11.9 10.0 8.48 5.54 4.69 1.67 343 251 185 112 83.3 68.4 1.75 48.5 39.0 27.8 21.8 18.0 12.3 10.3 8.72 5.70 4.84 PBC12110 1.80 302 228 181 118 86.1 72.6 1.85 49.3 39.5 28.2 22.2 18.3 12.4 10.3 8.88 5.89 4.98 1.75 349 255 195 120 89.1 73.6 1.80 53.5 41.9 30.0 23.4 19.5 13.3 11.0 9.37 6.12 5.15 1.67 379 277 205 123 91.8 75.5 1.75 57.1 43.0 30.6 24.2 19.9 13.6 11.3 9.63 6.30 5.34

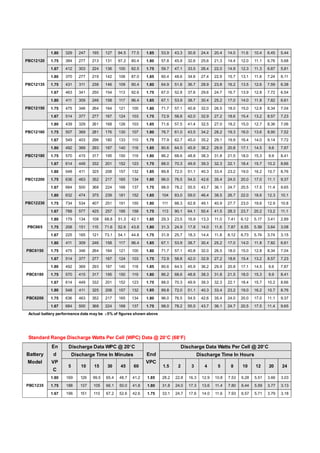

- 6. PBC12120 1.80 329 247 195 127 94.5 77.5 1.85 53.9 43.3 30.8 24.4 20.4 14.0 11.6 10.4 6.45 5.44 1.75 384 277 213 131 97.2 80.4 1.80 57.8 45.9 32.6 25.6 21.3 14.4 12.0 11.1 6.76 5.68 1.67 412 303 224 136 100 82.5 1.75 59.7 47.1 33.5 26.4 22.0 14.9 12.3 11.3 6.87 5.81 PBC12135 1.80 370 277 219 142 106 87.0 1.85 60.4 48.6 34.6 27.4 22.9 15.7 13.1 11.6 7.24 6.11 1.75 431 311 238 146 109 90.4 1.80 64.9 51.6 36.7 28.9 23.8 16.2 13.5 12.6 7.59 6.38 1.67 463 341 250 154 113 92.6 1.75 67.0 52.8 37.6 29.6 24.7 16.7 13.9 12.8 7.72 6.54 PBC12150 1.80 411 309 246 158 117 96.4 1.85 67.1 53.9 38.7 30.4 25.2 17.0 14.0 11.8 7.82 6.61 1.75 475 346 264 164 121 100 1.80 71.7 57.1 40.8 32.0 26.5 18.0 15.0 12.8 8.34 7.04 1.67 514 377 277 167 124 103 1.75 72.9 58.8 42.0 32.9 27.2 18.6 15.4 13.2 8.57 7.23 PBC12160 1.80 439 329 261 168 126 103 1.85 71.6 57.5 41.4 32.5 27.0 18.2 15.0 12.7 8.36 7.06 1.75 507 369 281 176 130 107 1.80 76.7 61.0 43.5 34.2 28.2 19.3 16.0 13.6 8.90 7.52 1.67 549 403 296 180 133 110 1.75 77.9 62.7 45.0 35.2 29.1 19.9 16.4 14.0 9.14 7.72 PBC12180 1.80 492 369 293 187 140 118 1.85 80.6 64.5 45.9 36.2 29.9 20.8 17.1 14.5 9.6 7.87 1.75 570 415 317 195 150 119 1.80 86.2 68.6 48.8 38.3 31.8 21.5 18.0 15.3 9.9 8.41 1.67 614 449 332 201 152 123 1.75 88.0 70.3 49.9 39.3 32.3 22.1 18.4 15.7 10.2 8.66 PBC12200 1.80 548 411 325 208 157 132 1.85 89.8 72.0 51.1 40.3 33.4 23.2 19.0 16.2 10.7 8.76 1.75 636 463 352 217 165 134 1.80 96.0 76.5 54.5 42.6 35.4 24.0 20.0 17.0 11.1 9.37 1.67 684 500 368 224 168 137 1.75 98.0 78.2 55.5 43.7 36.1 24.7 20.5 17.5 11.4 9.65 PBC12230 1.80 632 474 375 239 181 152 1.85 104 83.0 59.0 46.4 38.5 26.7 22.0 18.6 12.3 10.1 1.75 734 534 407 251 191 155 1.80 111 88.3 62.8 49.1 40.9 27.7 23.0 19.6 12.9 10.8 1.67 788 577 425 257 195 158 1.75 113 90.1 64.1 50.4 41.5 28.3 23.7 20.2 13.2 11.1 PBC665 1.80 179 134 108 68.8 51.3 42.1 1.85 29.3 23.5 16.9 13.3 11.0 7.41 6.12 5.17 3.41 2.89 1.75 208 151 115 71.6 52.6 43.8 1.80 31.3 24.9 17.8 14.0 11.6 7.87 6.55 5.59 3.64 3.08 1.67 225 165 121 73.1 54.1 44.8 1.75 31.9 25.7 18.3 14.4 11.8 8.12 6.73 5.74 3.74 3.15 PBC6150 1.80 411 309 246 158 117 96.4 1.85 67.1 53.9 38.7 30.4 25.2 17.0 14.0 11.8 7.82 6.61 1.75 475 346 264 164 121 100 1.80 71.7 57.1 40.8 32.0 26.5 18.0 15.0 12.8 8.34 7.04 1.67 514 377 277 167 124 103 1.75 72.9 58.8 42.0 32.9 27.2 18.6 15.4 13.2 8.57 7.23 PBC6180 1.80 492 369 293 187 140 118 1.85 80.6 64.5 45.9 36.2 29.9 20.8 17.1 14.5 9.6 7.87 1.75 570 415 317 195 150 119 1.80 86.2 68.6 48.8 38.3 31.8 21.5 18.0 15.3 9.9 8.41 1.67 614 449 332 201 152 123 1.75 88.0 70.3 49.9 39.3 32.3 22.1 18.4 15.7 10.2 8.66 PBC6200 1.80 548 411 325 208 157 132 1.85 89.8 72.0 51.1 40.3 33.4 23.2 19.0 16.2 10.7 8.76 1.75 636 463 352 217 165 134 1.80 96.0 76.5 54.5 42.6 35.4 24.0 20.0 17.0 11.1 9.37 1.67 684 500 368 224 168 137 1.75 98.0 78.2 55.5 43.7 36.1 24.7 20.5 17.5 11.4 9.65 Actual battery performance data may be ±5% of figures shown above Standard Range Discharge Watts Per Cell (WPC) Data @ 20ºC (68ºF) Battery Model En d VP C Discharge Data WPC @ 20ºC End VPC Discharge Data Watts Per Cell @ 20ºC Discharge Time In Minutes Discharge Time In Hours 5 10 15 30 45 60 1.5 2 3 4 5 8 10 12 20 24 PBC1235 1.80 169 126 99.5 65.4 48.7 41.2 1.85 28.2 22.8 16.3 12.9 10.8 7.53 6.28 5.51 3.66 3.03 1.75 188 137 105 66.1 50.0 41.8 1.80 31.8 24.0 17.3 13.6 11.4 7.80 6.44 5.59 3.77 3.13 1.67 196 151 110 67.2 52.6 42.6 1.75 33.1 24.7 17.6 14.0 11.6 7.93 6.57 5.71 3.79 3.18

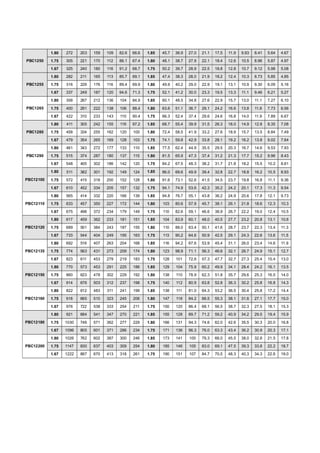

- 7. PBC1250 1.80 272 203 159 109 82.6 66.6 1.85 45.7 36.9 27.0 21.1 17.5 11.9 9.93 8.41 5.64 4.67 1.75 305 221 170 112 86.1 67.4 1.80 48.1 38.7 27.9 22.1 18.4 12.6 10.5 8.96 5.87 4.97 1.67 325 240 180 116 91.2 68.7 1.75 50.2 39.7 28.9 22.5 18.8 12.8 10.7 9.12 5.98 5.08 PBC1255 1.80 282 211 165 113 85.7 69.1 1.85 47.4 38.3 28.0 21.9 18.2 12.4 10.3 8.73 5.85 4.85 1.75 316 229 176 116 89.4 69.9 1.80 49.9 40.2 29.0 22.9 19.1 13.1 10.9 9.30 6.09 5.16 1.67 337 249 187 120 94.6 71.3 1.75 52.1 41.2 30.0 23.3 19.5 13.3 11.1 9.46 6.21 5.27 PBC1265 1.80 358 267 212 136 104 84.9 1.85 60.1 48.5 34.8 27.6 22.9 15.7 13.0 11.1 7.27 6.10 1.75 400 291 222 138 106 88.4 1.80 63.6 51.1 36.7 29.1 24.2 16.6 13.8 11.8 7.73 6.56 1.67 422 310 233 143 110 90.4 1.75 66.3 52.4 37.4 29.6 24.6 16.8 14.0 11.9 7.89 6.67 PBC1280 1.80 411 305 242 155 116 97.2 1.85 68.7 55.4 39.9 31.5 26.3 18.0 14.9 12.8 8.35 7.08 1.75 458 334 255 162 120 100 1.80 72.4 58.5 41.9 33.2 27.6 18.9 15.7 13.5 8.84 7.49 1.67 479 354 265 169 128 103 1.75 74.1 59.8 42.9 33.8 28.1 19.2 16.2 13.8 9.02 7.64 PBC1290 1.80 461 343 272 177 133 110 1.85 77.5 62.4 44.9 35.5 29.5 20.3 16.7 14.6 9.53 7.93 1.75 515 374 287 180 137 115 1.80 81.5 65.9 47.3 37.4 31.2 21.3 17.7 15.2 9.96 8.43 1.67 548 405 302 186 142 120 1.75 84.2 67.5 48.3 38.2 31.7 21.8 18.2 15.5 10.2 8.61 PBC12100 1.80 511 382 301 192 149 124 1.85 86.0 69.6 49.9 39.4 32.8 22.7 18.8 16.2 10.5 8.93 1.75 572 415 318 200 152 128 1.80 91.6 73.1 52.6 41.5 34.5 23.7 19.8 16.8 11.1 9.36 1.67 610 452 334 205 157 132 1.75 94.1 74.9 53.6 42.3 35.2 24.2 20.1 17.3 11.3 9.54 PBC12110 1.80 565 414 332 220 166 139 1.85 94.8 76.7 55.1 43.8 36.2 24.9 20.6 17.8 12.1 9.73 1.75 633 457 350 227 172 144 1.80 103 80.6 57.9 45.7 38.1 26.1 21.8 18.6 12.3 10.3 1.67 675 498 372 234 179 149 1.75 110 82.6 59.1 46.6 38.9 26.7 22.2 19.0 12.4 10.5 PBC12120 1.80 617 459 362 233 181 151 1.85 104 83.9 60.1 48.0 40.5 27.7 23.2 20.8 13.1 10.6 1.75 689 501 384 243 187 155 1.80 110 88.0 63.4 50.1 41.6 28.7 23.7 22.3 13.4 11.3 1.67 733 544 404 249 195 163 1.75 113 90.2 64.6 50.9 42.5 29.1 24.3 22.6 13.6 11.5 PBC12135 1.80 692 516 407 263 204 168 1.85 116 94.2 67.6 53.9 45.4 31.1 26.0 23.4 14.6 11.9 1.75 774 563 431 273 209 174 1.80 123 98.9 71.1 56.3 46.6 32.1 26.7 24.9 15.1 12.7 1.67 823 611 453 279 219 183 1.75 128 101 72.6 57.3 47.7 32.7 27.3 25.4 15.4 13.0 PBC12150 1.80 770 573 453 291 225 186 1.85 129 104 75.9 60.2 49.9 34.1 28.4 24.2 16.1 13.5 1.75 860 623 478 302 229 192 1.80 138 110 78.9 62.3 51.8 35.7 29.6 25.3 16.5 14.0 1.67 914 676 503 312 237 198 1.75 140 112 80.9 63.8 52.8 36.3 30.2 25.8 16.8 14.3 PBC12160 1.80 822 612 483 311 241 199 1.85 138 111 81.0 64.3 53.2 36.5 30.4 25.8 17.2 14.4 1.75 918 665 510 323 245 206 1.80 147 118 84.2 66.5 55.3 38.1 31.6 27.1 17.7 15.0 1.67 976 722 538 333 254 211 1.75 150 120 86.4 68.1 56.5 38.7 32.3 27.5 18.1 15.3 PBC12180 1.80 921 684 541 347 270 221 1.85 155 128 89.7 71.2 59.2 40.9 34.2 29.5 19.4 15.9 1.75 1030 746 571 362 277 229 1.80 166 131 94.3 74.6 62.0 42.6 35.5 30.3 20.0 16.8 1.67 1096 805 601 371 286 234 1.75 171 136 96.3 76.0 63.3 43.4 36.2 30.9 20.3 17.1 PBC12200 1.80 1026 762 602 387 300 246 1.85 173 141 100 79.3 66.0 45.5 38.0 32.8 21.5 17.8 1.75 1147 830 637 403 309 254 1.80 185 146 105 83.0 69.1 47.5 39.3 33.8 22.2 18.7 1.67 1222 897 670 413 318 261 1.75 190 151 107 84.7 70.5 48.3 40.3 34.3 22.6 19.0

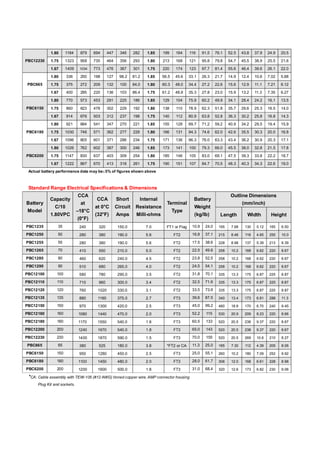

- 8. PBC12230 1.80 1184 879 694 447 346 282 1.85 199 164 116 91.5 76.1 52.5 43.8 37.9 24.9 20.5 1.75 1323 958 735 464 356 293 1.80 213 168 121 95.8 79.8 54.7 45.5 38.9 25.5 21.6 1.67 1409 1034 773 476 367 301 1.75 220 174 123 97.7 81.4 55.6 46.4 39.6 26.1 22.0 PBC665 1.80 336 250 198 127 98.2 81.2 1.85 56.5 45.6 33.1 26.3 21.7 14.9 12.4 10.6 7.02 5.88 1.75 375 272 209 132 100 84.0 1.80 60.3 48.0 34.4 27.2 22.6 15.6 12.9 11.1 7.21 6.12 1.67 400 295 220 136 103 86.4 1.75 61.2 48.9 35.3 27.8 23.0 15.9 13.2 11.3 7.35 6.27 PBC6150 1.80 770 573 453 291 225 186 1.85 129 104 75.9 60.2 49.9 34.1 28.4 24.2 16.1 13.5 1.75 860 623 478 302 229 192 1.80 138 110 78.9 62.3 51.8 35.7 29.6 25.3 16.5 14.0 1.67 914 676 503 312 237 198 1.75 140 112 80.9 63.8 52.8 36.3 30.2 25.8 16.8 14.3 PBC6180 1.80 921 684 541 347 270 221 1.85 155 128 89.7 71.2 59.2 40.9 34.2 29.5 19.4 15.9 1.75 1030 746 571 362 277 229 1.80 166 131 94.3 74.6 62.0 42.6 35.5 30.3 20.0 16.8 1.67 1096 805 601 371 286 234 1.75 171 136 96.3 76.0 63.3 43.4 36.2 30.9 20.3 17.1 PBC6200 1.80 1026 762 602 387 300 246 1.85 173 141 100 79.3 66.0 45.5 38.0 32.8 21.5 17.8 1.75 1147 830 637 403 309 254 1.80 185 146 105 83.0 69.1 47.5 39.3 33.8 22.2 18.7 1.67 1222 897 670 413 318 261 1.75 190 151 107 84.7 70.5 48.3 40.3 34.3 22.6 19.0 Actual battery performance data may be±5% of figures shown above Standard Range Electrical Specifications & Dimensions Battery Model Capacity C/10 1.80VPC CCA at –18°C (0°F) CCA at 0°C (32°F) Short Circuit Amps Internal Resistance Milli-ohms Terminal Type Battery Weight (kg/lb) Outline Dimensions (mm/inch) Length Width Height PBC1235 35 240 320 150.0 7.0 FT1 or Flag 10.9 24.0 195 7.68 130 5.12 165 6.50 PBC1250 50 280 380 190.0 5.6 FT2 16.8 37.1 215 8.46 118 4.65 255 10.0 PBC1255 55 280 380 190.0 5.6 FT2 17.5 38.6 228 8.98 137 5.39 213 8.39 PBC1265 70 410 550 210.0 5.0 FT2 22.5 49.6 258 10.2 168 6.62 220 8.67 PBC1280 80 460 620 240.0 4.5 FT2 23.8 52.5 258 10.2 168 6.62 220 8.67 PBC1290 90 510 680 265.0 4.0 FT2 24.5 54.1 258 10.2 168 6.62 220 8.67 PBC12100 100 580 780 290.0 3.5 FT2 31.8 70.1 335 13.3 175 6.87 225 8.87 PBC12110 110 710 960 300.0 3.4 FT2 32.5 71.6 335 13.3 175 6.87 225 8.87 PBC12120 120 760 1020 330.0 3.1 FT2 33.5 73.9 335 13.3 175 6.87 225 8.87 PBC12135 135 880 1160 375.0 2.7 FT3 39.6 87.5 340 13.4 173 6.81 288 11.3 PBC12150 150 970 1300 420.0 2.5 FT3 45.0 99.2 480 18.9 170 6.70 240 9.45 PBC12160 160 1080 1440 470.0 2.0 FT3 52.2 115 530 20.9 209 8.23 220 8.66 PBC12180 180 1170 1550 540.0 1.8 FT3 60.5 133 520 20.5 238 9.37 220 8.67 PBC12200 200 1240 1670 540.0 1.8 FT3 65.0 143 520 20.5 238 9.37 220 8.67 PBC12230 230 1400 1870 590.0 1.5 FT3 70.0 155 520 20.5 269 10.6 210 8.27 PBC665 65 380 525 180.0 3.8 *FT2 or CA 11.3 25.0 185 7.30 112 4.39 205 8.06 PBC6150 150 950 1280 450.0 2.5 FT3 25.0 55.1 260 10.2 180 7.09 252 9.92 PBC6180 180 1100 1450 480.0 2.0 FT3 28.0 61.7 306 12.0 168 6.61 228 8.98 PBC6200 200 1200 1600 500.0 1.8 FT3 31.0 68.4 320 12.6 173 6.82 230 9.06 *CA: Cable assembly with TEW-105 (#12 AWG) tinned copper wire, AMP connector housing Plug Kit and sockets.

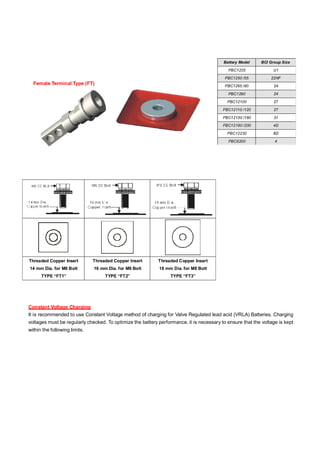

- 9. Battery Model BCI Group Size PBC1235 U1 PBC1250 /55 22NF PBC1265 /80 24 PBC1290 24 PBC12100 27 PBC12110 /120 27 PBC12150 /160 31 PBC12180 /200 4D PBC12230 8D PBC6200 4 Female Terminal Type (FT) Threaded Copper Insert 14 mm Dia. for M6 Bolt TYPE “FT1” Threaded Copper Insert 16 mm Dia. for M6 Bolt TYPE “FT2” Threaded Copper Insert 18 mm Dia. for M8 Bolt TYPE “FT3” Constant Voltage Charging It is recommended to use Constant Voltage method of charging for Valve Regulated lead acid (VRLA) Batteries. Charging voltages must be regularly checked. To optimize the battery performance, it is necessary to ensure that the voltage is kept within the following limits.

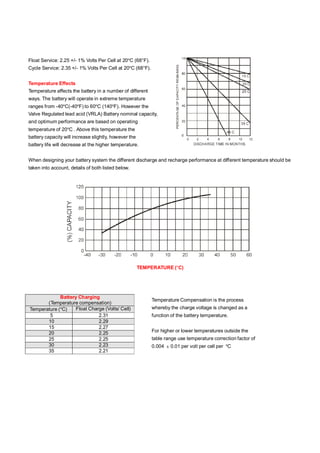

- 10. Battery Charging (Temperature compensation) Temperature (ºC) Float Charge (Volts/ Cell) 5 2.31 10 2.29 15 2.27 20 2.25 25 2.25 30 2.23 35 2.21 Float Service: 2.25 +/- 1% Volts Per Cell at 20ºC (68°F). Cycle Service: 2.35 +/- 1% Volts Per Cell at 20ºC (68°F). Temperature Effects Temperature affects the battery in a number of different ways. The battery will operate in extreme temperature ranges from -40ºC(-40ºF) to 60ºC (140ºF). However the Valve Regulated lead acid (VRLA) Battery nominal capacity, and optimum performance are based on operating temperature of 20ºC . Above this temperature the battery capacity will increase slightly, however the battery life will decrease at the higher temperature. When designing your battery system the different discharge and recharge performance at different temperature should be taken into account, details of both listed below. TEMPERATURE (ºC) Temperature Compensation is the process whereby the charge voltage is changed as a function of the battery temperature. For higher or lower temperatures outside the table range use temperature correction factor of 0.004 ± 0.01 per volt per cell per ºC
