PCF
Rajan Prasad Upadhyay
Rajan p Upadhyay 1

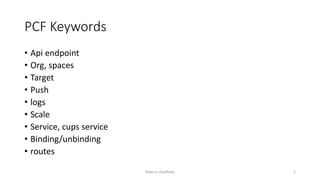

PCF Keywords
? Api endpoint
? Org, spaces
? Target
? Push
? logs
? Scale
? Service, cups service
? Binding/unbinding
? routes
Rajan p Upadhyay 2

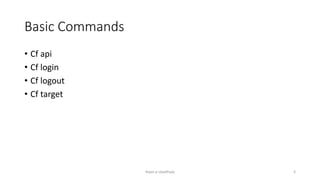

Basic Commands
? Cf api
? Cf login
? Cf logout
? Cf target
Rajan p Upadhyay 3

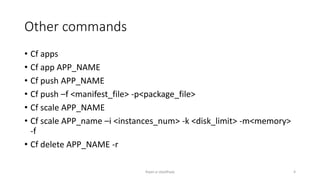

Other commands
? Cf apps
? Cf app APP_NAME
? Cf push APP_NAME
? Cf push ¨Cf <manifest_file> -p<package_file>
? Cf scale APP_NAME
? Cf scale APP_name ¨Ci <instances_num> -k <disk_limit> -m<memory>
-f
? Cf delete APP_NAME -r
Rajan p Upadhyay 4

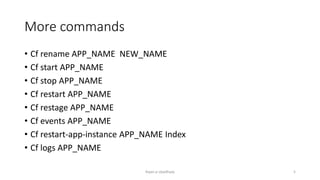

More commands
? Cf rename APP_NAME NEW_NAME
? Cf start APP_NAME
? Cf stop APP_NAME
? Cf restart APP_NAME
? Cf restage APP_NAME
? Cf events APP_NAME
? Cf restart-app-instance APP_NAME Index
? Cf logs APP_NAME
Rajan p Upadhyay 5

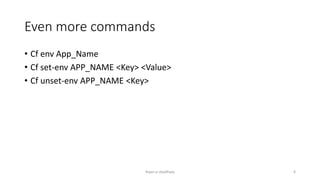

Even more commands
? Cf env App_Name
? Cf set-env APP_NAME <Key> <Value>
? Cf unset-env APP_NAME <Key>
Rajan p Upadhyay 6

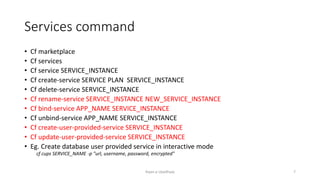

Services command
? Cf marketplace
? Cf services
? Cf service SERVICE_INSTANCE
? Cf create-service SERVICE PLAN SERVICE_INSTANCE
? Cf delete-service SERVICE_INSTANCE
? Cf rename-service SERVICE_INSTANCE NEW_SERVICE_INSTANCE
? Cf bind-service APP_NAME SERVICE_INSTANCE
? Cf unbind-service APP_NAME SERVICE_INSTANCE
? Cf create-user-provided-service SERVICE_INSTANCE
? Cf update-user-provided-service SERVICE_INSTANCE
? Eg. Create database user provided service in interactive mode
cf cups SERVICE_NAME -p "url, username, password, encrypted"
Rajan p Upadhyay 7

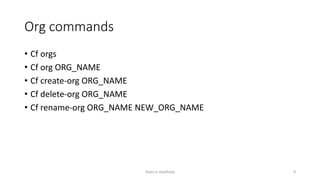

Org commands
? Cf orgs
? Cf org ORG_NAME
? Cf create-org ORG_NAME
? Cf delete-org ORG_NAME
? Cf rename-org ORG_NAME NEW_ORG_NAME
Rajan p Upadhyay 8

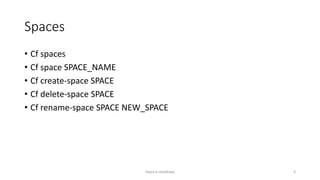

Spaces
? Cf spaces
? Cf space SPACE_NAME
? Cf create-space SPACE
? Cf delete-space SPACE
? Cf rename-space SPACE NEW_SPACE
Rajan p Upadhyay 9

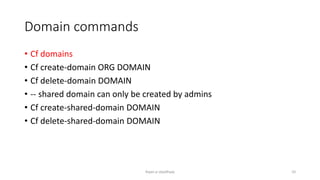

Domain commands
? Cf domains
? Cf create-domain ORG DOMAIN
? Cf delete-domain DOMAIN
? -- shared domain can only be created by admins
? Cf create-shared-domain DOMAIN
? Cf delete-shared-domain DOMAIN
Rajan p Upadhyay 10

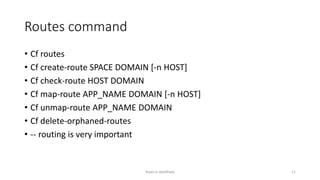

Routes command
? Cf routes
? Cf create-route SPACE DOMAIN [-n HOST]
? Cf check-route HOST DOMAIN
? Cf map-route APP_NAME DOMAIN [-n HOST]
? Cf unmap-route APP_NAME DOMAIN
? Cf delete-orphaned-routes
? -- routing is very important
Rajan p Upadhyay 11
extra commands
? Cf buildpacks
? Cf feature-flags
Rajan p Upadhyay 12

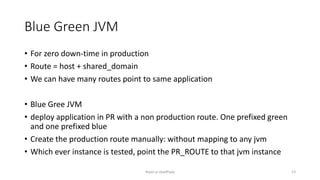

Blue Green JVM
? For zero down-time in production
? Route = host + shared_domain
? We can have many routes point to same application
? Blue Gree JVM
? deploy application in PR with a non production route. One prefixed green
and one prefixed blue
? Create the production route manually: without mapping to any jvm
? Which ever instance is tested, point the PR_ROUTE to that jvm instance
Rajan p Upadhyay 13

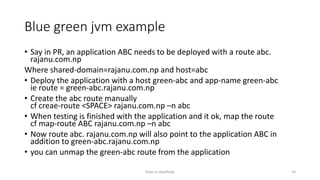

Blue green jvm example
? Say in PR, an application ABC needs to be deployed with a route abc.
rajanu.com.np
Where shared-domain=rajanu.com.np and host=abc
? Deploy the application with a host green-abc and app-name green-abc
ie route = green-abc.rajanu.com.np
? Create the abc route manually
cf creae-route <SPACE> rajanu.com.np ¨Cn abc
? When testing is finished with the application and it ok, map the route
cf map-route ABC rajanu.com.np ¨Cn abc
? Now route abc. rajanu.com.np will also point to the application ABC in
addition to green-abc.rajanu.com.np
? you can unmap the green-abc route from the application
Rajan p Upadhyay 14

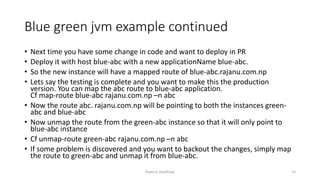

Blue green jvm example continued
? Next time you have some change in code and want to deploy in PR
? Deploy it with host blue-abc with a new applicationName blue-abc.
? So the new instance will have a mapped route of blue-abc.rajanu.com.np
? Lets say the testing is complete and you want to make this the production
version. You can map the abc route to blue-abc application.
Cf map-route blue-abc rajanu.com.np ¨Cn abc
? Now the route abc. rajanu.com.np will be pointing to both the instances green-
abc and blue-abc
? Now unmap the route from the green-abc instance so that it will only point to
blue-abc instance
? Cf unmap-route green-abc rajanu.com.np ¨Cn abc
? If some problem is discovered and you want to backout the changes, simply map
the route to green-abc and unmap it from blue-abc.
