Performance Monitoring With AOP

Jun 19, 2012Download as ppt, pdf

1 like1,453 views

ivannotes

文档讨论了性能监控的重要性，以及需要监控的关键点，包括外部依赖和页面访问速度。介绍了多种性能监控的方法与工具，如 Perf4j、Spring AOP 和 AspectJ。还提供了未来发展方向和参考资料。

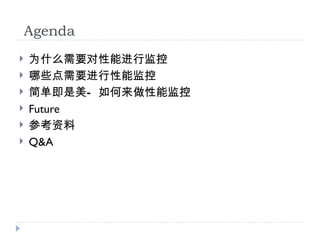

Agenda
? 为什么需要对性能进行监控
? 哪些点需要进行性能监控
? 简单即是美— 如何来做性能监控
? Future
? 参考资料
? Q&A

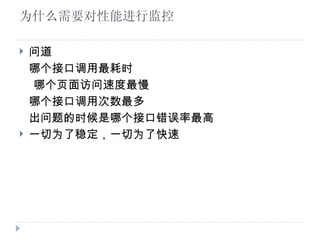

为什么需要对性能进行监控

? 问道
哪个接口调用最耗时
哪个页面访问速度最慢
哪个接口调用次数最多
出问题的时候是哪个接口错误率最高
? 一切为了稳定，一切为了快速

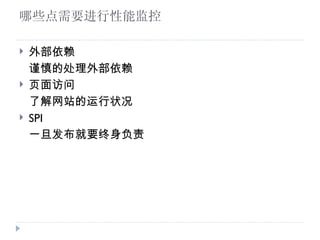

哪些点需要进行性能监控

? 外部依赖
谨慎的处理外部依赖
? 页面访问
了解网站的运行状况
? SPI
一旦发布就要终身负责

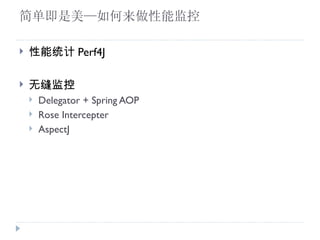

简单即是美—如何来做性能监控

? 性能统计 Perf4J

? 无缝监控
? Delegator + Spring AOP
? Rose Intercepter
? AspectJ

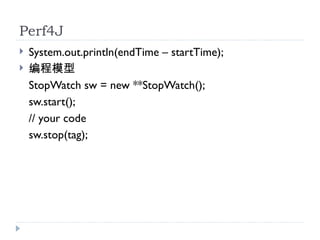

Perf4J
? System.out.println(endTime – startTime);
? 编程模型
StopWatch sw = new **StopWatch();
sw.start();
// your code
sw.stop(tag);

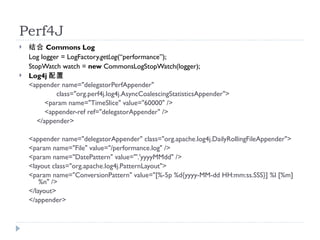

Perf4J
? 结合 Commons Log
Log logger = LogFactory.getLog(“performance”);
StopWatch watch = new CommonsLogStopWatch(logger);
? Log4j 配置
<appender name="delegatorPerfAppender"
class="org.perf4j.log4j.AsyncCoalescingStatisticsAppender">
<param name="TimeSlice" value="60000" />
<appender-ref ref="delegatorAppender" />
</appender>

<appender name="delegatorAppender" class="org.apache.log4j.DailyRollingFileAppender">
<param name="File" value="/performance.log" />
<param name="DatePattern" value="'.'yyyyMMdd" />
<layout class="org.apache.log4j.PatternLayout">
<param name="ConversionPattern" value="[%-5p %d{yyyy-MM-dd HH:mm:ss.SSS}] %l [%m]
%n" />
</layout>
</appender>

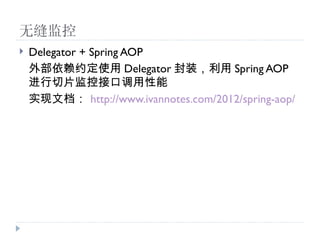

无缝监控
? Delegator + Spring AOP
外部依赖约定使用 Delegator 封装，利用 Spring AOP
进行切片监控接口调用性能
实现文档： http://www.ivannotes.com/2012/spring-aop/

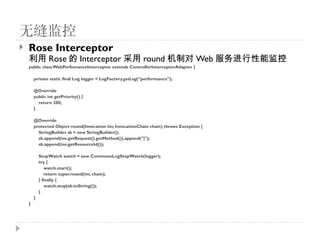

无缝监控
? Rose Interceptor
利用 Rose 的 Interceptor 采用 round 机制对 Web 服务进行性能监控
public class WebPerfomanceInterceptor extends ControllerInterceptorAdapter {

private static final Log logger = LogFactory.getLog(“performance");

@Override
public int getPriority() {
return 200;
}

@Override
protected Object round(Invocation inv, InvocationChain chain) throws Exception {
StringBuilder sb = new StringBuilder();
sb.append(inv.getRequest().getMethod()).append("|");
sb.append(inv.getResourceId());

StopWatch watch = new CommonsLogStopWatch(logger);
try {
watch.start();
return super.round(inv, chain);
} finally {
watch.stop(sb.toString());
}
}
}

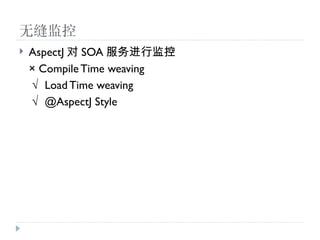

无缝监控
? AspectJ 对 SOA 服务进行监控
× Compile Time weaving
√ Load Time weaving
√ @AspectJ Style

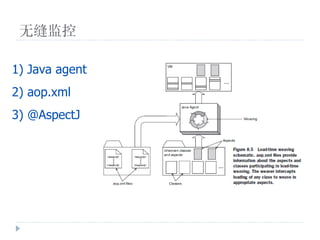

无缝监控

1) Java agent
2) aop.xml
3) @AspectJ

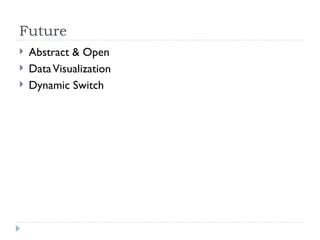

Future
? Abstract & Open
? Data Visualization
? Dynamic Switch

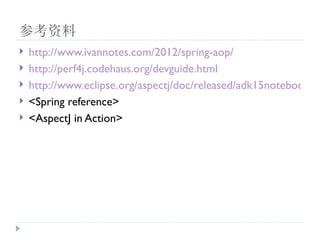

参考资料
? http://www.ivannotes.com/2012/spring-aop/
? http://perf4j.codehaus.org/devguide.html
? http://www.eclipse.org/aspectj/doc/released/adk15notebook/in
? <Spring reference>
? <AspectJ in Action>
