- 1. Industrial Machine Vision ID Application By : Amaresh Ch. Dash

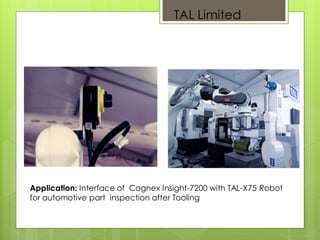

- 2. Application: Interface of Cognex Insight-7200 with TAL-X75 Robot for automotive part inspection after Tooling TAL Limited

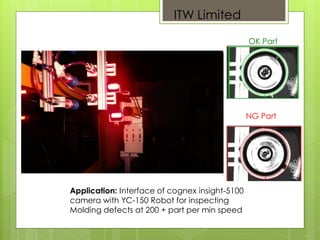

- 3. Application: Interface of cognex insight-5100 camera with YC-150 Robot for inspecting Molding defects at 200 + part per min speed OK Part NG Part ITW Limited
- 4. Application: Inspection of c - washer for automotive part with Cognex insight -7020 camera Valeo India Private Limited OK Part NG Part
- 5. Gasket presence/absence/twist Application at the speed of 200+ speed Technocraft Industries India Limited OK Part NG Part
- 6. Application :Cognex Checker For inspecting Gasket spring for multiple variable at 200 parts per min Vibro feed

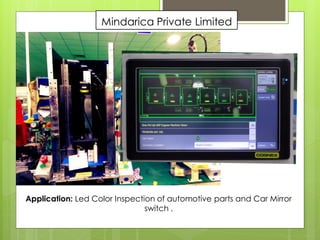

- 7. Mindarica Private Limited Application: Led Color Inspection of automotive parts and Car Mirror switch ,

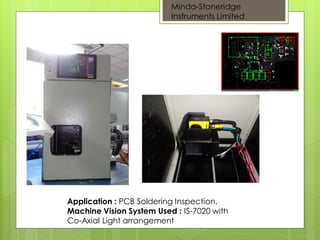

- 8. Minda Stoneridge Instruments Limited Application : PCB Soldering Inspection. Machine Vision System Used : Cognex Checker Vision Sensor

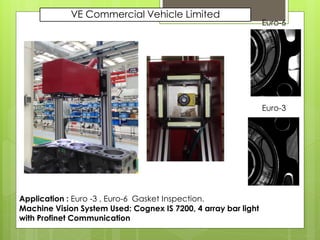

- 9. VE Commercial Vehicle Limited Euro-6 Euro-3 Application : Euro -3 , Euro-6 Gasket Inspection. Machine Vision System Used: Cognex IS 7200, 4 array bar light with Profinet Communication
- 10. Application : PCB Soldering Inspection. Machine Vision System Used : IS-7020 with Co-Axial Light arrangement PCB Minda-Stoneridge Instruments Limited

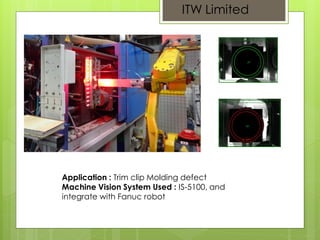

- 11. ITW Limited Application : Trim clip Molding defect Machine Vision System Used : IS-5100, and integrate with Fanuc robot
