Php arduino

Jul 9, 20141 like941 views

This document provides code to connect an Arduino board to PHP code running on a computer. The Arduino code receives serial input from the PHP code to control an LED, turning it on or off depending on whether a 0 or 1 is received. The PHP code uses a serial communication class to open the serial port, send the data to control the LED, then close the port.

>_ Things Lab
Connecting PHP with Arduino

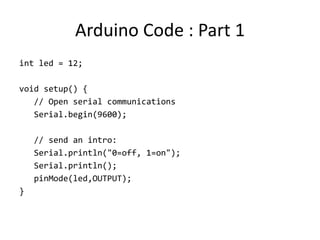

Arduino Code : Part 1
int led = 12;
void setup() {
// Open serial communications
Serial.begin(9600);
// send an intro:
Serial.println("0=off, 1=on");
Serial.println();
pinMode(led,OUTPUT);
}

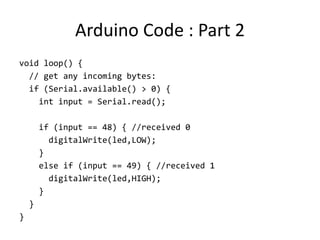

Arduino Code : Part 2
void loop() {
// get any incoming bytes:
if (Serial.available() > 0) {
int input = Serial.read();
if (input == 48) { //received 0
digitalWrite(led,LOW);
}
else if (input == 49) { //received 1
digitalWrite(led,HIGH);
}
}
}

PHP code (same dir as "php_serial.class.php")
<?php
include "php_serial.class.php";
$msg = $argv[1]; // 0=off, 1=on
$serial = new phpSerial;
$serial->deviceSet("/dev/ttyUSB0");
$serial->confBaudRate(9600);
$serial->confParity("none");
$serial->confCharacterLength(8);
$serial->confStopBits(1);
$serial->deviceOpen();
if (intval($msg)==0) $serial->sendMessage(0); //turn the led off
else $serial->sendMessage(1); //turn the led on
$serial->deviceClose();
?>

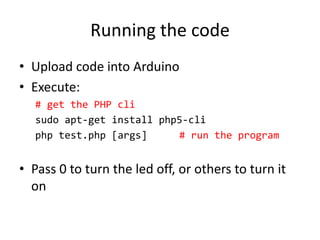

Running the code
? Upload code into Arduino
? Execute:
# get the PHP cli
sudo apt-get install php5-cli
php test.php [args] # run the program
? Pass 0 to turn the led off, or others to turn it
on

This document introduces PHP 5.4 and provides an overview of new features and changes from previous versions. Some key additions in PHP 5.4 include improved performance, always available short echo tags, closure support for $this, class member access on instantiation, and a built-in development web server. The document also discusses how to switch to PHP 5.4 on Gentoo Linux and provides useful links for more information.

NYU hacknight, april 6, 2016Mikhail Sosonkin

The document outlines techniques for exploring and debugging Objective-C on iOS, emphasizing the process of tracing function calls and manipulating memory for reverse engineering. It details the setup and usage of tools for jailbreaking, memory corruption vulnerabilities, and the internal workings of Objective-C method calls through assembly instructions. Additionally, it provides resources and challenges for further learning and engagement in iOS security research.

ZeroNights: Automating iOS blackbox security scanningMikhail Sosonkin

The document discusses several tools for testing iOS applications, including ChaoticMarch, Machshark, and Objc_trace. ChaoticMarch is described as a tool for simulating user interactions and automating testing of an iOS app. It allows writing Lua scripts to interact with the UI and regulate test execution speed. Machshark is a tool for analyzing Mach IPC messages and Objc_trace is used to trace Objective-C method calls. Code snippets are provided showing examples of how to use ChaoticMarch to automate tapping buttons and entering text, as well as how Machshark and Objc_trace work.

Sniffing Mach MessagesMikhail Sosonkin

The document discusses sniffing Mach messages on iOS and macOS. It provides an overview of the Mach message protocol and how to intercept and parse Mach messages using LLDB scripts. It describes setting breakpoints at functions like bootstrap_look_up and mach_msg, and using Python scripts to extract information from the messages, including the port name and number. Examples are given of intercepting messages from the libsimulatetouch library. The challenge proposed is to port the LLDB scripts to macOS and identify other uses of Mach messages, such as using Frida.

ArpEbsil Sherly

This document contains code for an ARP server and client program written in C. The server code creates a socket, binds it to port 7564, and listens for connections from clients. When a client connects, the server receives an IP address from the client, looks up the corresponding MAC address, and sends it back to the client. The client code connects to the server socket, prompts the user for an IP address, sends it to the server, receives the MAC address response, and prints it.

Chat codemanish bhandare

This document contains code for a server-side C program that implements a basic TCP socket server. It creates a socket, binds it to a port, listens for connections, accepts a connection, and then communicates with the client by sending and receiving data until the client sends the "exit" message. It uses common socket and network functions like socket(), bind(), listen(), accept(), send(), and recv().

Debugging: Rules And Tools - PHPTek 11 VersionIan Barber

The document provides rules and tools for debugging. It discusses understanding the system, making failures reproducible, quitting thinking and closely observing behaviors, dividing problems into smaller pieces, changing one thing at a time, and maintaining an audit trail of changes. Tools mentioned include Xdebug, Selenium, PHPUnit, strace, and source control systems. Logging, instrumentation, and testing techniques are also covered.

Teaching Your Machine To Find FraudstersIan Barber

The document discusses techniques for detecting fraudulent activities using machine learning, specifically focusing on anomaly detection and supervised classifiers. It includes code snippets demonstrating algorithms for evaluating fraud detection models, analyzing user behavior, and improving prediction accuracy. Various methods such as statistical analysis, sensitivity, and training data evaluation are detailed to enhance classifiers' performance in identifying fraudulent transactions.

swift-nio のアーキテクチャーと RxHttpClientShinya Mochida

The document discusses the Swift-NIO and RxHTTPClient frameworks, focusing on their functionalities for non-blocking I/O operations and HTTP client implementation. It covers various event-driven programming concepts, event loops, channels, and handlers in the context of Swift programming. Additionally, it includes references to further resources and GitHub repositories for additional learning on the mentioned technologies.

How to stand on the shoulders of giantsIan Barber

The document discusses various programming concepts and examples, including basic programming structures in languages such as C, PHP, and a sorting algorithm implementation. It references significant figures in the tech industry and highlights the importance of innovation within open source hardware platforms. Quotes from notable individuals emphasize the transformative potential of collective efforts in computing and technology.

Rop and it's friendsnuc13us

The document discusses Return-Oriented Programming (ROP) as a technique to exploit buffer overflows and gain control over the instruction pointer using coded sequences known as gadgets. It explains the mechanisms behind ROP, including how it circumvents protections like Non-Executable (NX) stack and Address Space Layout Randomization (ASLR), and provides examples of payload generation for exploitation. Additionally, it compares ROP with other techniques such as return-to-libc (ret2libc) and outlines various methods attackers may employ, like signal frames or JIT-ROP.

20151224-gamesNoritada Shimizu

Mozilla is a non-profit organization dedicated to keeping the web accessible and open for users globally, primarily through its products like Firefox. The document includes various JavaScript and WebAssembly code snippets demonstrating functionalities such as shader compilation and Fibonacci calculations. It also contains information about the organization’s mission and projects related to web standards and technologies.

2016 gunma.web games-and-asm.jsNoritada Shimizu

Anatomy of a PHP Request ( UTOSC 2010 )Joseph Scott

Introduction to CloudForecast / YAPC::Asia 2010 TokyoMasahiro Nagano

ZeroMQ Is The AnswerIan Barber

The document provides code examples and explanations for using ZeroMQ, covering various socket types and messaging patterns such as request/reply, publish/subscribe, and pipeline processing. It includes setups for server and client, socket definitions, and methods for sending and receiving messages using ZeroMQ's context and sockets in PHP. Additionally, links to helpful resources and community contributions are provided.

Formatul Portable Executable DefCamp

Commencer avec le TDDEric Hogue

The document outlines an introduction to Test-Driven Development (TDD) by Eric Hogue, detailing unit tests and the tools needed for implementation such as PHPUnit and Composer. It discusses the TDD rules established by 'Uncle Bob', including the sequence of writing failing tests, making them pass, and then refactoring. Additional topics touched upon include dependency injection, database mocking, and the use of virtual file systems for testing purposes.

AsyncioAndrew Svetlov

This document discusses asyncio and asynchronous programming in Python. It begins by introducing the author and their experience with asyncio. It then covers topics like using yield from to write asynchronous code, how yield from works under the hood, debugging asynchronous code, task cancellation, timeouts, and more. Magic methods and third-party libraries for asyncio are also mentioned. In summary, asyncio provides a convenient API for asynchronous networking in Python using TCP/UDP sockets, Unix pipes, and processes, though the ecosystem is still growing.

Пишем для asyncio - Андрей Светлов, PyCon RU 2014it-people

This document discusses asyncio and asynchronous programming in Python. It begins by introducing the author and their experience with asyncio. It then covers topics like using yield from to write asynchronous code, how yield from works under the hood, debugging asynchronous code, task cancellation, timeouts, and magical methods. The document advocates for using asyncio for its convenient API and features for handling TCP/UDP sockets, Unix pipes, processes and more in an asynchronous way while acknowledging there is still work to be done on libraries.

Continuous testing In PHPEric Hogue

The document discusses continuous testing in PHP, detailing the setup and configuration of the Guard tool for automating various testing processes. It includes instructions for installing Ruby and Guard, setting up guardfiles for PHP testing with PHPUnit, PHPCS, and PHPMD, and mentions additional plugins for JavaScript testing and live reloading. The author shares insights on automating tests and encourages engaging in PHP mentoring.

ZeroMQ Is The Answer: DPC 11 VersionIan Barber

Ethical hacking with Python toolsJose Manuel Ortega Candel

The document discusses using Python tools for ethical hacking and penetration testing. It provides an overview of several Python modules like Sockets, Requests, BeautifulSoup, and Shodan that can be used for tasks like port scanning, banner grabbing, web scraping, and online reconnaissance. It also describes popular Python tools for vulnerability scanning and penetration testing like Nmap, Metasploit, Nexpose, and provides code examples of using them for tasks like port scanning, vulnerability detection, and web application testing.

Guarding Your Code Against Bugs with Continuous TestingEric Hogue

The document discusses continuous testing in software development, specifically focusing on its implementation with PHP and various guard plugins. It provides a detailed guide on setting up and configuring automatic tests using tools like Guard, PHPUnit, PHPCS, and Behat. The document also includes code snippets and configurations for managing notifications and executing tests in real-time during development.

YCAM Workshop Part 3Shigeru Kobayashi

plackdo, plack-like web interface on perl6Nobuo Danjou

This document discusses Plackdo, which is a port of the Plack web development toolkit to the Rakudo implementation of Perl 6. It provides an overview of Plack, PSGI, and Rakudo. It then demonstrates how to create an echo server and HTTP server in Perl 6 using Plackdo and discusses features like middleware, testing, distribution, and database integration. The document encourages people to try building applications on Rakudo as a way to learn more about programming languages and help contribute to the Perl 6 and Parrot ecosystems.

プログラム実行の话と?翱厂とメモリの挙动の话tatsunori ishikawa

Gaztea Tech Robotica 2016Svet Ivantchev

The document provides instructions for setting up an ESP8266 microcontroller to control appliances remotely via MQTT and radio frequency signals. It explains how to connect the ESP8266 to WiFi, set up an MQTT client, and subscribe to commands topics to control plugs by sending RF codes when messages are received. Code examples are given to demonstrate publishing sensor data to MQTT and handling incoming messages to trigger the RF transmitter as needed.

Roberto Gallea: Workshop Arduino, giorno #2 Arduino + ProcessingDemetrio Siragusa

The document outlines an Arduino hands-on workshop focusing on interfacing with a PC using Arduino and Processing. It covers serial communication, including examples for sending and receiving data, and demonstrates Processing tutorials for generating visuals based on input data. Additionally, it discusses controlling RGB lamps via Arduino and introduces the Firmata library for simplified communication between microcontrollers and computers.

More Related Content

What's hot (20)

Teaching Your Machine To Find FraudstersIan Barber

swift-nio のアーキテクチャーと RxHttpClientShinya Mochida

How to stand on the shoulders of giantsIan Barber

Rop and it's friendsnuc13us

20151224-gamesNoritada Shimizu

2016 gunma.web games-and-asm.jsNoritada Shimizu

Anatomy of a PHP Request ( UTOSC 2010 )Joseph Scott

Introduction to CloudForecast / YAPC::Asia 2010 TokyoMasahiro Nagano

ZeroMQ Is The AnswerIan Barber

Formatul Portable Executable DefCamp

Commencer avec le TDDEric Hogue

AsyncioAndrew Svetlov

Пишем для asyncio - Андрей Светлов, PyCon RU 2014it-people

This document discusses asyncio and asynchronous programming in Python. It begins by introducing the author and their experience with asyncio. It then covers topics like using yield from to write asynchronous code, how yield from works under the hood, debugging asynchronous code, task cancellation, timeouts, and magical methods. The document advocates for using asyncio for its convenient API and features for handling TCP/UDP sockets, Unix pipes, processes and more in an asynchronous way while acknowledging there is still work to be done on libraries.

Continuous testing In PHPEric Hogue

ZeroMQ Is The Answer: DPC 11 VersionIan Barber

Ethical hacking with Python toolsJose Manuel Ortega Candel

Guarding Your Code Against Bugs with Continuous TestingEric Hogue

YCAM Workshop Part 3Shigeru Kobayashi

plackdo, plack-like web interface on perl6Nobuo Danjou

プログラム実行の话と?翱厂とメモリの挙动の话tatsunori ishikawa

Teaching Your Machine To Find FraudstersIan Barber

swift-nio のアーキテクチャーと RxHttpClientShinya Mochida

How to stand on the shoulders of giantsIan Barber

Rop and it's friendsnuc13us

20151224-gamesNoritada Shimizu

2016 gunma.web games-and-asm.jsNoritada Shimizu

Anatomy of a PHP Request ( UTOSC 2010 )Joseph Scott

Introduction to CloudForecast / YAPC::Asia 2010 TokyoMasahiro Nagano

ZeroMQ Is The AnswerIan Barber

Formatul Portable Executable DefCamp

Commencer avec le TDDEric Hogue

AsyncioAndrew Svetlov

Пишем для asyncio - Андрей Светлов, PyCon RU 2014it-people

Continuous testing In PHPEric Hogue

ZeroMQ Is The Answer: DPC 11 VersionIan Barber

Ethical hacking with Python toolsJose Manuel Ortega Candel

Guarding Your Code Against Bugs with Continuous TestingEric Hogue

YCAM Workshop Part 3Shigeru Kobayashi

plackdo, plack-like web interface on perl6Nobuo Danjou

プログラム実行の话と?翱厂とメモリの挙动の话tatsunori ishikawa

Similar to Php arduino (20)

Gaztea Tech Robotica 2016Svet Ivantchev

Roberto Gallea: Workshop Arduino, giorno #2 Arduino + ProcessingDemetrio Siragusa

Introduction to Node MCUAmarjeetsingh Thakur

The document provides an overview of NodeMCU, an open-source development environment based on the ESP8266 microcontroller, enabling low-cost, Wi-Fi capable projects. It includes programming instructions using C or Lua, along with practical activities for interfacing with LEDs and serial communication. Additionally, it emphasizes the importance of platform-based development and outlines learning outcomes for participants.

selected input/output - sensors and actuatorsEueung Mulyana

The document outlines a series of projects involving sensors and actuators, focusing on integrating various sensing technologies such as light/laser sensors, PIR sensors, and temperature sensors with Arduino hardware. It includes detailed setups, code snippets, and visualizations using Processing to display sensor data. The content serves as a guide for users to understand and implement sensor-based projects with Arduino and Processing for data visualization and interaction.

Arduino coding class part iiJonah Marrs

This document provides an overview of programming basics including 2D and 3D arrays, nested loops, and classes. It discusses how to create and access multi-dimensional arrays, use nested loops to repeat operations, and define classes with methods and member variables. Examples are given for 2D and 3D arrays, nested loops that count iterations, and a class for flashing an LED with methods to define on and off times. Challenges are presented at the end involving nested loops, serial printing patterns, counting string occurrences, and creating a class to add integers that is then turned into a library.

Sensors and Actuators in Arduino, IntroductionBibekPokhrel13

IoT with openHAB on pcDuino3BJingfeng Liu

The document discusses the integration of various Internet of Things (IoT) devices with home automation using OpenHAB on the PCDuino platform. It outlines the setup process, hardware specifications, operating system compatibility, and provides code samples for configuring Bluetooth and MQTT communication. Additionally, it mentions opportunities for seed funding and incubation for makers in Shenzhen, China, through a partnership with Launchhill.

Arduino for BeginnersSarwan Singh

The document discusses Arduino, an open-source electronics prototyping platform. It describes Arduino Uno, including its processor, memory, input/output pins, and operating voltage. It provides steps for getting started with Arduino, including downloading the IDE, connecting the board, selecting options in the IDE, and uploading a basic blink program. The document also covers some key Arduino concepts like variables, conditional statements, loops, and functions.

Cassiopeia Ltd - ESP8266+Arduino workshoptomtobback

This document summarizes an ESP8266+Arduino workshop that demonstrates connecting an ESP8266 WiFi module to Arduino and programming it to create WiFi networks and access the internet. The workshop shows how to communicate with the ESP8266 using AT commands over serial, program it using the Arduino IDE, and use it as a web server and client. Code examples are provided to retrieve sensor data using a DHT11 and send it to a cloud database using the ESP8266's WiFi connection.

dotCloud and goFlavio Poletti

From clever code to better codeDror Helper

The document discusses the concept of 'clever code' in programming, emphasizing that while cleverness might feel good, it often complicates debugging and understanding. It advocates for clean coding practices, clear intent, and following best practices and design patterns instead of writing convoluted code. Ultimately, the piece serves as a reminder to prioritize readability and maintainability over cleverness in software development.

Physical Computing with the Arduino platform and Rubymdweezer

The document introduces physical computing using Ruby and Arduino, detailing the features of Arduino, such as its digital input/output capabilities and the use of the RAD IDE for programming. It includes sample code for controlling an LED and mentions various resources for buying Arduino components and libraries for enhanced functionality. Additionally, it presents a fun project called 'barduino' which combines Arduino with cocktail recipes.

Endless fun with Arduino and EventmachineBodo Tasche

This document provides information about Arduino and how it can be used with the EventMachine library in Ruby. It discusses the Arduino hardware specifications including the microcontroller, memory, and input/output pins. It then covers the Arduino software and examples of basic sketches. The document explains how EventMachine allows Ruby programs to communicate with an Arduino by connecting to its serial port and receiving sensor data or sending commands. Code snippets are provided for setting up serial communication between an EventMachine Ruby app and an Arduino.

Introduction to Arduino MicrocontrollerMujahid Hussain

The document introduces Arduino microcontrollers, detailing their open-source nature, types, and key features such as input/output pins and how they interface with the physical world. It covers Arduino UNO specifications, programming basics, and provides example sketches to demonstrate code structure and functions. The content also explains control structures, operators, and essential functions for digital input/output operations.

WIFI ESP01 interfacing with Arduino UNO with Sensor DHT11hussain0075468

The document discusses the integration of the ESP-01 Wi-Fi module with the Arduino Uno for enabling wireless connectivity in electronic projects. It outlines the essential components, features, and applications of both the ESP-01 and Arduino Uno, including programming details and code examples for data transmission. The conclusion emphasizes the potential of this integration for advancing IoT, home automation, and industrial controls.

Arduino práctico ethernetJose Antonio Vacas

This document discusses using Ethernet with Arduino. It provides code examples for using Arduino as an Ethernet server and client. It also discusses using the ENC28J60 Ethernet shield and its ethercard library, which provides higher performance than the standard Ethernet shield. Examples are given for an Ethernet server that handles client connections and reads/writes data, an Ethernet client that makes an HTTP request to Google, and an ENC28J60 client example.

IoT Hands-On-Lab, KINGS, 2019Jong-Hyun Kim

This document provides an introduction to developing Internet of Things (IoT) applications using the NodeMCU development board and IoT cloud platforms. It covers basic Arduino programming on NodeMCU, reading sensor values from devices like DHT11, and sending sensor data to the IoT platform Ubidots. Hands-on labs demonstrate building a real-time humidity and temperature monitor and a smart switch controller that retrieve and send data to control an LED. Future topics discussed include IoT communication protocols, machine learning, and applying IoT in various fields.

Socket Programming Intro.pptxssuserc4a497

This document provides an overview of socket programming in C. It discusses the key steps which include creating a socket, identifying the socket through binding, connecting from a client or accepting connections as a server, communicating via sending and receiving data, and closing the connection. It also covers related topics such as socket addresses and data types, asynchronous I/O, and Unix domain sockets. Code examples are provided to demonstrate creating and binding a socket in C.

Arduino、Web 到 IoTJustin Lin

Arduino is a popular hardware platform for IoT projects. This document discusses connecting Arduino devices to the web and cloud services. It introduces IoT concepts and components like hardware devices, communication protocols, data storage, and business logic. Ways to connect Arduino to web servers using libraries and shields are described. Popular cloud IoT platforms like ThingSpeak and Temboo and how to use them with Arduino Yun are also covered.

Arduino delphi 2014_7_bonnMax Kleiner

This document discusses connecting sensors and actuators to an Arduino board and controlling them through an HTTP server or COM port. It provides examples of coding an HTTP server and COM port control to turn an LED on and off from a web request or serial command. It also mentions using a starter kit to learn electronics and Arduino basics and provides several links for additional information on Arduino, Web of Things, software patterns, and other related topics.

Gaztea Tech Robotica 2016Svet Ivantchev

Roberto Gallea: Workshop Arduino, giorno #2 Arduino + ProcessingDemetrio Siragusa

Introduction to Node MCUAmarjeetsingh Thakur

selected input/output - sensors and actuatorsEueung Mulyana

Arduino coding class part iiJonah Marrs

Sensors and Actuators in Arduino, IntroductionBibekPokhrel13

IoT with openHAB on pcDuino3BJingfeng Liu

Arduino for BeginnersSarwan Singh

Cassiopeia Ltd - ESP8266+Arduino workshoptomtobback

dotCloud and goFlavio Poletti

From clever code to better codeDror Helper

Physical Computing with the Arduino platform and Rubymdweezer

Endless fun with Arduino and EventmachineBodo Tasche

Introduction to Arduino MicrocontrollerMujahid Hussain

WIFI ESP01 interfacing with Arduino UNO with Sensor DHT11hussain0075468

Arduino práctico ethernetJose Antonio Vacas

IoT Hands-On-Lab, KINGS, 2019Jong-Hyun Kim

Socket Programming Intro.pptxssuserc4a497

Arduino、Web 到 IoTJustin Lin

Arduino delphi 2014_7_bonnMax Kleiner

Recently uploaded (20)

“Why It’s Critical to Have an Integrated Development Methodology for Edge AI,...Edge AI and Vision Alliance

For the full video of this presentation, please visit: https://www.edge-ai-vision.com/2025/06/why-its-critical-to-have-an-integrated-development-methodology-for-edge-ai-a-presentation-from-lattice-semiconductor/ Sreepada Hegade, Director of ML Systems and Software at Lattice Semiconductor, presents the “Why It’s Critical to Have an Integrated Development Methodology for Edge AI” tutorial at the May 2025 Embedded Vision Summit. The deployment of neural networks near sensors brings well-known advantages such as lower latency, privacy and reduced overall system cost—but also brings significant challenges that complicate development. These challenges can be addressed effectively by choosing the right solution and design methodology. The low-power FPGAs from Lattice are well poised to enable efficient edge implementation of models, while Lattice’s proven development methodology helps to mitigate the challenges and risks associated with edge model deployment. In this presentation, Hegade explains the importance of an integrated framework that tightly consolidates different aspects of edge AI development, including training, quantization of networks for edge deployment, integration with sensors and inferencing. He also illustrates how Lattice’s simplified tool flow helps to achieve the best trade-off between power, performance and efficiency using low-power FPGAs for edge deployment of various AI workloads.

Tech-ASan: Two-stage check for Address Sanitizer - Yixuan Cao.pdfcaoyixuan2019

AudGram Review: Build Visually Appealing, AI-Enhanced Audiograms to Engage Yo...SOFTTECHHUB

AI VIDEO MAGAZINE - June 2025 - r/aivideo1pcity Studios, Inc

AI vs Human Writing: Can You Tell the Difference?Shashi Sathyanarayana, Ph.D

Edge-banding-machines-edgeteq-s-200-en-.pdfAmirStern2

FIDO Seminar: Evolving Landscape of Post-Quantum Cryptography.pptxFIDO Alliance

National Fuels Treatments Initiative: Building a Seamless Map of Hazardous Fu...Safe Software

The National Fuels Treatments Initiative (NFT) is transforming wildfire mitigation by creating a standardized map of nationwide fuels treatment locations across all land ownerships in the United States. While existing state and federal systems capture this data in diverse formats, NFT bridges these gaps, delivering the first truly integrated national view. This dataset will be used to measure the implementation of the National Cohesive Wildland Strategy and demonstrate the positive impact of collective investments in hazardous fuels reduction nationwide. In Phase 1, we developed an ETL pipeline template in FME Form, leveraging a schema-agnostic workflow with dynamic feature handling intended for fast roll-out and light maintenance. This was key as the initiative scaled from a few to over fifty contributors nationwide. By directly pulling from agency data stores, oftentimes ArcGIS Feature Services, NFT preserves existing structures, minimizing preparation needs. External mapping tables ensure consistent attribute and domain alignment, while robust change detection processes keep data current and actionable. Now in Phase 2, we’re migrating pipelines to FME Flow to take advantage of advanced scheduling, monitoring dashboards, and automated notifications to streamline operations. Join us to explore how this initiative exemplifies the power of technology, blending FME, ArcGIS Online, and AWS to solve a national business problem with a scalable, automated solution.

FIDO Alliance Seminar State of Passkeys.pptxFIDO Alliance

TrustArc Webinar - 2025 Global Privacy SurveyTrustArc

How does your privacy program compare to your peers? What challenges are privacy teams tackling and prioritizing in 2025? In the sixth annual Global Privacy Benchmarks Survey, we asked global privacy professionals and business executives to share their perspectives on privacy inside and outside their organizations. The annual report provides a 360-degree view of various industries' priorities, attitudes, and trends. See how organizational priorities and strategic approaches to data security and privacy are evolving around the globe. This webinar features an expert panel discussion and data-driven insights to help you navigate the shifting privacy landscape. Whether you are a privacy officer, legal professional, compliance specialist, or security expert, this session will provide actionable takeaways to strengthen your privacy strategy. This webinar will review: - The emerging trends in data protection, compliance, and risk - The top challenges for privacy leaders, practitioners, and organizations in 2025 - The impact of evolving regulations and the crossroads with new technology, like AI Predictions for the future of privacy in 2025 and beyond

SAP Modernization Strategies for a Successful S/4HANA Journey.pdfPrecisely

Murdledescargadarkweb.pdfvolumen1 100 elementaryJorgeSemperteguiMont

Data Validation and System InteroperabilitySafe Software

Artificial Intelligence in the Nonprofit Boardroom.pdfOnBoard

Viral>Wondershare Filmora 14.5.18.12900 Crack Free DownloadPuppy jhon

FIDO Seminar: Authentication for a Billion Consumers - Amazon.pptxFIDO Alliance

FIDO Seminar: Perspectives on Passkeys & Consumer Adoption.pptxFIDO Alliance

Raman Bhaumik - Passionate Tech EnthusiastRaman Bhaumik

High Availability On-Premises FME Flow.pdfSafe Software

FME Flow is a highly robust tool for transforming data both automatically and by user-initiated workflows. At the Finnish telecommunications company Elisa, FME Flow serves processes and internal stakeholders that require 24/7 availability from underlying systems, while imposing limitations on the use of cloud based systems. In response to these business requirements, Elisa has implemented a high-availability on-premises setup of FME Flow, where all components of the system have been duplicated or clustered. The goal of the presentation is to provide insights into the architecture behind the high-availability functionality. The presentation will show in basic technical terms how the different parts of the system work together. Basic level understanding of IT technologies is required to understand the technical portion of the presentation, namely understanding the purpose of the following components: load balancer, FME Flow host nodes, FME Flow worker nodes, network file storage drives, databases, and external authentication services. The presentation will also outline our lessons learned from the high-availability project, both benefits and challenges to consider.

vertical-cnc-processing-centers-drillteq-v-200-en.pdfAmirStern2

“Why It’s Critical to Have an Integrated Development Methodology for Edge AI,...Edge AI and Vision Alliance

Tech-ASan: Two-stage check for Address Sanitizer - Yixuan Cao.pdfcaoyixuan2019

AudGram Review: Build Visually Appealing, AI-Enhanced Audiograms to Engage Yo...SOFTTECHHUB

AI VIDEO MAGAZINE - June 2025 - r/aivideo1pcity Studios, Inc

AI vs Human Writing: Can You Tell the Difference?Shashi Sathyanarayana, Ph.D

Edge-banding-machines-edgeteq-s-200-en-.pdfAmirStern2

FIDO Seminar: Evolving Landscape of Post-Quantum Cryptography.pptxFIDO Alliance

National Fuels Treatments Initiative: Building a Seamless Map of Hazardous Fu...Safe Software

FIDO Alliance Seminar State of Passkeys.pptxFIDO Alliance

TrustArc Webinar - 2025 Global Privacy SurveyTrustArc

SAP Modernization Strategies for a Successful S/4HANA Journey.pdfPrecisely

Murdledescargadarkweb.pdfvolumen1 100 elementaryJorgeSemperteguiMont

Data Validation and System InteroperabilitySafe Software

Artificial Intelligence in the Nonprofit Boardroom.pdfOnBoard

Viral>Wondershare Filmora 14.5.18.12900 Crack Free DownloadPuppy jhon

FIDO Seminar: Authentication for a Billion Consumers - Amazon.pptxFIDO Alliance

FIDO Seminar: Perspectives on Passkeys & Consumer Adoption.pptxFIDO Alliance

Raman Bhaumik - Passionate Tech EnthusiastRaman Bhaumik

High Availability On-Premises FME Flow.pdfSafe Software

vertical-cnc-processing-centers-drillteq-v-200-en.pdfAmirStern2

Php arduino

1. >_ Things Lab Connecting PHP with Arduino

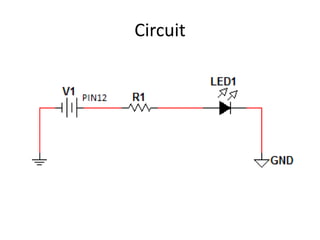

2. Circuit

3. Arduino Code : Part 1 int led = 12; void setup() { // Open serial communications Serial.begin(9600); // send an intro: Serial.println("0=off, 1=on"); Serial.println(); pinMode(led,OUTPUT); }

4. Arduino Code : Part 2 void loop() { // get any incoming bytes: if (Serial.available() > 0) { int input = Serial.read(); if (input == 48) { //received 0 digitalWrite(led,LOW); } else if (input == 49) { //received 1 digitalWrite(led,HIGH); } } }

5. PHP code (same dir as "php_serial.class.php") <?php include "php_serial.class.php"; $msg = $argv[1]; // 0=off, 1=on $serial = new phpSerial; $serial->deviceSet("/dev/ttyUSB0"); $serial->confBaudRate(9600); $serial->confParity("none"); $serial->confCharacterLength(8); $serial->confStopBits(1); $serial->deviceOpen(); if (intval($msg)==0) $serial->sendMessage(0); //turn the led off else $serial->sendMessage(1); //turn the led on $serial->deviceClose(); ?>

6. Running the code ? Upload code into Arduino ? Execute: # get the PHP cli sudo apt-get install php5-cli php test.php [args] # run the program ? Pass 0 to turn the led off, or others to turn it on

狠狠撸

Php arduino

Recommended

More Related Content

What's hot (20)

Similar to Php arduino (20)

Recently uploaded (20)

Php arduino
