Physical Product Catalog-Dual Compressor Screw Chiller 2015

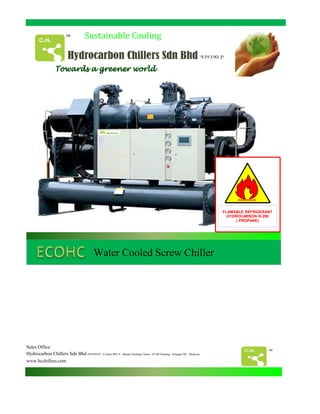

- 1. Sustainable Cooling flammable FLAMABLE REFRIGERANT Sales Office Hydrocarbon Chillers Sdn Bhd (939390-P) 22 Jalan BPU 6 , Bandar Puchong Utama , 47100 Puchong , Selangor DE , Malaysia www.hcchillers.com Water Cooled Screw Chiller TM FLAMABLE REFRIGERANT HYDROCARBON R-290 ( PROPANE)

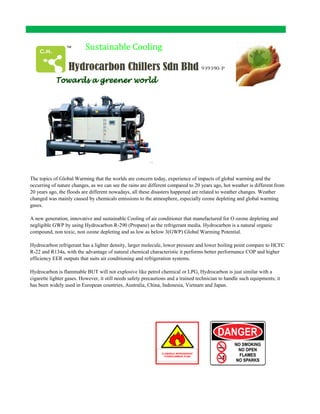

- 2. The topics of Global Warming that the worlds are concern today, experience of impacts of global warming and the occurring of nature changes, as we can see the rains are different compared to 20 years ago, hot weather is different from 20 years ago, the floods are different nowadays, all these disasters happened are related to weather changes. Weather changed was mainly caused by chemicals emissions to the atmosphere, especially ozone depleting and global warming gases. Sustainable Cooling A new generation, innovative and sustainable Cooling of air conditioner that manufactured for O ozone depleting and negligible GWP by using Hydrocarbon R-290 (Propane) as the refrigerant media. Hydrocarbon is a natural organic compound, non toxic, non ozone depleting and as low as below 3(GWP) Global Warming Potential. Hydrocarbon refrigerant has a lighter density, larger molecule, lower pressure and lower boiling point compare to HCFC R-22 and R134a, with the advantage of natural chemical characteristic it performs better performance COP and higher efficiency EER outputs that suits air conditioning and refrigeration systems. Hydrocarbon is flammable BUT will not explosive like petrol chemical or LPG, Hydrocarbon is just similar with a cigarette lighter gases. However, it still needs safety precautions and a trained technician to handle such equipments; it has been widely used in European countries, Australia, China, Indonesia, Vietnam and Japan. flammable FLAMABLE REFRIGERANT HYDROCARBON R-290

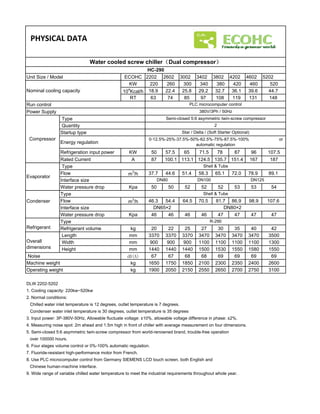

- 3. PHYSICAL DATA Unit Size / Model ECOHC 2202 2602 3002 3402 3802 4202 4602 5202 KW 220 260 300 340 380 420 460 520 104 Kcal/h 18.9 22.4 25.8 29.2 32.7 36.1 39.6 44.7 RT 63 74 85 97 108 119 131 148 Run control Power Supply Type Quantity Startup type Energy regulation Refrigeration input power KW 50 57.5 65 71.5 78 87 96 107.5 Rated Current A 87 100.1 113.1 124.5 135.7 151.4 167 187 Type Flow m3 /h 37.7 44.6 51.4 58.3 65.1 72.0 78.9 89.1 Interface size Water pressure drop Kpa 50 50 52 52 52 53 53 54 Type Flow m3 /h 46.3 54.4 64.5 70.5 81.7 86.9 98.9 107.6 Interface size Water pressure drop Kpa 46 46 46 46 47 47 47 47 Shell & Tube DN80 DN100 DN125 DN802 Water cooled screw chiller鐚鐚鐚鐚Dual compressor鐚鐚鐚鐚 HC-290 Nominal cooling capacity PLC microcomputer control 0-12.5%-25%-37.5%-50%-62.5%-75%-87.5%-100% or automatic regulation 380V/3Ph / 50Hz Compressor Semi-closed 5:6 asymmetric twin-screw compressor 2 Star / Delta / (Soft Starter Optional) Condenser Shell & Tube DN652 Evaporator Water pressure drop Kpa 46 46 46 46 47 47 47 47 Type Refrigerant volume kg 20 22 25 27 30 35 40 42 Length mm 3370 3370 3370 3470 3470 3470 3470 3500 Width mm 900 900 900 1100 1100 1100 1100 1300 Height mm 1440 1440 1440 1500 1530 1550 1580 1550 Noise dB(A) 67 67 68 68 69 69 69 69 Machine weight kg 1650 1750 1850 2100 2300 2350 2400 2600 Operating weight kg 1900 2050 2150 2550 2650 2700 2750 3100 DLW 2202-5202 1. Cooling capacity: 220kw~520kw 2. Normal conditions: Chilled water inlet temperature is 12 degrees, outlet temperature is 7 degrees. Condenser water inlet temperature is 30 degrees, outlet temperature is 35 degrees 3. Input power: 3P-380V-50Hz, Allowable fluctuate voltage: 賊10%, allowable voltage difference in phase: 賊2%. 4. Measuring noise spot: 2m ahead and 1.5m high in front of chiller with average measurement on four dimensions. 5. Semi-closed 5:6 asymmetric twin-screw compressor from world-renowned brand, trouble-free operation over 100000 hours. 6. Four stages volume control or 0%-100% automatic regulation. 7. Fluoride-resistant high-performance motor from French. 8. Use PLC microcomputer control from Germany SIEMENS LCD touch screen, both English and Chinese human-machine interface. 9. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year. Overall dimensions Refrigerant R-290

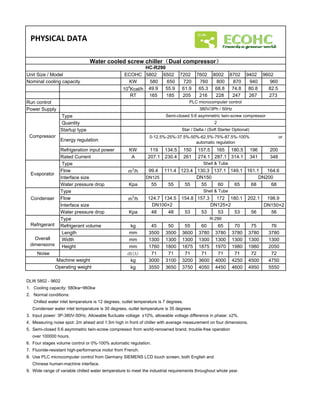

- 4. PHYSICAL DATA Unit Size / Model ECOHC 5802 6502 7202 7602 8002 8702 9402 9602 Nominal cooling capacity KW 580 650 720 760 800 870 940 960 104 Kcal/h 49.9 55.9 61.9 65.3 68.8 74.8 80.8 82.5 RT 165 185 205 216 228 247 267 273 Run control Power Supply Type Quantity Startup type Energy regulation Refrigeration input power KW 119 134.5 150 157.5 165 180.5 196 200 Rated Current A 207.1 230.4 261 274.1 287.1 314.1 341 348 Type Flow m3 /h 99.4 111.4 123.4 130.3 137.1 149.1 161.1 164.6 Interface size DN125 Water pressure drop Kpa 55 55 55 55 60 65 68 68 Type Flow m3 /h 124.7 134.5 154.8 157.3 172 180.1 202.1 198.9 Interface size DN1502 Water pressure drop Kpa 48 48 53 53 53 53 56 56 Water cooled screw chiller鐚鐚鐚鐚Dual compressor鐚鐚鐚鐚 HC-R290 PLC microcomputer control 380V/3Ph / 50Hz Compressor Semi-closed 5:6 asymmetric twin-screw compressor 2 Star / Delta / (Soft Starter Optional) 0-12.5%-25%-37.5%-50%-62.5%-75%-87.5%-100% or automatic regulation DN1002 DN1252 Evaporator Condenser Shell & Tube Shell & Tube DN150 DN200 Water pressure drop Kpa 48 48 53 53 53 53 56 56 Type Refrigerant volume kg 45 50 55 60 65 70 75 76 Length mm 3500 3500 3600 3780 3780 3780 3780 3780 Width mm 1300 1300 1300 1300 1300 1300 1300 1300 Height mm 1760 1800 1875 1875 1970 1980 1980 2050 Noise dB(A) 71 71 71 71 71 71 72 72 kg 3000 3100 3200 3600 4000 4250 4500 4750 kg 3550 3650 3750 4050 4450 4600 4950 5550 DLW 5802 - 9602 1. Cooling capacity: 580kw~960kw 2. Normal conditions: Chilled water inlet temperature is 12 degrees, outlet temperature is 7 degrees. Condenser water inlet temperature is 30 degrees, outlet temperature is 35 degrees 3. Input power: 3P-380V-50Hz, Allowable fluctuate voltage: 賊10%, allowable voltage difference in phase: 賊2%. 4. Measuring noise spot: 2m ahead and 1.5m high in front of chiller with average measurement on four dimensions. 5. Semi-closed 5:6 asymmetric twin-screw compressor from world-renowned brand, trouble-free operation over 100000 hours. 6. Four stages volume control or 0%-100% automatic regulation. 7. Fluoride-resistant high-performance motor from French. 8. Use PLC microcomputer control from Germany SIEMENS LCD touch screen, both English and Chinese human-machine interface. 9. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year. Overall dimensions Machine weight Operating weight Refrigerant R-290

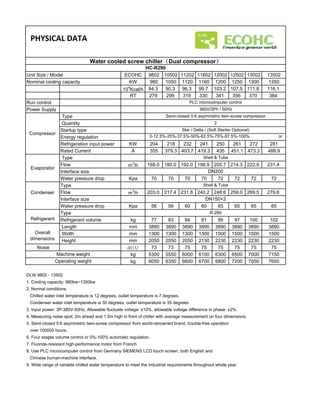

- 5. PHYSICAL DATA Unit Size / Model ECOHC 9802 10502 11202 11602 12002 12502 13002 13502 Nominal cooling capacity KW 980 1050 1120 1160 1200 1250 1300 1350 104 Kcal/h 84.3 90.3 96.3 99.7 103.2 107.5 111.8 116.1 RT 279 299 319 330 341 356 370 384 Run control Power Supply Type Quantity Startup type Energy regulation Refrigeration input power KW 204 218 232 241 250 261 272 281 Rated Current A 355 379.3 403.7 419.3 435 451.1 473.3 488.9 Type Flow m3 /h 168.0 180.0 192.0 198.9 205.7 214.3 222.9 231.4 Interface size Water pressure drop Kpa 70 70 70 70 72 72 72 72 Type Flow m3 /h 203.0 217.4 231.8 240.2 248.6 259.0 269.5 279.6 Interface size Water pressure drop Kpa 56 56 60 60 65 65 65 65 Type DN1502 Evaporator Shell & Tube DN200 Water cooled screw chiller鐚鐚鐚鐚Dual compressor鐚鐚鐚鐚 HC-R290 PLC microcomputer control 380V/3Ph / 50Hz Compressor Semi-closed 5:6 asymmetric twin-screw compressor 2 Star / Delta / (Soft Starter Optional) 0-12.5%-25%-37.5%-50%-62.5%-75%-87.5%-100% or automatic regulation Shell & Tube R-290 Condenser Type Refrigerant volume kg 77 83 84 91 95 97 100 102 Length mm 3890 3890 3890 3890 3890 3890 3890 3890 Width mm 1300 1300 1300 1300 1500 1500 1500 1500 Height mm 2050 2050 2050 2130 2230 2230 2230 2230 Noise dB(A) 73 73 75 75 75 75 75 75 kg 5300 5550 6000 6100 6300 6500 7000 7150 kg 6050 6350 6600 6700 6800 7200 7550 7650 DLW 9802 - 13502 1. Cooling capacity: 980kw~1350kw 2. Normal conditions: Chilled water inlet temperature is 12 degrees, outlet temperature is 7 degrees. Condenser water inlet temperature is 30 degrees, outlet temperature is 35 degrees 3. Input power: 3P-380V-50Hz, Allowable fluctuate voltage: 賊10%, allowable voltage difference in phase: 賊2%. 4. Measuring noise spot: 2m ahead and 1.5m high in front of chiller with average measurement on four dimensions. 5. Semi-closed 5:6 asymmetric twin-screw compressor from world-renowned brand, trouble-free operation over 100000 hours. 6. Four stages volume control or 0%-100% automatic regulation. 7. Fluoride-resistant high-performance motor from French. 8. Use PLC microcomputer control from Germany SIEMENS LCD touch screen, both English and Chinese human-machine interface. 9. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year. Operating weight Refrigerant R-290 Overall dimensions Machine weight
