The document contains detailed architectural plans and sketches for the Duncan-Carlson House located at 807 Russell Street, including site plans, basement, main floor, and second floor layouts. It outlines various elements such as room dimensions, placement of utilities, and structural features. The plans are represented in varying scales to provide a comprehensive view of the property's architecture.
Plates for 58-00604
- 1. 58-00604 Plate 1 58-00604 APE Setting Aerial View Duncan-Carlson House 807 Russell Street 100 ft N

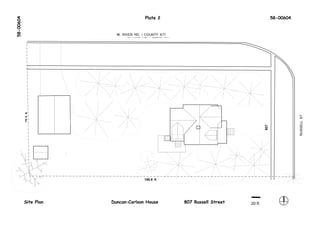

- 2. 58-00604 Plate 2 58-00604 W. RIVER RD. / COUNTY X71 W. River Rd. / County X71 75 5 ft RUSSELL ST Russell St 807 199.6 ft Site Plan DuncanCarlson House 807 Russell Street 20 ft

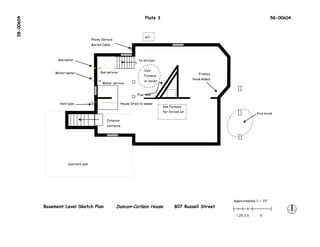

- 3. 58-00604 Plate 3 58-00604 A/C Phone Service Buried Cable Gas meter To kitchen UP Coal Water meter Gas service Firebox Furnace Hook-Rakes or boiler Water service Flue hole Vent pipe House Drain to sewer Gas Furnace for forced air Fire brick Exterior UP entrance Concrete pad Approximately 1 = .13" Basement Level Sketch Plan DuncanCarlson House 807 Russell Street 1.25 2.5 5

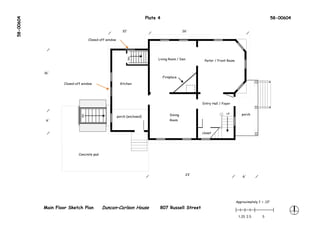

- 4. 58-00604 Plate 4 58-00604 10' 26' Closed-off window Living Room / Den DN Parlor / Front Room 16' Fireplace Closed-off window Kitchen Entry Hall / Foyer UP porch Dining DN porch (enclosed) 6' Room closet Concrete pad 23' 6' Approximately 1 = .13" Main Floor Sketch Plan DuncanCarlson House 807 Russell Street 1.25 2.5 5

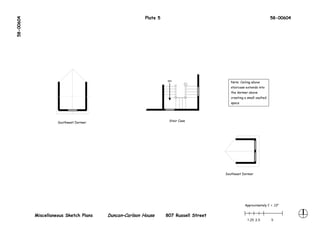

- 5. 58-00604 Plate 5 58-00604 DN Note: Ceiling above staircase extends into the dormer above creating a small vaulted space Stair Case Southwest Dormer Southeast Dormer Approximately 1 = .13" Miscellaneous Sketch Plans DuncanCarlson House 807 Russell Street 1.25 2.5 5

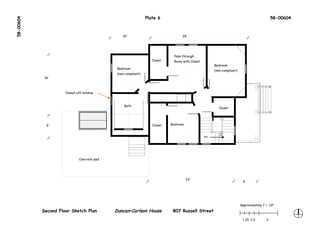

- 6. 58-00604 Plate 6 58-00604 10' 26' Pass-through Closet Room with Closet Bedroom Bedroom (non-compliant) (non-compliant) 16' Closed-off window Bath Closet 6' Closet Bedroom DN Concrete pad 23' 6' Approximately 1 = .13" Second Floor Sketch Plan DuncanCarlson House 807 Russell Street 1.25 2.5 5

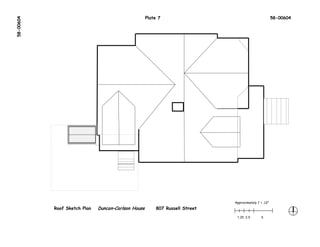

- 7. 58-00604 Plate 7 58-00604 Approximately 1 = .13" Roof Sketch Plan DuncanCarlson House 807 Russell Street 1.25 2.5 5
