Portfolio PDF

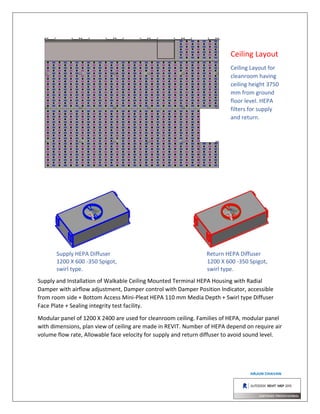

- 2. Ceiling Layout Ceiling Layout for cleanroom having ceiling height 3750 mm from ground floor level. HEPA filters for supply and return. Supply HEPA Diffuser Return HEPA Diffuser 1200 X 600 -350 Spigot, 1200 X 600 -350 Spigot, swirl type. swirl type. Supply and Installation of Walkable Ceiling Mounted Terminal HEPA Housing with Radial Damper with airflow adjustment, Damper control with Damper Position Indicator, accessible from room side + Bottom Access Mini-Pleat HEPA 110 mm Media Depth + Swirl type Diffuser Face Plate + Sealing integrity test facility. Modular panel of 1200 X 2400 are used for cleanroom ceiling. Families of HEPA, modular panel with dimensions, plan view of ceiling are made in REVIT. Number of HEPA depend on require air volume flow rate, Allowable face velocity for supply and return diffuser to avoid sound level.

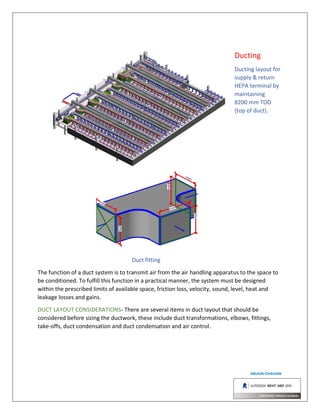

- 3. Ducting Ducting layout for supply & return HEPA terminal by maintaining 8200 mm TOD (top of duct). Duct fitting The function of a duct system is to transmit air from the air handling apparatus to the space to be conditioned. To fulfill this function in a practical manner, the system must be designed within the prescribed limits of available space, friction loss, velocity, sound, level, heat and leakage losses and gains. DUCT LAYOUT CONSIDERATIONS- There are several items in duct layout that should be considered before sizing the ductwork, these include duct transformations, elbows, fittings, take-offs, duct condensation and duct condensation and air control.

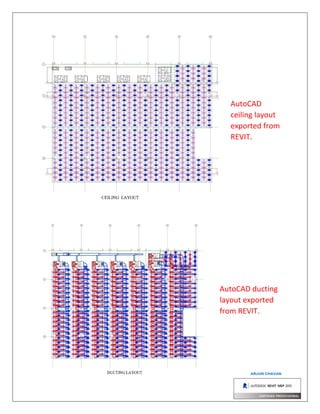

- 4. AutoCAD ceiling layout exported from REVIT. AutoCAD ducting layout exported from REVIT.

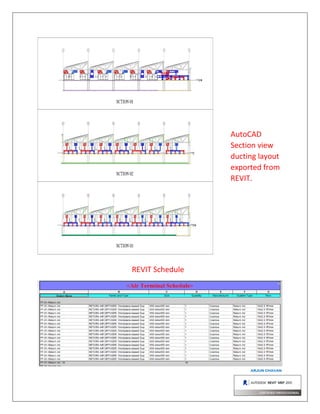

- 5. AutoCAD Section view ducting layout exported from REVIT. REVIT Schedule

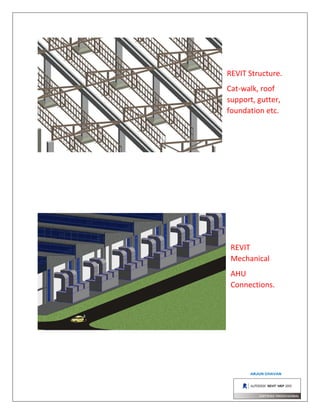

- 6. REVIT Structure. Cat-walk, roof support, gutter, foundation etc. REVIT Mechanical AHU Connections.

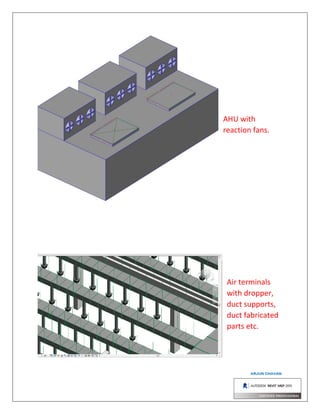

- 7. AHU with reaction fans. Air terminals with dropper, duct supports, duct fabricated parts etc.

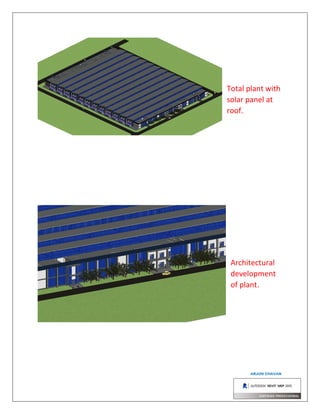

- 8. Total plant with solar panel at roof. Architectural development of plant.
