Post processing of jpeg image using MLP

Download as ppt, pdf

0 likes529 views

This document reports on a study using a multi-layer perceptron (MLP) neural network to reduce blocking artifacts in JPEG compressed images. The MLP takes gradients of pixel values near block borders as input and outputs differences between original and compressed pixel values to post-process images. Experiments showed the MLP can improve quality of grayscale images compressed to low bit rates when trained on high quality data, but did not significantly improve color images. Further research is needed on MLP structures for reducing artifacts in color images.

Engineering

Post-processing of JPEG
image using MLP
Fall 2003 ECE539
Final Project Report
Data Fok

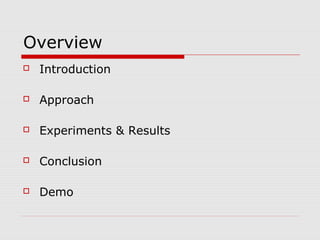

Overview
 Introduction
 Approach
 Experiments & Results
 Conclusion
 Demo

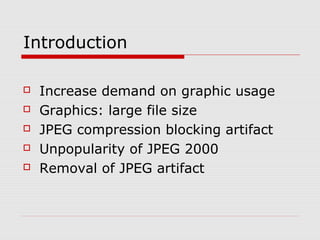

Introduction
 Increase demand on graphic usage
 Graphics: large file size
 JPEG compression blocking artifact
 Unpopularity of JPEG 2000
 Removal of JPEG artifact

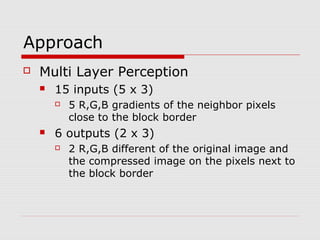

Approach
 Multi Layer Perception
 15 inputs (5 x 3)
 5 R,G,B gradients of the neighbor pixels
close to the block border
 6 outputs (2 x 3)
 2 R,G,B different of the original image and
the compressed image on the pixels next to
the block border

Approach – cont.
 First order polynomial fit
 Use the 4 pixels closest to the block
border to estimate the value on the 2
pixels next to the border
 Use as a control experiment

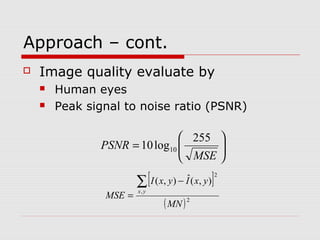

Approach – cont.
 Image quality evaluate by
 Human eyes
 Peak signal to noise ratio (PSNR)






=
MSE
PSNR
255
log10 10
[ ]
( )2
,
2
),(ˆ),(
MN
yxIyxI
MSE
yx
∑ −
=

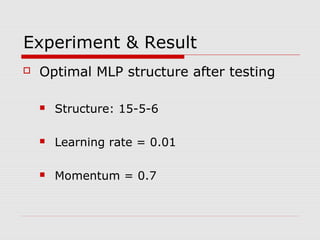

Experiment & Result
 Optimal MLP structure after testing
 Structure: 15-5-6
 Learning rate = 0.01
 Momentum = 0.7

Experiment & Result – cont.

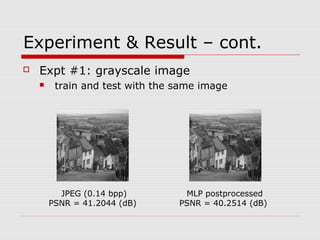

 Expt #1: grayscale image
 train and test with the same image
JPEG (0.14 bpp)
PSNR = 41.2044 (dB)
MLP postprocessed
PSNR = 40.2514 (dB)

Experiment & Result – cont.

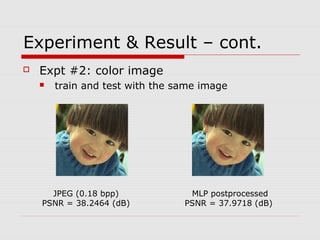

 Expt #2: color image
 train and test with the same image
JPEG (0.18 bpp)
PSNR = 38.2464 (dB)
MLP postprocessed
PSNR = 37.9718 (dB)

Experiment & Result – cont.

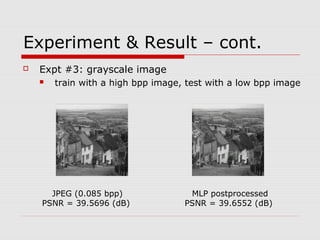

 Expt #3: grayscale image
 train with a high bpp image, test with a low bpp image
JPEG (0.085 bpp)
PSNR = 39.5696 (dB)
MLP postprocessed
PSNR = 39.6552 (dB)

Experiment & Result – cont.

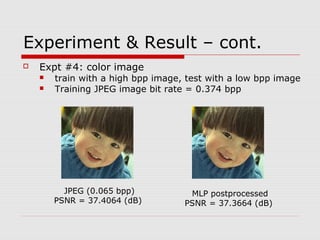

 Expt #4: color image
 train with a high bpp image, test with a low bpp image
 Training JPEG image bit rate = 0.374 bpp
JPEG (0.065 bpp)
PSNR = 37.4064 (dB)
MLP postprocessed
PSNR = 37.3664 (dB)

Experiment & Result – cont.

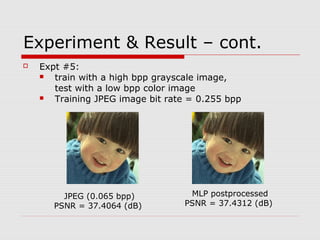

 Expt #5:
 train with a high bpp grayscale image,
test with a low bpp color image
 Training JPEG image bit rate = 0.255 bpp
JPEG (0.065 bpp)
PSNR = 37.4064 (dB)
MLP postprocessed
PSNR = 37.4312 (dB)

Experiment & Result – cont.

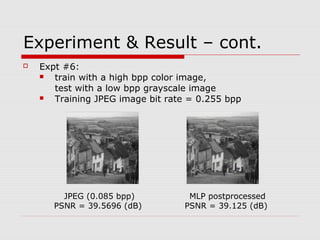

 Expt #6:
 train with a high bpp color image,
test with a low bpp grayscale image
 Training JPEG image bit rate = 0.255 bpp
JPEG (0.085 bpp)
PSNR = 39.5696 (dB)
MLP postprocessed
PSNR = 39.125 (dB)

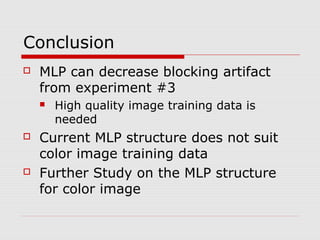

Conclusion
 MLP can decrease blocking artifact
from experiment #3
 High quality image training data is
needed
 Current MLP structure does not suit
color image training data
 Further Study on the MLP structure
for color image

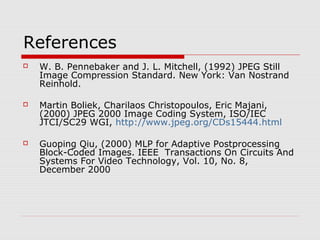

References
 W. B. Pennebaker and J. L. Mitchell, (1992) JPEG Still
Image Compression Standard. New York: Van Nostrand
Reinhold.
 Martin Boliek, Charilaos Christopoulos, Eric Majani,
(2000) JPEG 2000 Image Coding System, ISO/IEC
JTCI/SC29 WGI, http://www.jpeg.org/CDs15444.html
 Guoping Qiu, (2000) MLP for Adaptive Postprocessing
Block-Coded Images. IEEE Transactions On Circuits And
Systems For Video Technology, Vol. 10, No. 8,
December 2000
