Saturday, July 16th 2022
Princeton, NJ - MuleSoft Meetup
Group
Integrate CloudHub Runtime Manager with External
Logging System - SumoLogic

Organizers

2
Subhas Roy
Sr. MuleSoft Integration Architect
MuleSoft Mentor
Srinivas Reddy Vydugula
Lead MuleSoft Developer
MuleSoft Mentor

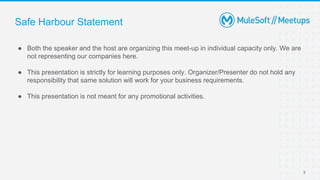

Safe Harbour Statement
● Both the speaker and the host are organizing this meet-up in individual capacity only. We are
not representing our companies here.
● This presentation is strictly for learning purposes only. Organizer/Presenter do not hold any
responsibility that same solution will work for your business requirements.
● This presentation is not meant for any promotional activities.
3

4

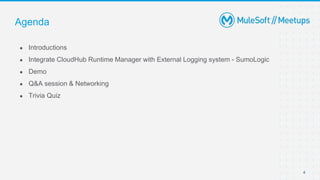

● Introductions
● Integrate CloudHub Runtime Manager with External Logging system - SumoLogic
● Demo
● Q&A session & Networking
● Trivia Quiz
Agenda

5

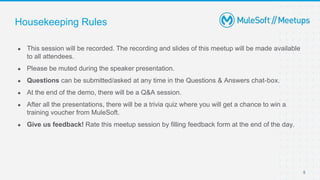

● This session will be recorded. The recording and slides of this meetup will be made available
to all attendees.
● Please be muted during the speaker presentation.
● Questions can be submitted/asked at any time in the Questions & Answers chat-box.
● At the end of the demo, there will be a Q&A session.
● After all the presentations, there will be a trivia quiz where you will get a chance to win a
training voucher from MuleSoft.
● Give us feedback! Rate this meetup session by filling feedback form at the end of the day.
Housekeeping Rules

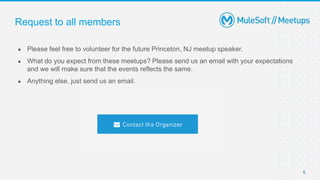

6
● Please feel free to volunteer for the future Princeton, NJ meetup speaker.
● What do you expect from these meetups? Please send us an email with your expectations
and we will make sure that the events reflects the same.
● Anything else, just send us an email.
Request to all members

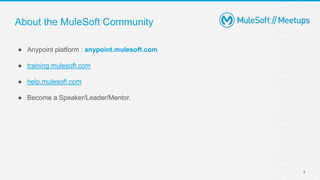

7
● Anypoint platform : anypoint.mulesoft.com
● training.mulesoft.com
● help.mulesoft.com
● Become a Speaker/Leader/Mentor.
About the MuleSoft Community

Speaker
• Sr. MuleSoft Architect at Virtusa.
• MuleSoft Mentor.
• MuleSoft Meetup Leader Princeton, NJ
• https://www.linkedin.com/in/subhas-roy-a9b9401b/

All contents © MuleSoft, LLC
Integrate CloudHub Runtime Manager with
External Logging system - SumoLogic

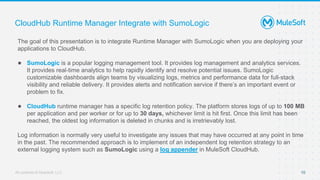

CloudHub Runtime Manager Integrate with SumoLogic
The goal of this presentation is to integrate Runtime Manager with SumoLogic when you are deploying your
applications to CloudHub.
● SumoLogic is a popular logging management tool. It provides log management and analytics services.
It provides real-time analytics to help rapidly identify and resolve potential issues. SumoLogic
customizable dashboards align teams by visualizing logs, metrics and performance data for full-stack
visibility and reliable delivery. It provides alerts and notification service if there’s an important event or
problem to fix.
● CloudHub runtime manager has a specific log retention policy. The platform stores logs of up to 100 MB
per application and per worker or for up to 30 days, whichever limit is hit first. Once this limit has been
reached, the oldest log information is deleted in chunks and is irretrievably lost.
Log information is normally very useful to investigate any issues that may have occurred at any point in time
in the past. The recommended approach is to implement of an independent log retention strategy to an
external logging system such as SumoLogic using a log appender in MuleSoft CloudHub.
10

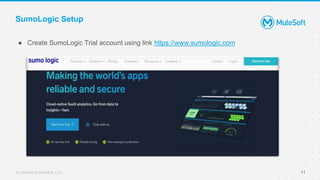

SumoLogic Setup
● Create SumoLogic Trial account using link https://www.sumologic.com
11

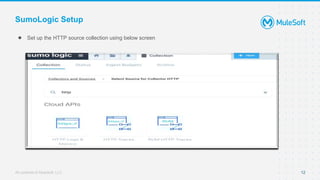

SumoLogic Setup
● Set up the HTTP source collection using below screen
12

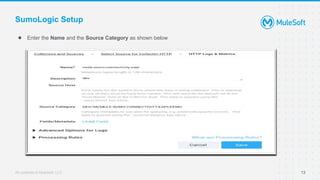

SumoLogic Setup
● Enter the Name and the Source Category as shown below
13

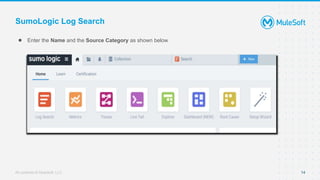

SumoLogic Log Search
● Enter the Name and the Source Category as shown below
14

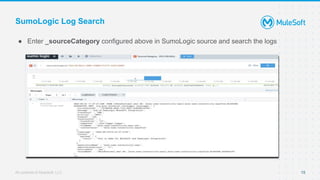

SumoLogic Log Search
● Enter _sourceCategory configured above in SumoLogic source and search the logs
15

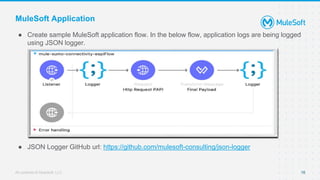

MuleSoft Application
● Create sample MuleSoft application flow. In the below flow, application logs are being logged
using JSON logger.
● JSON Logger GitHub url: https://github.com/mulesoft-consulting/json-logger
16

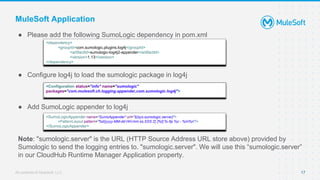

MuleSoft Application
● Please add the following SumoLogic dependency in pom.xml
● Configure log4j to load the sumologic package in log4j
● Add SumoLogic appender to log4j
Note: "sumologic.server" is the URL (HTTP Source Address URL store above) provided by
Sumologic to send the logging entries to. "sumologic.server". We will use this “sumologic.server”
in our CloudHub Runtime Manager Application property.
17
<dependency>
<groupId>com.sumologic.plugins.log4j</groupId>
<artifactId>sumologic-log4j2-appender</artifactId>
<version>1.13</version>
</dependency>
<Configuration status="info" name="sumologic"
packages="com.mulesoft.ch.logging.appender,com.sumologic.log4j">
<SumoLogicAppender name="SumoAppender" url="${sys:sumologic.server}">
<PatternLayout pattern="%d{yyyy-MM-dd HH:mm:ss,SSS Z} [%t] %-5p %c - %m%n"/>
</SumoLogicAppender>

CloudHub Runtime Manager

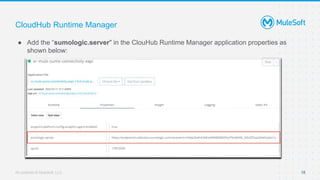

● Add the “sumologic.server" in the ClouHub Runtime Manager application properties as
shown below:
18

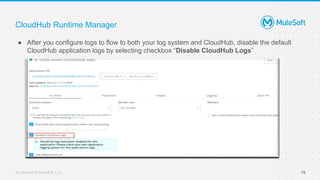

CloudHub Runtime Manager
● After you configure logs to flow to both your log system and CloudHub, disable the default
CloudHub application logs by selecting checkbox “Disable CloudHub Logs”
19

Demo

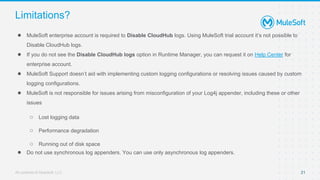

Limitations?
● MuleSoft enterprise account is required to Disable CloudHub logs. Using MuleSoft trial account it’s not possible to
Disable CloudHub logs.
● If you do not see the Disable CloudHub logs option in Runtime Manager, you can request it on Help Center for
enterprise account.
● MuleSoft Support doesn’t aid with implementing custom logging configurations or resolving issues caused by custom
logging configurations.
● MuleSoft is not responsible for issues arising from misconfiguration of your Log4j appender, including these or other
issues
○ Lost logging data
○ Performance degradation
○ Running out of disk space
● Do not use synchronous log appenders. You can use only asynchronous log appenders.
21

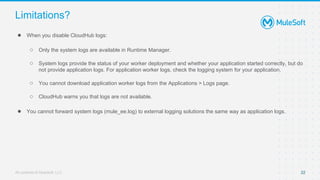

Limitations?
● When you disable CloudHub logs:
○ Only the system logs are available in Runtime Manager.
○ System logs provide the status of your worker deployment and whether your application started correctly, but do
not provide application logs. For application worker logs, check the logging system for your application.
○ You cannot download application worker logs from the Applications > Logs page.
○ CloudHub warns you that logs are not available.
● You cannot forward system logs (mule_ee.log) to external logging solutions the same way as application logs.
22

Answer the question and win a voucher for MuleSoft training
Trivia Quiz

Go To Mobile Browser
Enter :
Kahoot.it
Enter Your Full Valid Name
(Nick Names are not allowed)

Read the options and Tap the color which
has correct answer.

Winners Don’t forget to share your email Ids

28

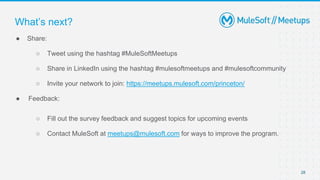

● Share:
○ Tweet using the hashtag #MuleSoftMeetups
○ Share in LinkedIn using the hashtag #mulesoftmeetups and #mulesoftcommunity
○ Invite your network to join: https://meetups.mulesoft.com/princeton/
● Feedback:
○ Fill out the survey feedback and suggest topics for upcoming events
○ Contact MuleSoft at meetups@mulesoft.com for ways to improve the program.
What’s next?

Thank you
Don’t forget to provide the
Feedback of this Meetup
