- 1. PRODUCT CATALOGUE Kang Zi Shan 0327605 Ting Xiao Yao 0328663 Tutor: Ar. Mohamad Zafarullah Mohamad Rozaly Application of Building Services

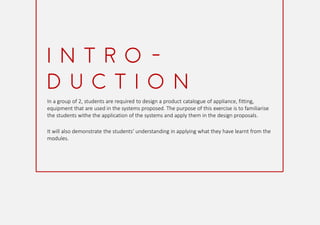

- 2. In a group of 2, students are required to design a product catalogue of appliance, fitting, equipment that are used in the systems proposed. The purpose of this exercise is to familiarise the students withe the application of the systems and apply them in the design proposals. It will also demonstrate the students' understanding in applying what they have learnt from the modules. I N T R O - D U C T I O N

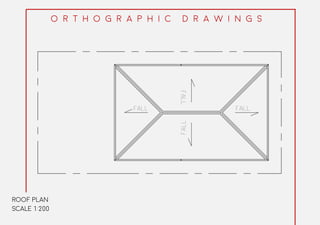

- 3. ROOF PLAN SCALE 1:200 O r t h o g r a p h i c d r a w i n g s

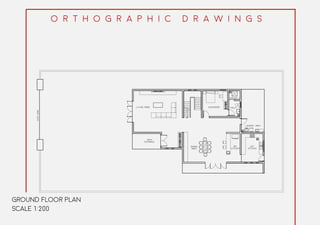

- 4. O r t h o g r a p h i c d r a w i n g s GROUND FLOOR PLAN SCALE 1:200

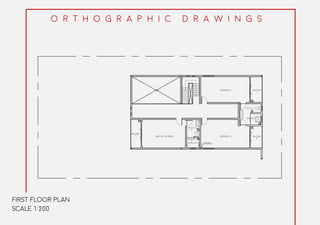

- 5. O r t h o g r a p h i c d r a w i n g s FIRST FLOOR PLAN SCALE 1:200

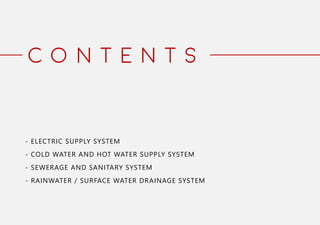

- 6. C O N T E N T S - ELECTRIC SUPPLY SYSTEM - COLD WATER AND HOT WATER SUPPLY SYSTEM - SEWERAGE AND SANITARY SYSTEM - RAINWATER / SURFACE WATER DRAINAGE SYSTEM
- 7. ELECTRICAL SUPPLY ACT 1997 (ACT 447) REGULATION 1994: P.U. (A) 38/94 Regulation 15: Any conductor or apparatus that is exposed to the weather, water, corrosion, undue heating or use in inflammable surroundings or in an explosion atmosphere shall be constructed or protected in such a manner as to prevent danger. Regulation 16: Any fuse or circuit breaker shall be constructed and arranged in such a sufficient time to prevent danger and constructed guarded or placed in a manner as to prevent danger of overheating, arcing or from shattering of heat metal or other substances or enclosure. E L E C T R I C S U P P L Y S Y S T E M

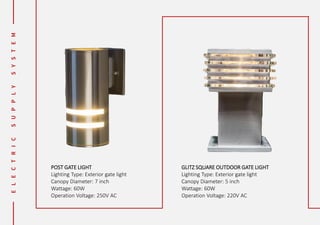

- 8. POST GATE LIGHT Lighting Type: Exterior gate light Canopy Diameter: 7 inch Wattage: 60W Operation Voltage: 250V AC GLITZ SQUARE OUTDOOR GATE LIGHT Lighting Type: Exterior gate light Canopy Diameter: 5 inch Wattage: 60W Operation Voltage: 220V AC

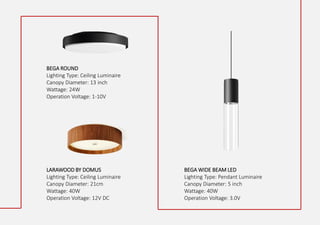

- 9. BEGA ROUND Lighting Type: Ceiling Luminaire Canopy Diameter: 13 inch Wattage: 24W Operation Voltage: 1-10V LARAWOOD BY DOMUS Lighting Type: Ceiling Luminaire Canopy Diameter: 21cm Wattage: 40W Operation Voltage: 12V DC BEGA WIDE BEAM LED Lighting Type: Pendant Luminaire Canopy Diameter: 5 inch Wattage: 40W Operation Voltage: 3.0V

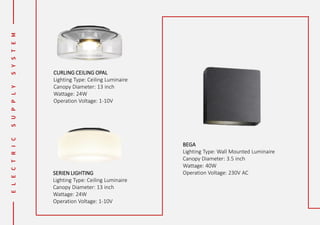

- 10. CURLING CEILING OPAL Lighting Type: Ceiling Luminaire Canopy Diameter: 13 inch Wattage: 24W Operation Voltage: 1-10V SERIEN LIGHTING Lighting Type: Ceiling Luminaire Canopy Diameter: 13 inch Wattage: 24W Operation Voltage: 1-10V BEGA Lighting Type: Wall Mounted Luminaire Canopy Diameter: 3.5 inch Wattage: 40W Operation Voltage: 230V AC

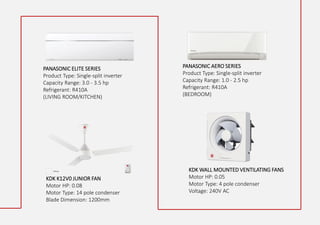

- 11. PANASONIC ELITE SERIES Product Type: Single-split inverter Capacity Range: 3.0 - 3.5 hp Refrigerant: R410A (LIVING ROOM/KITCHEN) KDK K12V0 JUNIOR FAN Motor HP: 0.08 Motor Type: 14 pole condenser Blade Dimension: 1200mm KDK WALL MOUNTED VENTILATING FANS Motor HP: 0.05 Motor Type: 4 pole condenser Voltage: 240V AC PANASONIC AERO SERIES Product Type: Single-split inverter Capacity Range: 1.0 - 2.5 hp Refrigerant: R410A (BEDROOM)

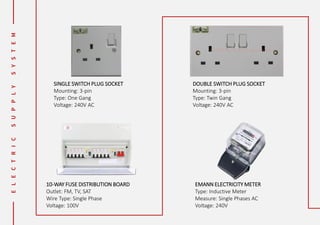

- 12. SINGLE SWITCH PLUG SOCKET Mounting: 3-pin Type: One Gang Voltage: 240V AC DOUBLE SWITCH PLUG SOCKET Mounting: 3-pin Type: Twin Gang Voltage: 240V AC 10-WAY FUSE DISTRIBUTION BOARD Outlet: FM, TV, SAT Wire Type: Single Phase Voltage: 100V EMANN ELECTRICITY METER Type: Inductive Meter Measure: Single Phases AC Voltage: 240V

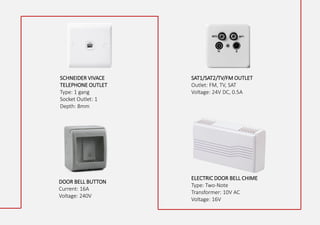

- 13. SCHNEIDER VIVACE TELEPHONE OUTLET Type: 1 gang Socket Outlet: 1 Depth: 8mm SAT1/SAT2/TV/FM OUTLET Outlet: FM, TV, SAT Voltage: 24V DC, 0.5A DOOR BELL BUTTON Current: 16A Voltage: 240V ELECTRIC DOOR BELL CHIME Type: Two-Note Transformer: 10V AC Voltage: 16V

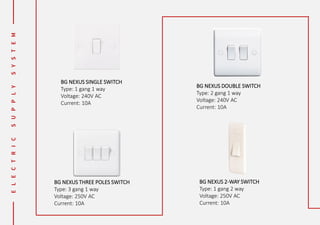

- 14. BG NEXUS SINGLE SWITCH Type: 1 gang 1 way Voltage: 240V AC Current: 10A BG NEXUS DOUBLE SWITCH Type: 2 gang 1 way Voltage: 240V AC Current: 10A BG NEXUS THREE POLES SWITCH Type: 3 gang 1 way Voltage: 250V AC Current: 10A BG NEXUS 2-WAY SWITCH Type: 1 gang 2 way Voltage: 250V AC Current: 10A

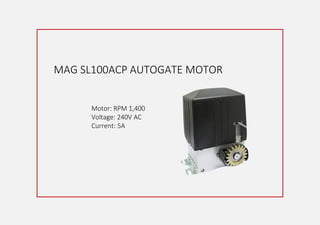

- 15. MAG SL100ACP AUTOGATE MOTOR Motor: RPM 1,400 Voltage: 240V AC Current: 5A
- 16. C O L D W A T E R A N D H O T W A T E R S U P P L Y S Y S T E M UNIFORM BUILDING BY LAW (ACT133) Section 84 (1): Suitable measures should be taken to prevent penetration of dampness and moisture into the building. Section 89: A chase made in a wall for pipes and other service facilities shall leave the wall at the back of the chase not less than 100 millimetres thick in external walls and not less than 100 millimetres thick in a party wall and shall not wider than 200 millimetres. Section 123(1)(b): Where ducts or enclosures are provided in any building to accommodate pipes, cables or conducts the dimensions of such ducts or enclosures shall be sufficiently large to permit access to cleaning eyes, stopcocks and other controls there to enable or all of the services accommodated.

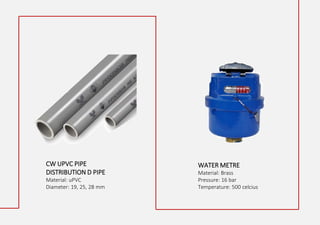

- 17. CW UPVC PIPE DISTRIBUTION D PIPE Material: uPVC Diameter: 19, 25, 28 mm WATER METRE Material: Brass Pressure: 16 bar Temperature: 500 celcius

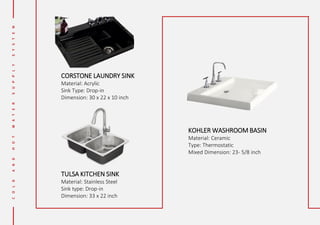

- 18. CORSTONE LAUNDRY SINK Material: Acrylic Sink Type: Drop-in Dimension: 30 x 22 x 10 inch TULSA KITCHEN SINK Material: Stainless Steel Sink type: Drop-in Dimension: 33 x 22 inch KOHLER WASHROOM BASIN Material: Ceramic Type: Thermostatic Mixed Dimension: 23- 5/8 inch

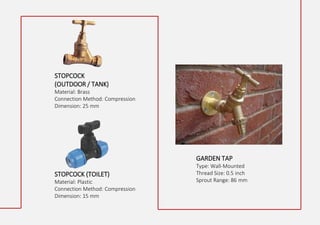

- 19. STOPCOCK (OUTDOOR / TANK) Material: Brass Connection Method: Compression Dimension: 25 mm GARDEN TAP Type: Wall-Mounted Thread Size: 0.5 inch Sprout Range: 86 mm STOPCOCK (TOILET) Material: Plastic Connection Method: Compression Dimension: 15 mm

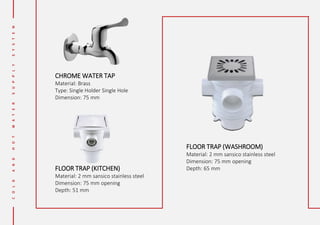

- 20. CHROME WATER TAP Material: Brass Type: Single Holder Single Hole Dimension: 75 mm FLOOR TRAP (WASHROOM) Material: 2 mm sansico stainless steel Dimension: 75 mm opening Depth: 65 mmFLOOR TRAP (KITCHEN) Material: 2 mm sansico stainless steel Dimension: 75 mm opening Depth: 51 mm

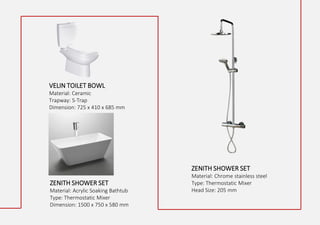

- 21. VELIN TOILET BOWL Material: Ceramic Trapway: S-Trap Dimension: 725 x 410 x 685 mm ZENITH SHOWER SET Material: Acrylic Soaking Bathtub Type: Thermostatic Mixer Dimension: 1500 x 750 x 580 mm ZENITH SHOWER SET Material: Chrome stainless steel Type: Thermostatic Mixer Head Size: 205 mm

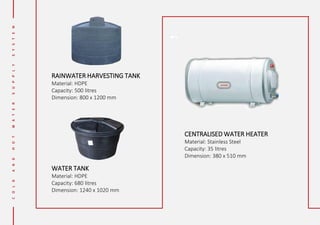

- 22. RAINWATER HARVESTING TANK Material: HDPE Capacity: 500 litres Dimension: 800 x 1200 mm CENTRALISED WATER HEATER Material: Stainless Steel Capacity: 35 litres Dimension: 380 x 510 mm WATER TANK Material: HDPE Capacity: 680 litres Dimension: 1240 x 1020 mm

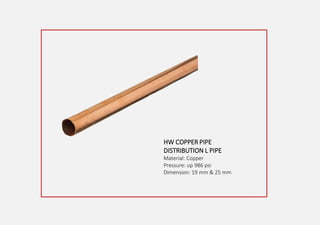

- 23. HW COPPER PIPE DISTRIBUTION L PIPE Material: Copper Pressure: up 986 psi Dimension: 19 mm & 25 mm

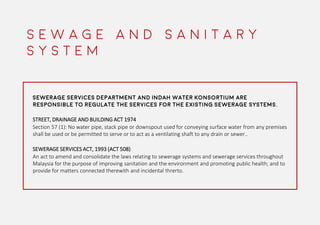

- 24. Sewerage Services Department and Indah Water Konsortium are responsible to regulate the services for the existing sewerage systems. STREET, DRAINAGE AND BUILDING ACT 1974 Section 57 (1): No water pipe, stack pipe or downspout used for conveying surface water from any premises shall be used or be permitted to serve or to act as a ventilating shaft to any drain or sewer.. SEWERAGE SERVICES ACT, 1993 (ACT 508) An act to amend and consolidate the laws relating to sewerage systems and sewerage services throughout Malaysia for the purpose of improving sanitation and the environment and promoting public health; and to provide for matters connected therewith and incidental threrto. S E W A G E A N D S A N I T A R Y S Y S T E M

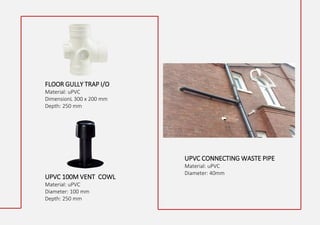

- 25. FLOOR GULLY TRAP I/O Material: uPVC DimensionL 300 x 200 mm Depth: 250 mm UPVC CONNECTING WASTE PIPE Material: uPVC Diameter: 40mm UPVC 100M VENT COWL Material: uPVC Diameter: 100 mm Depth: 250 mm

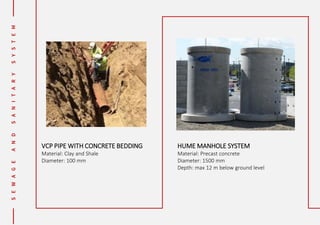

- 26. VCP PIPE WITH CONCRETE BEDDING Material: Clay and Shale Diameter: 100 mm HUME MANHOLE SYSTEM Material: Precast concrete Diameter: 1500 mm Depth: max 12 m below ground level

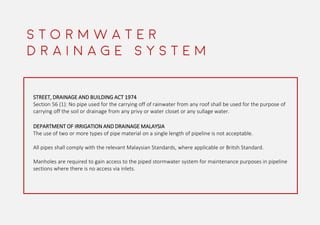

- 27. STREET, DRAINAGE AND BUILDING ACT 1974 Section 56 (1): No pipe used for the carrying off of rainwater from any roof shall be used for the purpose of carrying off the soil or drainage from any privy or water closet or any sullage water. DEPARTMENT OF IRRIGATION AND DRAINAGE MALAYSIA The use of two or more types of pipe material on a single length of pipeline is not acceptable. All pipes shall comply with the relevant Malaysian Standards, where applicable or Britsh Standard. Manholes are required to gain access to the piped stormwater system for maintenance purposes in pipeline sections where there is no access via inlets. S T O R M W A T E R D R A I N A G E S Y S T E M

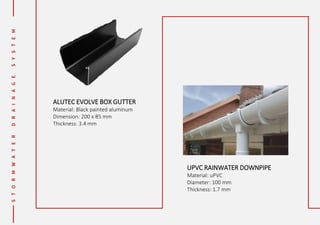

- 28. ALUTEC EVOLVE BOX GUTTER Material: Black painted aluminum Dimension: 200 x 85 mm Thickness: 3.4 mm UPVC RAINWATER DOWNPIPE Material: uPVC Diameter: 100 mm Thickness: 1.7 mm

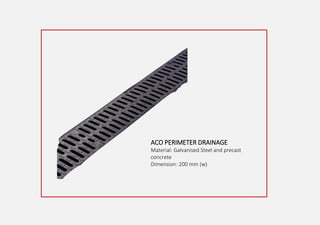

- 29. ACO PERIMETER DRAINAGE Material: Galvanised Steel and precast concrete Dimension: 200 mm (w)

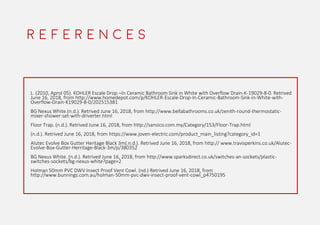

- 30. R E F E R E N C E S L. (2010, Aprol 05). KOHLER Escale Drop –In Ceramic Bathroom Sink in White with Overflow Drain-K-19029-8-0. Retrived June 16, 2018, from http://www.homedepot.com/p/KOHLER-Escale-Drop-In-Ceramic-Bathroom-Sink-in-White-with- Overflow-Drain-K19029-8-0/202515381 BG Nexus White.(n.d.). Retrived June 16, 2018, from http://www.bellabathrooms.co.uk/zenith-round-thermostatic- mixer-shower-set-with-driverter.html Floor Trap. (n.d.). Retrived June 16, 2018, from http://sansico.com.my/Category/153/Floor-Trap.html (n.d.). Retrived June 16, 2018, from https://www.joven-electric.com/product_main_listing?category_id=1 Alutec Evolve Box Gutter Heritage Black 3m(.n.d.). Retrived June 16, 2018, from http:// www.travisperkins.co.uk/Alutec- Evolve-Box-Gutter-Herritage-Black-3m/p/380352 BG Nexus White. (n.d.). Retrived June 16, 2018, from http://www.sparksdirect.co.uk/switches-an-sockets/plastic- switches-sockets/bg-nexus-white?page=2 Holman 50mm PVC DWV Insect Proof Vent Cowl. (nd.) Retrived June 16, 2018, from http://www.bunnings.com.au/holman-50mm-pvc-dwv-insect-proof-vent-cowl_p4750195
