NGINX Installation and
Tuning
Introduced by Andrew Alexeev
Presented by Owen Garrett
Nginx, Inc.

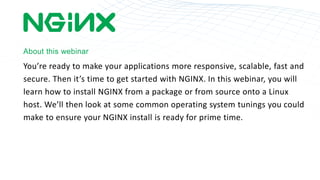

About this webinar
You’re ready to make your applications more responsive, scalable, fast and
secure. Then it’s time to get started with NGINX. In this webinar, you will
learn how to install NGINX from a package or from source onto a Linux
host. We’ll then look at some common operating system tunings you could
make to ensure your NGINX install is ready for prime time.

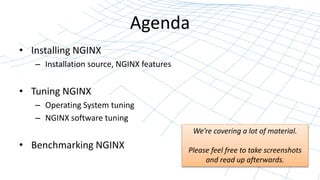

Agenda

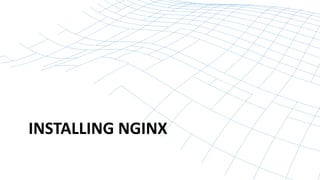

• Installing NGINX
– Installation source, NGINX features
• Tuning NGINX
– Operating System tuning
– NGINX software tuning
• Benchmarking NGINX
We’re covering a lot of material.
Please feel free to take screenshots
and read up afterwards.

BEFORE YOU INSTALL ��ұ��…

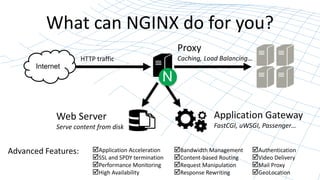

What can NGINX do for you?
Internet
N
Web Server
Serve content from disk
Application Gateway
FastCGI, uWSGI, Passenger…
Proxy
Caching, Load Balancing…
HTTP traffic
Application Acceleration
SSL and SPDY termination
Performance Monitoring
High Availability
Advanced Features: Bandwidth Management
Content-based Routing
Request Manipulation
Response Rewriting
Authentication
Video Delivery
Mail Proxy
GeoLocation

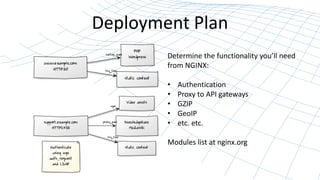

Deployment Plan
Determine the functionality you’ll need
from NGINX:
• Authentication
• Proxy to API gateways
• GZIP
• GeoIP
• etc. etc.
Modules list at nginx.org

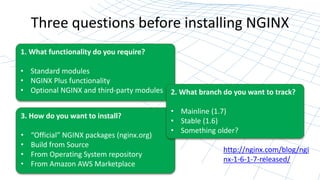

Three questions before installing NGINX
1. What functionality do you require?
• Standard modules
• NGINX Plus functionality
• Optional NGINX and third-party modules
3. How do you want to install?
• “Official” NGINX packages (nginx.org)
• Build from Source
• From Operating System repository
• From Amazon AWS Marketplace
2. What branch do you want to track?
• Mainline (1.7)
• Stable (1.6)
• Something older?
http://nginx.com/blog/ngi
nx-1-6-1-7-released/

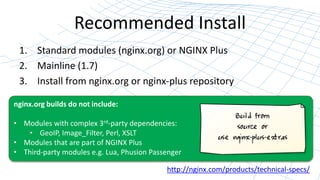

Recommended Install
1. Standard modules (nginx.org) or NGINX Plus
2. Mainline (1.7)
3. Install from nginx.org or nginx-plus repository
nginx.org builds do not include:
• Modules with complex 3rd-party dependencies:
• GeoIP, Image_Filter, Perl, XSLT
• Modules that are part of NGINX Plus
• Third-party modules e.g. Lua, Phusion Passenger
http://nginx.com/products/technical-specs/

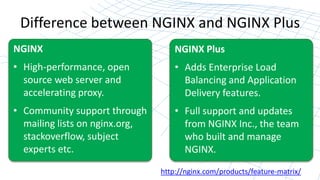

Difference between NGINX and NGINX Plus
http://nginx.com/products/feature-matrix/
NGINX
• High-performance, open
source web server and
accelerating proxy.
• Community support through
mailing lists on nginx.org,
stackoverflow, subject
experts etc.
NGINX Plus
• Adds Enterprise Load
Balancing and Application
Delivery features.
• Full support and updates
from NGINX Inc., the team
who built and manage
NGINX.

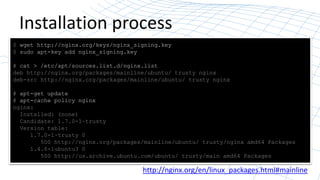

Installation process
$ wget http://nginx.org/keys/nginx_signing.key
$ sudo apt-key add nginx_signing.key
# cat > /etc/apt/sources.list.d/nginx.list
deb http://nginx.org/packages/mainline/ubuntu/ trusty nginx
deb-src http://nginx.org/packages/mainline/ubuntu/ trusty nginx
# apt-get update
# apt-cache policy nginx
nginx:
Installed: (none)
Candidate: 1.7.0-1~trusty
Version table:
1.7.0-1~trusty 0
500 http://nginx.org/packages/mainline/ubuntu/ trusty/nginx amd64 Packages
1.4.6-1ubuntu3 0
500 http://us.archive.ubuntu.com/ubuntu/ trusty/main amd64 Packages
http://nginx.org/en/linux_packages.html#mainline

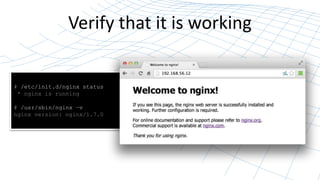

Verify that it is working
# /etc/init.d/nginx status
* nginx is running
# /usr/sbin/nginx –v
nginx version: nginx/1.7.0

TUNING NGINX
#1: UNDERSTAND WHAT’S HAPPENING

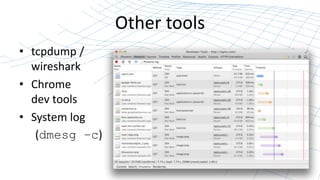

Other tools
• tcpdump /
wireshark
• Chrome
dev tools
• System log
(dmesg –c)

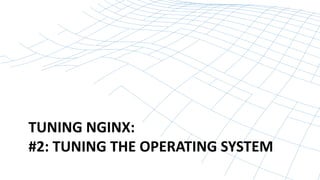

TUNING NGINX:
#2: TUNING THE OPERATING SYSTEM

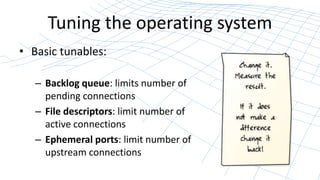

Tuning the operating system
• Basic tunables:
– Backlog queue: limits number of
pending connections
– File descriptors: limit number of
active connections
– Ephemeral ports: limit number of
upstream connections

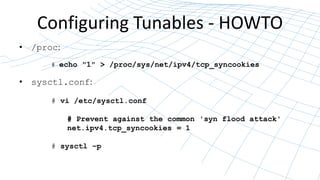

Configuring Tunables - HOWTO
• /proc:
# echo "1" > /proc/sys/net/ipv4/tcp_syncookies
• sysctl.conf:
# vi /etc/sysctl.conf
# Prevent against the common 'syn flood attack'
net.ipv4.tcp_syncookies = 1
# sysctl –p

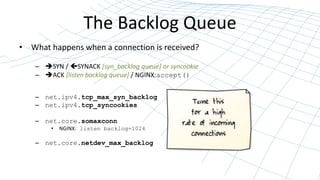

The Backlog Queue
• What happens when a connection is received?
– SYN / SYNACK [syn_backlog queue] or syncookie
– ACK [listen backlog queue] / NGINX:accept()
– net.ipv4.tcp_max_syn_backlog
– net.ipv4.tcp_syncookies
– net.core.somaxconn
• NGINX: listen backlog=1024
– net.core.netdev_max_backlog

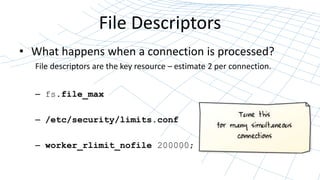

File Descriptors
• What happens when a connection is processed?
File descriptors are the key resource – estimate 2 per connection.
– fs.file_max
– /etc/security/limits.conf
– worker_rlimit_nofile 200000;

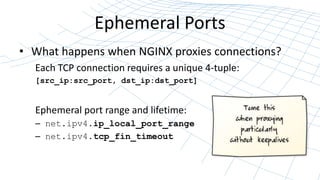

Ephemeral Ports
• What happens when NGINX proxies connections?
Each TCP connection requires a unique 4-tuple:
[src_ip:src_port, dst_ip:dst_port]
Ephemeral port range and lifetime:
– net.ipv4.ip_local_port_range
– net.ipv4.tcp_fin_timeout

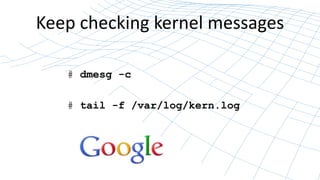

Keep checking kernel messages
# dmesg -c
# tail -f /var/log/kern.log

TUNING NGINX:
#3: TUNING THE SOFTWARE

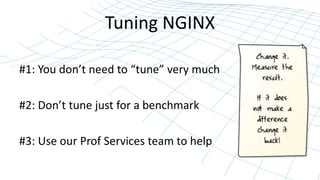

Tuning NGINX
#1: You don’t need to “tune” very much
#2: Don’t tune just for a benchmark
#3: Use our Prof Services team to help

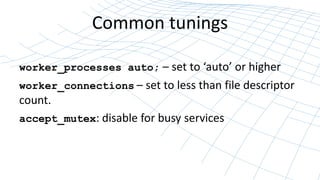

Common tunings
worker_processes auto; – set to ‘auto’ or higher
worker_connections – set to less than file descriptor
count.
accept_mutex: disable for busy services

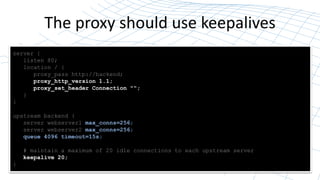

The proxy should use keepalives
Close TCP Connection
(two-way handshake)
Open TCP Connection
(three-way handshake)
Write HTTP request Read HTTP response
Wait
(timeout)
NGINX or server
closes the
connection
NGINX re-uses connection for another request
server {
listen 80;
location / {
proxy_pass http://backend;
proxy_http_version 1.1;
proxy_set_header Connection "";
}
}
upstream backend {
server webserver1 max_conns=256;
server webserver2 max_conns=256;
queue 4096 timeout=15s;
# maintain a maximum of 20 idle connections to each upstream server
keepalive 20;
}

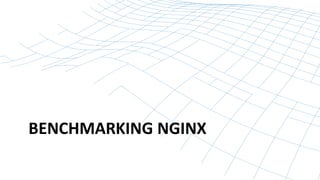

Why benchmark NGINX?
1. To find how fast NGINX can go
2. To tune NGINX for your workload
3. To find where the bottlenecks are
4. All of the above

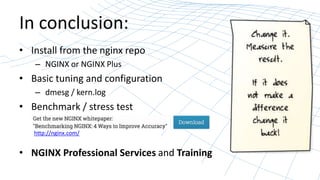

In conclusion:
• Install from the nginx repo
– NGINX or NGINX Plus
• Basic tuning and configuration
– dmesg / kern.log
• Benchmark / stress test
• NGINX Professional Services and Training
http://nginx.com/

proxy server for computer and web server .pdf

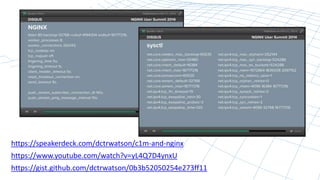

https://speakerdeck.com/dctrwatson/c1m-and-nginx
https://www.youtube.com/watch?v=yL4Q7D4ynxU
https://gist.github.com/dctrwatson/0b3b52050254e273ff11
