- 1. I N S T A L L A T I O N M A N U A L RD01 1 WHATS IN THE BOX (Inline filter not required in shallow dig tanks) 1 Rain Director速 control unit with mode indicators, programming buttons and control valves and 230 V AC to 12 V wall adapter. The control unit measures 380mm W x 270mm H x 95mm D. 2 Cat 5 cable to connect junction box on header tank to underside of control unit. Do Not Cut! 3 Smart header tank for roof space, including level sensors, float switch, Cat 5 connection box and overflow tower. The 100 litre tank measures 600mm W x 490mm H x 500mm D. 4 Flow reducing valves (in plastic pack) for use in Torbeck float valve if mains pressure is too great. 5 Mains electric submersible pump (must be pressure-sensitive and equipped with non-return valve). 1 2 3 4 5
- 2. D BAC EF H I G KEYTOTHECONTROLUNITANDPIPEDIAMETERS: E F G H I Refreshoutlettounderground tank-22mm. Rainwaterinletfrompump -22mm. Mainswaterinlet-15mm. Refreshinletfromservices -22mm. Rainwateroutlettoheadertank-22mm. Mainswateroutlettoheadertank-15mm. 12vpowerfromwalladapterandCat5cable toheadertank. Mainswatermanualbypassvalve. Rainwatervalveandremovablefilter. A B C D 2 Do not supply gardentapsvia headertank Do not u sesawtocuta nypipes Do N otCutCat5ca ble KEYTOTHESMARTHEADERTANKANDPIPES 1 2 3 4 1 6 4 5 2 3 5 6 Mainswaterinletfromcontrolunit -15mm. Rainwaterinletfromcontrolunit -22mm. Servicesoutlet-22mm. Toplevelsensor. Bottomlevelsensor. Overflowstraightoutofthe house-40mm. Use M DPEpipecu tters AvoidU andinvertedU bends

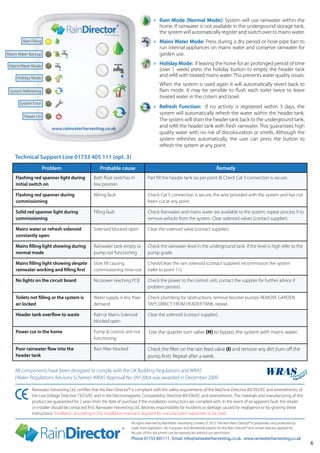

- 6. All components have been designed to comply with the UK Building Regulations and WRAS (Water Regulations Advisory Scheme). WRAS Approval No. 0912064 was awarded in December 2009. Rainwater Harvesting Ltd. certifies that the Rain Director速 is compliant with the safety requirements of the Machine Directive 89/392/EC and amendments, of the Low Voltage Directive 73/23/EC and in the Electromagnetic Compatibility Directive 89/336/EC and amendments. The materials and manufacturing of this product are guaranteed for 2 years from the date of purchase if the installation instructions are complied with. In the event of an apparent fault, the retailer or installer should be contacted first. Rainwater Harvesting Ltd. declines responsibility for incidents or damage caused by negligence or by ignoring these instructions. Installation according to this installation manual is required for manufacturerswarranties to be valid. All rights reserved by RainWater Harvesting Limited, 息 2013. The term Rain Director速 is proprietary and protected by trade mark legislation. UK, European and Worldwide patents for the Rain Director速 and certain features applied for. No part of this document can be reproduced without our permission. Phone 01733 405111. Email: info@rainwaterharvesting.co.uk. www.rainwaterharvesting.co.uk 6 Technical Support Line 01733 405 111 (opt. 3) 損損 Rain Mode (Normal Mode): System will use rainwater within the home. If rainwater is not available in the underground storage tank, the system will automatically register and switch over to mains water. 損損 Mains Water Mode: Press during a dry period or hose pipe ban to run internal appliances on mains water and conserve rainwater for garden use. 損損 Holiday Mode: If leaving the home for an prolonged period of time (over 1 week) press the holiday button to empty the header tank and refill with treated mains water.This prevents water quality issues. When the system is used again it will automatically revert back to Rain mode. It may be sensible to flush each toilet twice to leave treated water in the cistern and bowl. 損損 Refresh Function: If no activity is registered within 3 days, the system will automatically refresh the water within the header tank. The system will drain the header tank back to the underground tank, and refill the header tank with fresh rainwater. This guarantees high quality water with no risk of discolouration or smells. Although the system refreshes automatically, the user can press the button to refresh the system at any point. Problem Probable cause Remedy Flashing red spanner light during initial switch on Both float switches in low position Part fill the header tank (as per point 8) Check Cat 5 connection is secure. Flashing red spanner during commissioning Wiring fault Check Cat 5 connection is secure, the wire provided with the system and has not been cut at any point. Solid red spanner light during commissioning Filling fault Check Rainwater and mains water are available to the system, repeat process 9 to remove airlocks from the system. Clear solenoid valves (contact supplier). Mains water or refresh solenoid constantly open Solenoid blocked open Clear the solenoid valve (contact supplier). Mains filling light showing during normal mode Rainwater tank empty or pump not functioning Check the rainwater level in the underground tank. If the level is high refer to the pump guide. Mains filling light showing despite rainwater working and filling first Slow fill causing commissioning time-out Check/clean the rain solenoid (contact supplier) recommission the system (refer to point 11). No lights on the circuit board No power reaching PCB Check the power to the control unit, contact the supplier for further advice if problem persists. Toilets not filling or the system is air locked Water supply is less than demand Check plumbing for obstructions, remove booster pumps, REMOVE GARDEN TAPS DIRECT FROM HEADER TANK, repeat. Header tank overflow to waste Rain or Mains Solenoid blocked open Clear the solenoid (contact supplier). Power cut in the home Pump & control unit not functioning Use the quarter turn valve (H) to bypass the system with mains water. Poor rainwater flow into the header tank Rain filter blocked Check the filter on the rain feed valve (I) and remove any dirt (turn off the pump first). Repeat after a week. Rain Filling Mains Water Backup Mains Water Mode Holiday Mode System Refreshing System Error Power On
