redFox® Environmental is a company that specializes in wastewater treatment systems for land, offshore, and marine applications. They were pioneers in developing packaged sewage treatment systems and helped establish regulations for wastewater treatment. redFox® offers a variety of wastewater treatment units of different sizes that are suitable for applications ranging from small vessels to offshore platforms and land drilling rigs. Their systems are designed to operate reliably in harsh conditions.
RedFox Brochure
- 1. WWW.RAINBOSUPPLIES.COM Product Sourcing for global client demand: OIL & GAS | MINING | RENEWABLES | POWER | MARINE No one knows more about the treatment of wastewater and the protection of the environment than the technical and developmental team at redFox® Environmental. redFox® Environmental was the original pioneer company in the development of packaged sewage treatment systems. redFox® Environmental was also instrumental in the development of the MSD federal regulations for the United States Coast Guard back in the mid 1970’s. redFox® Environmental is the elite manufacturer of wastewater treatment systems. redFox® Conventional Units Land Based & Fixed Offshore Platform Sewage Units USCG Certified Type II MSD The Conventional Series Sewage Unit is specifically designed for fixed offshore platforms and land based installations. Using the extended aeration process, the unit is portable and easy to install and operate. The structure and components of the redFox® units are built for a 20-year service life in the harshest conditions. Some of the first units we ever built are still in operation today. THE BENEFITS: • Capacity: 100 to 20,000 GPD • From 2 to 666 Persons • USCG Certified Sewage Treatment Systems • Offered in standard configuration or customized for space limitations • Low maintenance time and Operational Costs • Low power/utility consumption • No odor • Utilizes common household bleach • Reasonably priced • Operates with fresh or saltwater The entire redFox® Environmental Marine Series Units are Bureau Veritas certified for IMO Resolution MEPC 159(55). The IMO Marine Environmental Protection Committee resolution applies to all sewage treatment systems installed onboard on or after January 1, 2010. GLOBAL PROCUREMENT SOLUTIONS GLOBAL PROCUREMENT SOLUTIONS

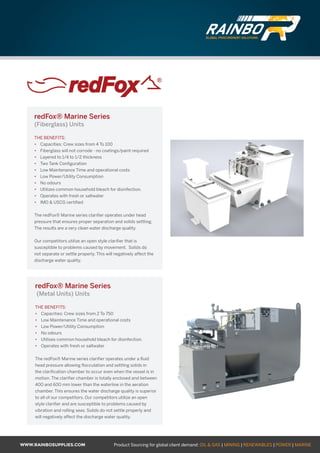

- 2. WWW.RAINBOSUPPLIES.COM Product Sourcing for global client demand: OIL GAS | MINING | RENEWABLES | POWER | MARINE redFox® Marine Series (Fiberglass) Units THE BENEFITS: • Capacities: Crew sizes from 4 To 100 • Fiberglass will not corrode - no coatings/paint required • Layered to 1/4 to 1/2 thickness • Two Tank Configuration • Low Maintenance Time and operational costs • Low Power/Utility Consumption • No odours • Utilizes common household bleach for disinfection. • Operates with fresh or saltwater • IMO USCG certified The redFox® Marine series clarifier operates under head pressure that ensures proper separation and solids settling. The results are a very clean water discharge quality. Our competitors utilize an open style clarifier that is susceptible to problems caused by movement. Solids do not separate or settle properly. This will negatively affect the discharge water quality. redFox® Marine Series (Metal Units) Units THE BENEFITS: • Capacities: Crew sizes from 2 To 750 • Low Maintenance Time and operational costs • Low Power/Utility Consumption • No odours • Utilises common household bleach for disinfection. • Operates with fresh or saltwater The redFox® Marine series clarifier operates under a fluid head pressure allowing flocculation and settling solids in the clarification chamber to occur even when the vessel is in motion. The clarifier chamber is totally enclosed and between 400 and 600 mm lower than the waterline in the aeration chamber. This ensures the water discharge quality is superior to all of our competitors. Our competitors utilize an open style clarifier and are susceptible to problems caused by vibration and rolling seas. Solids do not settle properly and will negatively affect the discharge water quality. GLOBAL PROCUREMENT SOLUTIONS GLOBAL PROCUREMENT SOLUTIONS

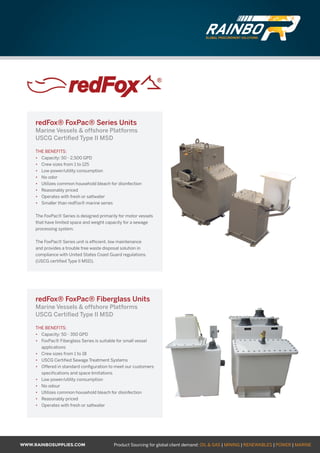

- 3. WWW.RAINBOSUPPLIES.COM Product Sourcing for global client demand: OIL GAS | MINING | RENEWABLES | POWER | MARINE redFox® FoxPac® Series Units Marine Vessels offshore Platforms USCG Certified Type II MSD THE BENEFITS: • Capacity: 50 - 2,500 GPD • Crew sizes from 1 to 125 • Low power/utility consumption • No odor • Utilizes common household bleach for disinfection • Reasonably priced • Operates with fresh or saltwater • Smaller than redFox® marine series The FoxPac® Series is designed primarily for motor vessels that have limited space and weight capacity for a sewage processing system. The FoxPac® Series unit is efficient, low maintenance and provides a trouble free waste disposal solution in compliance with United States Coast Guard regulations. (USCG certified Type II MSD). redFox® FoxPac® Fiberglass Units Marine Vessels offshore Platforms USCG Certified Type II MSD THE BENEFITS: • Capacity: 50 - 350 GPD • FoxPac® Fiberglass Series is suitable for small vessel applications • Crew sizes from 1 to 18 • USCG Certified Sewage Treatment Systems • Offered in standard configuration to meet our customers specifications and space limitations • Low power/utility consumption • No odour • Utilizes common household bleach for disinfection • Reasonably priced • Operates with fresh or saltwater GLOBAL PROCUREMENT SOLUTIONS GLOBAL PROCUREMENT SOLUTIONS

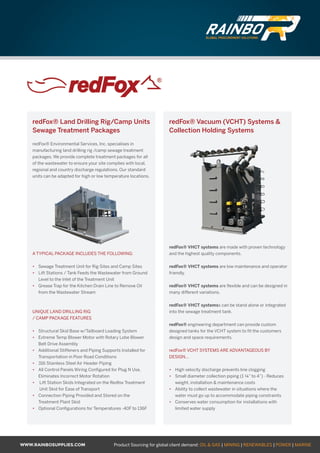

- 4. WWW.RAINBOSUPPLIES.COM Product Sourcing for global client demand: OIL GAS | MINING | RENEWABLES | POWER | MARINE redFox® Land Drilling Rig/Camp Units Sewage Treatment Packages redFox® Environmental Services, Inc. specialises in manufacturing land drilling rig /camp sewage treatment packages. We provide complete treatment packages for all of the wastewater to ensure your site complies with local, regional and country discharge regulations. Our standard units can be adapted for high or low temperature locations. A TYPICAL PACKAGE INCLUDES THE FOLLOWING: • Sewage Treatment Unit for Rig Sites and Camp Sites • Lift Stations / Tank Feeds the Wastewater from Ground Level to the Inlet of the Treatment Unit • Grease Trap for the Kitchen Drain Line to Remove Oil from the Wastewater Stream UNIQUE LAND DRILLING RIG / CAMP PACKAGE FEATURES • Structural Skid Base w/Tailboard Loading System • Extreme Temp Blower Motor with Rotary Lobe Blower Belt Drive Assembly • Additional Stiffeners and Piping Supports Installed for Transportation in Poor Road Conditions • 316 Stainless Steel Air Header Piping • All Control Panels Wiring Configured for Plug N Use, Eliminates Incorrect Motor Rotation • Lift Station Skids Integrated on the Redfox Treatment Unit Skid for Ease of Transport • Connection Piping Provided and Stored on the Treatment Plant Skid • Optional Configurations for Temperatures -40F to 136F redFox® Vacuum (VCHT) Systems Collection Holding Systems redFox® VHCT systems are made with proven technology and the highest quality components. redFox® VHCT systems are low maintenance and operator friendly. redFox® VHCT systems are flexible and can be designed in many different variations. redFox® VHCT systemss can be stand alone or integrated into the sewage treatment tank. redFox® engineering department can provide custom designed tanks for the VCHT system to fit the customers design and space requirements. redFox® VCHT SYSTEMS ARE ADVANTAGEOUS BY DESIGN... • High velocity discharge prevents line clogging • Small diameter collection piping (1 ¼” to 4”) - Reduces weight, installation maintenance costs • Ability to collect wastewater in situations where the water must go up to accommodate piping constraints • Conserves water consumption for installations with limited water supply GLOBAL PROCUREMENT SOLUTIONS GLOBAL PROCUREMENT SOLUTIONS

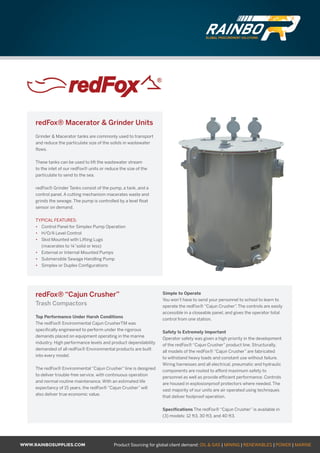

- 5. WWW.RAINBOSUPPLIES.COM Product Sourcing for global client demand: OIL GAS | MINING | RENEWABLES | POWER | MARINE redFox® Macerator Grinder Units Grinder Macerator tanks are commonly used to transport and reduce the particulate size of the solids in wastewater flows. These tanks can be used to lift the wastewater stream to the inlet of our redFox® units or reduce the size of the particulate to send to the sea. redFox® Grinder Tanks consist of the pump, a tank, and a control panel. A cutting mechanism macerates waste and grinds the sewage. The pump is controlled by a level float sensor on demand. TYPICAL FEATURES: • Control Panel for Simplex Pump Operation • H/O/A Level Control • Skid Mounted with Lifting Lugs (macerates to ¼”solid or less) • External or Internal Mounted Pumps • Submersible Sewage Handling Pump • Simplex or Duplex Configurations redFox® “Cajun Crusher” Trash Compactors Top Performance Under Harsh Conditions The redFox® Environmental Cajun CrusherTM was specifically engineered to perform under the rigorous demands placed on equipment operating in the marine industry. High performance levels and product dependability demanded of all redFox® Environmental products are built into every model. The redFox® Environmental “Cajun Crusher” line is designed to deliver trouble-free service, with continuous operation and normal routine maintenance. With an estimated life expectancy of 15 years, the redFox® “Cajun Crusher” will also deliver true economic value. Simple to Operate You won’t have to send your personnel to school to learn to operate the redFox® “Cajun Crusher”. The controls are easily accessible in a closeable panel, and gives the operator total control from one station. Safety Is Extremely Important Operator safety was given a high priority in the development of the redFox® “Cajun Crusher” product line. Structurally, all models of the redFox® “Cajun Crusher” are fabricated to withstand heavy loads and constant use without failure. Wiring harnesses and all electrical, pneumatic and hydraulic components are routed to afford maximum safety to personnel as well as provide efficient performance. Controls are housed in explosionproof protectors where needed. The vast majority of our units are air operated using techniques that deliver foolproof operation. Specifications The redFox® “Cajun Crusher” is available in (3) models: 12 ft3, 30 ft3, and 40 ft3. GLOBAL PROCUREMENT SOLUTIONS GLOBAL PROCUREMENT SOLUTIONS

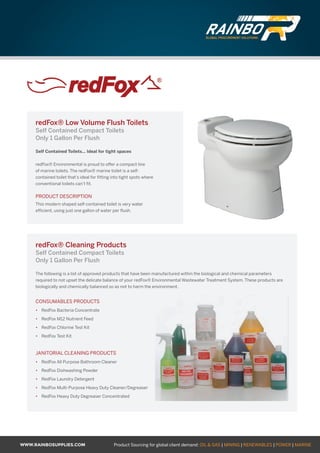

- 6. WWW.RAINBOSUPPLIES.COM Product Sourcing for global client demand: OIL GAS | MINING | RENEWABLES | POWER | MARINE redFox® Low Volume Flush Toilets Self Contained Compact Toilets Only 1 Gallon Per Flush Self Contained Toilets… Ideal for tight spaces redFox® Environmental is proud to offer a compact line of marine toilets. The redFox® marine toilet is a self- contained toilet that’s ideal for fitting into tight spots where conventional toilets can’t fit. PRODUCT DESCRIPTION This modern shaped self-contained toilet is very water efficient, using just one gallon of water per flush. redFox® Cleaning Products Self Contained Compact Toilets Only 1 Gallon Per Flush The following is a list of approved products that have been manufactured within the biological and chemical parameters required to not upset the delicate balance of your redFox® Environmental Wastewater Treatment System. These products are biologically and chemically balanced so as not to harm the environment. CONSUMABLES PRODUCTS • RedFox Bacteria Concentrate • RedFox M12 Nutrient Feed • RedFox Chlorine Test Kit • RedFox Test Kit JANITORIAL CLEANING PRODUCTS • RedFox All Purpose Bathroom Cleaner • RedFox Dishwashing Powder • RedFox Laundry Detergent • RedFox Multi-Purpose Heavy Duty Cleaner/Degreaser • RedFox Heavy Duty Degreaser Concentrated GLOBAL PROCUREMENT SOLUTIONS GLOBAL PROCUREMENT SOLUTIONS
