�ݺ�ߣ

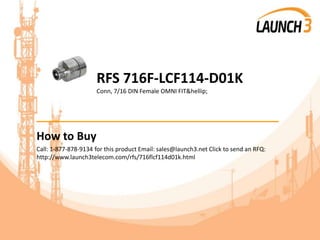

RFS 716F-LCF114-D01K
Conn, 7/16 DIN Female OMNI FIT…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/rfs/716flcf114d01k.html

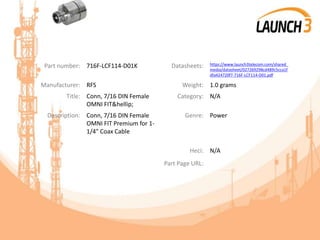

Part number: 716F-LCF114-D01K Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/027269298cd489c5cca1f
dfa424720f7-716F-LCF114-D01.pdf
Manufacturer: RFS Weight: 1.0 grams
Title: Conn, 7/16 DIN Female
OMNI FIT…
Category: N/A
Description: Conn, 7/16 DIN Female
OMNI FIT Premium for 1-
1/4" Coax Cable
Genre: Power
Heci: N/A
Part Page URL:

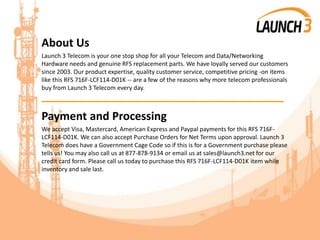

About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine RFS replacement parts. We have loyally served our customers
since 2003. Our product expertise, quality customer service, competitive pricing -on items
like this RFS 716F-LCF114-D01K -- are a few of the reasons why more telecom professionals
buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this RFS 716F-
LCF114-D01K. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this RFS 716F-LCF114-D01K item while
inventory and sale last.

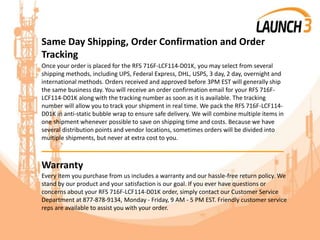

Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the RFS 716F-LCF114-D01K, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your RFS 716F-
LCF114-D01K along with the tracking number as soon as it is available. The tracking
number will allow you to track your shipment in real time. We pack the RFS 716F-LCF114-
D01K in anti-static bubble wrap to ensure safe delivery. We will combine multiple items in
one shipment whenever possible to save on shipping time and costs. Because we have
several distribution points and vendor locations, sometimes orders will be divided into
multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your RFS 716F-LCF114-D01K order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

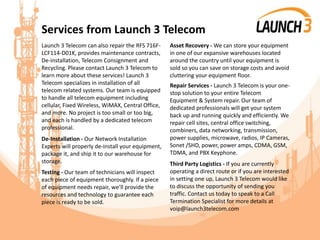

Services from Launch 3 Telecom
Launch 3 Telecom can also repair the RFS 716F-
LCF114-D01K, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

Product Data Sheet 716F-LCF114-D01 7-16 DIN Female Connector for 1-1/4" Coaxial Cable, OMNI FIT™ Premium, Straight, O-Ring and
compression sealing Product Description OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and
CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying
and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. Sealing
against outer conductor and jacket by means of O-Ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly
locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket. OMNI FIT™ Premium Connectors
Features/Benefits • • • • • • • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction Two-piece design
i.e. visual inspection of interlocking leads to improved installation security OMNI FIT™ concept i.e. streamlined order management and
reduced stock level Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during
operation Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances Multi-
thread (Tristart) design i.e. simplified and accelerated tightening process RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global
basis All information contained in the present datasheet is subject to confirmation at time of ordering Technical Specifications Transmission
Line Type Cable Size Cable Type Connector Interface Nominal Impedance, ohms Connector Type Sealing Method Gender Plating Outer/Inner
Length, mm (in) Outer Diameter, mm (in) Weight, kg (lb) Inner Contact Attachment Outer Contact Attachment 3rd Order IM Product @ 2x20
Watts, dBc Maximum Frequency, GHz VSWR (Return Loss, dB) Poly Hook Spanner, mm (in) Trimming Tool Waterproof Level Coaxial Cable 1-
1/4" Foam Dielectric 7-16 DIN 50 OMNI FIT™ PREMIUM Straight O-Ring + 360° Compression Female NiTin/Silver 71.95 (2.83) 49.5 (1.95) 0.32
(0.71) Spring Finger 360° clamping -163 ; typical -167 3.6 0 < f = 1.0 GHz: 1.020 (40.0) 1.0 < f = 2.2 GHz: 1.040 (34.1) 2.2 < f = 2.7 GHz: 1.060 (30.7)
2.7 < f = 3.7 GHz: 1.080 (28.3) PHS 60-90-5 Ø 60-90 (2.3-3.5) Pin 5 (0.2) TRIM-SET-L114-D01 TRIM-LCF114-D01-A IP68 Notes Other
Documentation Installation Instruction: 2800087-D.pdf RFS The Clear Choice ® Please visit us on the internet at http://www.rfsworld.com/
716F-LCF114-D01 Rev: C / 10.Jan.2014 Print Date: 15.07.2015 Radio Frequency Systems _x000C_Product Data Sheet 716F-LCF114-D01 All
information contained in the present datasheet is subject to confirmation at time of ordering 7-16 DIN Female Connector for 1-1/4" Coaxial
Cable, OMNI FIT™ Premium, Straight, O-Ring and compression sealing RFS The Clear Choice ® Please visit us on the internet at
http://www.rfsworld.com/ 716F-LCF114-D01 Rev: C / 10.Jan.2014 Print Date: 15.07.2015 Radio Frequency Systems _x000C_

�ݺ�ߣ

RFS 716F-LCF114-D01K

More Related Content

What's hot (20)

Similar to RFS 716F-LCF114-D01K (20)

RFS 716F-LCF114-D01K
