This document summarizes the specifications of the Samsung SCO-2080R high resolution black IR LED camera. It can operate in complete darkness down to 0 Lux using its built-in IR LEDs. Key features include 600TV line resolution, 3.6x manual zoom lens, IP66 weatherproof rating, and 50 meter IR range. It connects using coaxial cable and has options for wall or pole mounting.
Sco 2080 r
- 1. No Fear of the Dark Ultra Low Light Levels of 0 Lux! High Resolution Built-in Varifocal Lens Black IR LED Camera SCO-2080R • High resolution IR camera with high resolution of 600TV lines • Equipped with high performance black IR LED, 50-meter monitoring range • Dustproof and waterproof (IP66) • Twin glass • OSD menu access via coaxial telemetry 04-2010 www.samsungsecurity.com

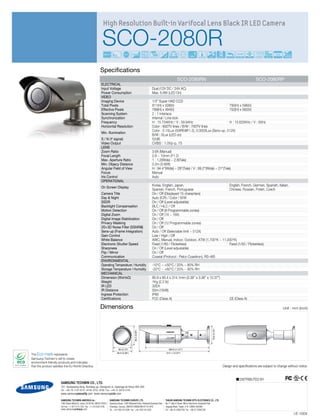

- 2. High Resolution Built-in Varifocal Lens Black IR LED Camera SCO-2080R 52dB 0 3.6X IR LED Digital Image Stabilization IR MODE COAX Specifications SCO-2080RN SCO-2080RP ELECTRICAL Input Voltage Dual (12V DC / 24V AC) Power Consumption Max. 6.8W (LED On) VIDEO Imaging Device 1/3” Super HAD CCD Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Scanning System 2 : 1 Interlace Synchronization Internal / Line lock Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz Horizontal Resolution Color : 600TV lines / B/W : 700TV lines Color : 0.15Lux (50IRE@F1.2), 0.0003Lux (Sens-up, 512X) Min. Illumination B/W : 0Lux (LED on) S / N (Y signal) 52dB Video Output CVBS : 1.0Vp-p, 75 LENS Zoom Ratio 3.6X (Manual) Focal Length 2.8 ~ 10mm (F1.2) Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele) Min. Objecy Distance 0.2m (0.66ft) Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) Focus Manual Iris Control Auto OPERATIONAL Korea, English, Japan, English, French, German, Spanish, Italian, On Screen Display Spanish, French, Portuguese Chinese, Russian, Polish, Czech Camera Title On / Off (Displayed 15 characters) Day & Night Auto (ICR) / Color / B/W SSDR On / Off (Level adjustable) Backlight Compensation BLC / HLC / Off Motion Detection On / Off (8 Programmable zones) Digital Zoom On / Off (1X ~ 16X) Digital Image Stabilization On / Off Privacy Masking On / Off (12 Programmable zones) 2D+3D Noise Filter (SSNRIII) On / Off Sens-up (Frame Integration) Auto / Off (Selectable limit ~ 512X) Gain Control Low / High / Off White Balance AWC, Manual, Indoor, Outdoor, ATW (1,700°K ~ 11,000°K) Electronic Shutter Speed Fixed (1/60 / Flickerless) Fixed (1/50 / Flickerless) Sharpness On / Off (Level adjustable) Flip / Mirror On / Off Communication Coaxial (Protocol : Pelco Coaxitron), RS-485 ENVIRONMENTAL Operating Temperature / Humidity -10°C ~ +50°C / 20% ~ 80% RH Storage Temperature / Humidity -20°C ~ +60°C / 20% ~ 95% RH MECHANICAL Dimension (WxHxD) 85.9 x 85.4 x 314.1mm (3.38” x 3.36” x 12.37”) Weight 1Kg (2.2 lb) IR LED 32EA IR Distance 50m (164ft) Ingress Protection IP66 Certifications FCC (Class A) CE (Class A) Dimensions Unit : mm (inch) 79.9 (3.15") 85.4 (3.36") www.samsungsecurity.com 80 (3.15") 284.8 (11.21") 85.9 (3.38") 314.1 (12.37") The Eco mark represents Samsung Techwin’s will to create environment-friendly products,and indicates that the product satisfies the EU RoHS Directive. Design and specifications are subject to change without notice. DISTRIBUTED BY SAMSUNG TECHWIN CO., LTD. 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400 Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745 www.samsungsecurity.com www.samsungcctv.com SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD. 1480 Charles Willard St, Carson, CA 90746, UNITED STATES Samsung House, 1000 Hillswood Drive, Hillswood Business Park No.11 Wei 6 Street. Micro-Electronic Industrial Park Tol Free : +1-877-213-1222 Fax : +1-310-632-2195 Chertsey, Surrey, UNITED KINGDOM KT16 OPS Jingang Road, Tianjin, P.R. CHINA 300385 www.samsungcctvusa.com Tel : +44-1932-45-5300 Fax : +44-1932-45-5325 Tel : +86-22-23887788 Fax : +86-22-23887788 I.E-1004
