2
RBS54273

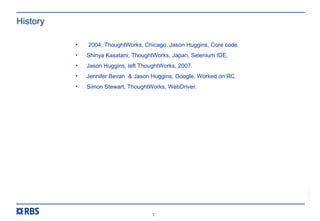

History
• 2004, ThoughtWorks, Chicago, Jason Huggins, Core code.
• Shinya Kasatani, ThoughtWorks, Japan, Selenium IDE.
• Jason Huggins, left ThoughtWorks, 2007.
• Jennifer Bevan & Jason Huggins, Google, Worked on RC.
• Simon Stewart, ThoughtWorks, WebDriver.

3
RBS54273

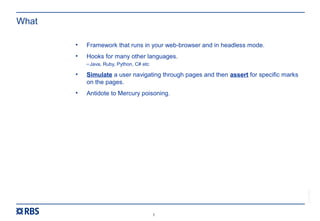

What
• Framework that runs in your web-browser and in headless mode.
• Hooks for many other languages.
–Java, Ruby, Python, C# etc
• Simulate a user navigating through pages and then assert for specific marks
on the pages.
• Antidote to Mercury poisoning.

4
RBS54273

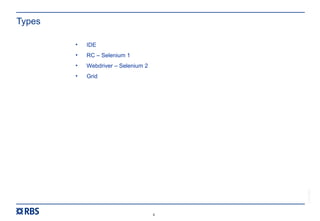

Types

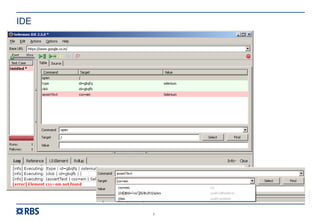

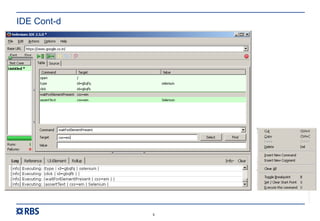

• IDE

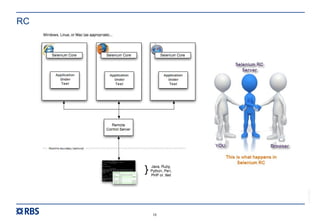

• RC – Selenium 1
• Webdriver – Selenium 2

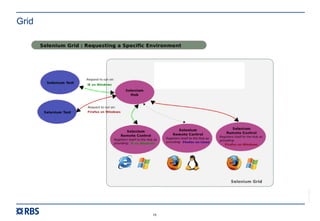

• Grid

5
RBS54273

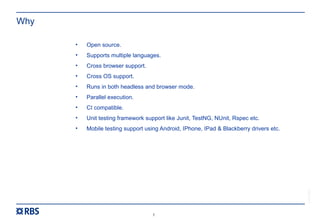

Why
• Open source.
• Supports multiple languages.
• Cross browser support.
• Cross OS support.
• Runs in both headless and browser mode.
• Parallel execution.
• CI compatible.
• Unit testing framework support like Junit, TestNG, NUnit, Rspec etc.
• Mobile testing support using Android, IPhone, IPad & Blackberry drivers etc.

6
RBS54273

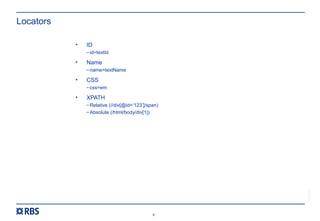

Locators
• ID
–id=textId
• Name
–name=textName
• CSS
–css=em
• XPATH
–Relative (//div[@id=‘123’]/span)
–Absolute (/html/body/div[1])

13
RBS54273
RC Vs WebDriver Cont-d

14
RBS54273

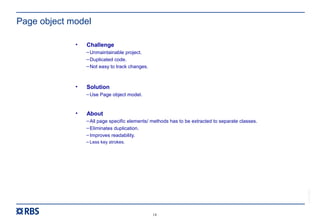

Page object model
• Challenge
–Unmaintainable project.
–Duplicated code.
–Not easy to track changes.
• Solution
–Use Page object model.
• About
–All page specific elements/ methods has to be extracted to separate classes.
–Eliminates duplication.
–Improves readability.
– Less key strokes.

15
RBS54273

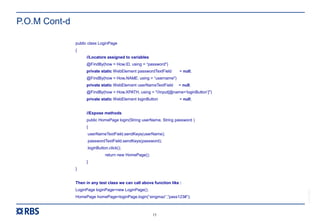

P.O.M Cont-d
public class LoginPage
{
//Locators assigned to variables
@FindBy(how = How.ID, using = “password")
private static WebElement passwordTextField = null;
@FindBy(how = How.NAME, using = “username")
private static WebElement userNameTextField = null;
@FindBy(how = How.XPATH, using = "//input[@name=‘loginButton’]")
private static WebElement loginButton = null;
//Expose methods
public HomePage login(String userName, String password )
{
userNameTextField.sendKeys(userName);
passwordTextField.sendKeys(password);
loginButton.click();
return new HomePage();
}
}
Then in any test class we can call above function like :
LoginPage loginPage=new LoginPage();
HomePage homePage=loginPage.login(“singmaz”,”pass123#”);

18
RBS54273

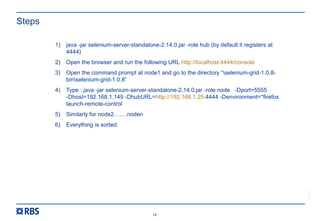

Steps
1) java -jar selenium-server-standalone-2.14.0.jar -role hub (by default it registers at
4444)

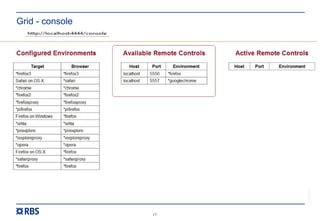

2) Open the browser and run the following URL http://localhost:4444/console
3) Open the command prompt at node1 and go to the directory “selenium-grid-1.0.8-
binselenium-grid-1.0.8”
4) Type : java -jar selenium-server-standalone-2.14.0.jar -role node -Dport=5555
-Dhost=192.168.1.149 -DhubURL=http://192.168.1.25:4444 -Denvironment=*firefox
launch-remote-control
5) Similarly for node2…….noden
6) Everything is sorted.
