Short intro to project butter

1 like2,410 views

Project Butter aims to improve smoothness (UX) in Android through techniques like VSync, triple buffering, and the Choreographer. VSync synchronizes rendering to a display's refresh rate. Triple buffering uses three buffers to minimize tearing. The Choreographer coordinates animations, input and drawing, and notifies of VSync signals, allowing apps to optimize for smoothness. However, it only works within an app rather than system-wide.

Software

Most read

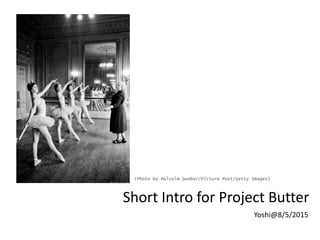

Short Intro for Project Butter
Yoshi@8/5/2015
(Photo by Malcolm Dunbar/Picture Post/Getty Images)

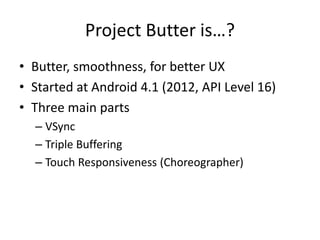

Project Butter is…?
• Butter, smoothness, for better UX
• Started at Android 4.1 (2012, API Level 16)
• Three main parts
– VSync
– Triple Buffering
– Touch Responsiveness (Choreographer)

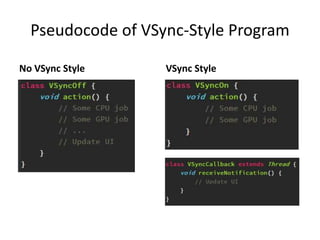

Pseudocode of VSync-Style Program
No VSync Style VSync Style

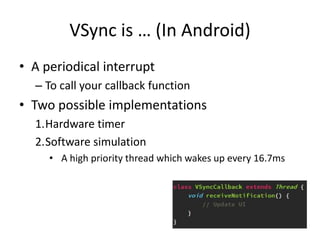

VSync is … (In Android)
• A periodical interrupt
– To call your callback function
• Two possible implementations
1.Hardware timer
2.Software simulation
• A high priority thread which wakes up every 16.7ms

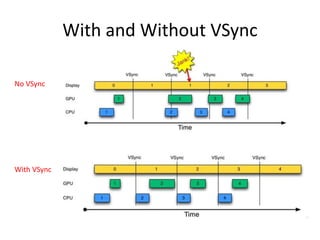

With and Without VSync
No VSync
With VSync

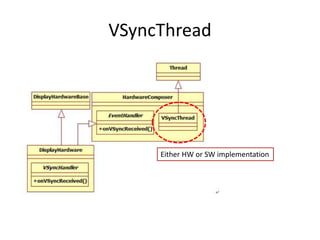

VSyncThread
Either HW or SW implementation

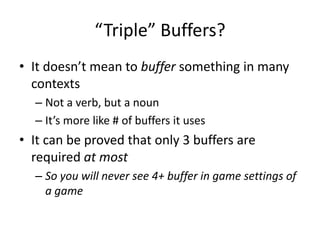

“Triple” Buffers?
• It doesn’t mean to buffer something in many
contexts
– Not a verb, but a noun
– It’s more like # of buffers it uses
• It can be proved that only 3 buffers are
required at most
– So you will never see 4+ buffer in game settings of
a game

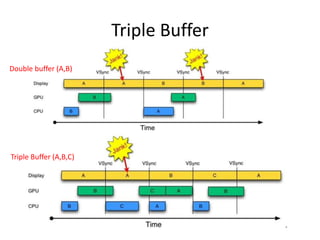

Triple Buffer
Double buffer (A,B)
Triple Buffer (A,B,C)

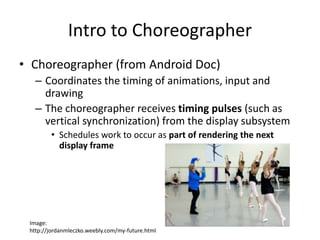

Intro to Choreographer
• Choreographer (from Android Doc)
– Coordinates the timing of animations, input and
drawing
– The choreographer receives timing pulses (such as
vertical synchronization) from the display subsystem
• Schedules work to occur as part of rendering the next
display frame
Image:
http://jordanmleczko.weebly.com/my-future.html

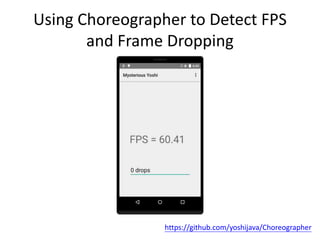

Using Choreographer to Detect FPS
and Frame Dropping
https://github.com/yoshijava/Choreographer

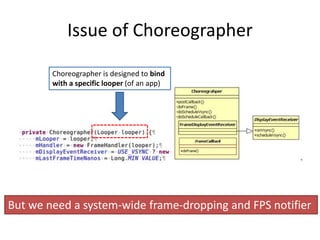

Issue of Choreographer
Choreographer is designed to bind
with a specific looper (of an app)
But we need a system-wide frame-dropping and FPS notifier

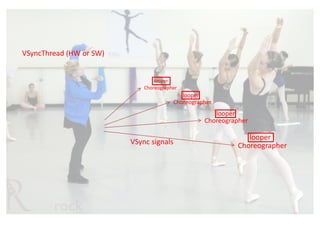

Choreographer
VSyncThread (HW or SW)
VSync signals
looper
looper
looper
looper
Choreographer
Choreographer
Choreographer

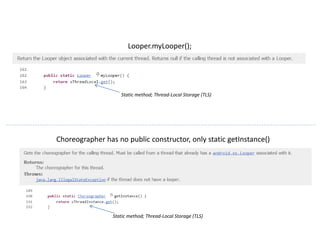

Looper.myLooper();
Static method; Thread-Local Storage (TLS)
Choreographer has no public constructor, only static getInstance()
Static method; Thread-Local Storage (TLS)

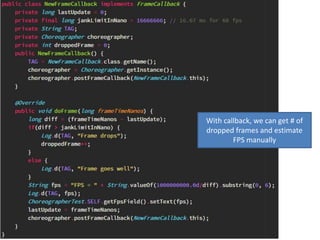

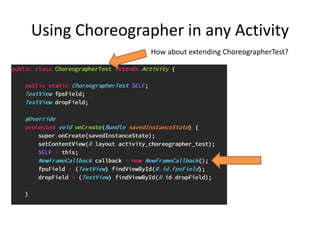

Using Choreographer in any Activity
How about extending ChoreographerTest?

With callback, we can get # of
dropped frames and estimate
FPS manually

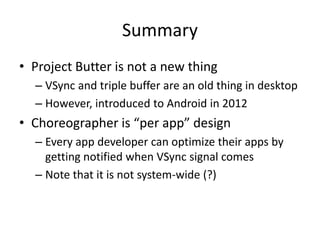

Summary
• Project Butter is not a new thing
– VSync and triple buffer are an old thing in desktop
– However, introduced to Android in 2012
• Choreographer is “per app” design
– Every app developer can optimize their apps by
getting notified when VSync signal comes
– Note that it is not system-wide (?)
