This document provides specifications for the ShurFlo Model 9325-043-101, a 24VDC submersible pump for transporting potable water. It includes a flow chart that shows the pump's flow rate in gallons and liters per hour at various total vertical lift heights from 20 to 230 feet, along with the minimum required wattage of the solar array and current in amps needed to power the pump at each height.
Shur flo model 9325 copy

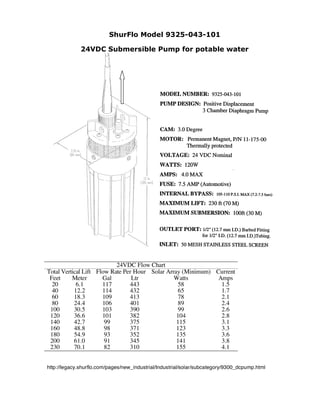

- 1. ShurFlo Model 9325-043-101 24VDC Submersible Pump for potable water 24VDC Flow Chart Total Vertical Lift Flow Rate Per Hour Solar Array (Minimum) Current Feet Meter Gal Ltr Watts Amps 20 6.1 117 443 58 1.5 40 12.2 114 432 65 1.7 60 18.3 109 413 78 2.1 80 24.4 106 401 89 2.4 100 30.5 103 390 99 2.6 120 36.6 101 382 104 2.8 140 42.7 99 375 115 3.1 160 48.8 98 371 123 3.3 180 54.9 93 352 135 3.6 200 61.0 91 345 141 3.8 230 70.1 82 310 155 4.1 http://legacy.shurflo.com/pages/new_industrial/Industrial/solar/subcategory/9300_dcpump.html
